Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

43 part groups · 6 illustrations

Illustrations

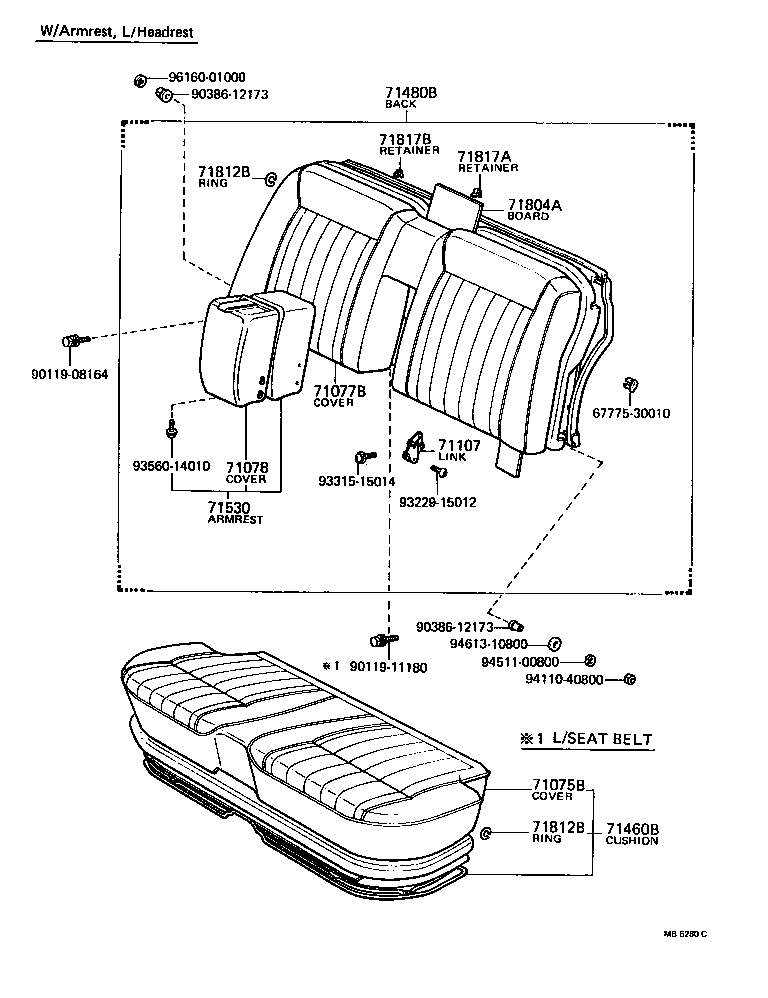

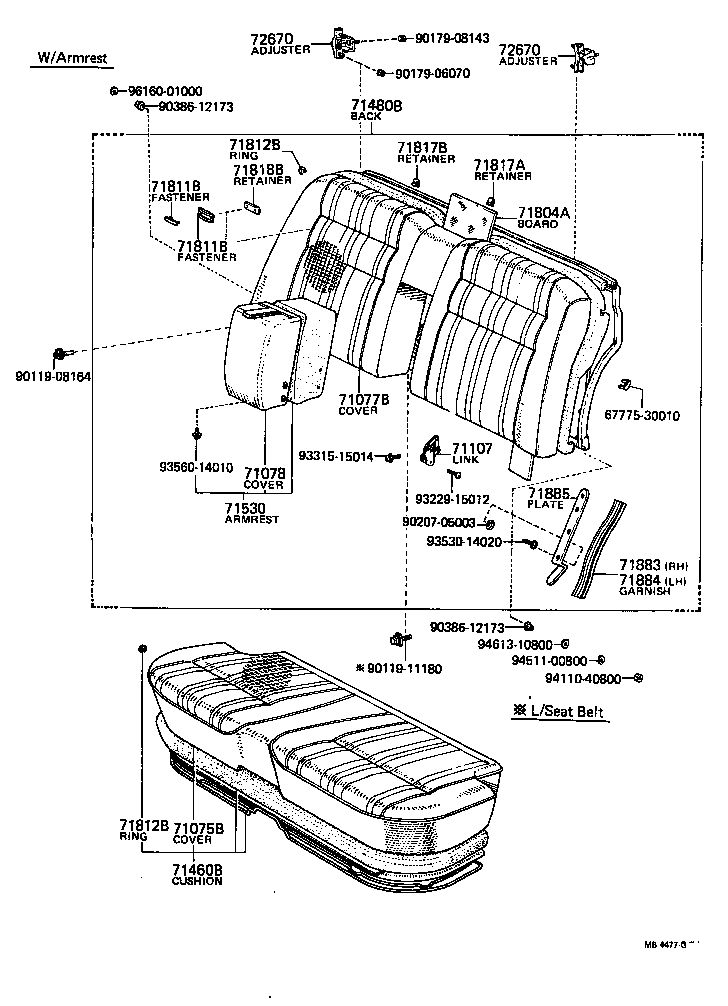

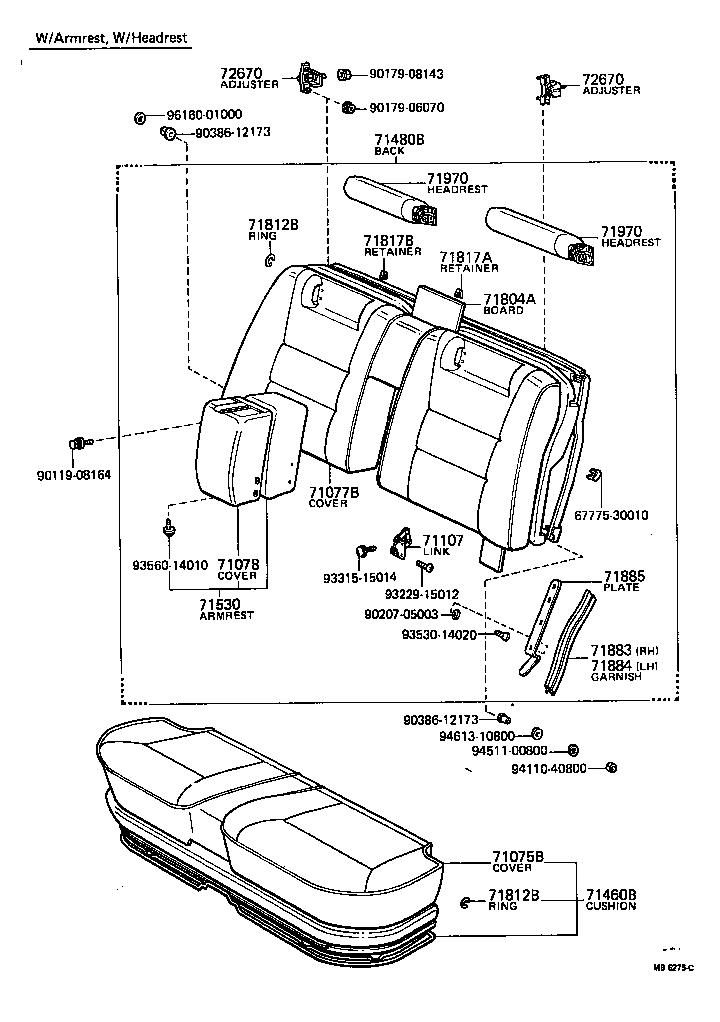

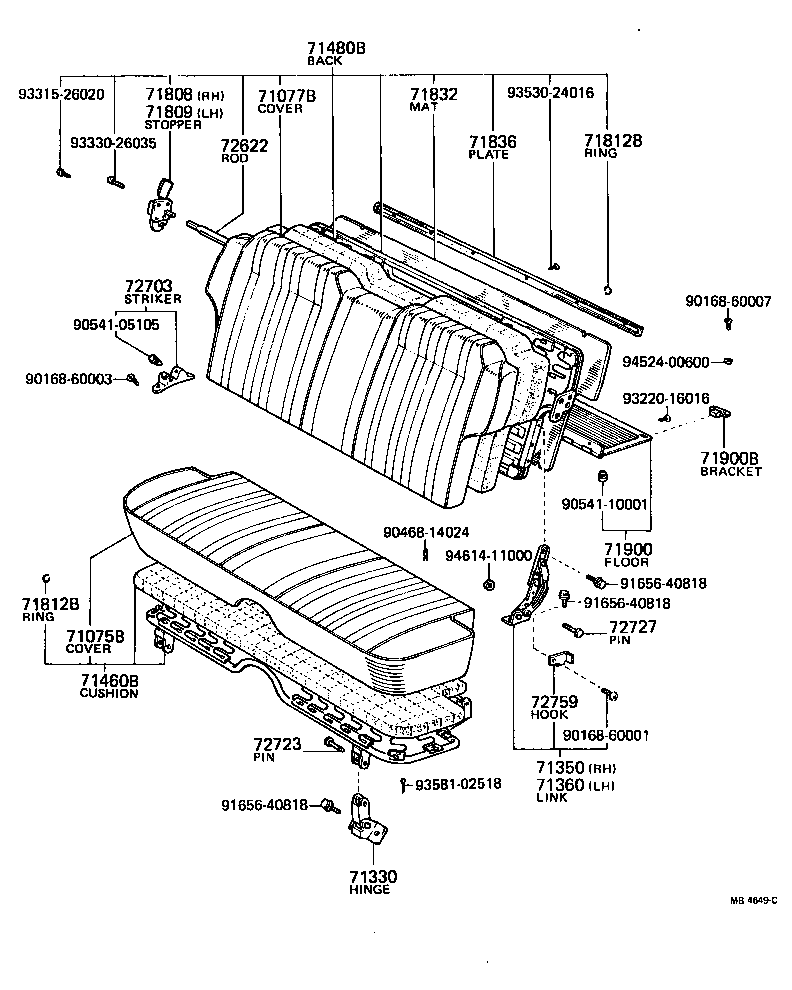

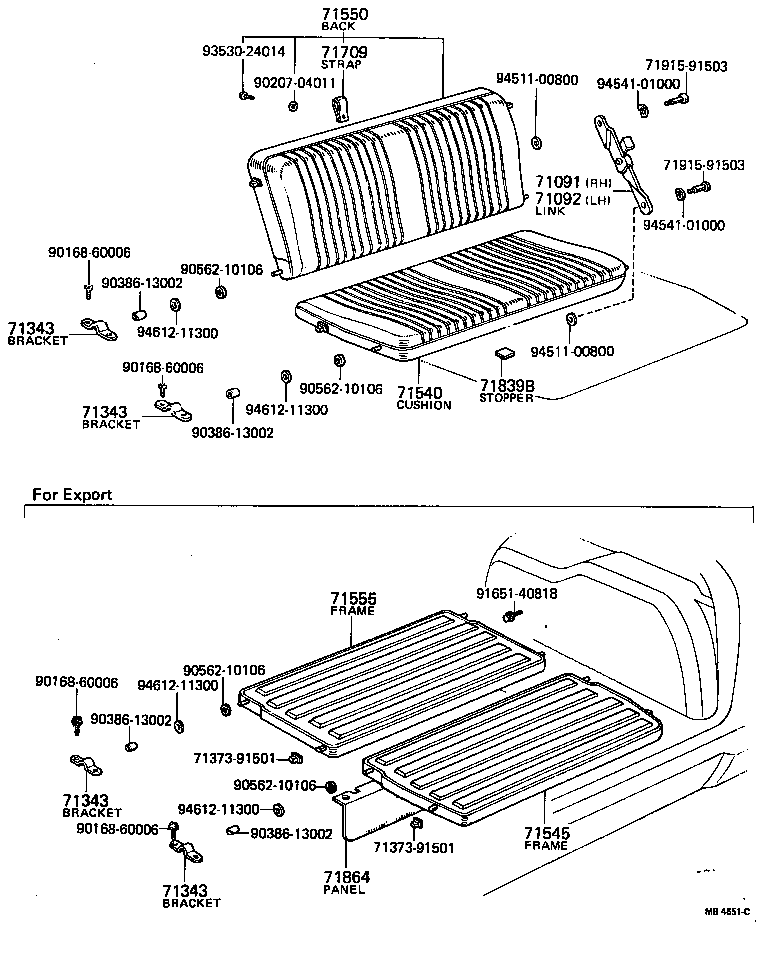

Figure MB4476D MB4476D 1974-10 → 1979-08 Figure MB4477G MB4477G 1974-10 → 1976-11 Figure MB6280C MB6280C 1976-11 → 1979-08 Figure MB6275C MB6275C 1976-11 → 1979-08 Figure MB4649C MB4649C 1975-01 → 1979-08 Figure MB4651C MB4651C 1975-01 → 1979-08

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71078 Cover Sub-assy, Rear Seat Center Armrest
71091 Link Sub-assy, 3RD Seat, RH
71092 Link Sub-assy, 3RD Seat, LH
71107 Link Sub-assy, Rear Seat Center Armrest
71330 Hinge Assy, Rear Seat Cushion
71343 Bracket, 3RD Seatback
71350 Link Assy, Rear Seatback Cushion, RH
71360 Link Assy, Rear Seatback Cushion, LH
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71530 Armrest Assy, Rear Seatback, Center
71540 Cushion Assy, 3RD Seat
71545 Frame, 3RD Seat Cushion
71550 Back Sub-assy, Side Seat
71555 Frame, 3RD Seatback
71709 Strap Sub-assy, 3RD Seatback
71804A Board Sub-assy, Rear Seat Armrest Hole
71808 Stopper Sub-assy, Rear Seatback, RH
71809 Stopper Sub-assy, Rear Seatback, LH
71811B Fastener (FOR REAR SEAT COVER)
71812B Clip(FOR REAR SEAT CUSHION COVER)
71817A Retainer, Rear Seat Armrest Hole Board
71817B Retainer, Rear Seat Armrest Cover
71818B Retainer, Rear Seat Cover Fastener
71832 Carpet OR Mat, Rear Seatback
71836 Plate, Rear Seatback Carpet OR Mat Support, Upper
71839B Stopper, 3RD Seat Cushion Rubber
71864 Panel, Deck Compartment Box Partition
71883 Garnish, Rear Seat Side, RH
71884 Garnish, Rear Seat Side, LH
71885 Plate, Rear Seat Side Garnish Edge
71900 Floor Assy, Rear Seat
71900B Bracket (FOR REAR SEAT FLOOR)
71970 Headrest Assy, Rear Seat
72430 Cable Assy, Seat Adjust Drive, NO.3
72622 Rod, Rear Seatback Stopper Connecting
72670 Adjuster Assy, Rear Seatback, Outside
72703 Striker Sub-assy, Rear Seatback Stopper
72723 Pin, Rear Seat Cushion, NO.2
72727 Pin, Rear Seat Cushion, NO.3
72759 Hook, Rear Seatback Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
