Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

14 part groups · 2 illustrations

Illustrations

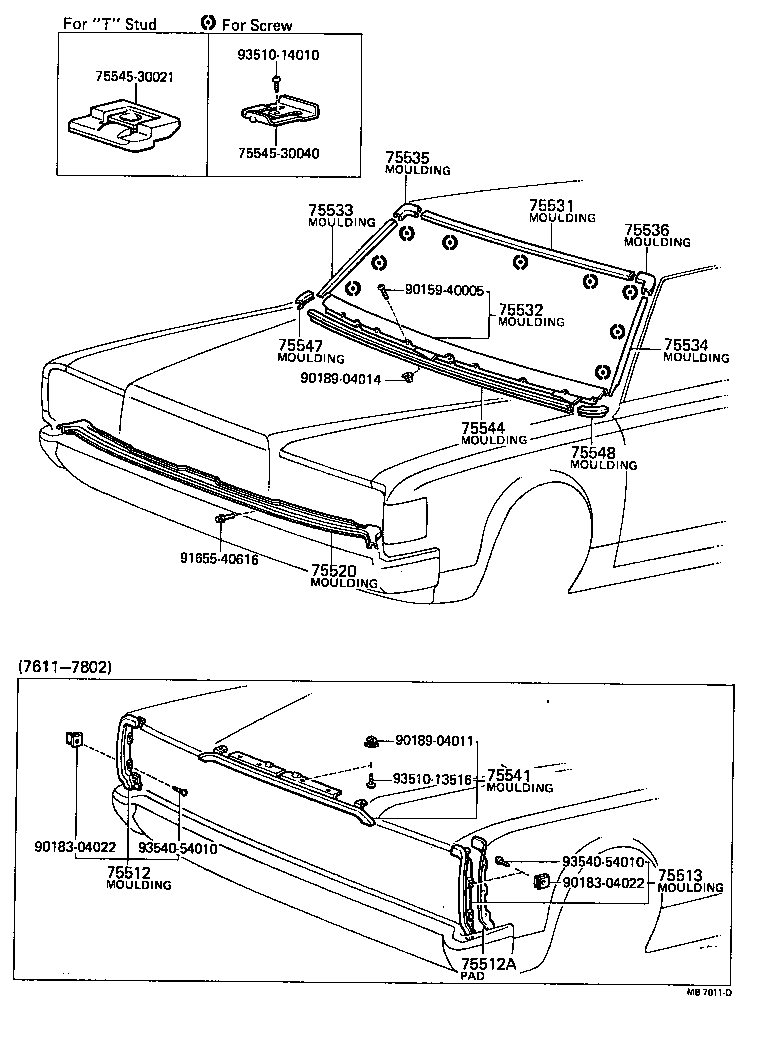

Figure MB4484D MB4484D 1974-10 → 1976-11 Figure MB7011D MB7011D 1976-11 → 1979-08

Part groups

PNCDescription
75512 Moulding, Radiator Grille Opening, RH
75512A Pad (FOR RADIATOR GRILLE OPENING MOULDING)
75513 Moulding, Radiator Grille Opening, LH
75520 Moulding Assy, Radiator Grille Opening, Lower
75531 Moulding, Windshield, Outer Upper
75532 Moulding, Windshield, Lower
75533 Moulding, Windshield, Outside RH
75534 Moulding, Windshield, Outside LH
75535 Moulding, Windshield Corner, Upper RH
75536 Moulding, Windshield Corner, Upper LH
75541 Moulding, Hood, Front
75544 Moulding, Hood, Rear
75547 Moulding, Front Fender, RH
75548 Moulding, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
