Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

45 part groups · 5 illustrations

Illustrations

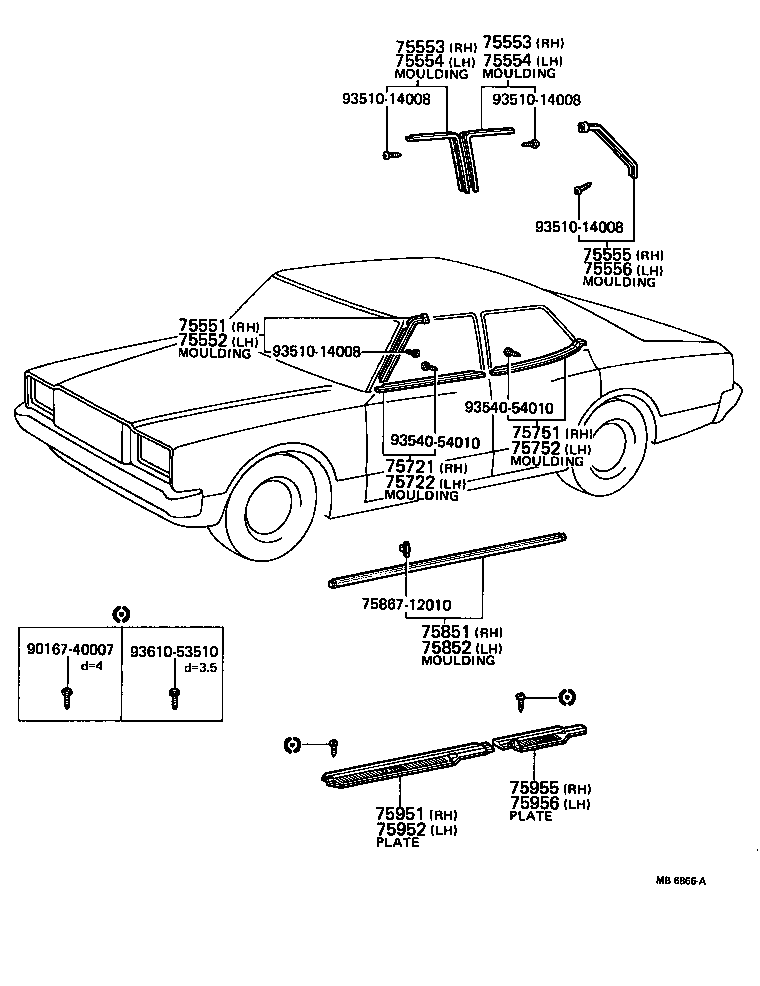

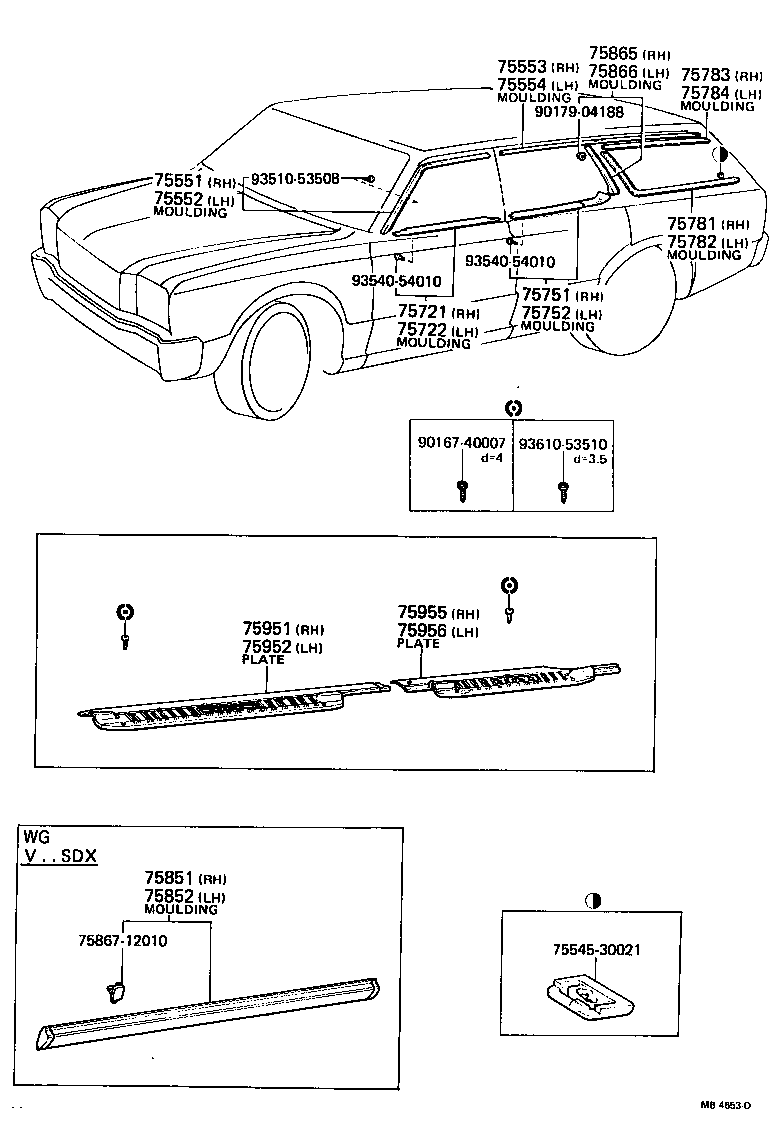

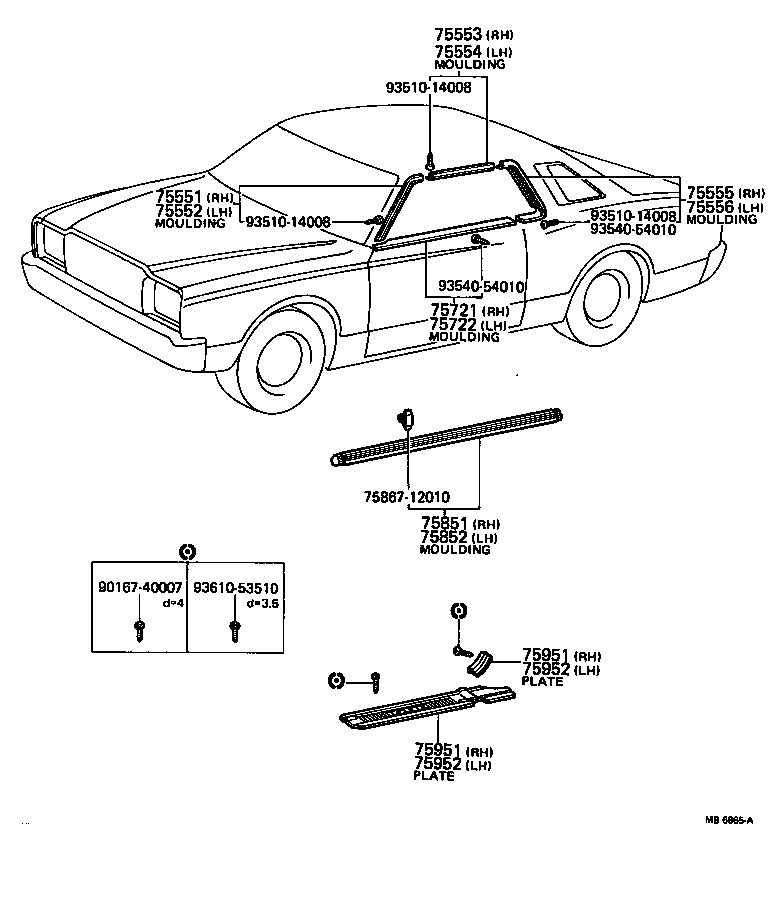

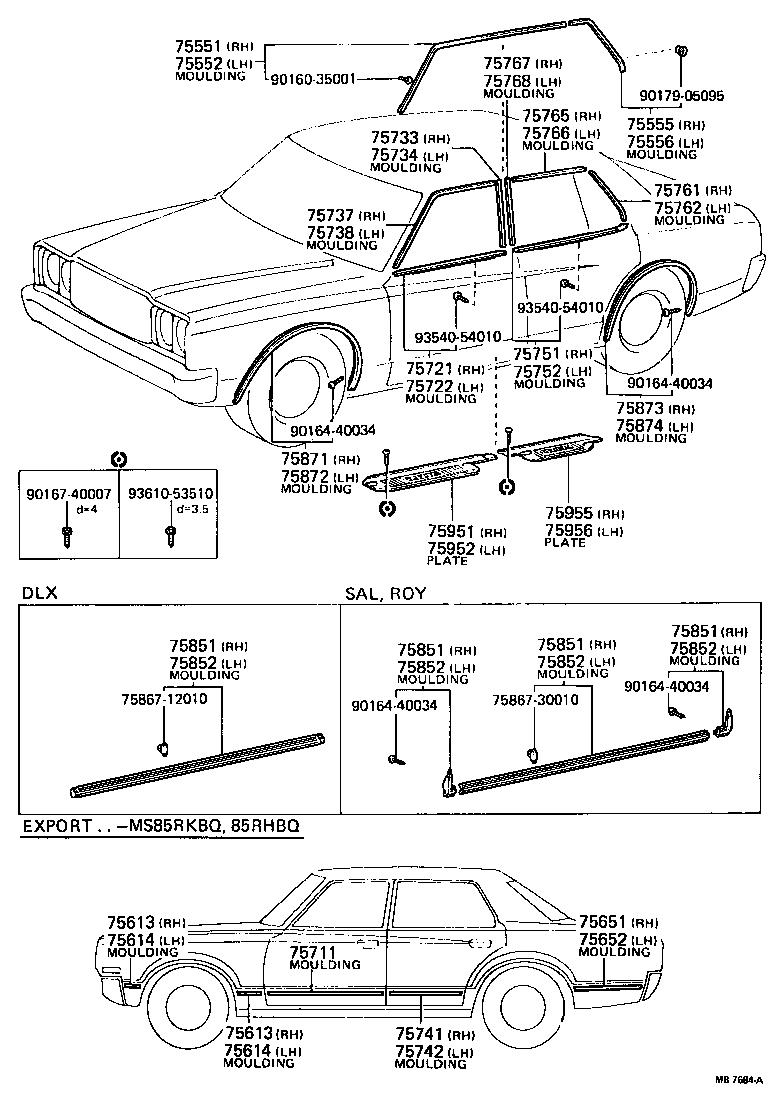

Figure MB4485B MB4485B 1974-10 → 1976-11 Figure MB7684A MB7684A 1976-11 → 1979-08 Figure MB6865A MB6865A 1974-10 → 1979-08 Figure MB6866A MB6866A 1974-12 → 1979-08 Figure MB4653D MB4653D 1975-01 → 1979-08

Part groups

PNCDescription
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75553 Moulding, Roof Drip Side Finish, RH
75554 Moulding, Roof Drip Side Finish, LH
75555 Moulding, Roof Drip Side Finish, Rear RH
75556 Moulding, Roof Drip Side Finish, Rear LH
75613 Moulding, Front Fender, Outside RH
75614 Moulding, Front Fender, Outside LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75711 Moulding, Front Door Outside, NO.1
75713 Moulding, Front Door Outside, NO.2
75721 Moulding, Front Door Belt, RH
75722 Moulding, Front Door Belt, LH
75733 Moulding, Front Door Window Frame, Rear RH
75734 Moulding, Front Door Window Frame, Rear LH
75737 Moulding, Front Door Window Frame, Front RH
75738 Moulding, Front Door Window Frame, Front LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75743 Moulding, Rear Door Outside, NO.2
75751 Moulding, Rear Door Belt, RH
75752 Moulding, Rear Door Belt, LH
75761 Moulding, Rear Door Window Frame, Rear RH
75762 Moulding, Rear Door Window Frame, Rear LH
75765 Moulding, Rear Door Window Frame, Upper RH
75766 Moulding, Rear Door Window Frame, Upper LH
75767 Moulding, Rear Door Window Frame, Front RH
75768 Moulding, Rear Door Window Frame, Front LH
75781 Moulding, Quarter Window, Lower RH
75782 Moulding, Quarter Window, Lower LH
75783 Moulding, Quarter Window, Upper RH
75784 Moulding, Quarter Window, Upper LH
75851 Moulding, Rocker Panel, RH
75852 Moulding, Rocker Panel, LH
75865 Moulding, Rear Quarter Panel, RH
75866 Moulding, Rear Quarter Panel, LH
75871 Moulding, Front Fender Wheel Opening, RH
75872 Moulding, Front Fender Wheel Opening, LH
75873 Moulding, Quarter Panel Wheel Opening, RH
75874 Moulding, Quarter Panel Wheel Opening, LH
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
75955 Plate, Rear Door Scuff, Outside RH
75956 Plate, Rear Door Scuff, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
