Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

15 part groups · 3 illustrations

Illustrations

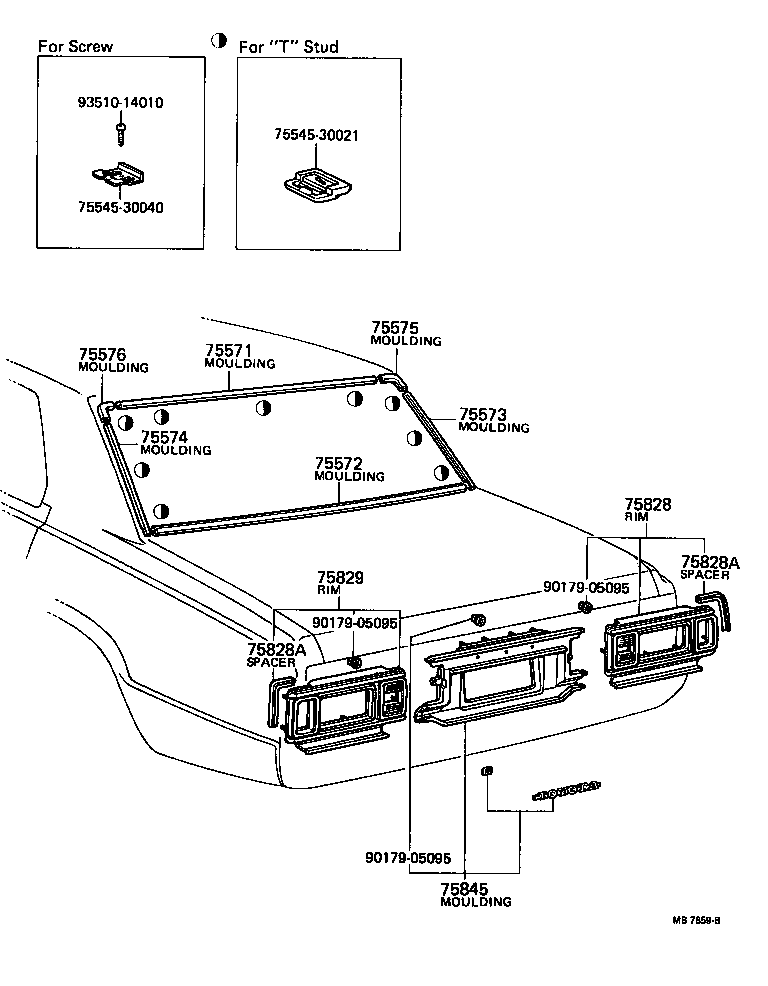

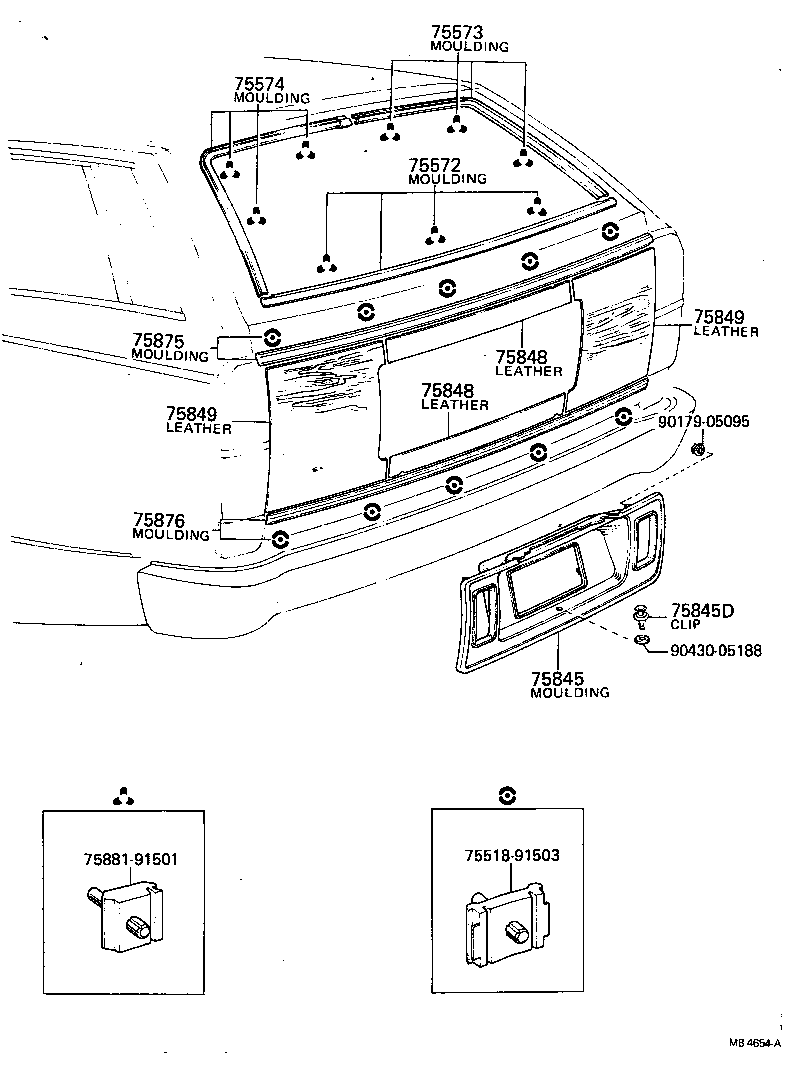

Figure MB6869B MB6869B 1974-10 → 1978-02 Figure MB7859B MB7859B 1978-02 → 1979-08 Figure MB4654A MB4654A 1975-01 → 1979-08

Part groups

PNCDescription
75571 Moulding, Back Window, Outside Upper
75572 Moulding, Back Window, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75828 Rim, Rear Combination Lamp Outer, RH
75828A Spacer, Rear Combination Lamp
75829 Rim, Rear Combination Lamp Outer, LH
75845 Moulding, Body Lower Back Panel, Center
75845D Clip(FOR BODY LOWER BACK CENTER MOULDING)
75848 Leather, Back Door Finish, NO.1
75849 Leather, Back Door Finish, NO.2
75875 Moulding, Back Door Outside, Upper
75876 Moulding, Back Door Outside, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
