Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

75 part groups · 10 illustrations

Illustrations

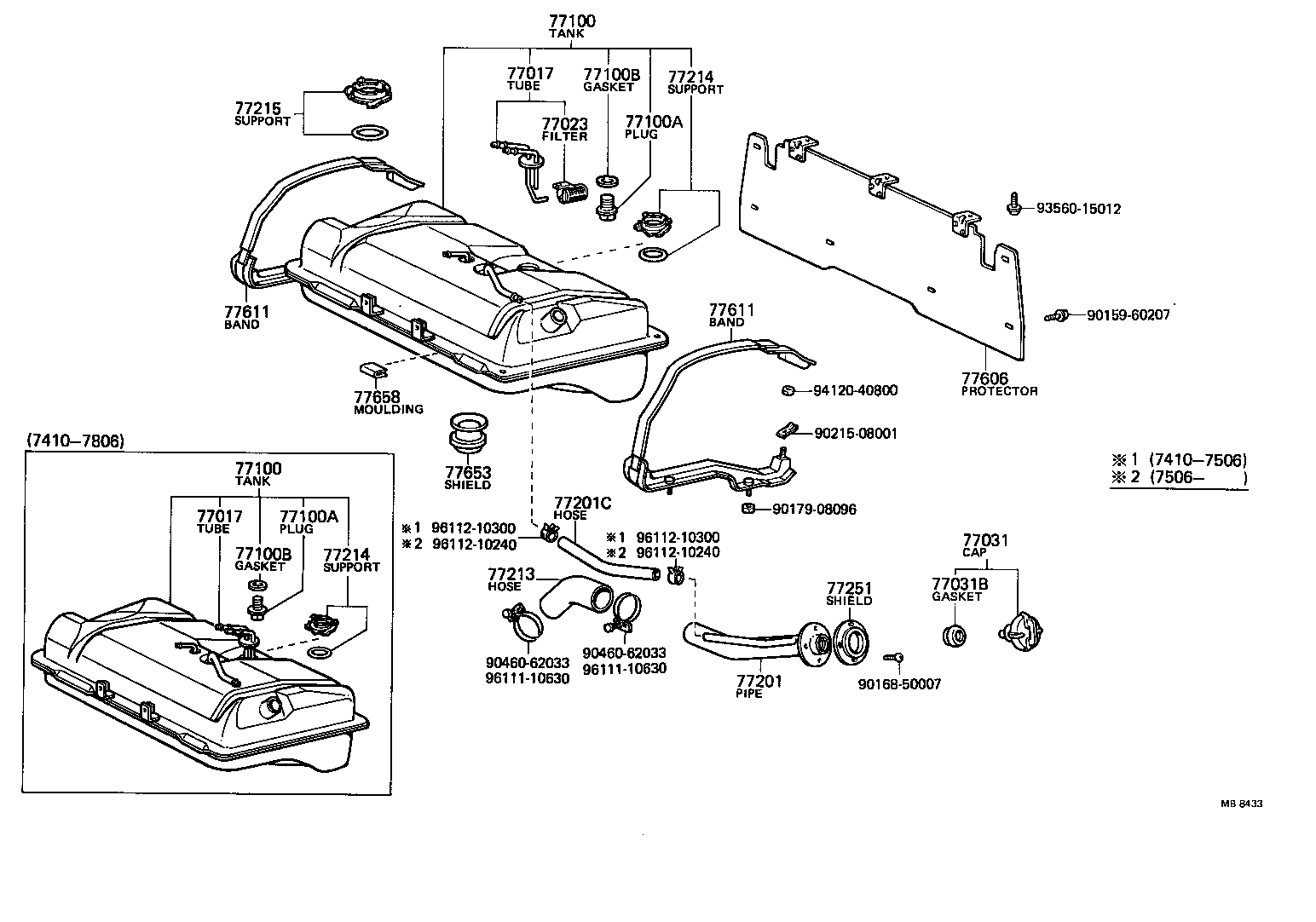

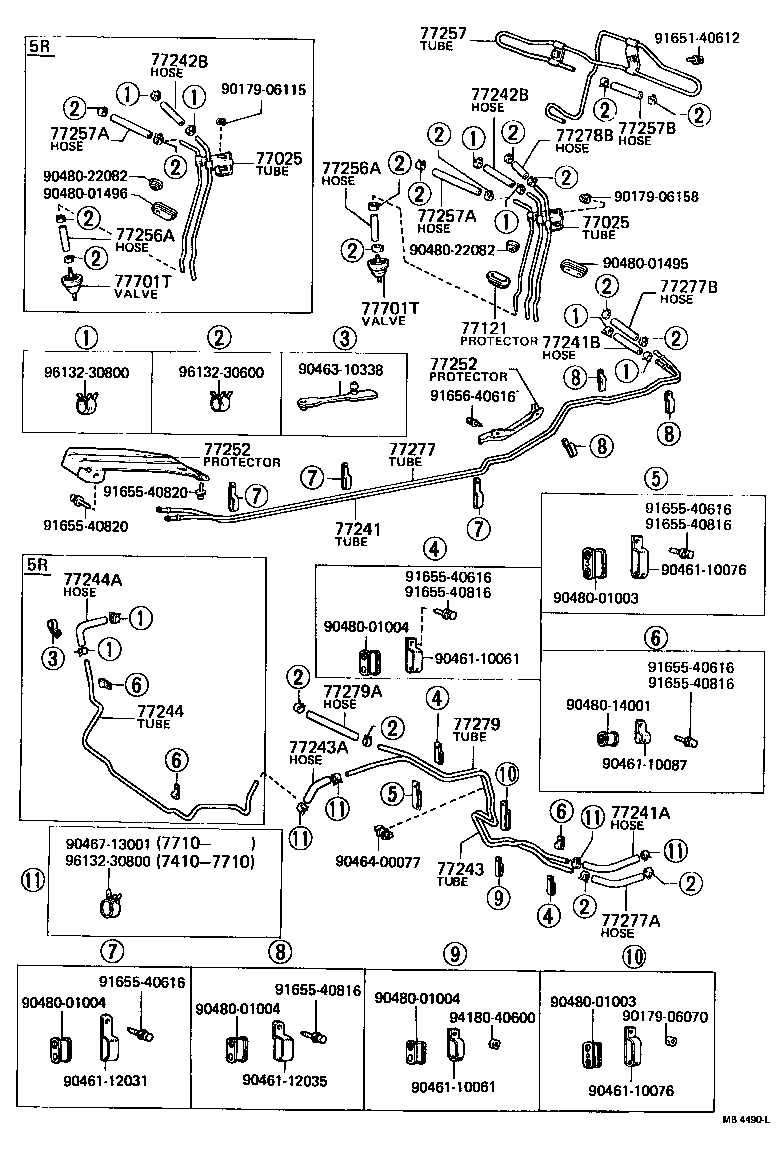

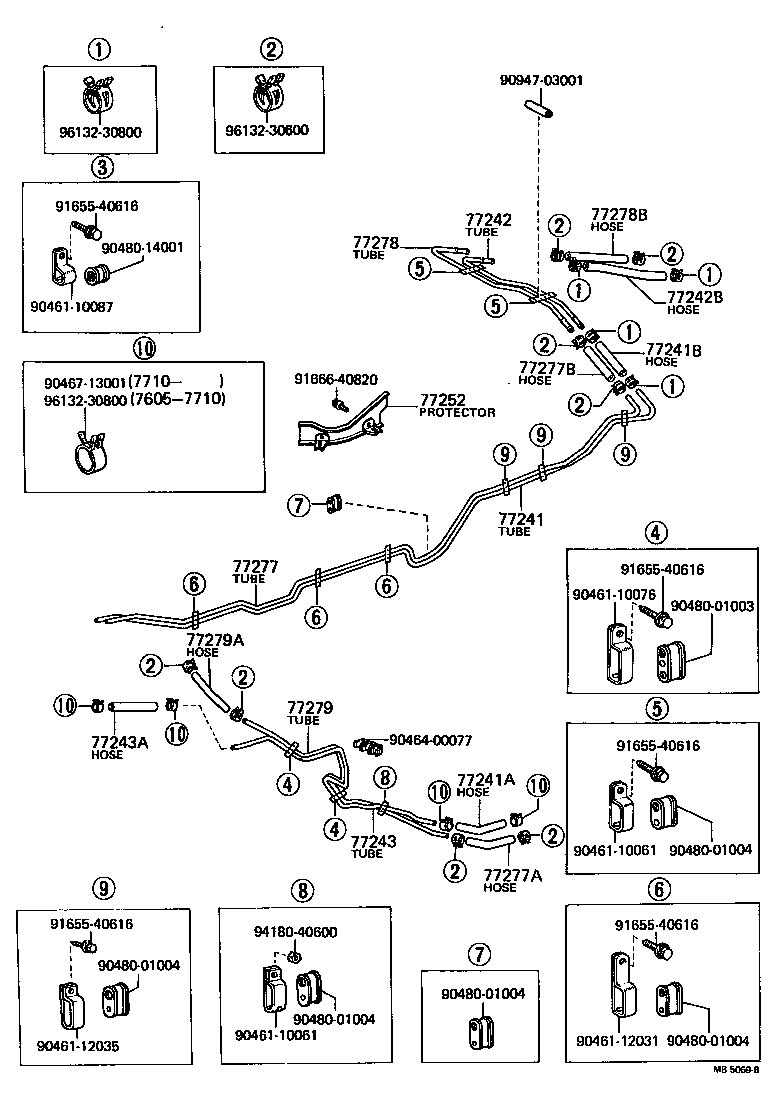

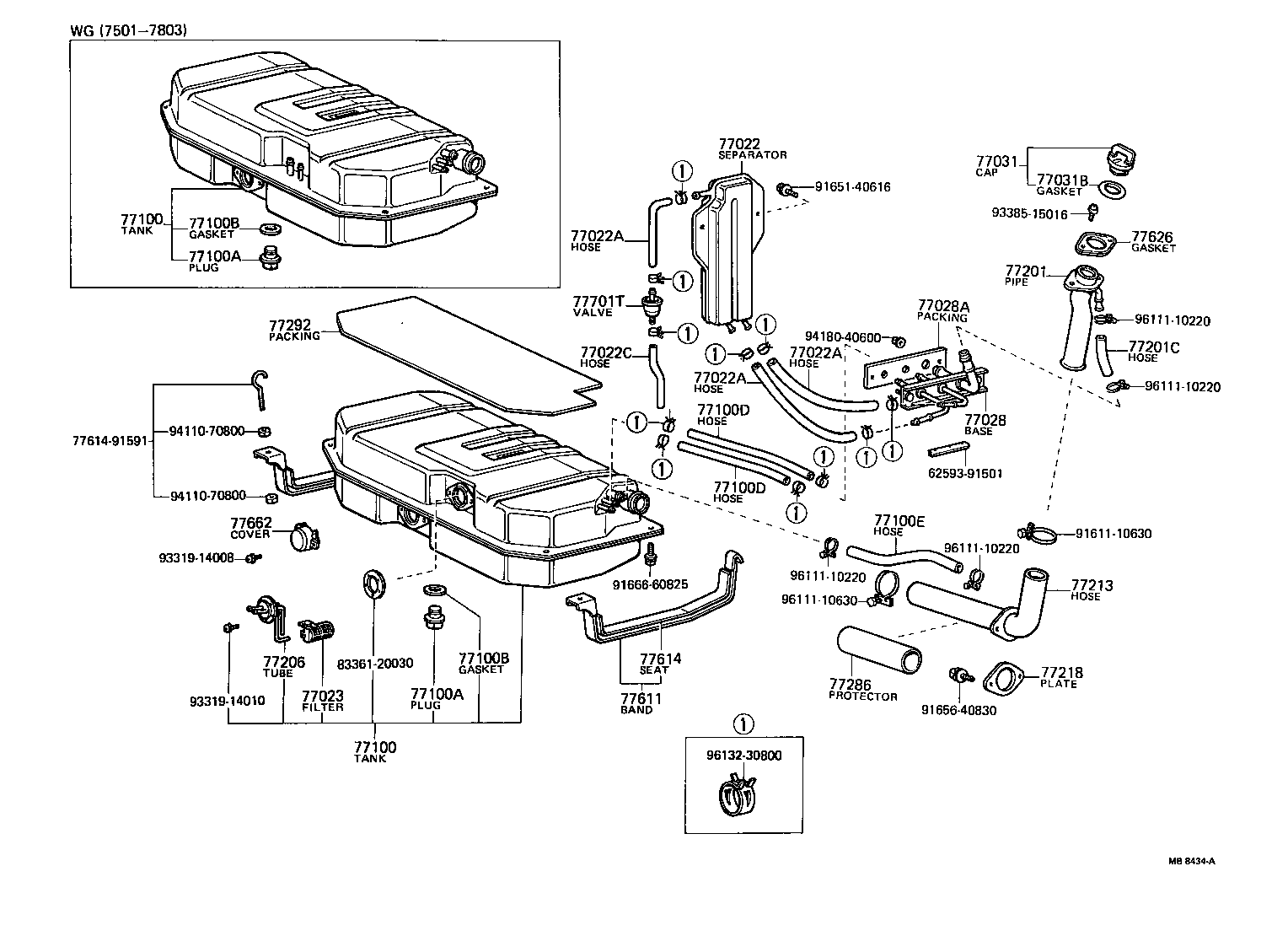

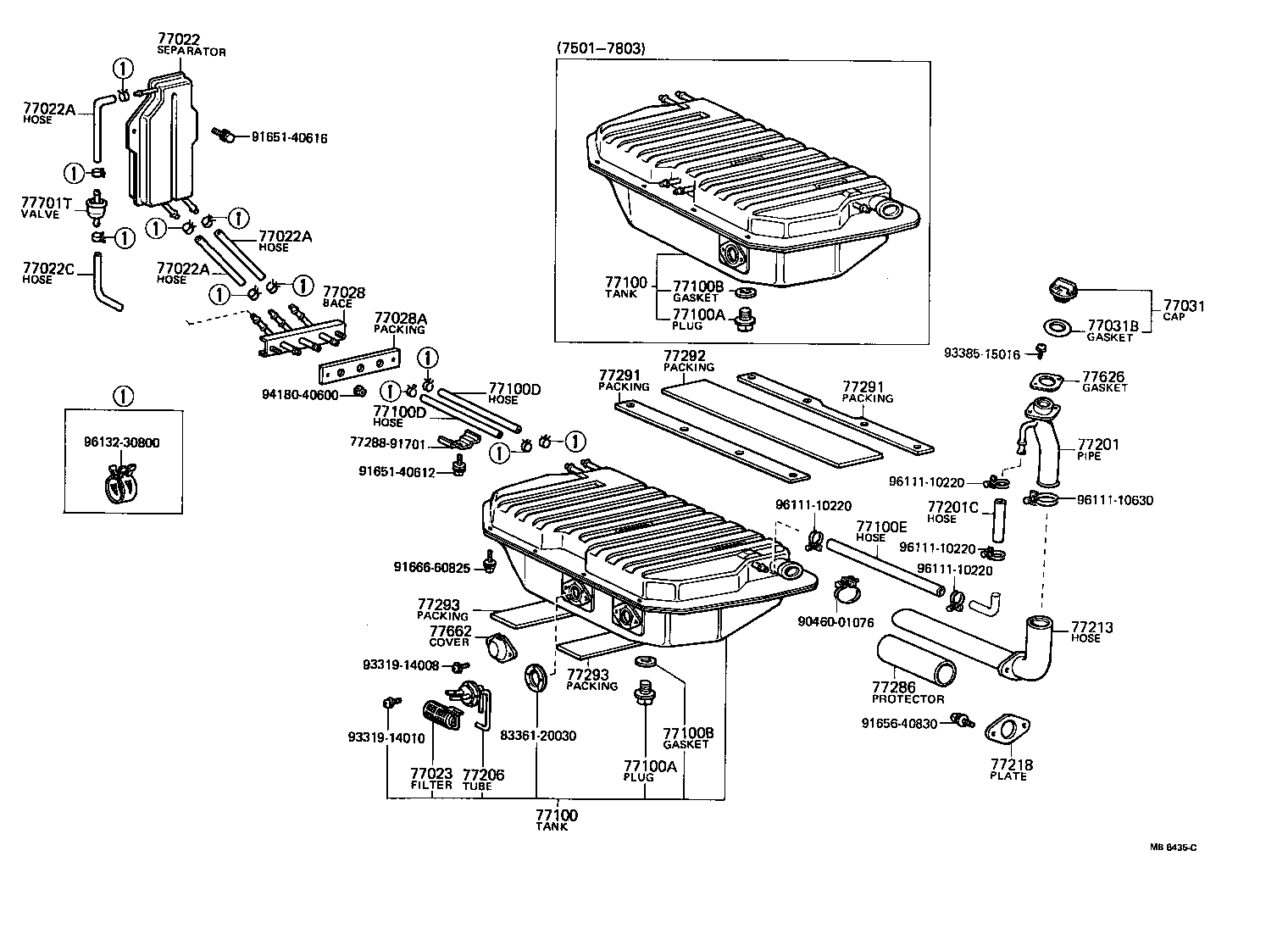

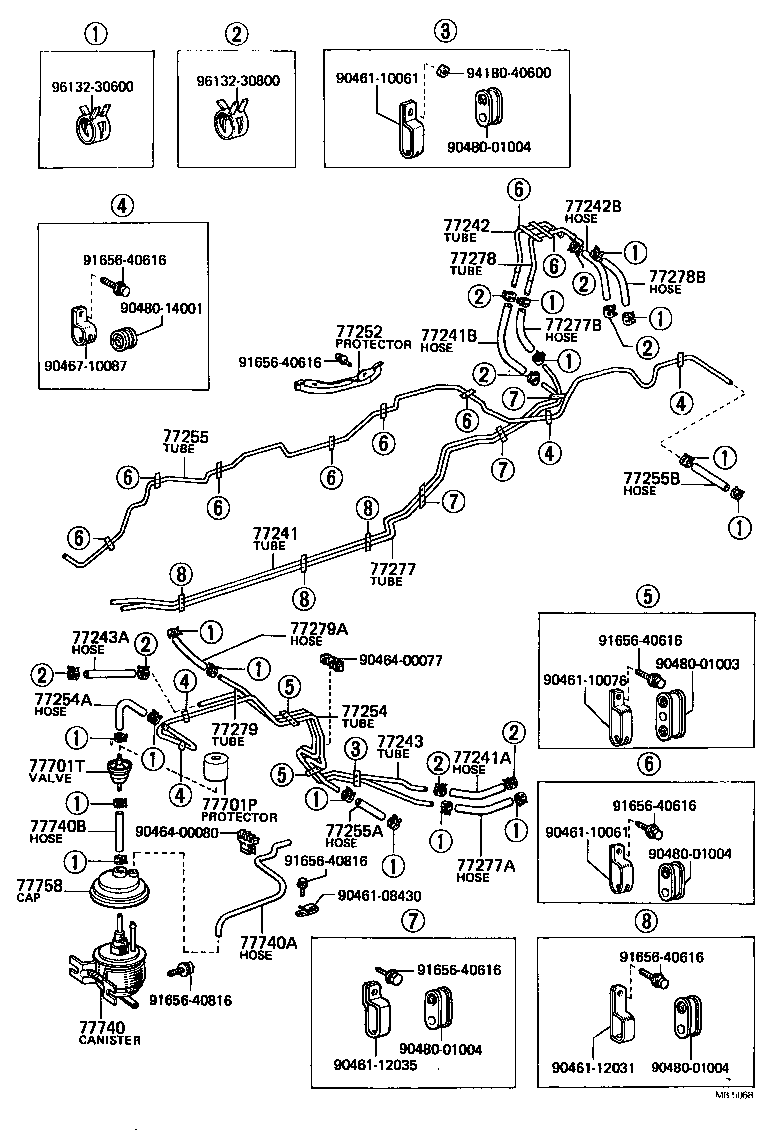

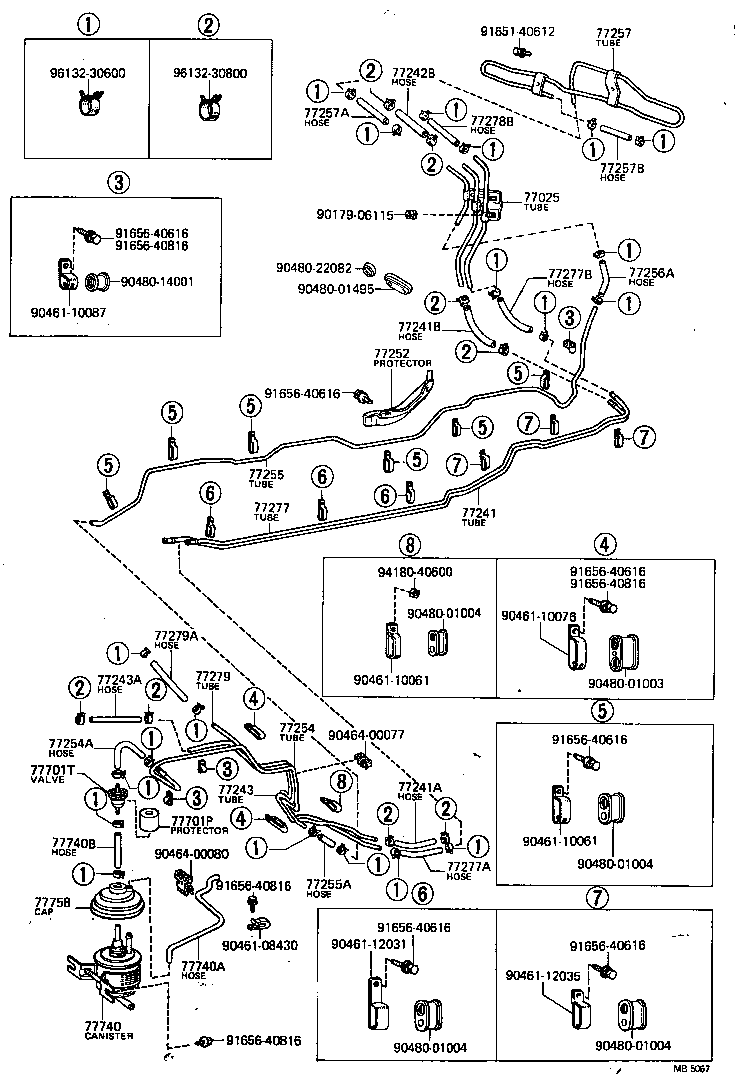

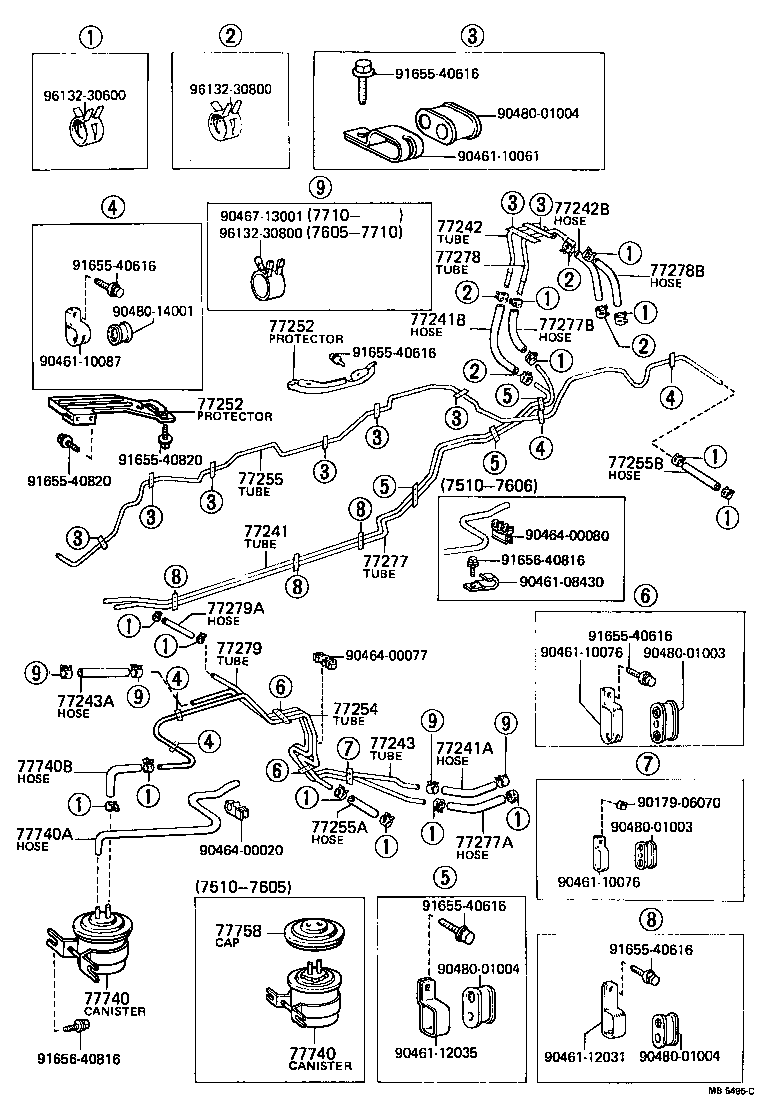

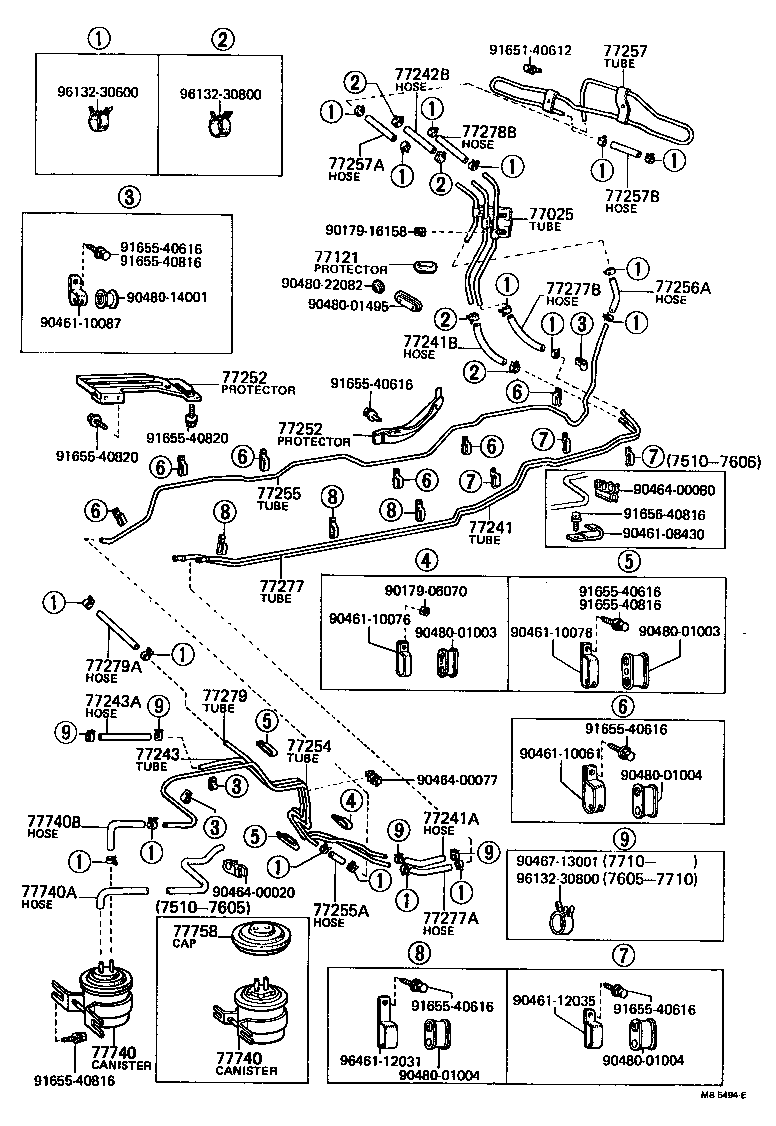

Figure MB7861A MB7861A 1974-10 → 1979-08 Figure MB8433 MB8433 1974-10 → 1979-08 Figure MB4490L MB4490L 1974-10 → 1979-08 Figure MB5067 MB5067 1974-10 → 1975-10 Figure MB5494E MB5494E 1975-10 → 1979-08 Figure MB8434A MB8434A 1975-01 → 1979-08 Figure MB5068 MB5068 1975-01 → 1975-10 Figure MB5495C MB5495C 1975-10 → 1979-08 Figure MB8435C MB8435C 1975-01 → 1979-08 Figure MB5069B MB5069B 1975-01 → 1979-08

Part groups

PNCDescription
77017 Tube Sub-assy, Fuel And Evaporation Vent
77022 Separator Sub-assy, Fuel Evaporative
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77022C Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77025 Tube Sub-assy, Fuel Main & Return, Rear
77028 Base Sub-assy, Breather Joint, NO.1
77028A Packing, NO.1 (FOR BREATHER JOINT, NO.1)
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77100E Hose, Fuel, NO.2(FOR FUEL TANK)
77121 Protector, Fuel Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77201C Hose, Fuel, NO.3(FOR FUEL TANK INLET PIPE)
77206 Tube Sub-assy, Fuel Tank Suction
77213 Hose, Fuel Tank Sub Inlet
77214 Pipe, Fuel Tank Filler
77215 Plate, Fuel Tank Filler Pipe Flange
77218 Plate, Fuel Inlet Pipe Set
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77243 Tube, Fuel Main, NO.3
77243A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
77244 Tube, Fuel Main, NO.4
77244A Hose, Fuel, N0.1 (FOR MAIN TUBE, N0.4)
77251 Shield, Fuel Tank, Inlet, NO.1
77252 Protector, Fuel Tube
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77255 Tube, Fuel Emission, NO.2
77255A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2)
77255B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.2)
77256A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.3)
77257 Tube, Fuel Emission, NO.4
77257A Hose, Fuel, N0.1 (FOR EMISSION TUBE, N0.4)
77257B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.4)
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77278 Tube, Fuel Return, NO.2
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77279 Tube, Fuel Return, NO.3
77279A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.3)
77286 Protector, Fuel Tank Inlet Pipe
77291 Packing, Fuel Tank Support, Upper
77292 Packing, Fuel Tank, Center
77293 Packing, Fuel Tank, Lower
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77308B Spring, Torsion(FOR FUEL INLET BOX COVER)
77308C Pin, Straight(FOR FUEL INLET BOX COVER)
77308E Plate, Fuel Inlet Box
77308G Bush(FOR FUEL INLET BOX COVER)
77308J Ring(FOR FUEL INLET BOX COVER)
77308R Spacer(FOR FUEL INLET BOX COVER)
77606 Protector Sub-assy, Fuel Tank, NO.1
77611 Band, Fuel Tank
77614 Seat, Fuel Tank Band
77626 Gasket, Fuel Inlet Pipe
77653 Shield, Fuel Tank Drain Plug
77658 Moulding, Fuel Tank Edge
77662 Cover, Fuel Tank Gage
77701P Protector, Check Valve
77701T Valve, Check (FOR MAIN FUEL TANK)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740B Hose, Fuel, NO.2(FOR CHARCOAL CANISTER)
77758 Cap, Charcoal Canister
