Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

24 part groups · 6 illustrations

Illustrations

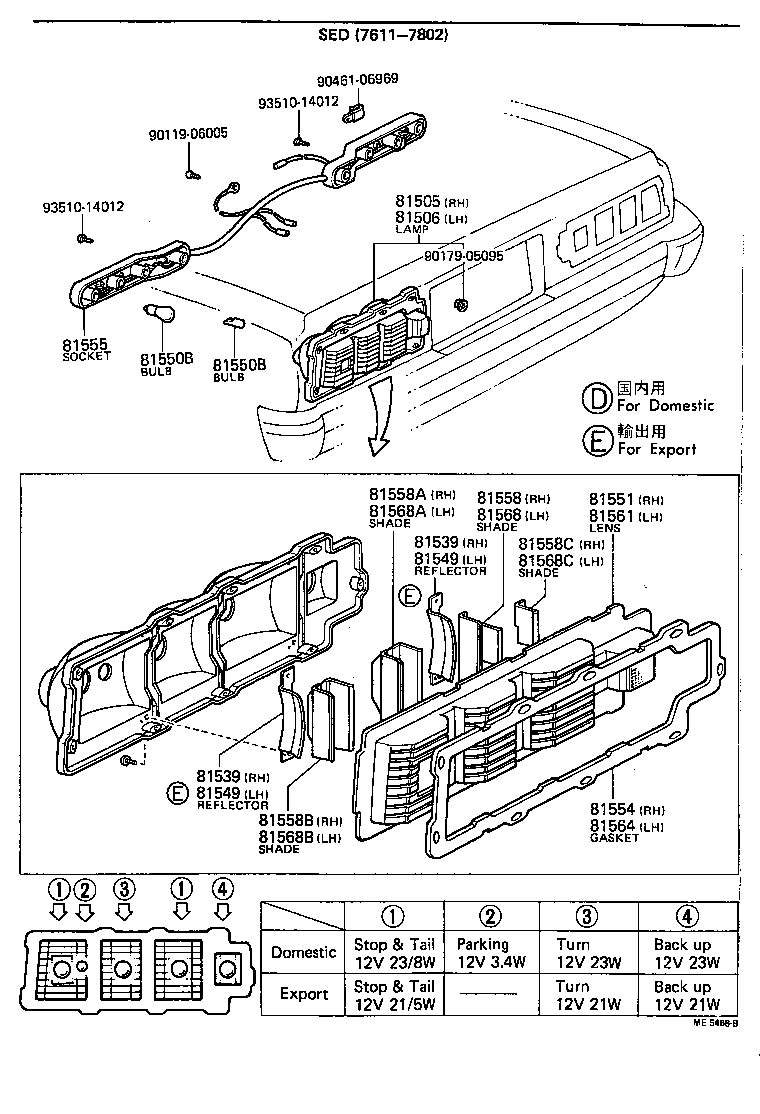

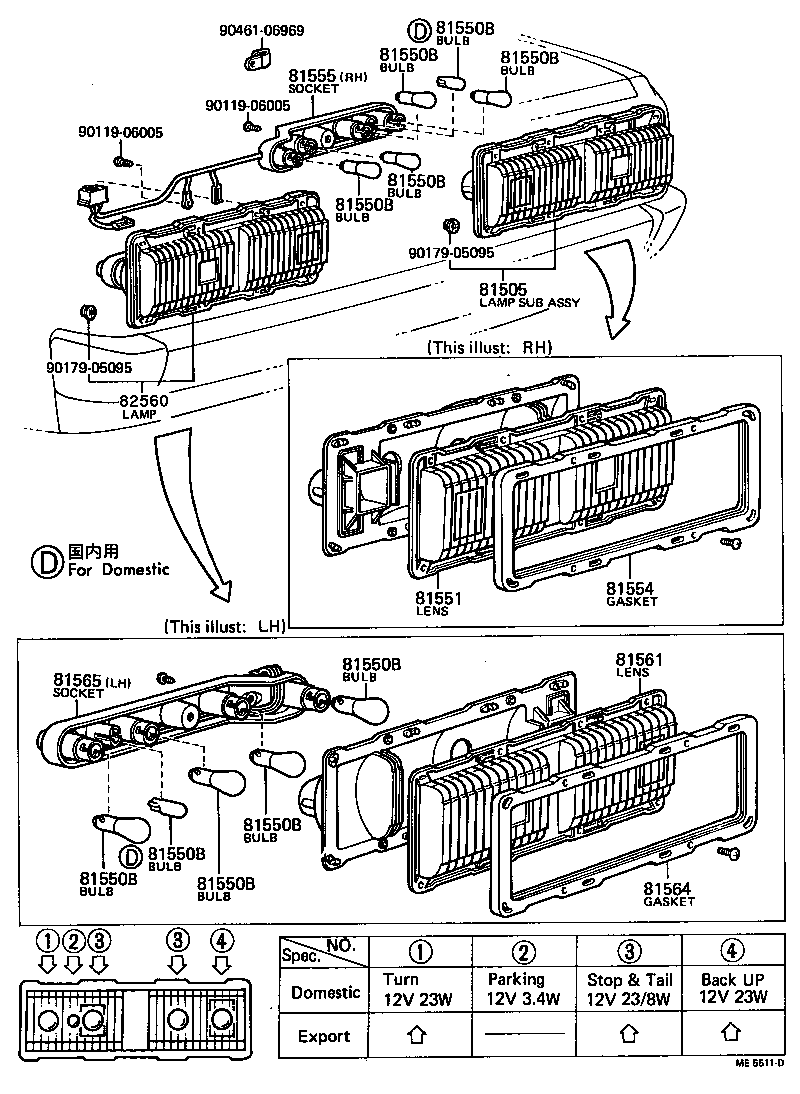

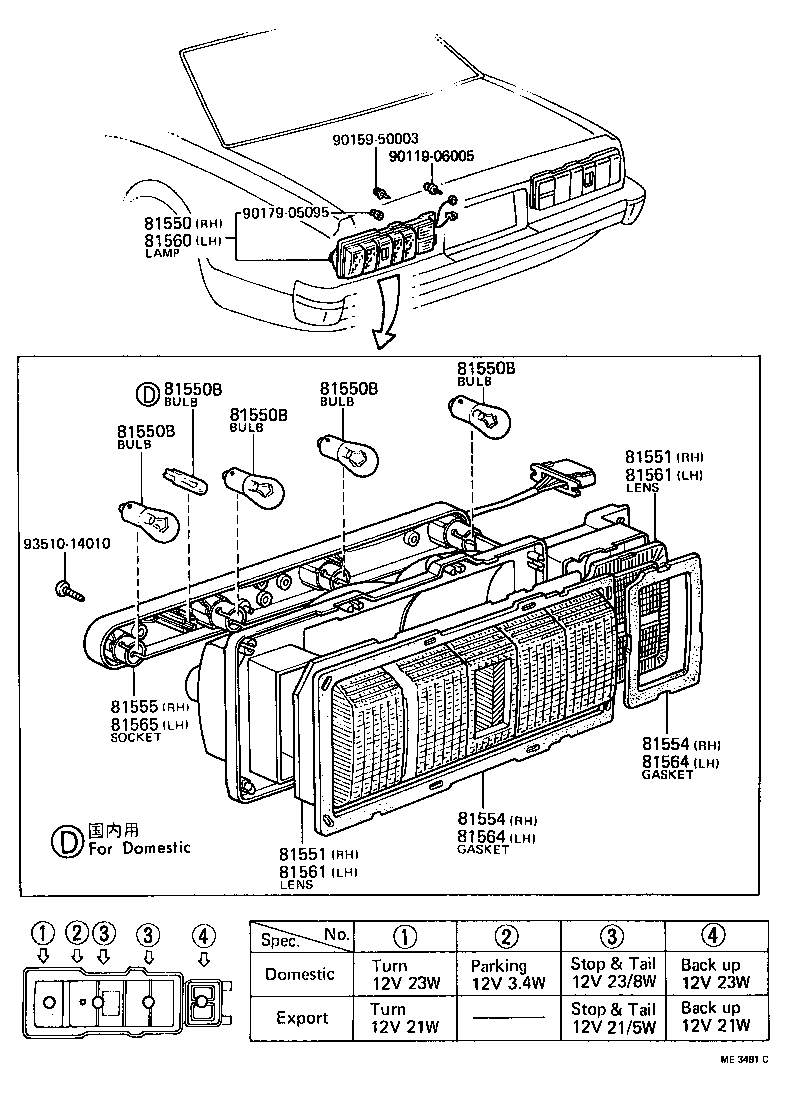

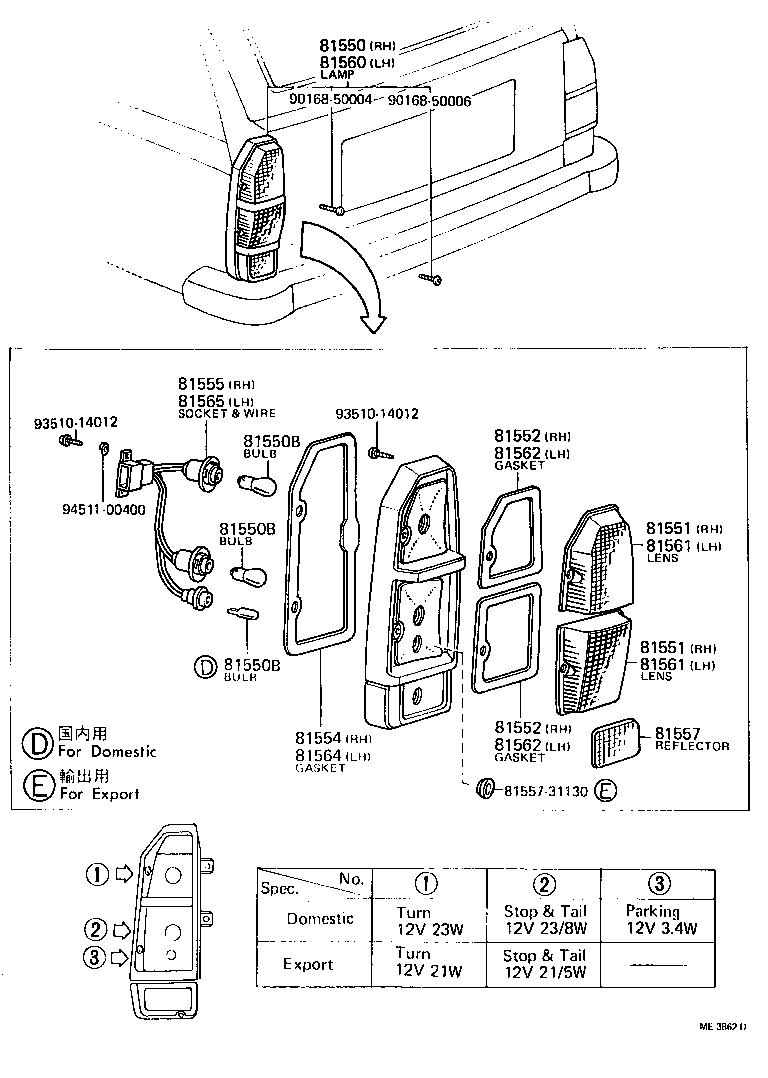

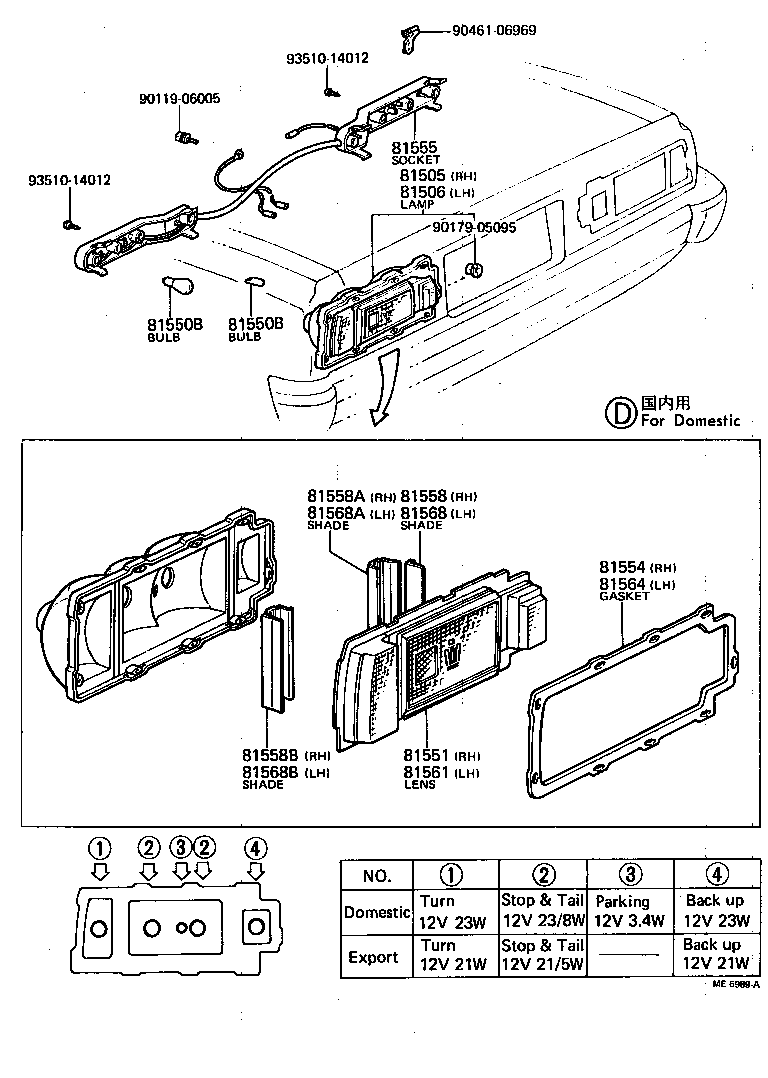

Figure ME3480C ME3480C 1974-10 → 1976-11 Figure ME5468B ME5468B 1976-11 → 1978-02 Figure ME6989A ME6989A 1978-02 → 1979-08 Figure ME3481C ME3481C 1974-10 → 1976-11 Figure ME5511D ME5511D 1976-11 → 1979-08 Figure ME3862D ME3862D 1975-01 → 1979-08

Part groups

PNCDescription
81505 Lamp Sub-assy, Rear Combination, RH
81506 Lamp Sub-assy, Rear Combination, LH
81539 Reflector, Rear Turn Signal, RH
81549 Reflector, Rear Turn Signal, LH
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81557 Reflector, Rear Combination Lamp Reflex
81558 Shade, Rear Combination Lamp, NO.1 RH
81558A Shade, Rear Combination Lamp, NO.2 RH
81558B Shade, Rear Combination Lamp, NO.3 RH
81558C Shade, Rear Combination Lamp, NO.4 RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
81568A Shade, Rear Combination Lamp, NO.2 LH
81568B Shade, Rear Combination Lamp, NO.3 LH
81568C Shade, Rear Combination Lamp, NO.4 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
