Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Wiper

9 part groups · 2 illustrations

Illustrations

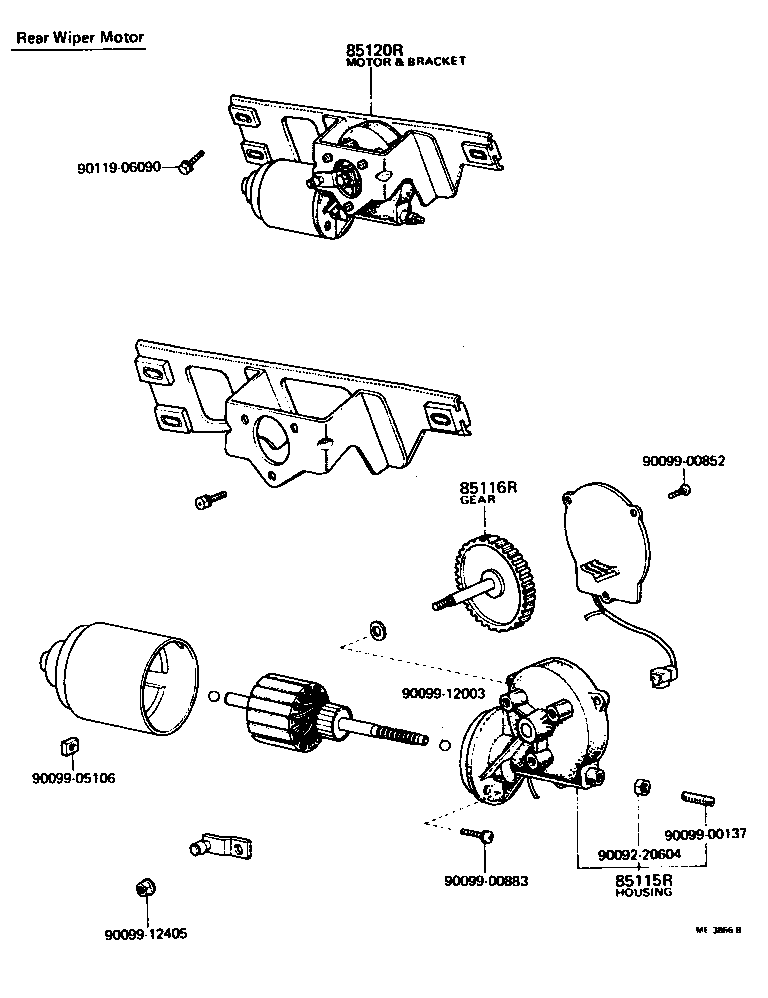

Figure ME3865D ME3865D 1975-01 → 1979-08 Figure ME3866B ME3866B 1975-01 → 1979-08

Part groups

PNCDescription
85115R Housing, Rear Wiper Motor Gear
85116R Gear, Rear Wiper Motor
85120R Motor And Bracket Assy, Rear Wiper
85160R Link Assy, Rear Wiper
85161R Pivot, Rear Wiper Link, NO.1
85162R Pivot, Rear Wiper Link, NO.2
85178R Nut (FOR REAR WIPER ARM SETTING)
85190R Arm Assy, Rear Wiper
85220R Blade Assy, Rear Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
