Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Door Motor & Door Solenoid

9 part groups · 5 illustrations

Illustrations

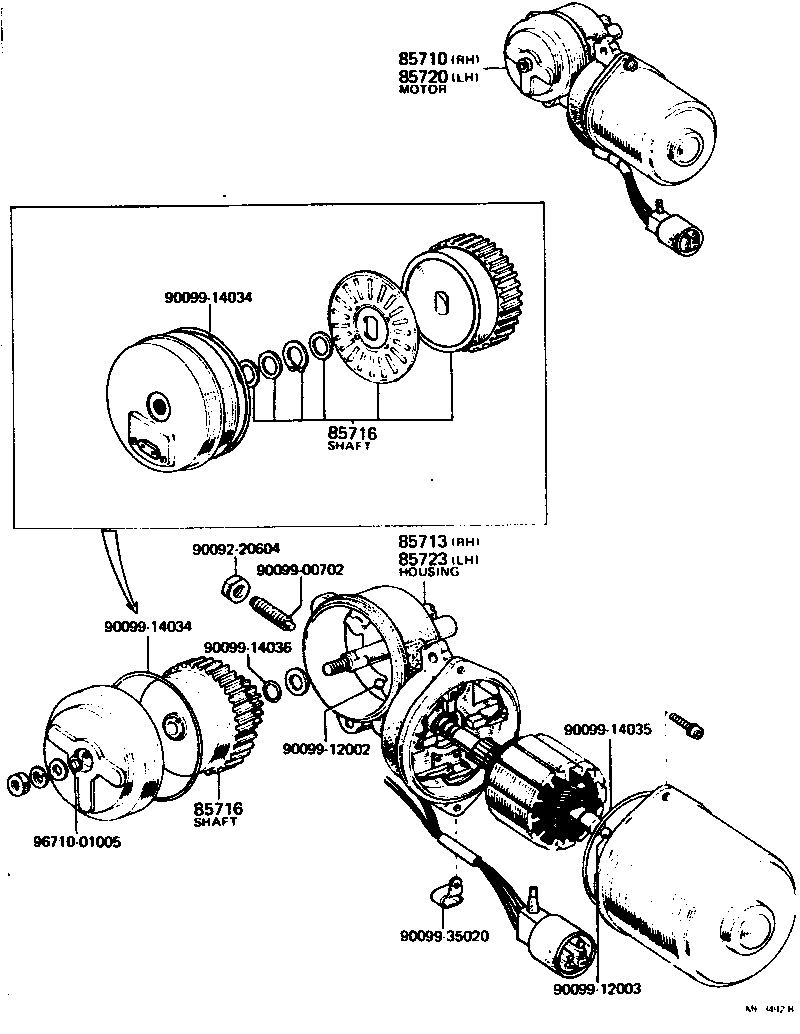

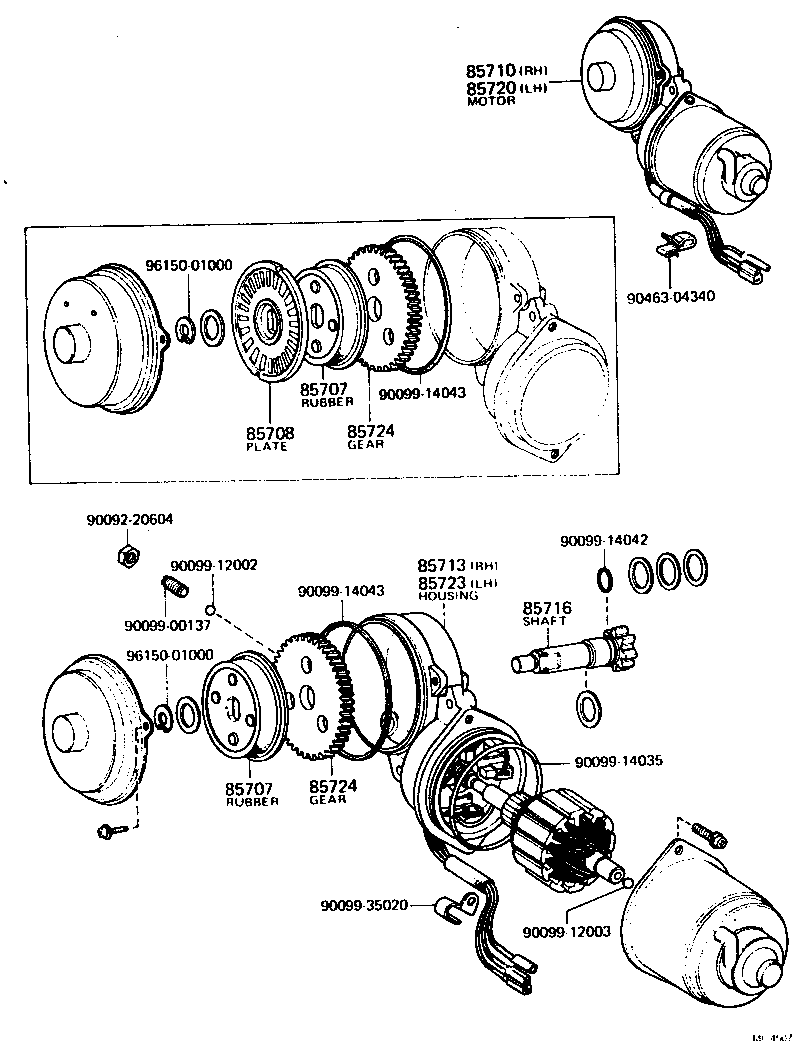

Figure ME3491E ME3491E 1974-10 → 1976-11 Figure ME3491E ME3491E 1976-11 → 1979-08 Figure ME3492B ME3492B 1974-10 → 1975-10 Figure ME4507 ME4507 1975-10 → 1976-11 Figure ME4507 ME4507 1976-11 → 1977-07

Part groups

PNCDescription
85707 Rubber Sub-assy, Power Window Regulator Motor Cushion
85708 Plate Sub-assy, Power Window Regulator Motor Limitter
85710 Motor Assy, Power Window Regulator, RH
85713 Housing, Power Window Regulator Motor Gear, RH
85716 Shaft, Power Window Regulator Motor Drive
85720 Motor Assy, Power Window Regulator, LH
85723 Housing, Power Window Regulator Motor Gear, LH
85724 Gear, Power Window Regulator Motor Helical
85820 Motor Assy, Power Seat (FOR REAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
