Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

12 part groups · 2 illustrations

Illustrations

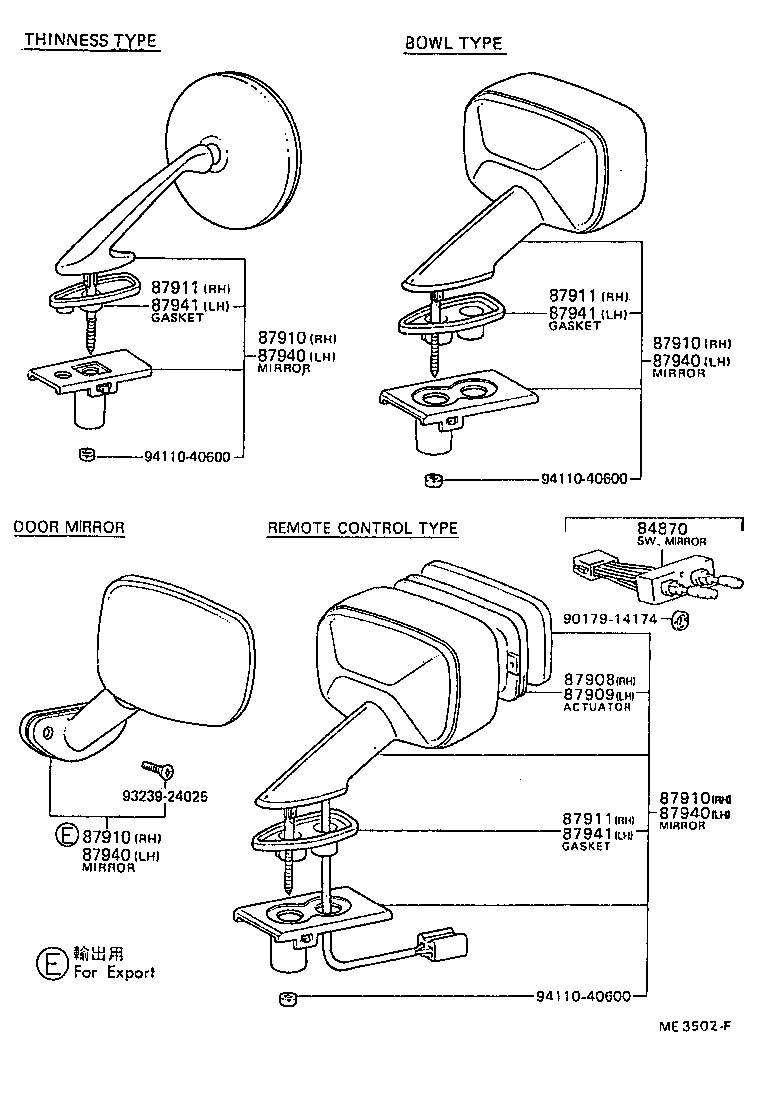

Figure ME3501C ME3501C 1974-10 → 1979-08 Figure ME3502F ME3502F 1974-10 → 1979-08

Part groups

PNCDescription
84870 Switch Assy, Outer Mirror
87810 Mirror Assy, Inner Rear View
87816 Spring, Inner Rear View Mirror
87827 Absorber, Inner Rear View Mirror
87829 Holder, Inner Rear View Mirror Stay
87834 Cover, Inner Rear View Mirror Stay Holder
87908 Actuator Assy, Outer Mirror, RH
87909 Actuator Assy, Outer Mirror, LH
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
