Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

17 part groups · 4 illustrations

Illustrations

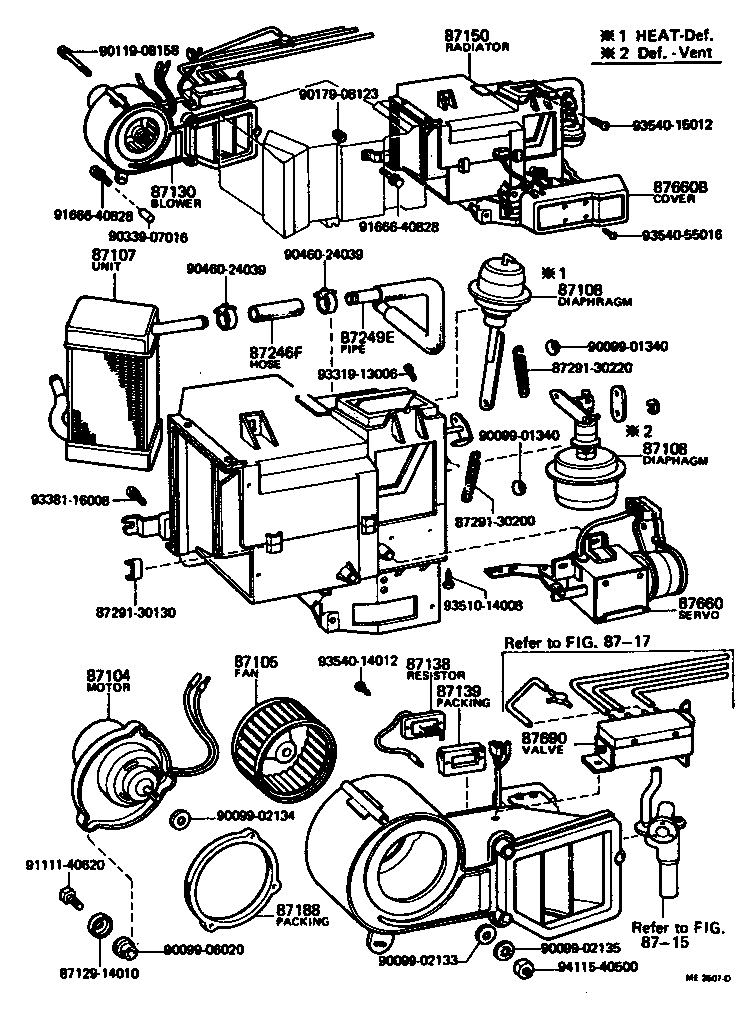

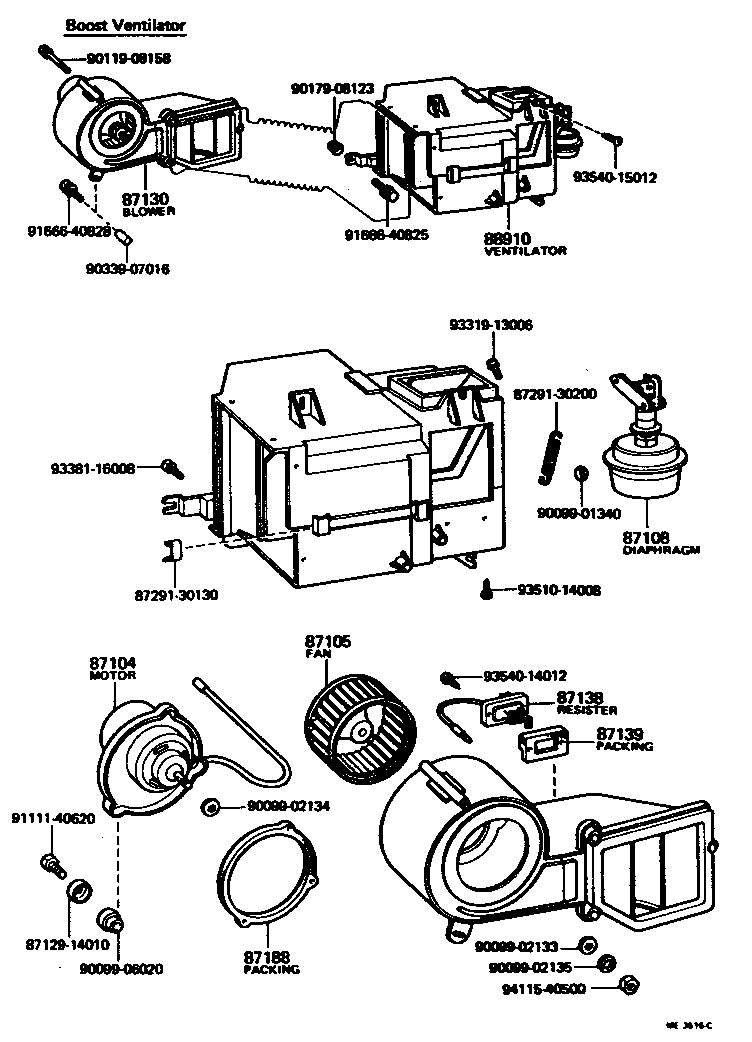

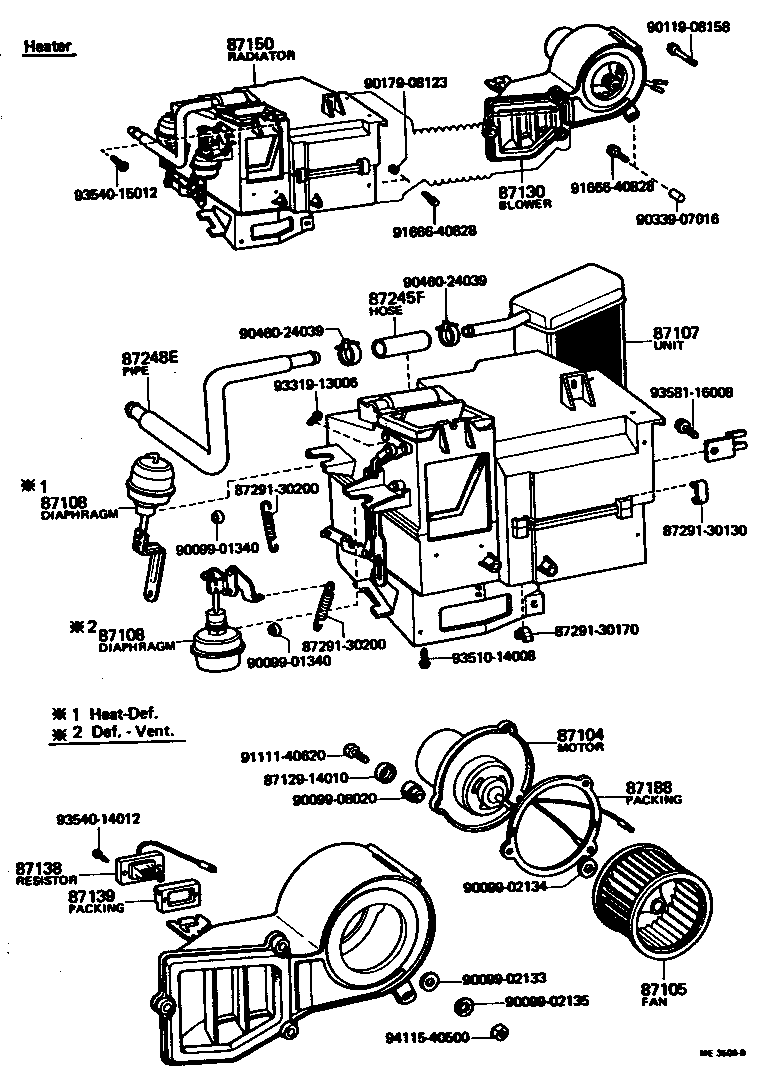

Figure ME3505D ME3505D 1974-10 → 1979-08 Figure ME3506B ME3506B 1974-10 → 1979-08 Figure ME3507D ME3507D 1975-11 → 1979-08 Figure ME3516C ME3516C 1974-10 → 1979-08

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87108 Diaphragm Sub-assy, Heater Door Control
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87139 Packing, Blower Heater Resistor
87150 Radiator Assy, Heater
87188 Packing, Heater Blower Motor
87245F Hose, Heater Water, Inlet F
87246F Hose, Heater Water, Outlet F
87248E Pipe, Heater Water Inlet, E
87249E Pipe, Heater Water Outlet, E (FOR HEATER UNIT)
87660 Servo Assy, Air Conditioner
87660B Cover, Air Conditioner Servo
87690 Valve Assy, Magnet
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
