Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

25 part groups · 6 illustrations

Illustrations

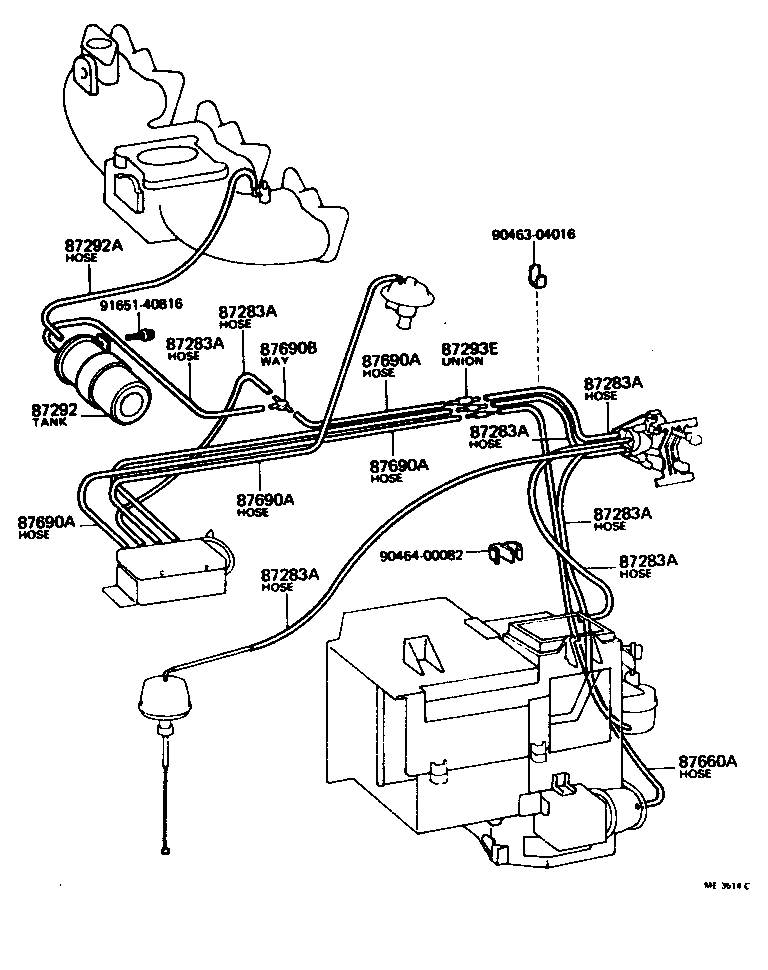

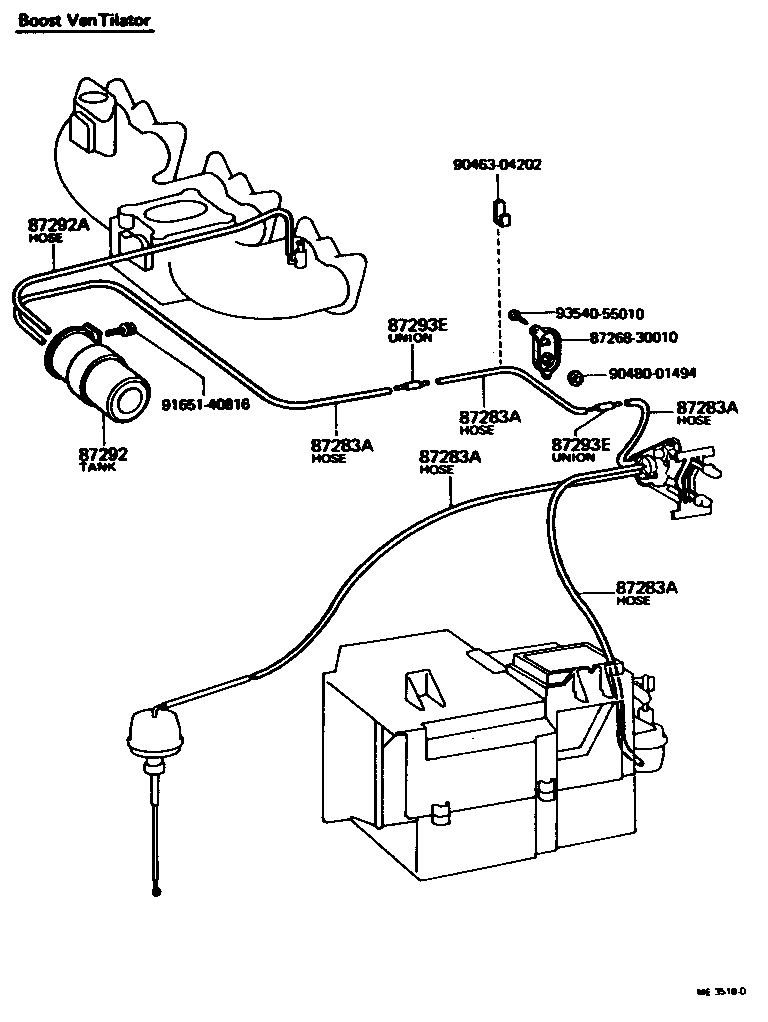

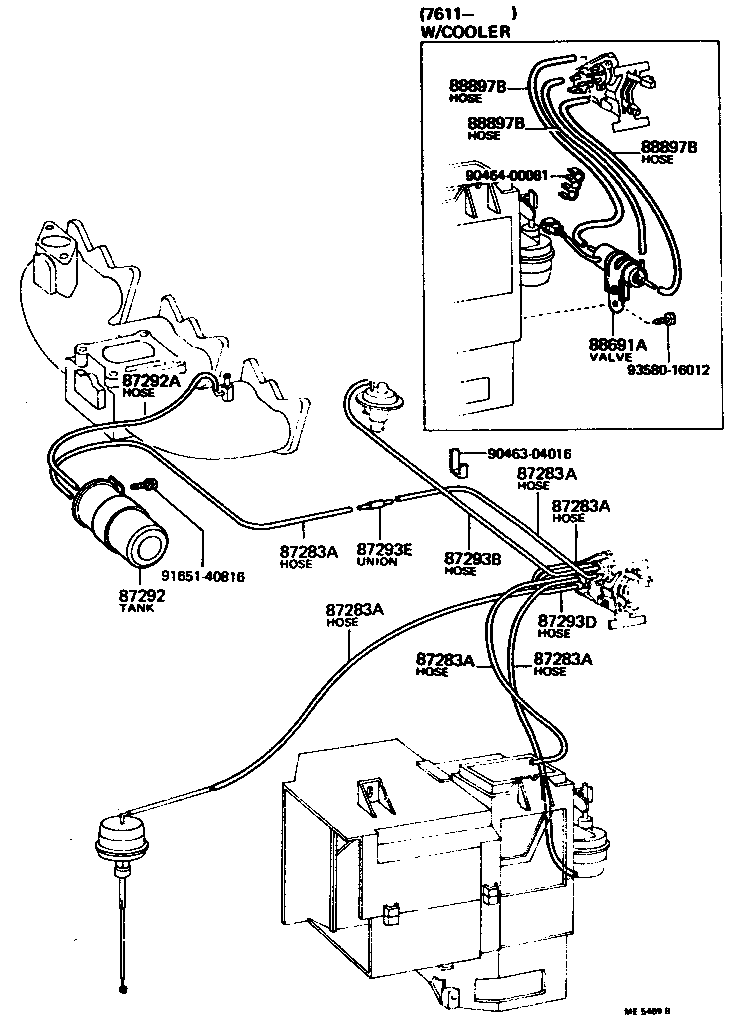

Figure ME3513C ME3513C 1974-10 → 1976-08 Figure ME5469B ME5469B 1976-08 → 1979-08 Figure ME5469B ME5469B 1977-02 → 1979-08 Figure ME3514C ME3514C 1975-11 → 1979-08 Figure ME3518D ME3518D 1974-10 → 1976-08 Figure ME5888A ME5888A 1976-11 → 1979-08

Part groups

PNCDescription
87283A Hose, NO.1
87292 Tank, Vacuum
87292A Hose, Vacuum Tank
87293B Hose, NO.2
87293D Hose, Heater Vacuum Switch
87293E Union, Hose
87660A Hose, Vacuum Control
87690A Hose, Vacuum Control
87690B Way, 3
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88031D Screw, Throttle Adjusting(FOR IDLE-UP ACTUATOR)
88031E Spring, 1ST Idle(FOR IDLE-UP ACTUATOR)
88031F Link(FOR IDLE-UP ACTUATOR)
88031G Ring, Snap(FOR IDLE-UP ACTUATOR)
88031H Lever(FOR IDLE-UP ACTUATOR)
88031M Gasket(FOR IDLE-UP ACTUATOR)
88603 Wire, Idle UP Device
88603A Wire, Idle UP Device, NO.2
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88645D Hose (FOR IDLE UP DEVICE)
88646 Bracket, Idle UP Device, NO.1
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691A Valve, Magnet (FOR BLOWER CHANGING-OVER DEVICE)
88897B Hose(MAGNET VALVE TO CONTROL SWITCH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
