Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 9 illustrations

Illustrations

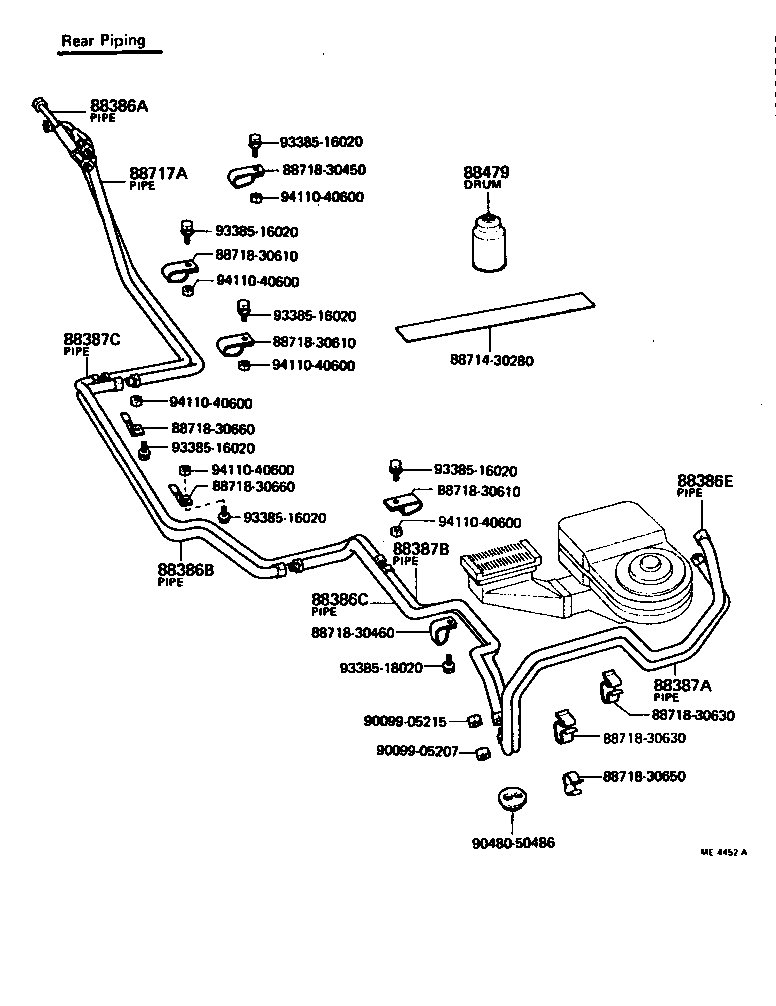

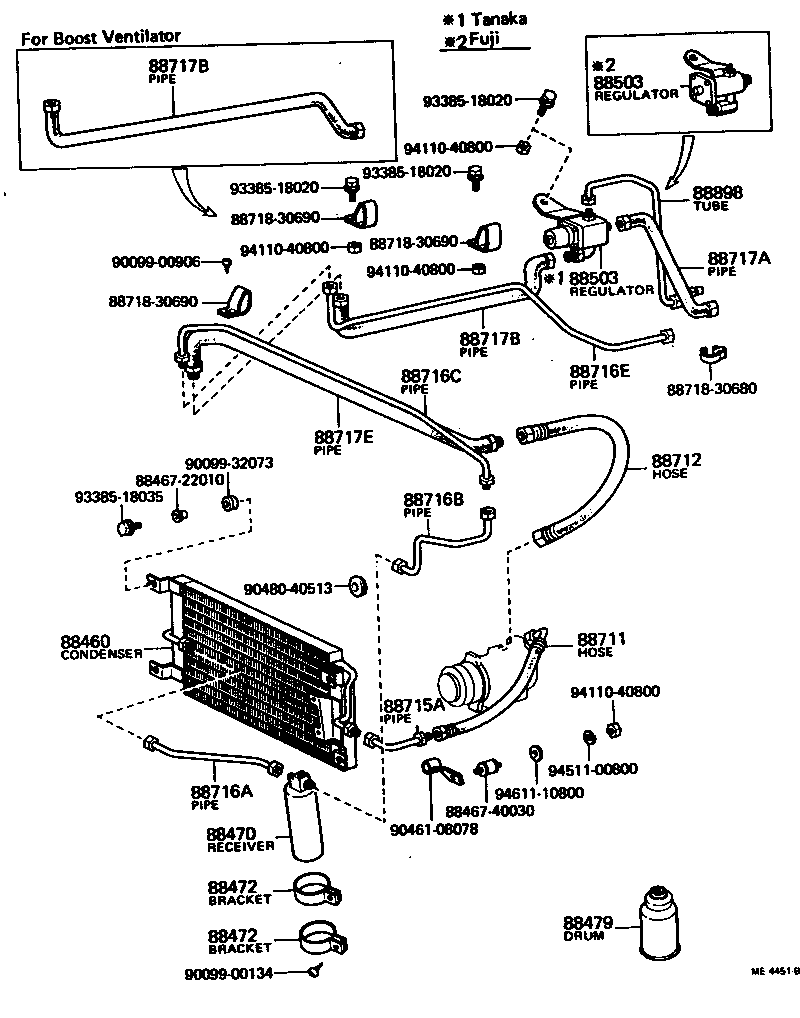

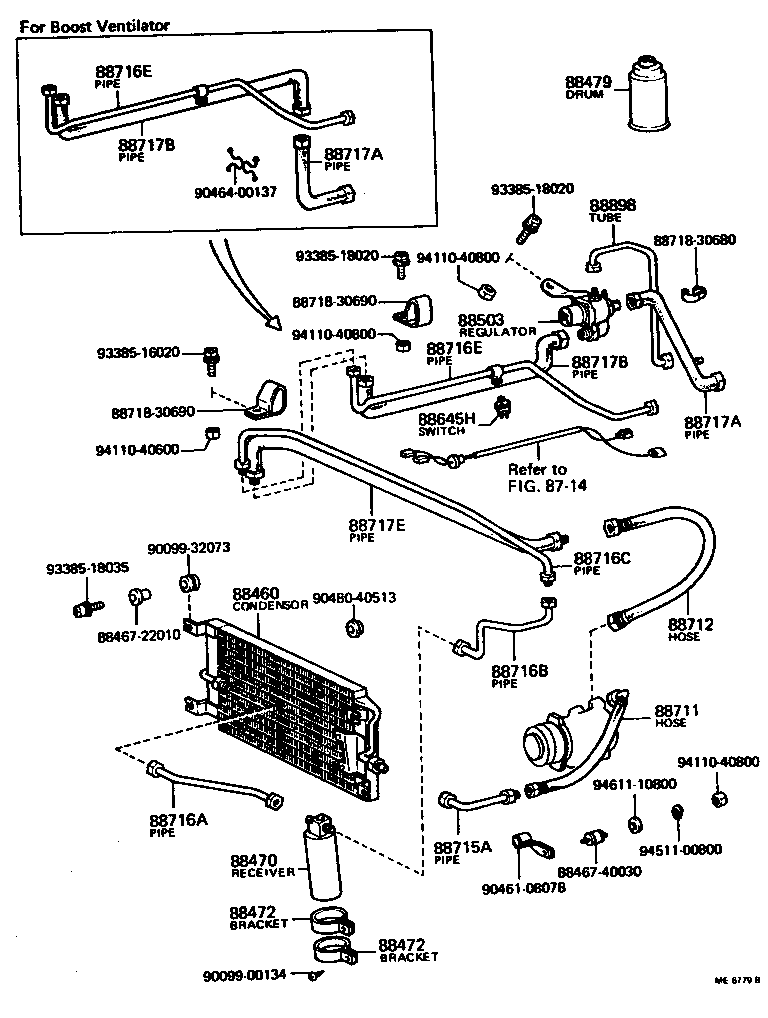

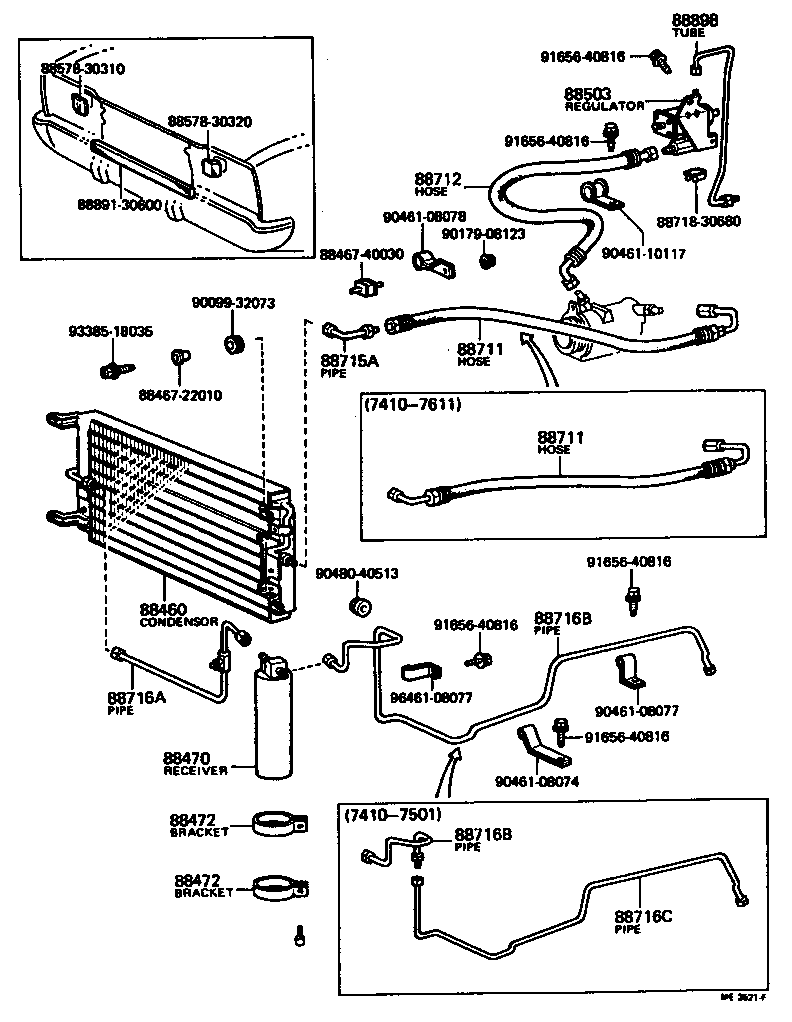

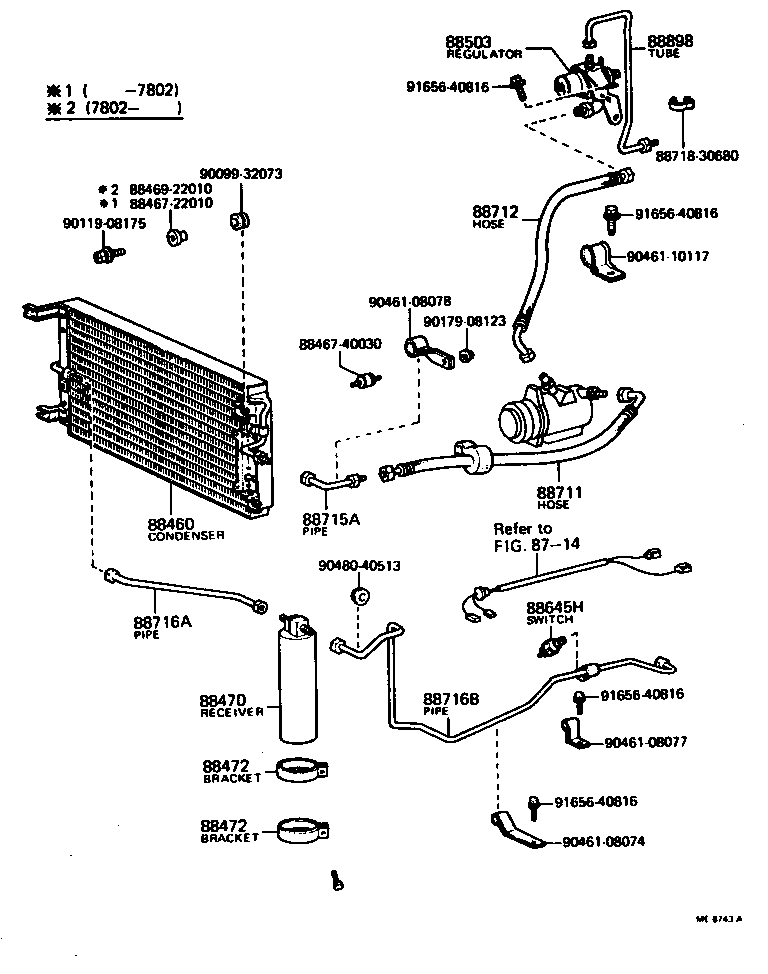

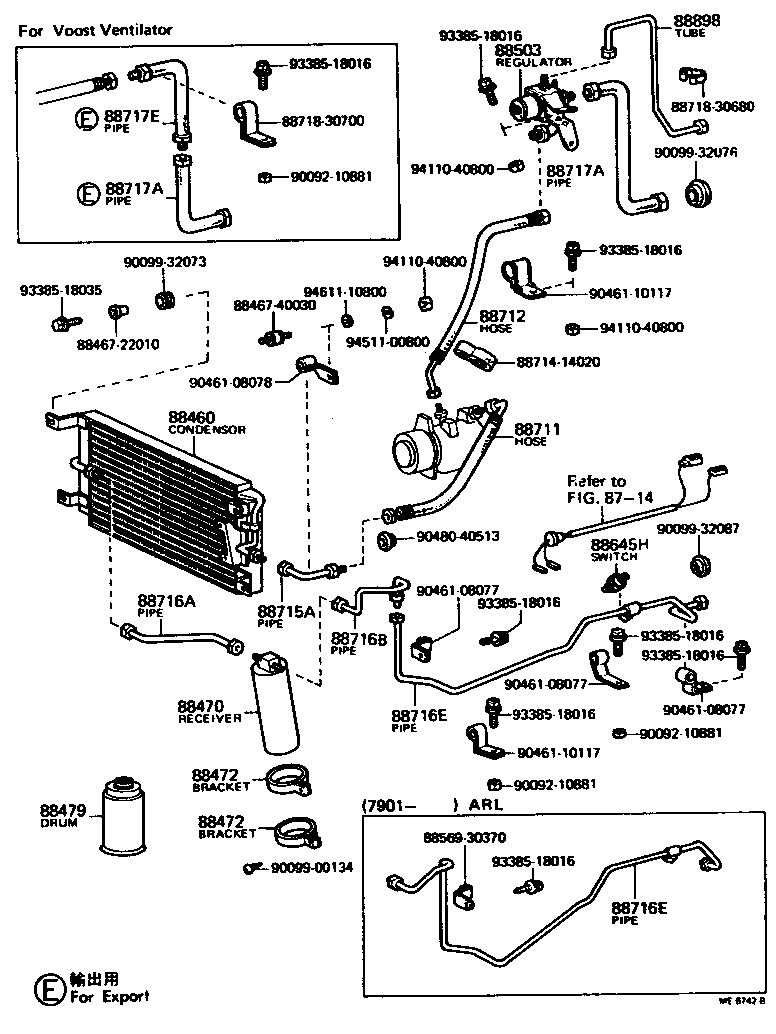

Figure ME4450B ME4450B 1974-10 → 1977-07 Figure ME6742B ME6742B 1977-07 → 1979-08 Figure ME4451B ME4451B 1974-10 → 1977-07 Figure ME6779B ME6779B 1977-07 → 1979-08 Figure ME3521F ME3521F 1974-10 → 1977-07 Figure ME6743A ME6743A 1977-07 → 1979-08 Figure ME4452A ME4452A 1974-10 → 1979-08 Figure ME4452A ME4452A 1977-02 → 1979-08 Figure ME3522B ME3522B 1975-11 → 1979-08

Part groups

PNCDescription
88386A Pipe, Rear Cooler Refrigerant Liquid, A (FROM CONDENSER)
88386B Pipe, Rear Cooler Refrigerant Liquid, B
88386C Pipe, Rear Cooler Refrigerant Liquid, C
88386D Pipe, Rear Cooler Refrigerant Liquid, D
88386E Pipe, Rear Cooler Refrigerant Liquid, E (TO COOLER UNIT)
88387A Pipe, RR Cooler Refrigerant Suction, A (FROM COOLER UNIT)
88387B Pipe, Rear Cooler Refrigerant Suction, B
88387C Pipe, Rear Cooler Refrigerant Suction, C
88460 Condenser Assy, Cooler
88470 Receiver & Dryer Assy, Cooler
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88503 Regulator Assy, Pressure
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717E Pipe, Cooler Refrigerant Suction, E
88898 Tube Sub-assy, Equalizer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
