Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

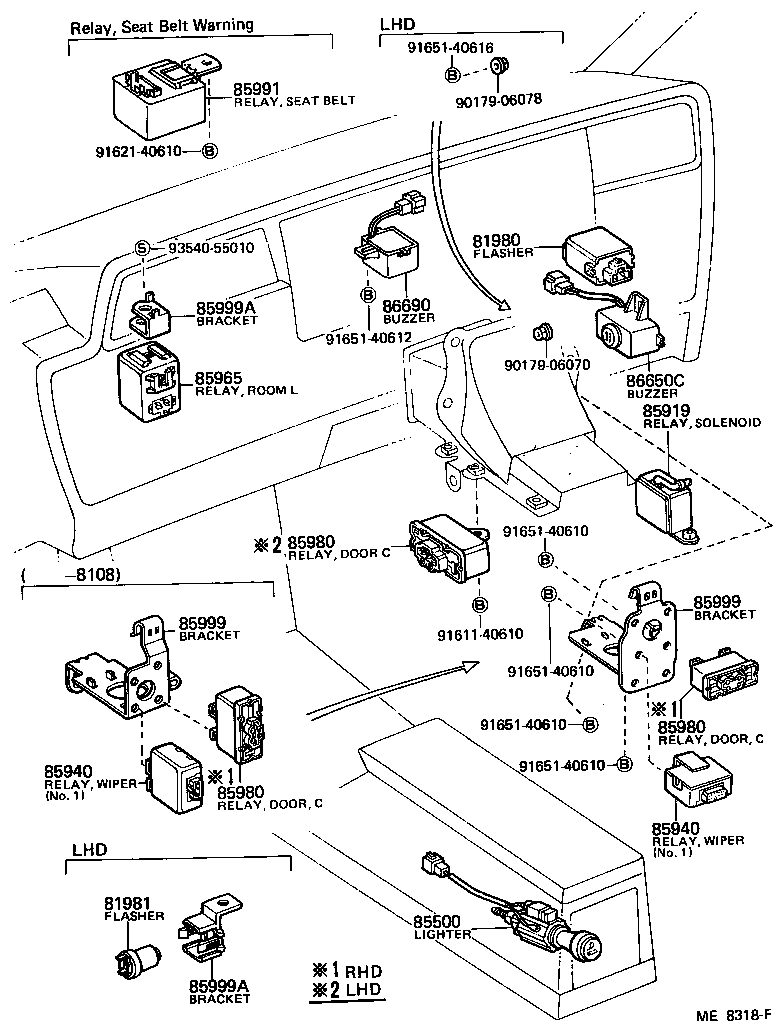

Exploded illustration ME8318F 9165140616 — not listed in this catalogue 85991 — RELAY, SEAT BELT WARNING (2 parts) 9017906078 — not listed in this catalogue 9162140610 — not listed in this catalogue 81980 — FLASHER ASSY, TURN SIGNAL (2 parts) 9354055010 — not listed in this catalogue 86690 — BUZZER ASSY, SPEED INDICATOR (1 parts) 85999A — BRACKET, RELAY, NO.2 (4 parts) 9165140612 — not listed in this catalogue 9017906070 — not listed in this catalogue 85965 — RELAY, ROOM LAMP CONTROL (4 parts) 86650C — BUZZER ASSY, SEDIMENTER WARNING (1 parts) 85919 — RELAY, SOLENOID LOCK DOOR CONTROL (4 parts) 9165140610 — not listed in this catalogue 85980 — RELAY ASSY, DOOR CONTROL (4 parts) 85999 — BRACKET, COMBINATION RELAY (17 parts) 85999 — BRACKET, COMBINATION RELAY (17 parts) 9161140610 — not listed in this catalogue 9165140610 — not listed in this catalogue 9165140610 — not listed in this catalogue 85980 — RELAY ASSY, DOOR CONTROL (4 parts) 9165140610 — not listed in this catalogue 85940 — RELAY ASSY, WINDSHIELD WIPER (6 parts) 85980 — RELAY ASSY, DOOR CONTROL (4 parts) 85940 — RELAY ASSY, WINDSHIELD WIPER (6 parts) 81981 — FLASHER ASSY, HAZARD WARNING SIGNAL (2 parts) 85500 — LIGHTER ASSY, CIGARETTE (5 parts) 85999A — BRACKET, RELAY, NO.2 (4 parts)
ME8318F · 17 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
81980 — Flasher Assy, Turn Signal
81980-22060 Flasher Assy, Turn Signal
1979-09 → 1981-09 ended
LS110,MS11#,RS110 —
81980-22070 Flasher Assy, Turn Signal
1981-09 → 1983-07 ended
LS110,MS112,RS110 —
81981 — Flasher Assy, Hazard Warning Signal
90987-03001 note Flasher Assy, Hazard Warning Signal
1980-08 → 1983-07 ended
MS112 WG EFI —
90987-03001 note Flasher Assy, Hazard Warning Signal
1979-09 → 1983-07 ended
MS112 LHD SAL EFI —
85500 — Lighter Assy, Cigarette
85500-30280 note Lighter Assy, Cigarette
1979-09 → 1983-07 ended
MS11# SED (3HC,4H,4HC) (DLX,ROY,SAL) —
85500-30300 note Lighter Assy, Cigarette
1979-09 → 1983-07 ended
LS110,MS11#,RS110 ARL,GEN —
85500-30310 note Lighter Assy, Cigarette
1979-09 → 1983-07 ended
LS110,MS11#,RS110 3FC,4F,4FC,5F —
85500-30320 note Lighter Assy, Cigarette
1979-09 → 1983-07 ended
LS110,MS112,RS110 LHD EUR —
85500-30330 note Lighter Assy, Cigarette
1979-09 → 1983-07 ended
MS112 RHD EUR —
85919 — Relay, Solenoid Lock Door Control
85918-30061 Relay, Solenoid Lock Door Control
1979-09 → 1981-03 ended
MS11#,RS110 (ROY,SAL) (ARL,GEN) —
85918-30062 Relay, Solenoid Lock Door Control
1981-03 → 1981-12 ended
MS112,RS110 (ROY,SAL) (ARL,GEN) —
85918-30063 Relay, Solenoid Lock Door Control
1981-12 → 1983-07 ended
MS112,RS110 (ROY,SAL) (ARL,GEN) —
90987-03001 note Relay, Solenoid Lock Door Control
1979-09 → 1983-07 ended
MS112 LHD SAL EFI —
85940 — Relay Assy, Windshield Wiper
85940-30060 note Relay Assy, Windshield Wiper
1979-09 → 1981-08 ended
MS11# RHD ROY GEN —
85940-30070 note Relay Assy, Windshield Wiper
1979-09 → 1981-08 ended
MS111 LHD 3HC ROY;LS110,MS11#,RS110 +1 —
85940-30080 note Relay Assy, Windshield Wiper
1981-08 → 1983-07 ended
MS112 RHD ROY GEN —
85940-30090 note Relay Assy, Windshield Wiper
1981-08 → 1983-07 ended
MS112 LHD ROY;LS110,MS112,RS110 DLX,SAL —
90987-02001 note Relay Assy, Windshield Wiper
1979-09 → 1980-09 ended
LS110,MS11#,RS110 —
90987-02004 note Relay Assy, Windshield Wiper
1980-09 → 1983-07 ended
LS110,MS112,RS110 —
85965 — Relay, Room Lamp Control
85965-22021 Relay, Room Lamp Control
1981-08 → 1983-07 ended
LS110,MS112 RHD (DLX,ROY,SAL) —
85965-30010 Relay, Room Lamp Control
1979-09 → 1981-08 ended
LS110,MS11#,RS110 RHD (DLX,ROY,SAL) (ARL,GEN) —
85965-30020 Relay, Room Lamp Control
1979-09 → 1981-08 ended
LS110,MS11#,RS110 LHD (DLX,ROY,SAL) —
85965-30030 Relay, Room Lamp Control
1981-08 → 1983-07 ended
LS110,MS112,RS110 LHD (DLX,ROY,SAL) —
85980 — Relay Assy, Door Control
85980-30130 Relay Assy, Door Control
1979-09 → 1981-08 ended
LS110,MS11#,RS110 RHD (DLX,ROY,SAL) —
85980-30150 Relay Assy, Door Control
1979-09 → 1981-08 ended
LS110,MS11#,RS110 LHD (DLX,ROY,SAL) —
85980-30160 Relay Assy, Door Control
1981-08 → 1983-07 ended
LS110,MS112 RHD (DLX,ROY,SAL) —
85980-30180 Relay Assy, Door Control
1981-08 → 1983-07 ended
LS110,MS112,RS110 LHD (DLX,ROY,SAL) —
85991 — Relay, Seat Belt Warning
85991-30010 Relay, Seat Belt Warning
1982-12 → 1983-07 ended
MS112 LHD CBR —
85991-30010 Relay, Seat Belt Warning
1982-08 → 1982-12 ended
MS112 LHD (4F,4FC,4H,5F) CBR —
85999 — Bracket, Combination Relay
85999-30090 Bracket, Combination Relay
1979-09 → 1981-08 ended
LS110,MS11#,RS110 RHD (DLX,ROY,SAL) —
85999-30090 Bracket, Combination Relay
1980-08 → 1981-08 ended
MS112 LHD ATM CBR —
85999-30100 Bracket, Combination Relay
1979-09 → 1981-08 ended
MS112 LHD EFI —
85999-30100 Bracket, Combination Relay
1979-09 → 1981-08 ended
LS110,MS111 LHD ATM —
85999-30100 Bracket, Combination Relay
1980-08 → 1981-08 ended
MS112 LHD MTM (DLX,SAL) +1 —
85999-30100 Bracket, Combination Relay
1981-08 → 1983-07 ended
MS112,RS110 LHD MTM SAL +1 —
85999-30100 Bracket, Combination Relay
1981-08 → 1983-07 ended
LS110,MS112,RS110 LHD DLX —
85999-30120 note Bracket, Combination Relay
1979-09 → 1983-07 ended
MS11#,RS110 CBR —
85999-30130 note Bracket, Combination Relay
1979-09 → 1980-08 ended
LS110 —
85999-30140 note Bracket, Combination Relay
1979-09 → 1983-07 ended
MS112 LHD SAL EFI —
85999-30140 note Bracket, Combination Relay
1980-08 → 1983-07 ended
MS112 WG EFI —
85999-30150 note Bracket, Combination Relay
1980-08 → 1983-07 ended
LS110 —
85999-30150 note Bracket, Combination Relay
1982-08 → 1983-07 ended
MS112 DLX EFI —
85999-30150 note Bracket, Combination Relay
1980-08 → 1983-07 ended
MS112 ARL —
85999-30180 Bracket, Combination Relay
1981-08 → 1983-07 ended
MS112 LHD ATM CBR —
85999-30180 Bracket, Combination Relay
1981-08 → 1982-08 ended
LS110,MS112 RHD (DLX,ROY,SAL) —
85999-30180 Bracket, Combination Relay
1982-08 → 1983-07 ended
LS110,MS112 RHD —
85999A — Bracket, Relay, NO.2
85999-12050 note Bracket, Relay, NO.2
1979-09 → 1983-07 ended
MS112 LHD SAL EFI —
85999-12050 note Bracket, Relay, NO.2
1979-09 → 1983-07 ended
MS11# ROY CBR —
85999-12050 note Bracket, Relay, NO.2
1980-08 → 1983-07 ended
MS112 WG EFI —
85999-30110 note Bracket, Relay, NO.2
1979-09 → 1983-07 ended
LS110,MS11#,RS110 DLX,ROY,SAL —
86650C — Buzzer Assy, Sedimenter Warning
86650-30060 Buzzer Assy, Sedimenter Warning
1980-08 → 1983-07 ended
LS110 GEN —
86690 — Buzzer Assy, Speed Indicator
86650-30040 Buzzer Assy, Speed Indicator
1983-01 → 1983-07 ended
LS110 4F BTP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
