Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

27 part groups · 7 illustrations

Illustrations

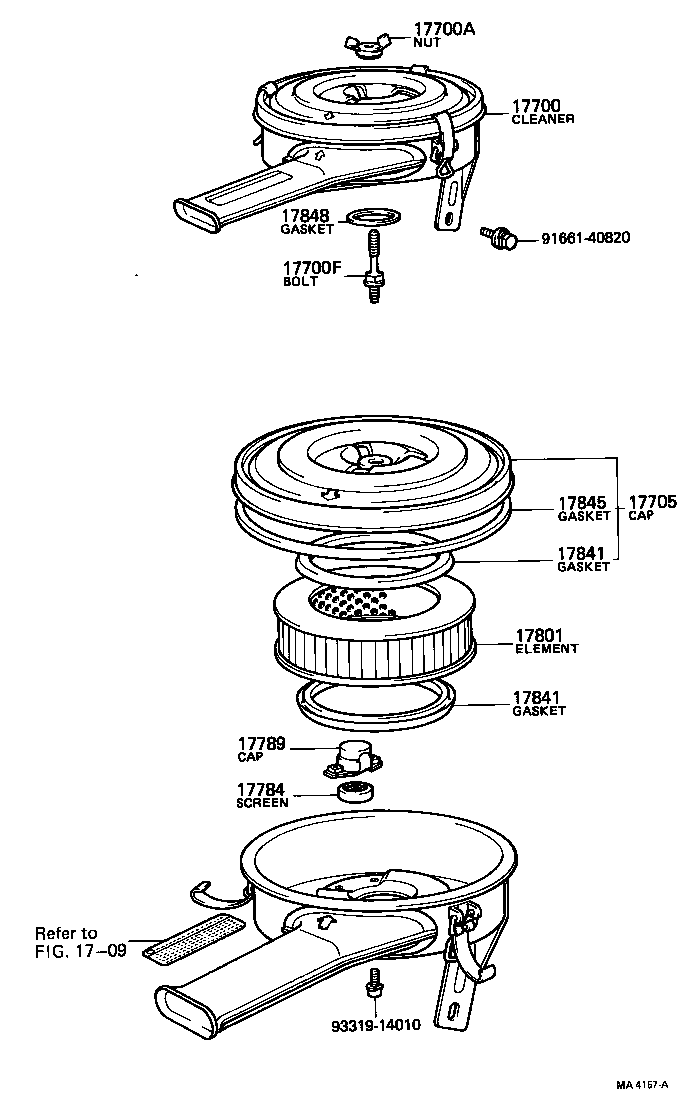

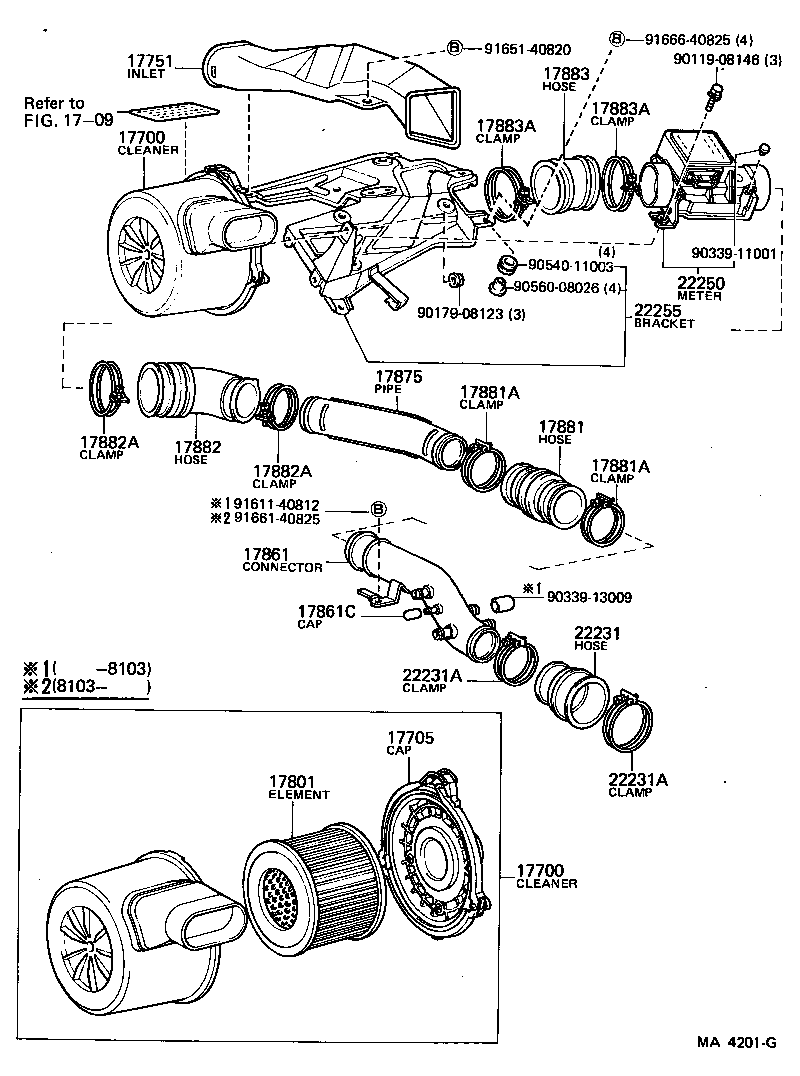

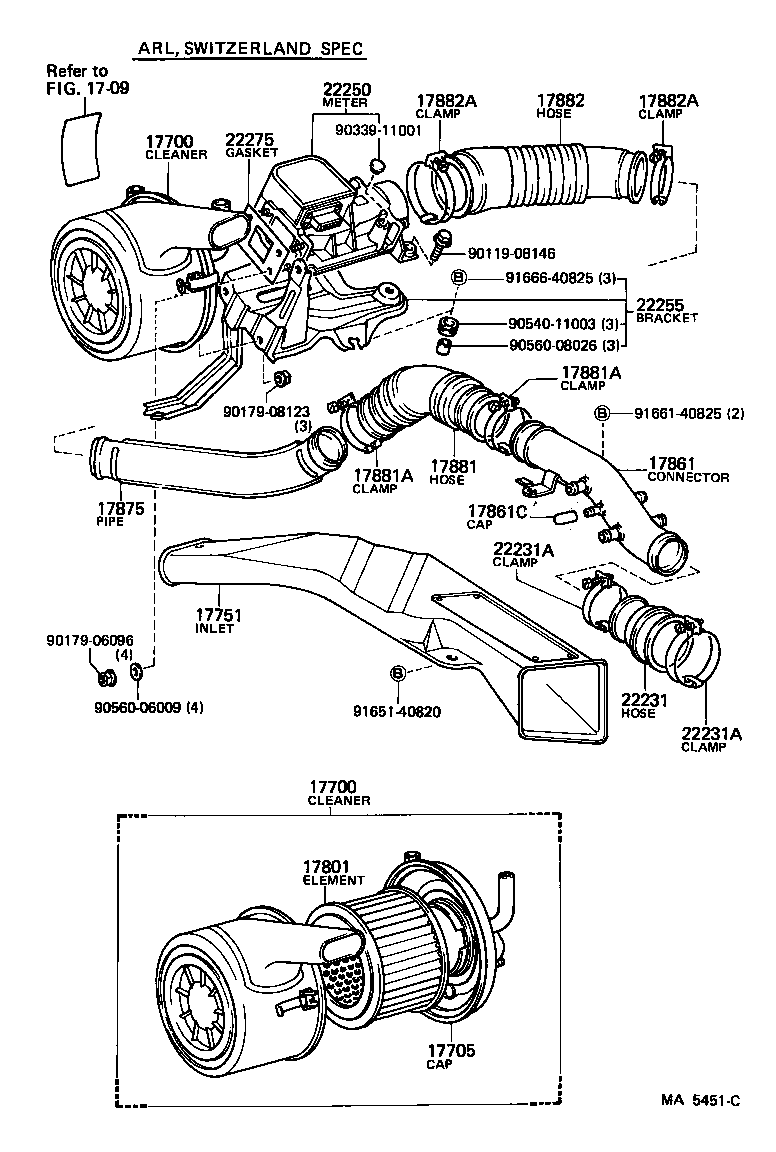

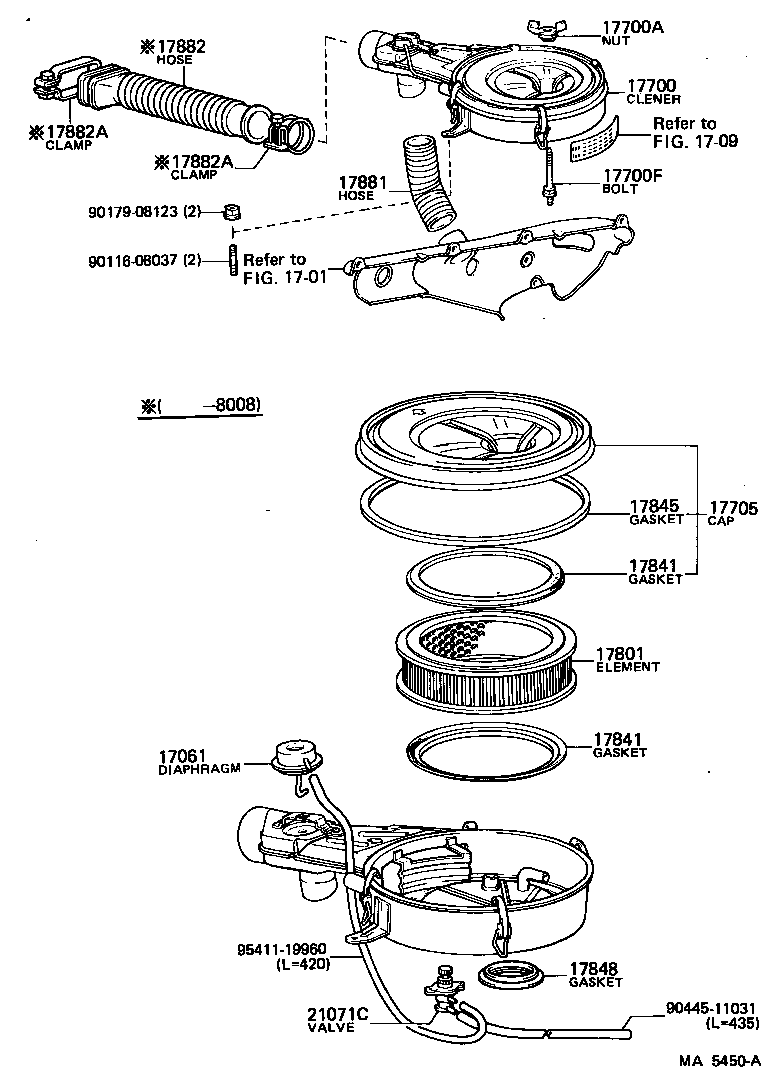

Figure MA4030D MA4030D 1979-09 → — Figure MA5450A MA5450A 1979-09 → — Figure MA4200C MA4200C 1979-09 → — Figure MA4201G MA4201G 1979-09 → — Figure MA5451C MA5451C 1979-09 → — Figure MA5451C MA5451C 1982-08 → — Figure MA4157A MA4157A 1979-09 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17784 Screen, Air Cleaner
17789 Cap, Air Cleaner Screen
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17861 Connector, Intake Air
17861C Cap(FOR INTAKE AIR CONNECTOR)
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
21071C Valve Sub-assy, Thermostatic(FOR AIR CLEANER)
22231 Hose, Throttle Body
22231A Clamp OR Clip(FOR THROTTLE BODY HOSE)
22250 Meter Assy, Intake Air Flow
22255 Bracket, Air Flow Meter
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
