Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

10 part groups · 3 illustrations

Illustrations

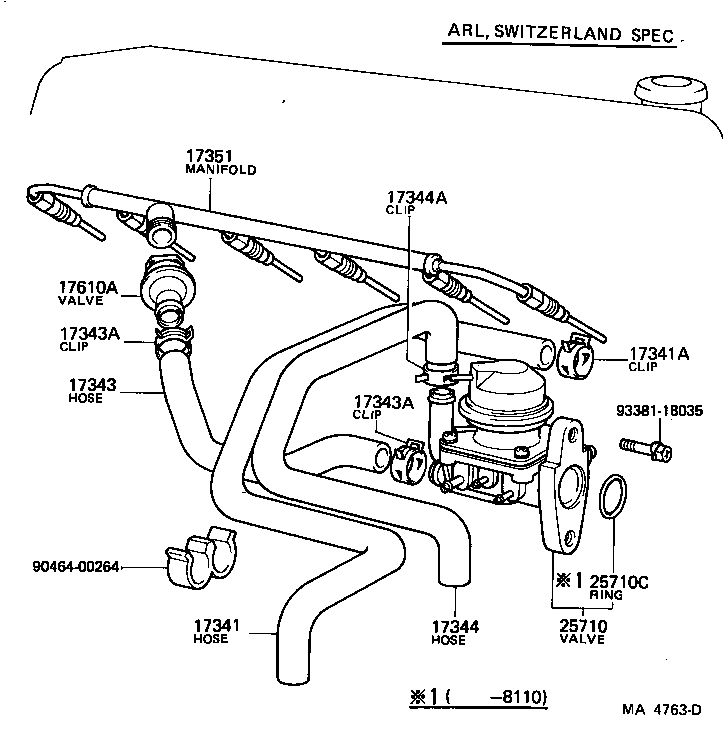

Figure MA2198D MA2198D 1979-09 → 1980-08 Figure MA4763D MA4763D 1980-08 → — Figure MA4763D MA4763D 1982-08 → —

Part groups

PNCDescription
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17344A Clamp OR Clip, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)
17351 Manifold, Air Injection
17610A Valve, Check(FOR AIR INJECTION SYSTEM)
25710 Valve Assy, Air Switching
25710C Ring, O
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
