Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

17 part groups · 9 illustrations

Illustrations

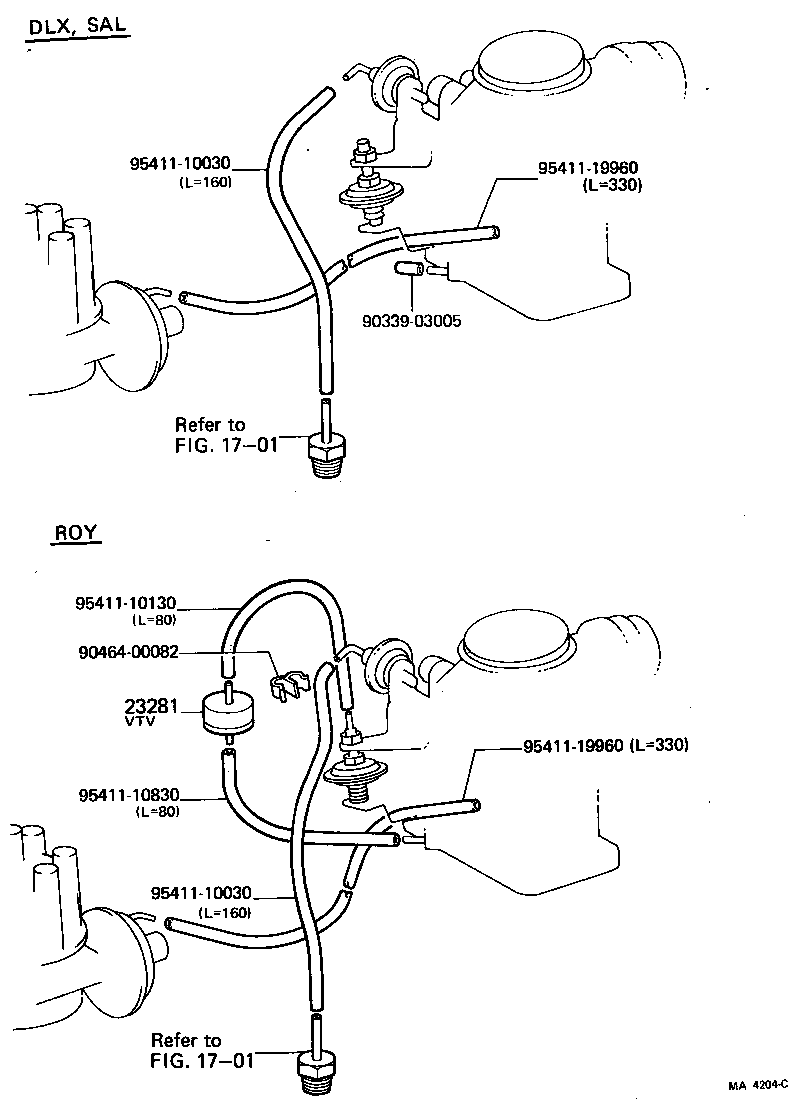

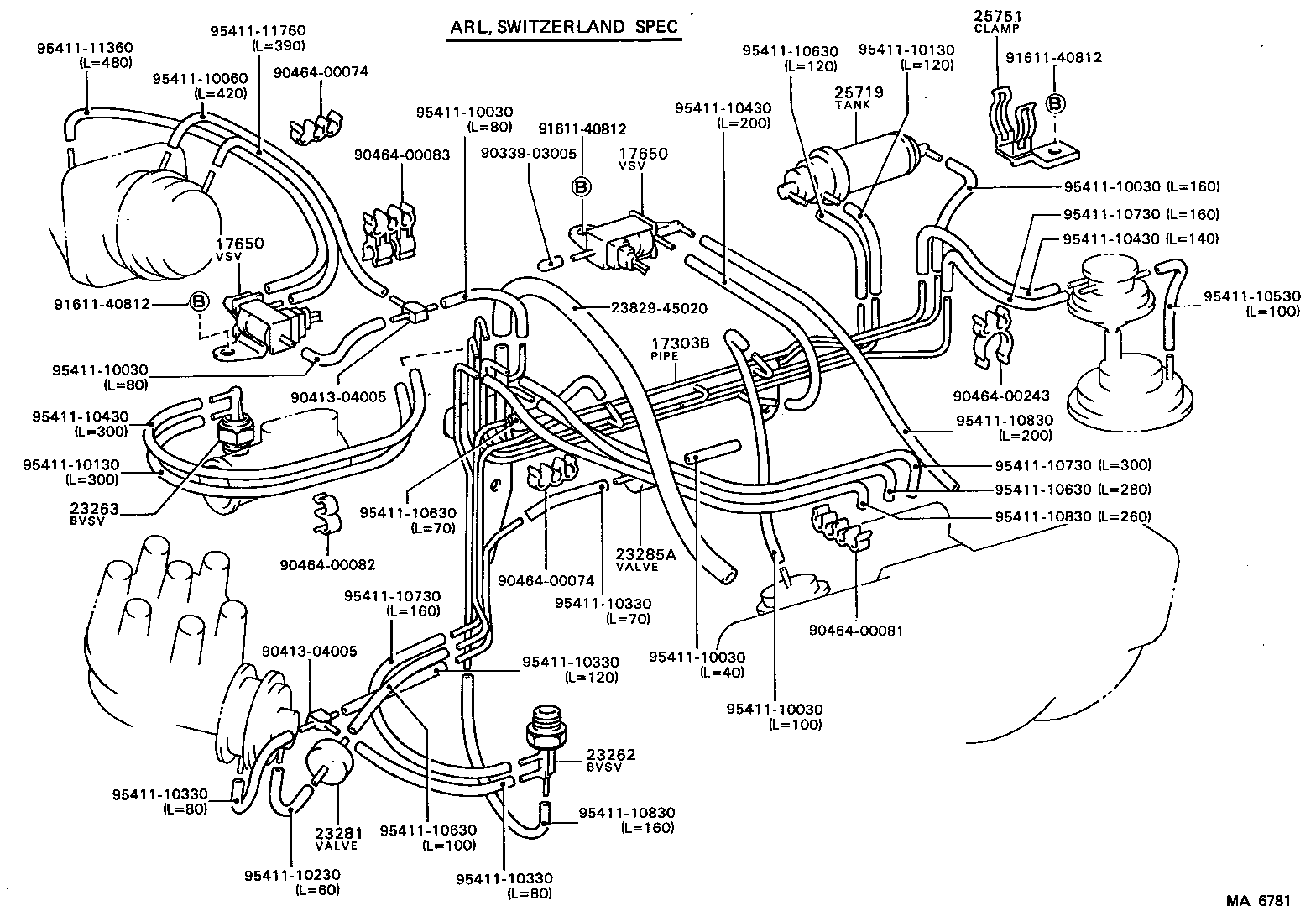

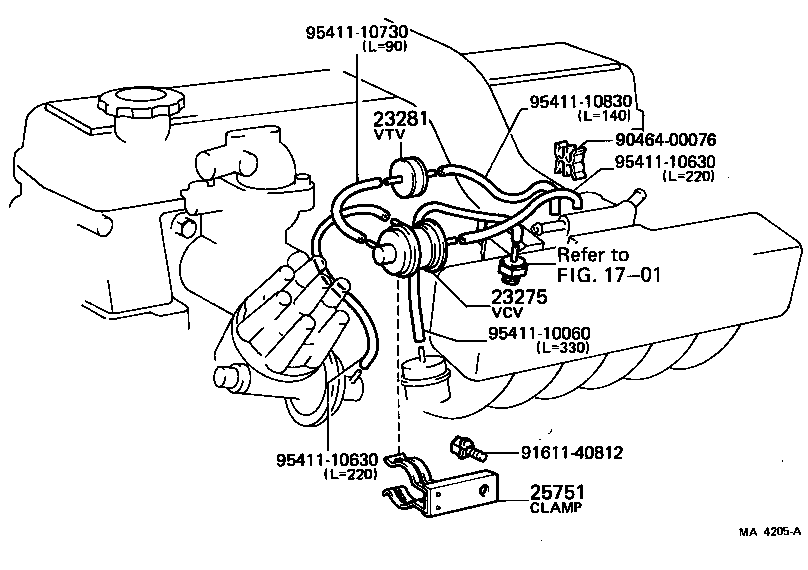

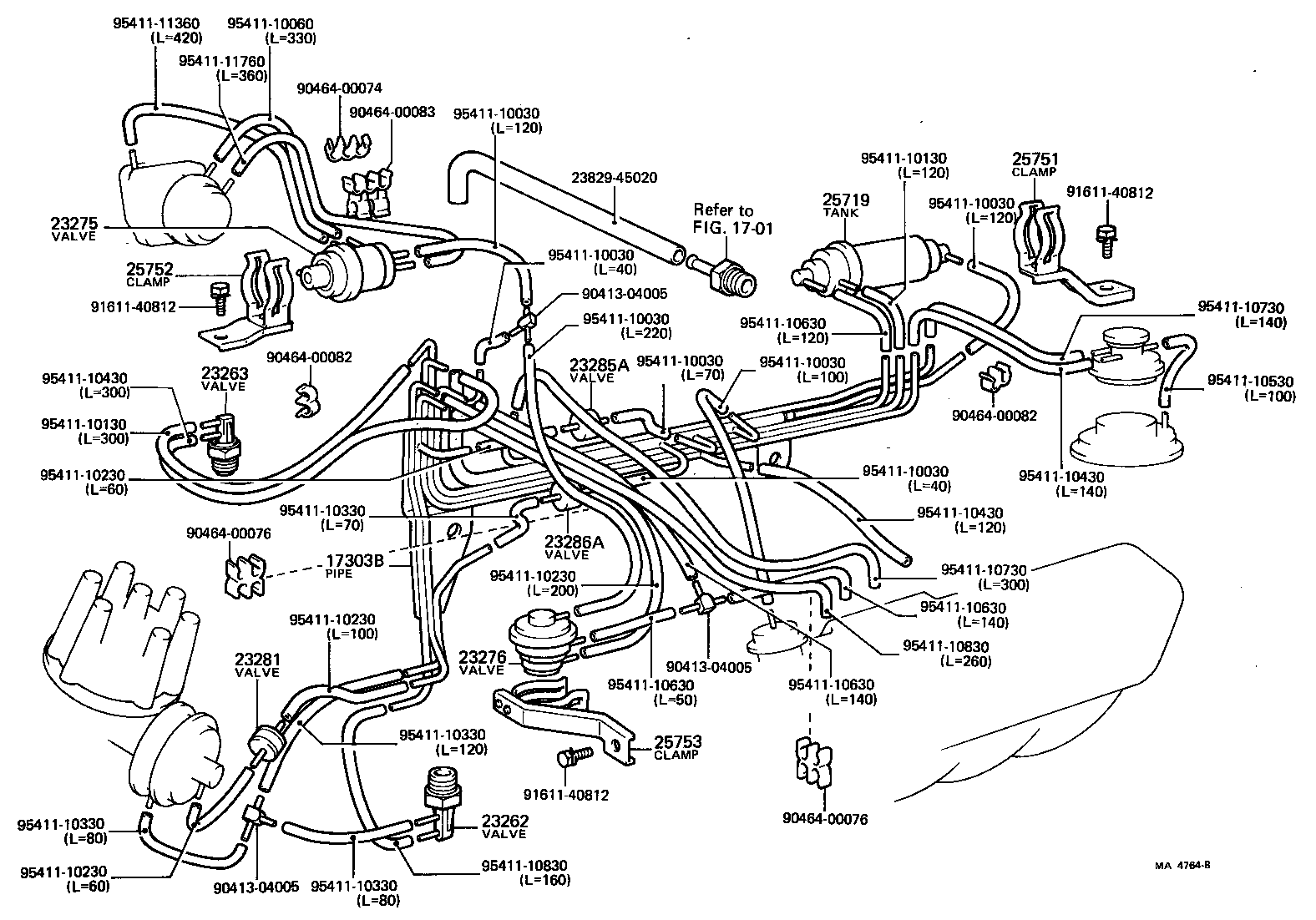

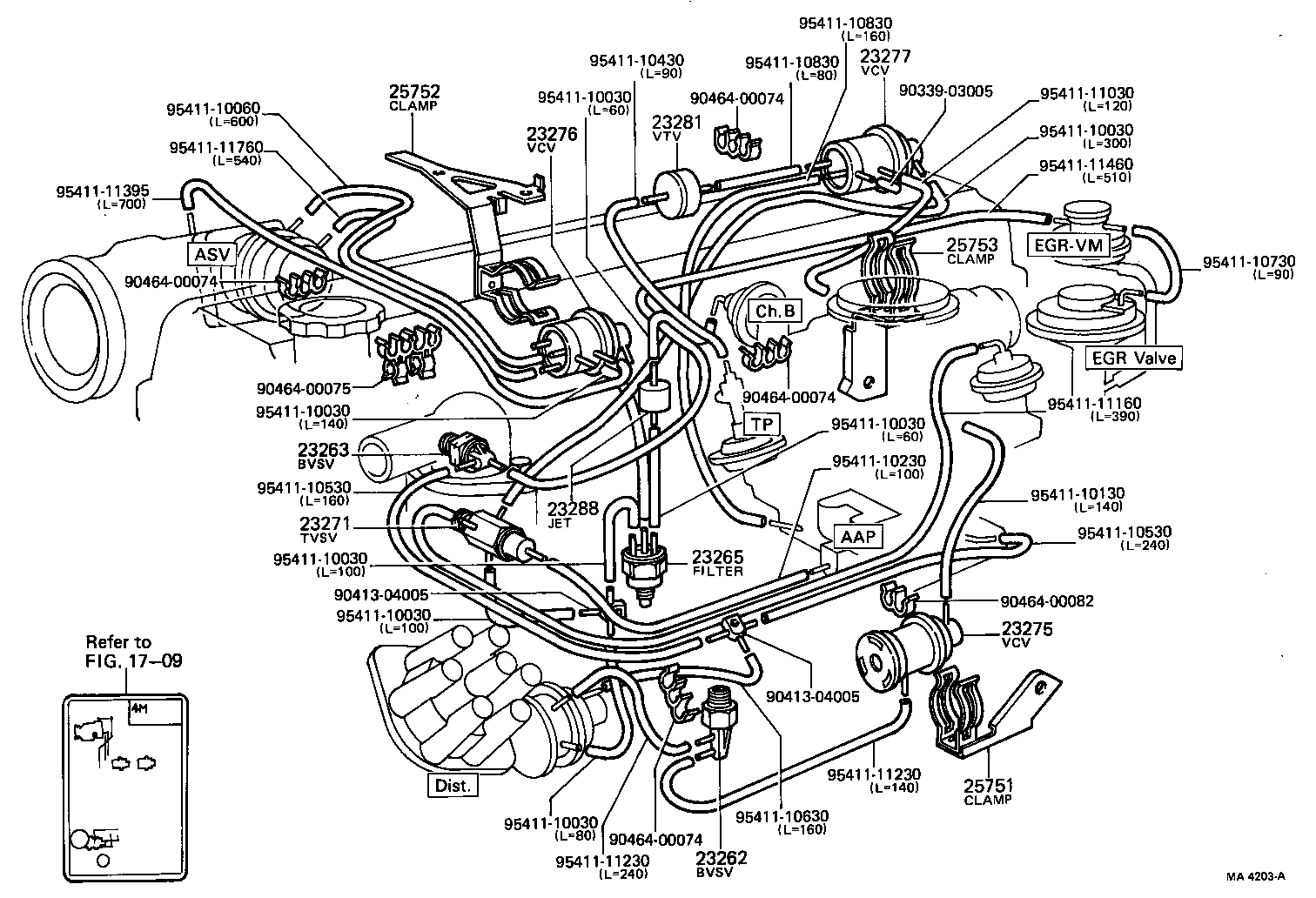

Figure MA9501 MA9501 1979-09 → — Figure MA9501 MA9501 1979-09 → — Figure MA4204C MA4204C 1979-09 → — Figure MA4203A MA4203A 1979-09 → 1980-08 Figure MA4205A MA4205A 1979-09 → — Figure MA4764B MA4764B 1979-09 → 1982-08 Figure MA6781 MA6781 1982-08 → — Figure MA9501 MA9501 1979-09 → — Figure MA4158 MA4158 1979-09 → 1980-08

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23277 Valve, Vacuum Control, NO.3
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23288 Jet, NO.1
25719 Tank, Vacuum Surge
25751 Clamp, Vacuum Control Valve, NO.1
25752 Clamp, Vacuum Control Valve, NO.2
25753 Clamp, Vacuum Control Valve, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
