Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

23 part groups · 3 illustrations

Illustrations

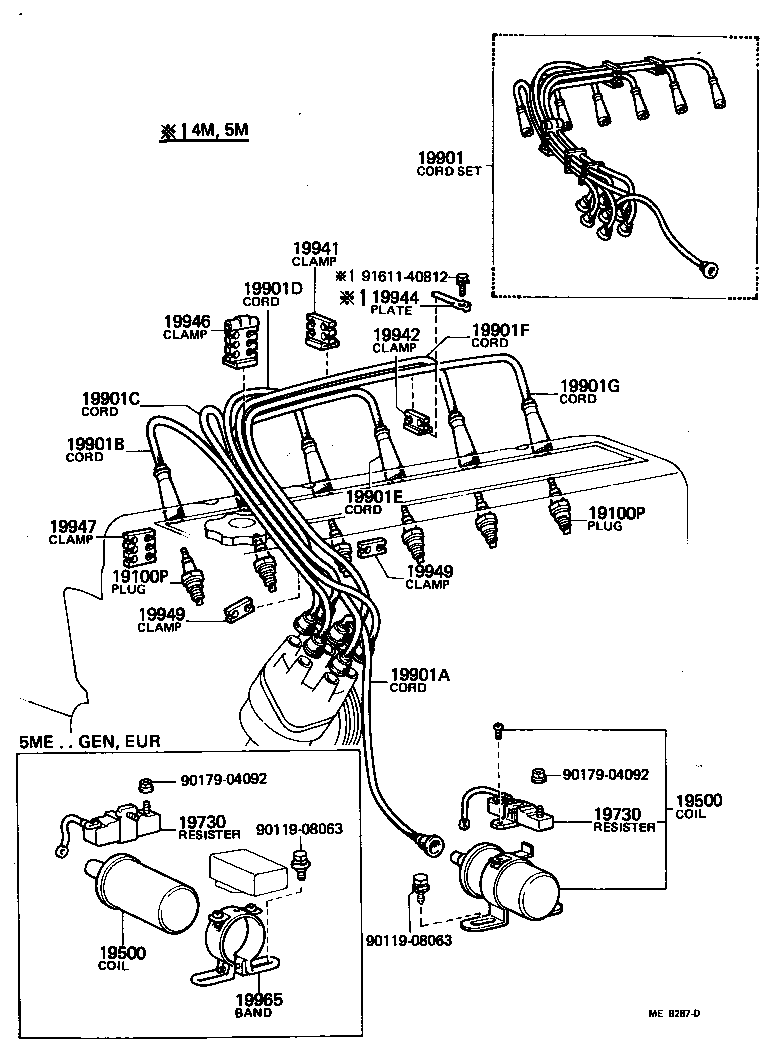

Figure ME7990B ME7990B 1979-09 → — Figure ME8287D ME8287D 1979-09 → — Figure ME8096A ME8096A 1979-09 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19730 Resistor, Ignition Coil
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19856 Nut, Connecting(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901F Cord, Spark Plug Resistive, NO.5
19901G Cord, Spark Plug Resistive, NO.6
19901R Ring, Rubber Spark Plug Resistive Cord
19941 Clamp, Resistive Cord, NO.1
19942 Clamp, Resistive Cord, NO.2
19944 Plate, Resistive Cord Clamp Support, NO.2
19946 Clamp, Resistive Cord, NO.3
19947 Clamp, Resistive Cord, NO.4
19949 Clamp, Resistive Cord, NO.5
19965 Band, Ignition Coil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
