Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

8 part groups · 2 illustrations

Illustrations

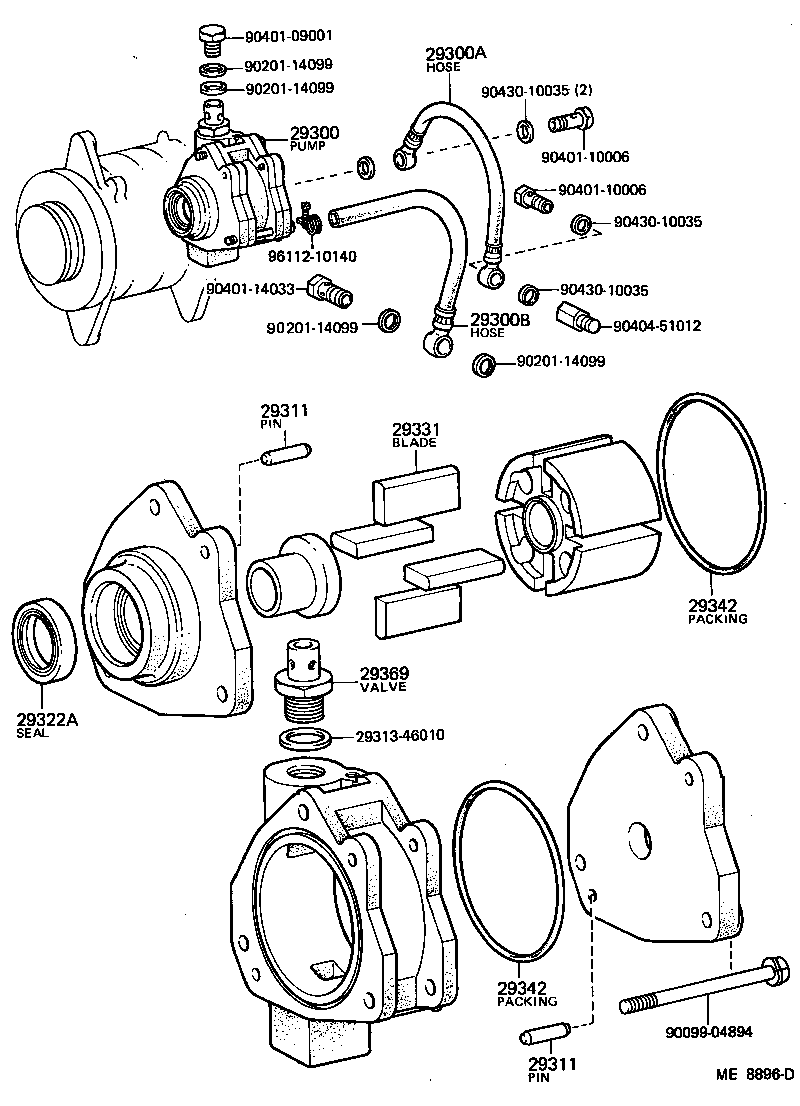

Figure ME8112A ME8112A 1979-09 → 1980-02 Figure ME8896D ME8896D 1980-02 → —

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29300A Hose, Vacuum Pump Oil Inlet
29300B Hose, Vacuum Pump Oil Outlet
29311 Pin, Vacuum Pump Dowel, NO.1
29322A Seal, Vacuum Pump Oil
29331 Blade, Vacuum Pump, A
29342 Packing, Vacuum Pump
29369 Valve Sub-assy, Check
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
