Toyota Crown
1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe
Discontinued model
Data version 1984-02

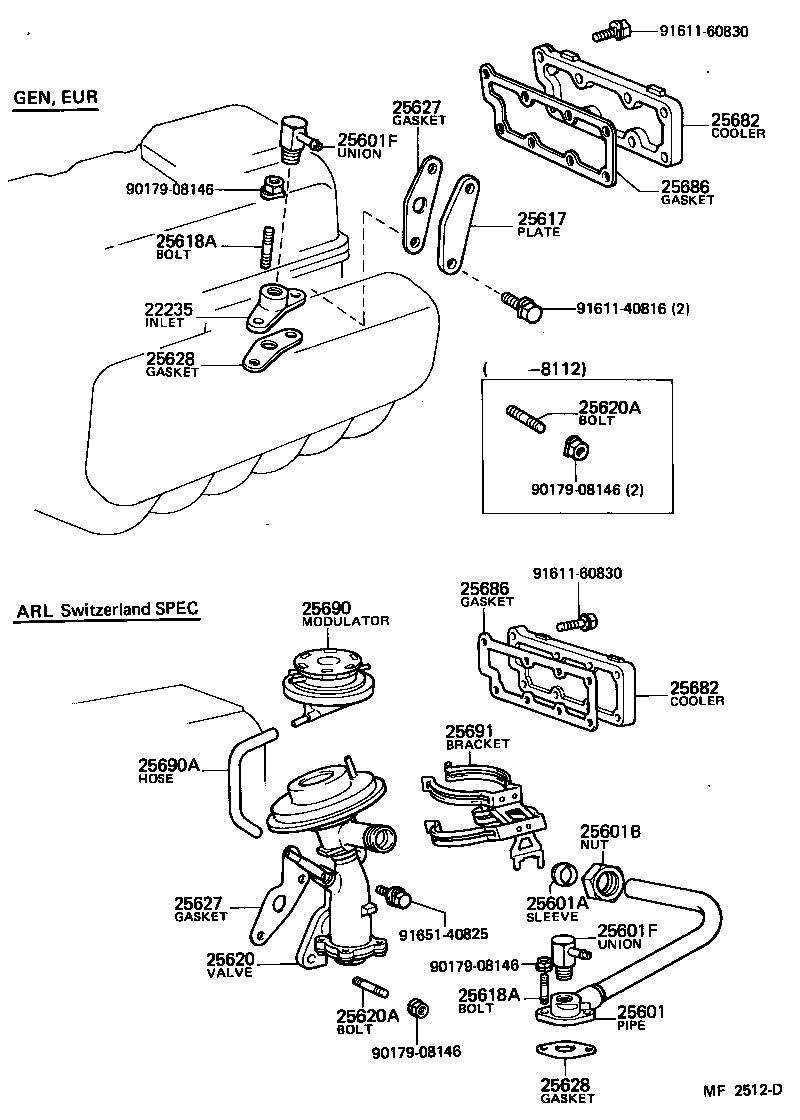

Exhaust Gas Recirculation System
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 22235 | Inlet, Auxiliary Air |
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601A | Sleeve, Ball, Egr Pipe, NO.1 |
| 25601B | Nut, Union, Egr Pipe, NO.1 |
| 25601F | Union(FOR EGR PIPE, NO.1) |
| 25616 | Plate, Hole Cover(FOR EGR PIPE) |
| 25617 | Plate, Egr Hole Cover |
| 25618A | Bolt, Stud(FOR EGR INLET) |
| 25620 | Valve Assy, Egr |
| 25620A | Bolt, Stud(FOR EGR VALVE) |
| 25627 | Gasket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25682 | Cooler, Egr, NO.2 |
| 25686 | Gasket, Egr Cooler, NO.2 |
| 25690 | Modulator Assy, Egr Vacuum |
| 25690A | Hose(FOR EGR VACUUM MODULATOR) |
| 25691 | Bracket, Egr Vacuum Modulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
