Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

2 part groups · 2 illustrations

Illustrations

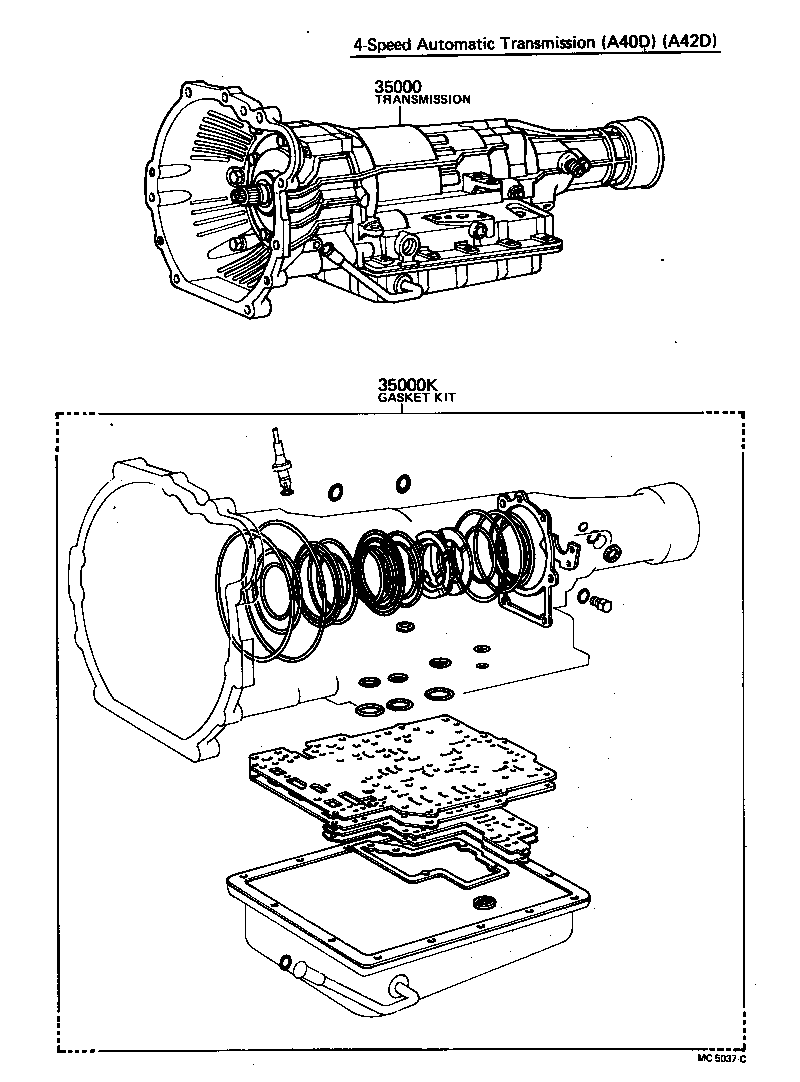

Figure MC4595A MC4595A 1979-09 → 1980-08 Figure MC5037C MC5037C 1979-09 → —

Part groups

PNCDescription
35000 Transmission Assy, Automatic
35000K Gasket Kit, Automatic Transmission Overhaul
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
