Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

20 part groups · 6 illustrations

Illustrations

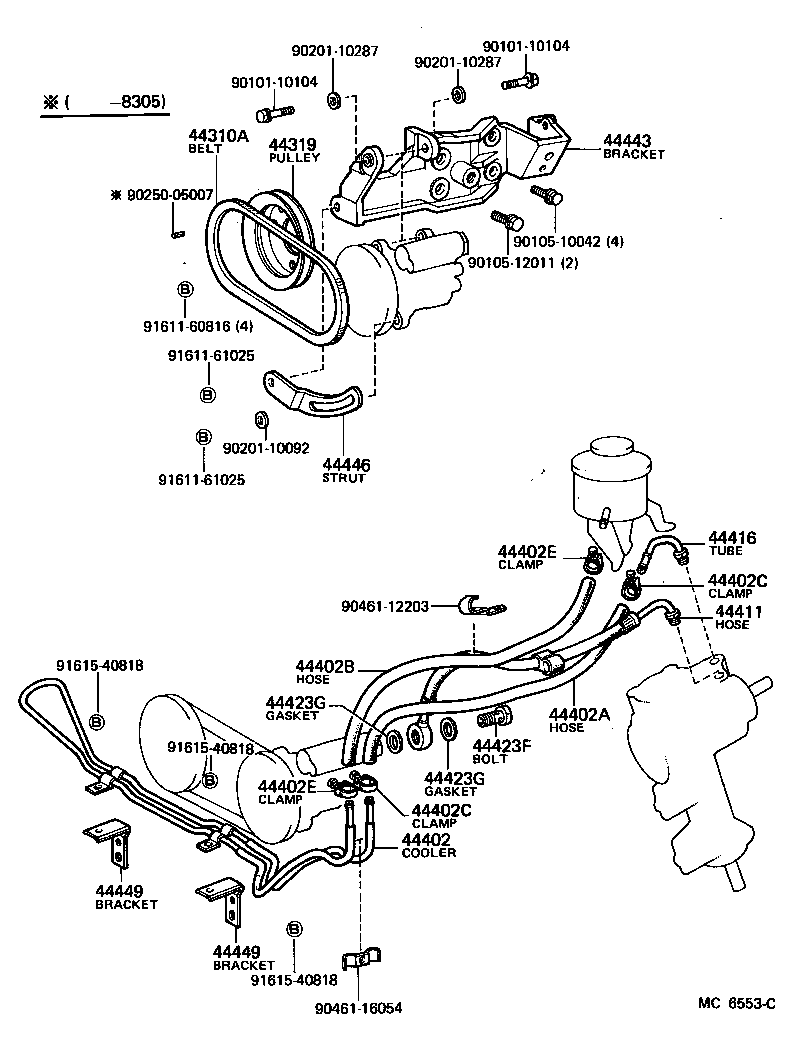

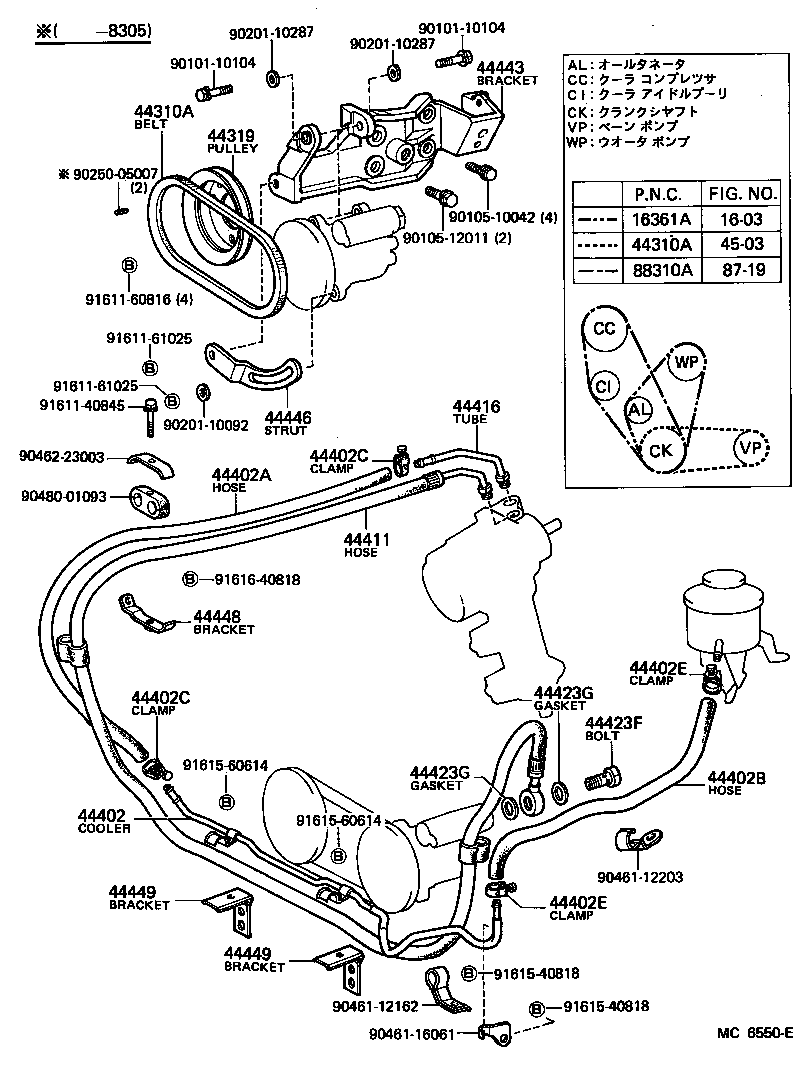

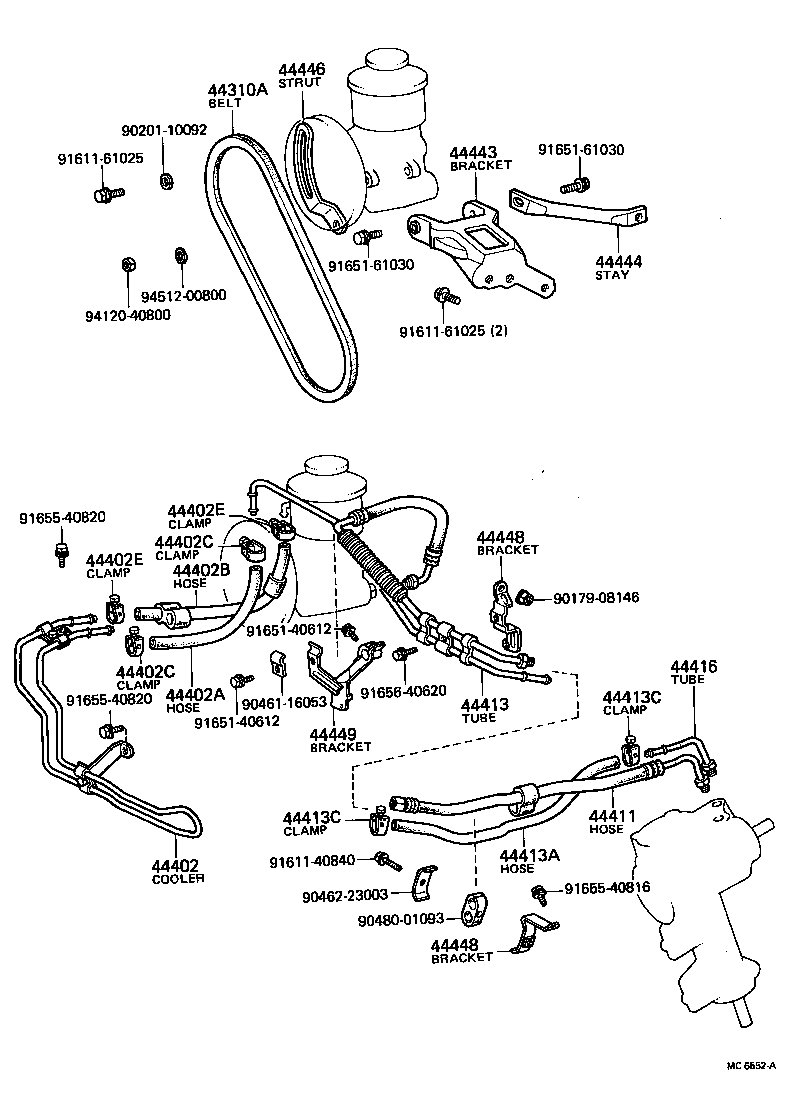

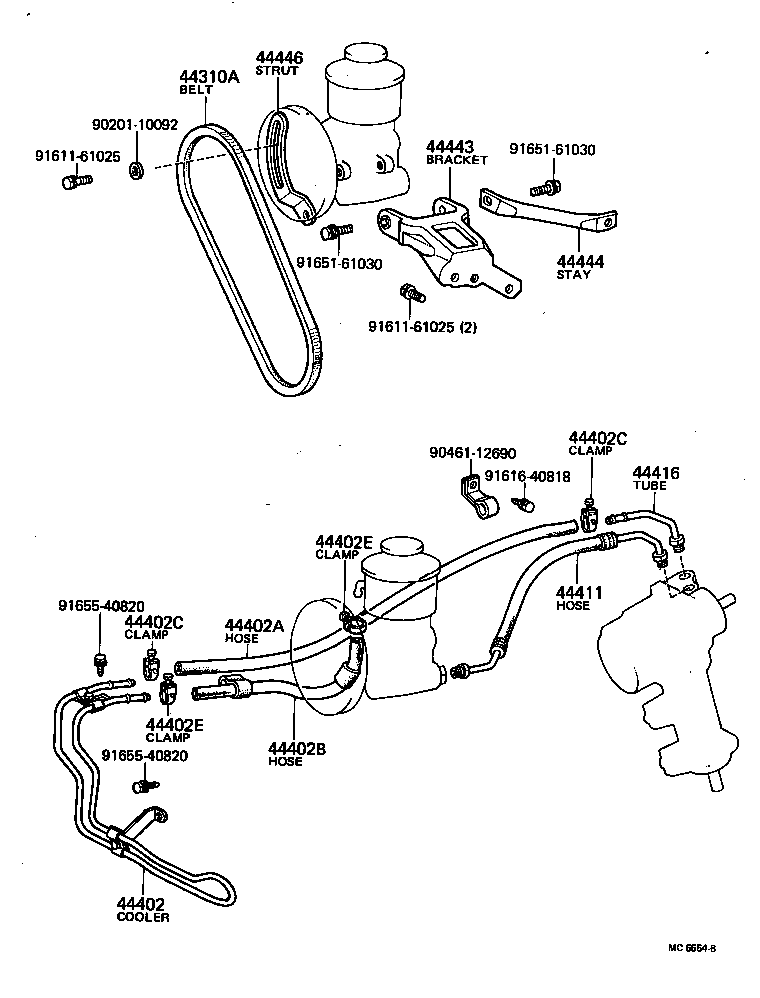

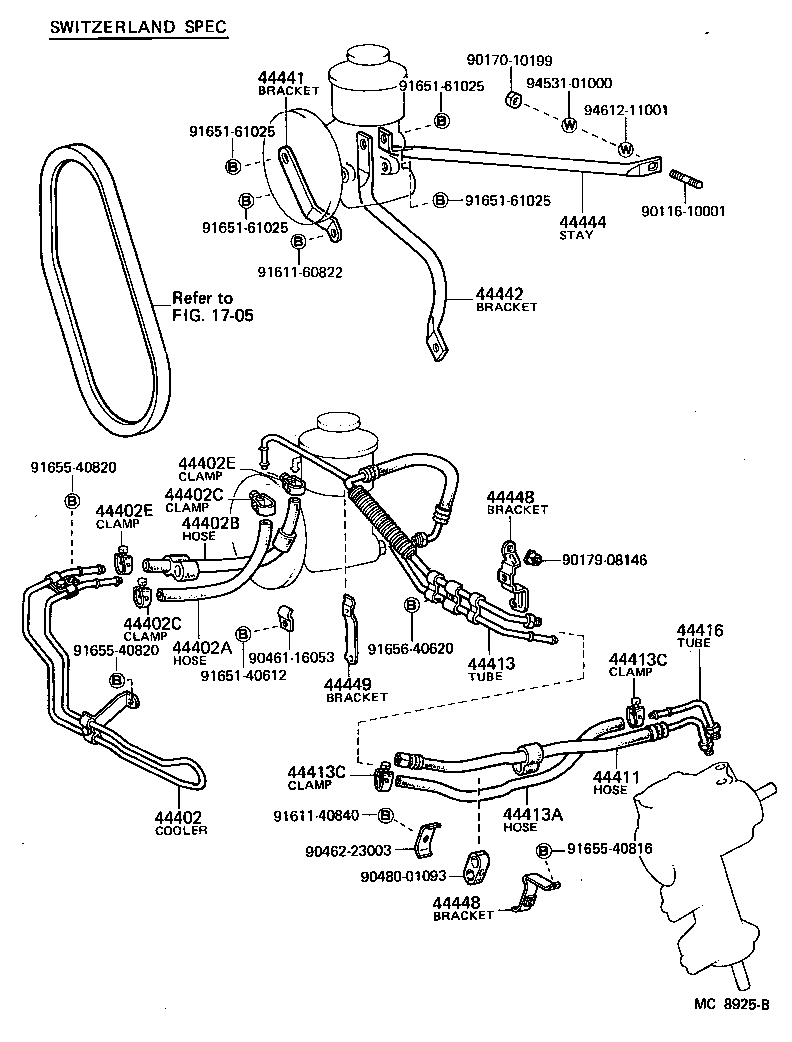

Figure MC6549B MC6549B 1979-09 → — Figure MC6554B MC6554B 1979-09 → — Figure MC6552A MC6552A 1979-09 → — Figure MC6550E MC6550E 1979-09 → — Figure MC6553C MC6553C 1979-09 → — Figure MC8925B MC8925B 1982-08 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44402A Hose, Power Steering Oil Cooler Inlet
44402B Hose, Power Steering Oil Cooler Outlet
44402C Clamp, Power Steering Oil Cooler Inlet Hose
44402E Clamp, Power Steering Oil Cooler Outlet Hose
44411 Hose, Pressure Feed
44413 Tube, Pressure Feed, NO.1
44413A Hose(FOR RETURN TUBE OUTLET)
44413C Clamp(FOR RETURN TUBE OUTLET HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44423F Bolt, Union
44423G Gasket, Union Bolt
44441 Bracket, Pump, Front
44442 Bracket, Pump, Rear
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
44448 Bracket, Pressure Feed Hose Support, NO.1
44449 Bracket, Pressure Feed Hose Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
