Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

17 part groups · 4 illustrations

Illustrations

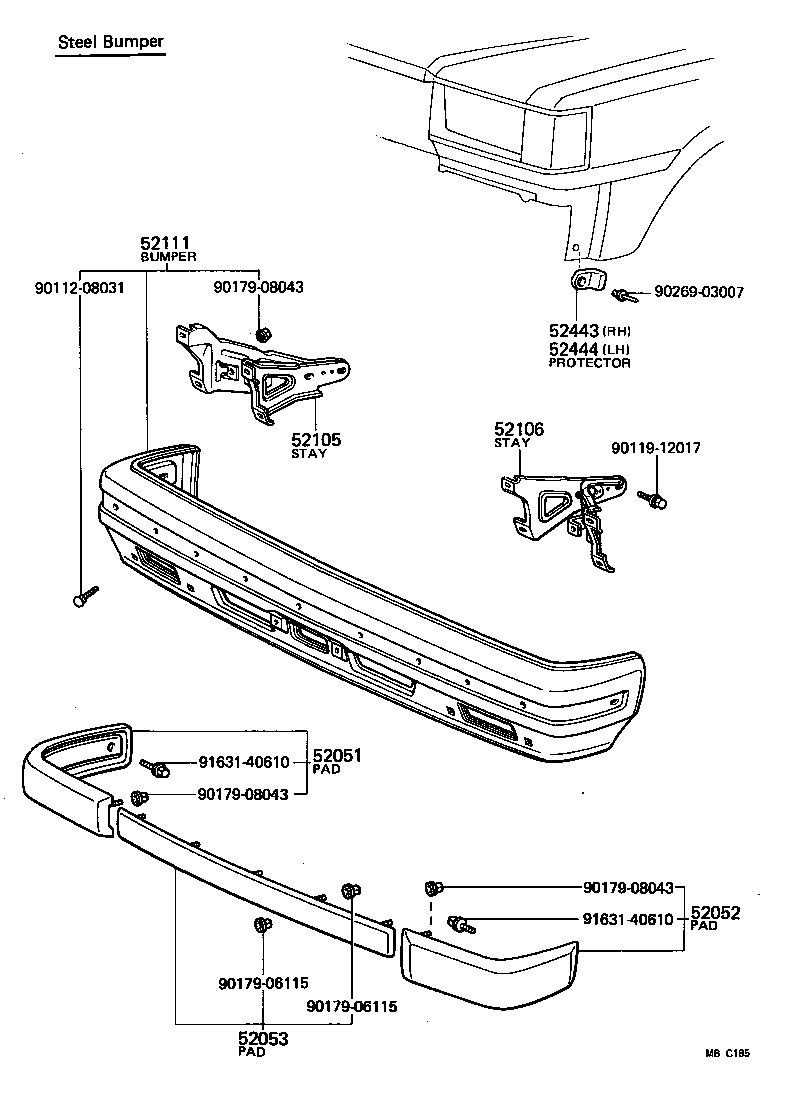

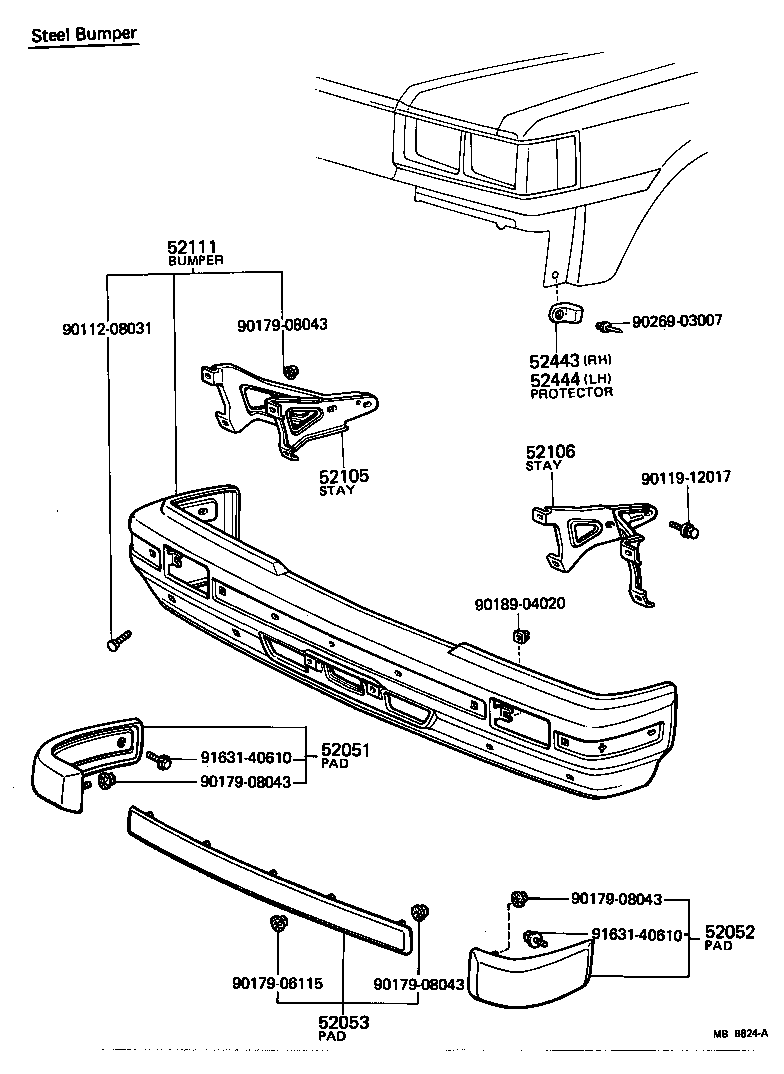

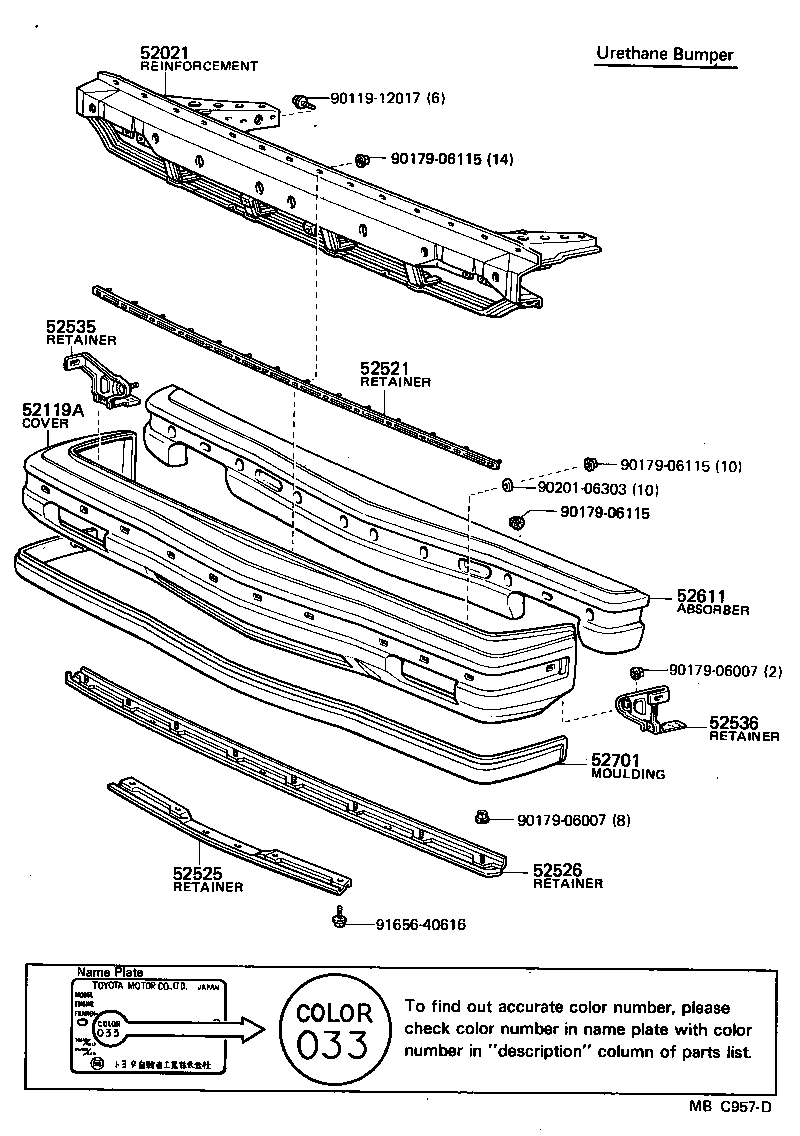

Figure MBA356C MBA356C 1979-09 → 1980-08 Figure MBB824A MBB824A 1980-08 → 1981-08 Figure MBC185 MBC185 1981-08 → — Figure MBC957D MBC957D 1979-09 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52051 Pad Sub-assy, Front Bumper, RH
52052 Pad Sub-assy, Front Bumper, LH
52053 Pad Sub-assy, Front Bumper
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52119A Cover, Front Bumper
52443 Protector, Front Bumper, RH
52444 Protector, Front Bumper, LH
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52701 Moulding Sub-assy, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
