Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

16 part groups · 4 illustrations

Illustrations

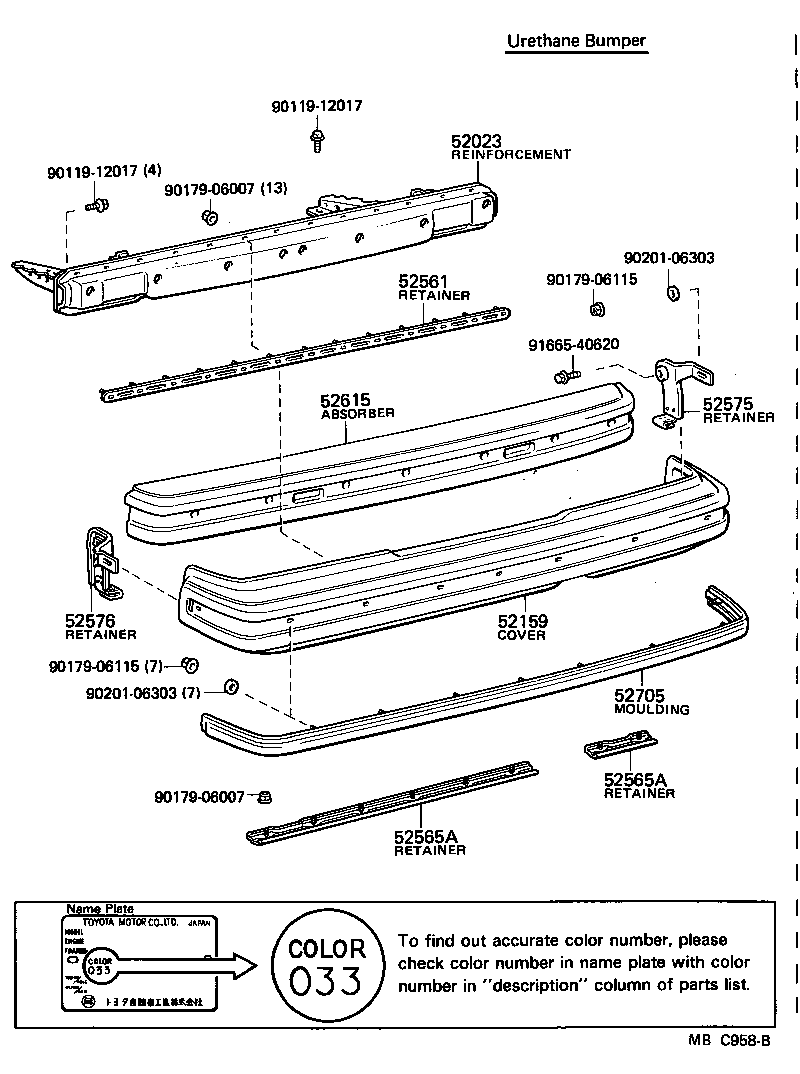

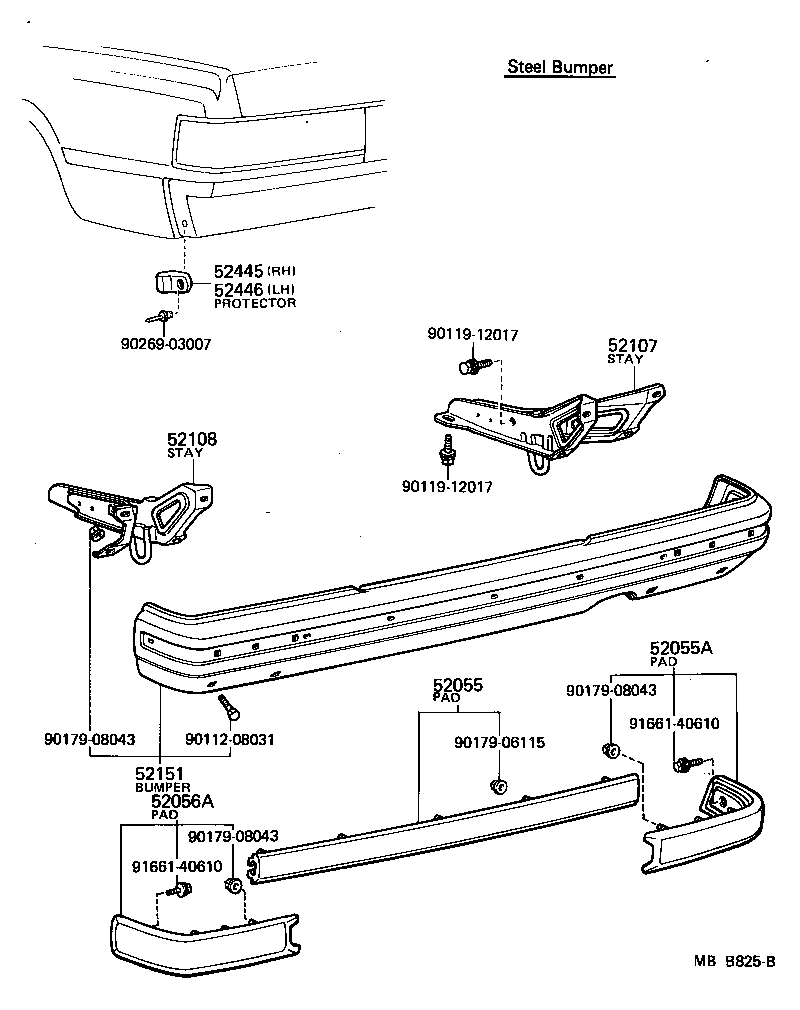

Figure MBA360C MBA360C 1979-09 → 1980-08 Figure MBB825B MBB825B 1980-08 → — Figure MBC958B MBC958B 1979-09 → — Figure MBA363B MBA363B 1979-09 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52055 Pad Sub-assy, Rear Bumper
52055A Pad Sub-assy, Rear Bumper, RH
52056A Pad Sub-assy, Rear Bumper, LH
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52151 Bumper Assy, Rear
52159 Cover, Rear Bumper
52445 Protector, Rear Bumper, RH
52446 Protector, Rear Bumper, LH
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52615 Absorber, Rear Bumper Energy
52705 Moulding Sub-assy, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
