Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

24 part groups · 3 illustrations

Illustrations

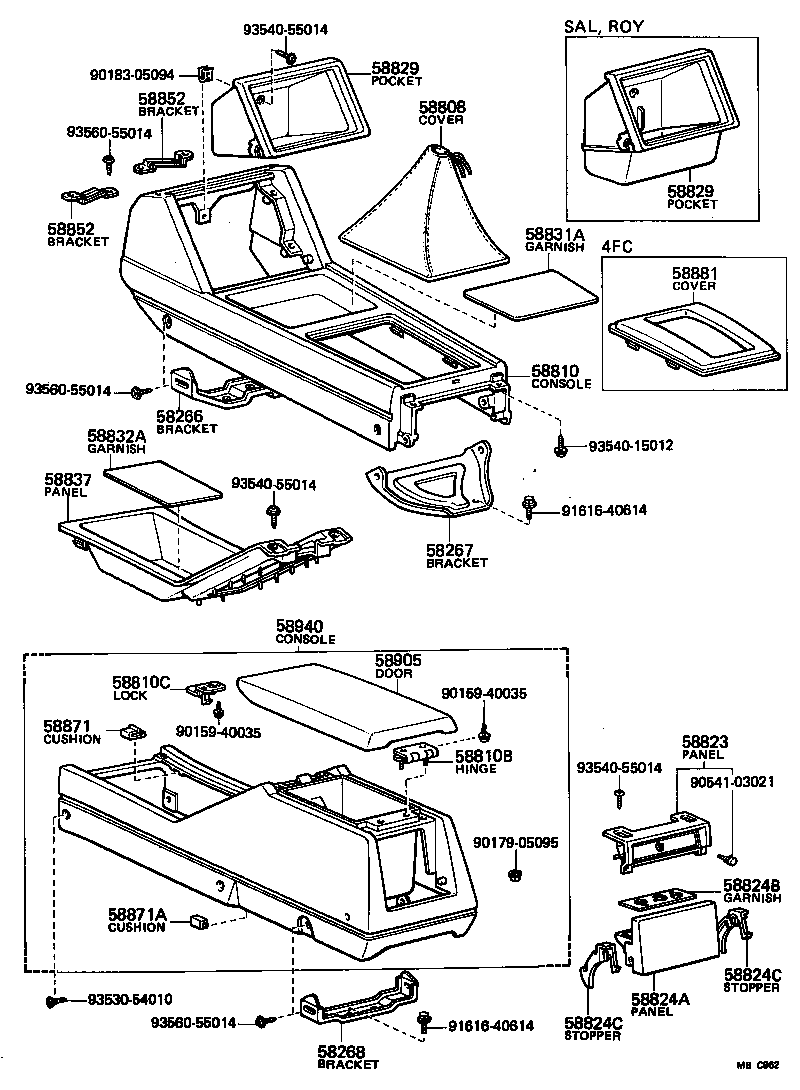

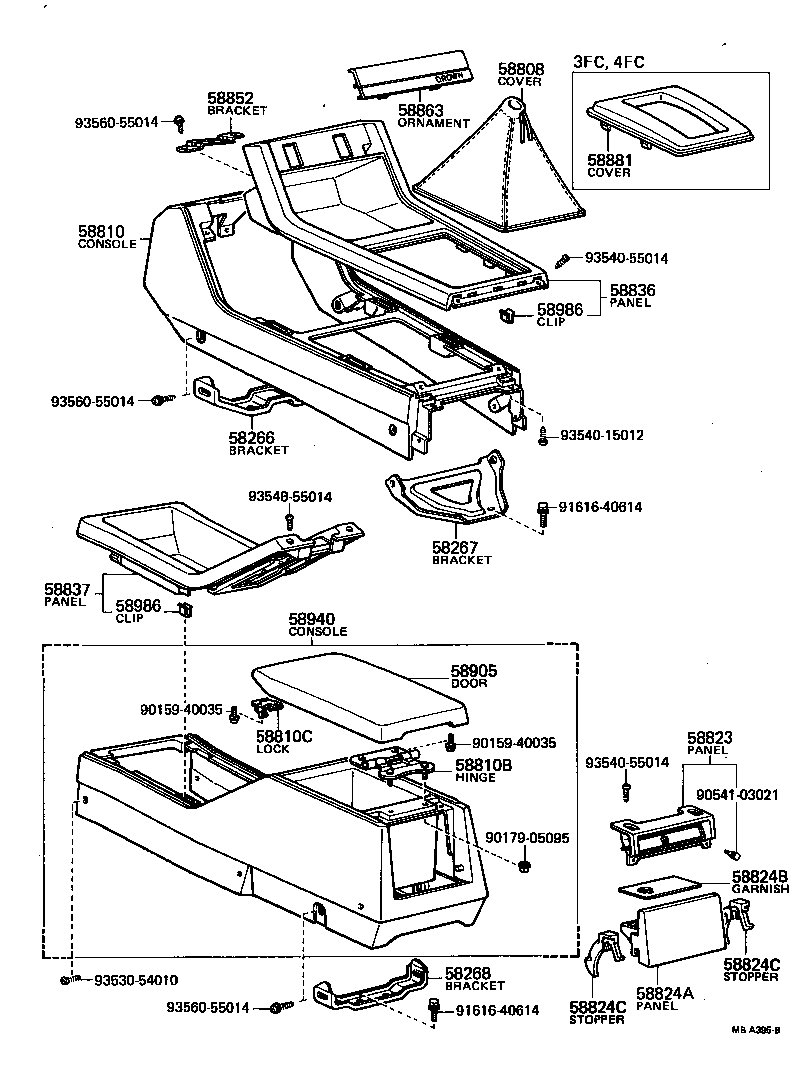

Figure MBA394B MBA394B 1979-09 → 1981-08 Figure MBA395B MBA395B 1979-09 → 1981-08 Figure MBC962 MBC962 1981-08 → —

Part groups

PNCDescription
58266 Bracket, Console Box Support, Front
58267 Bracket, Console Box Support, Center
58268 Bracket, Console Box Support, Rear
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58810B Hinge Sub-assy,Console Compartment Door
58810C Lock Sub-assy, Console Compartment Door
58823 Panel, Console, Rear
58824A Panel, Console, Rear NO.2
58824B Garnish, Console Rear Panel, NO.2
58824C Stopper, Console Rear Panel, NO.2
58829 Pocket, Console Box
58831A Garnish, Console Upper Panel, Front
58832A Garnish, Console Upper Panel, Rear
58836 Panel, Console, Upper Front
58837 Panel, Console, Upper Rear
58852 Bracket, Console Support, Upper LH
58863 Ornament, Console
58871 Cushion, Console Box
58871A Cushion, Console Box, NO.2
58881 Cover, Shifting Hole
58905 Door Sub-assy, Console Compartment
58940 Console Assy, Rear
58986 Clip, Console, Finish Palte
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
