Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

22 part groups · 2 illustrations

Illustrations

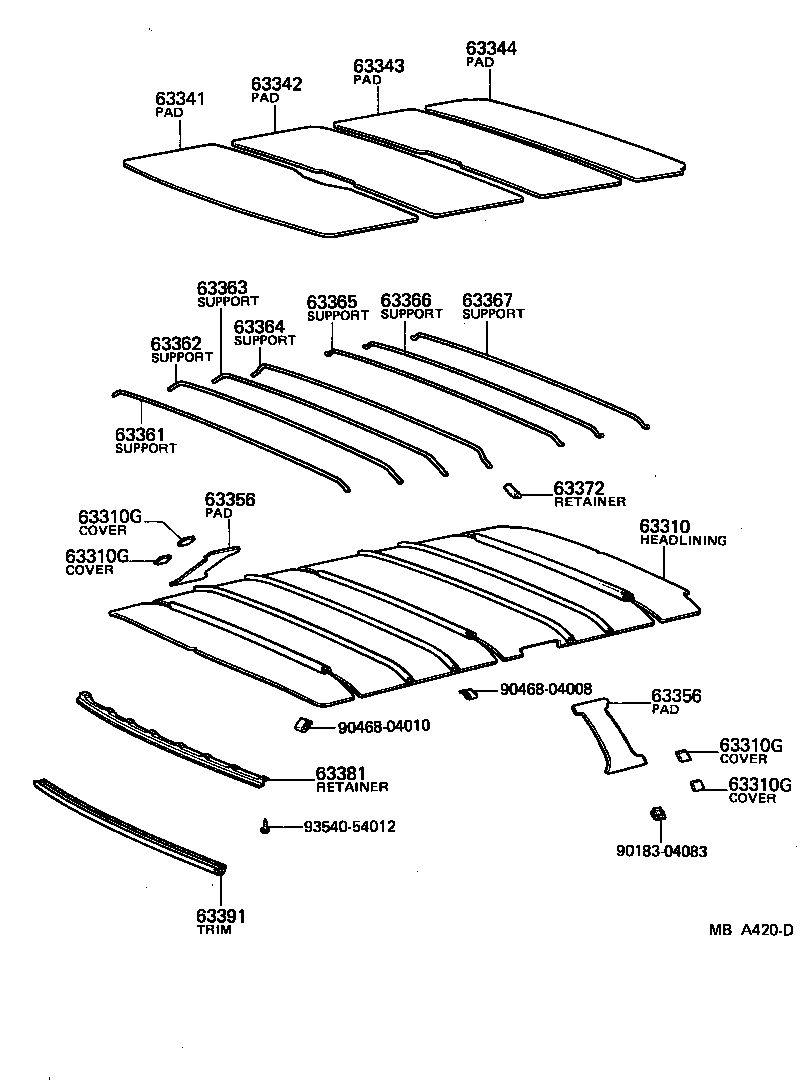

Figure MBA418C MBA418C 1979-09 → — Figure MBA420D MBA420D 1979-09 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310G Cover, Roof Side Inner Service Hole
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63356 Pad, Roof Side Inner Garnish
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63366 Support, Roof Headlining, NO.6
63367 Support, Roof Headlining, NO.7
63371 Hook, Roof Headlining Support
63372 Retainer, Headlining Support
63381 Retainer, Headlining, Front
63382 Retainer, Headlining, Rear Center
63387 Pad, Roof Headlining Forming
63388 Frame, Roof Headlining Forming
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
