Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

9 part groups · 3 illustrations

Illustrations

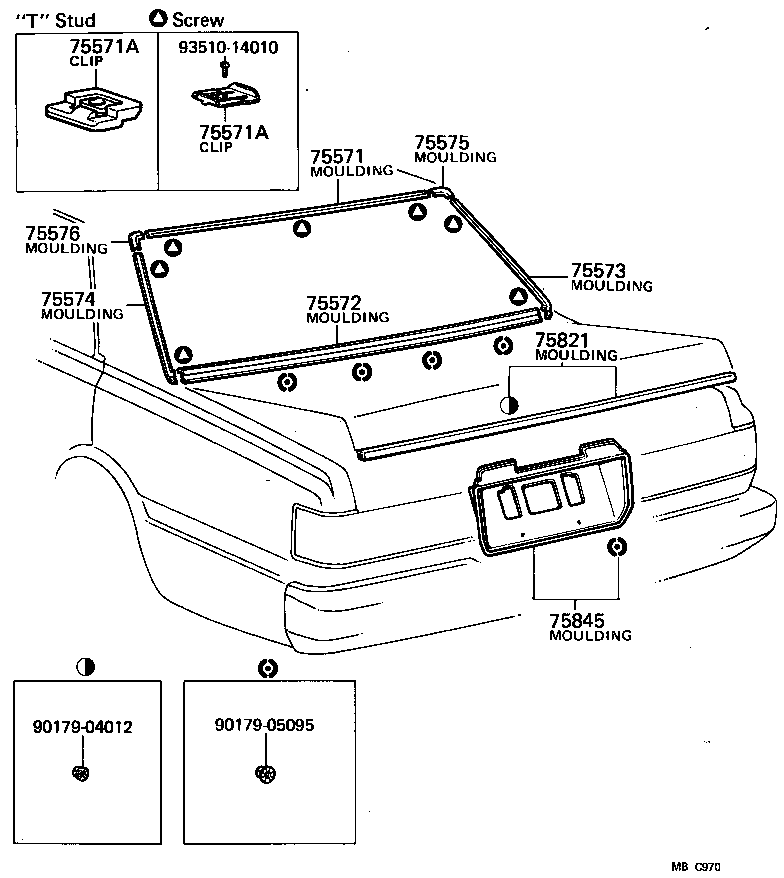

Figure MBA483F MBA483F 1979-09 → 1981-08 Figure MBC970 MBC970 1981-08 → — Figure MBA484 MBA484 1979-09 → —

Part groups

PNCDescription
75571 Moulding, Back Window, Outside Upper
75571A Clip(FOR BACK WINDOW MOULDING SET)
75572 Moulding, Back Window, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75821 Moulding, Luggage Compartment Door Back
75845 Moulding, Body Lower Back Panel, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
