Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

12 part groups · 3 illustrations

Illustrations

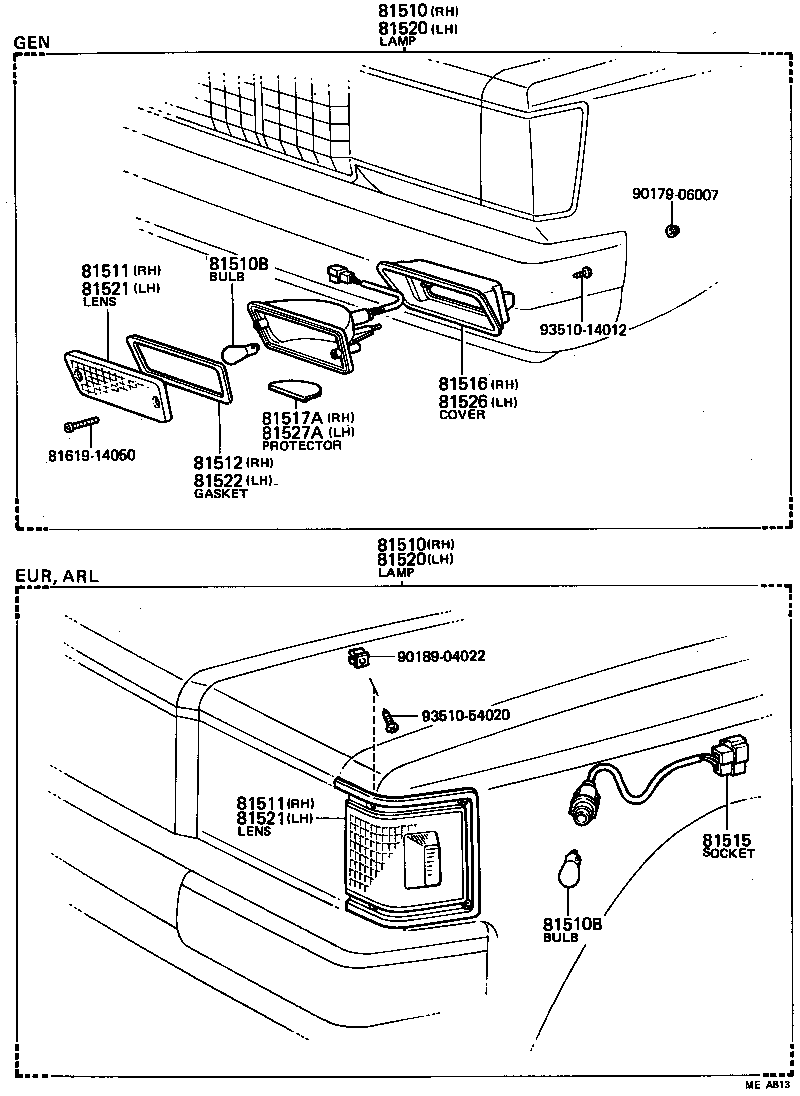

Figure ME8119E ME8119E 1979-09 → 1981-08 Figure ME8119E ME8119E 1981-08 → — Figure MEA813 MEA813 1981-08 → —

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81512 Gasket, Front Turn Signal Lamp Lens, RH
81515 Wire Sub-assy, Front Turn Signal Lamp Body
81516 Rim, Front Turn Signal Lamp, RH
81517A Protector, Front Turn Signal Lamp, RH
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
81522 Gasket, Front Turn Signal Lamp Lens, LH
81526 Rim, Front Turn Signal Lamp, LH
81527A Protector, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
