Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

24 part groups · 2 illustrations

Illustrations

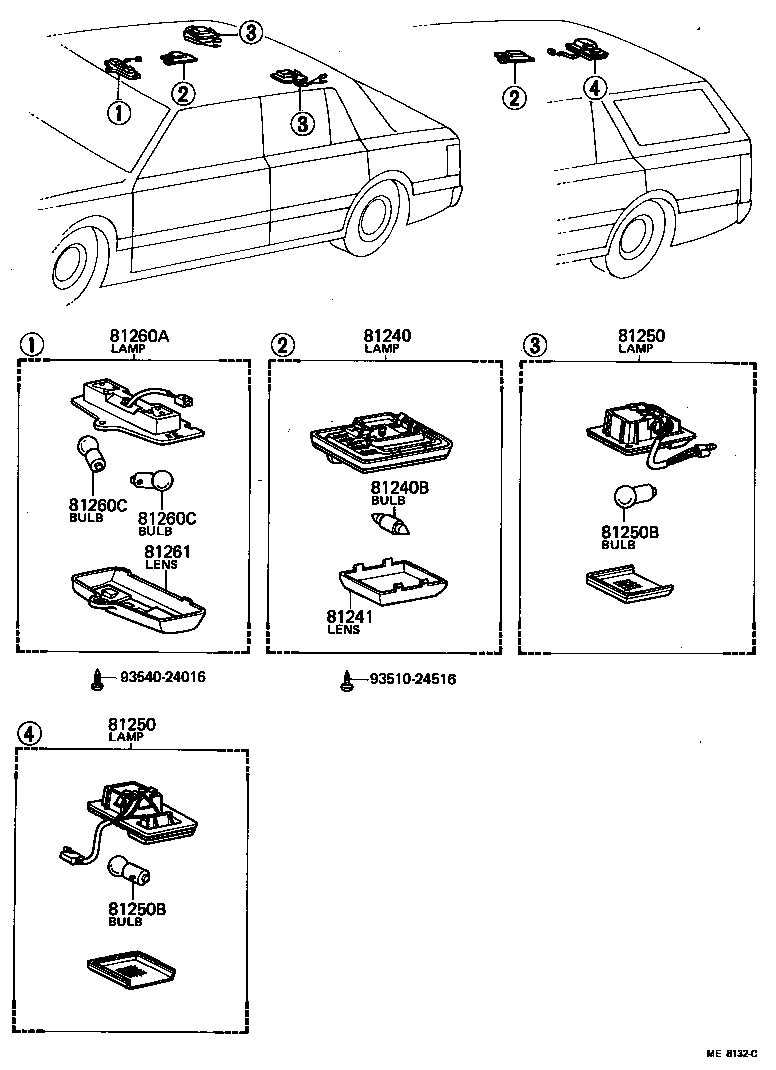

Figure ME8131B ME8131B 1979-09 → — Figure ME8132C ME8132C 1979-09 → —

Part groups

PNCDescription
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81231 Lens, Courtesy Lamp
81236 Rim, Courtesy Lamp
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81241 Lens, Room Lamp, NO.1
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260B Bulb(FOR GLOVE BOX)
81260C Bulb(FOR MAP LAMP)
81261 Lens And Cover, Map Lamp
81280 Lamp Assy, Engine Room
81280B Bulb, Engine Room Lamp
81281 Lens, Engine Room Lamp
81282 Packing, Engine Room Lamp Lens
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81331 Lens, Luggage Compartment Lamp
81332 Packing, Luggage Compartment Lamp Lens
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
