Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 10 illustrations

Illustrations

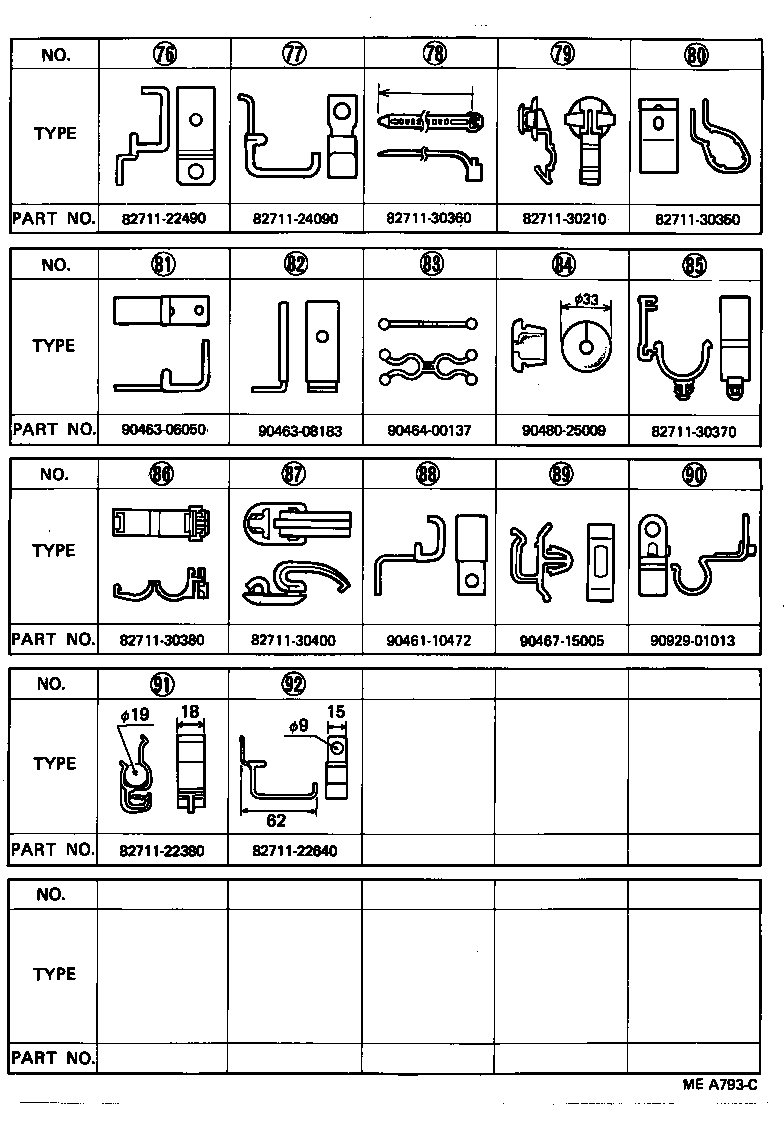

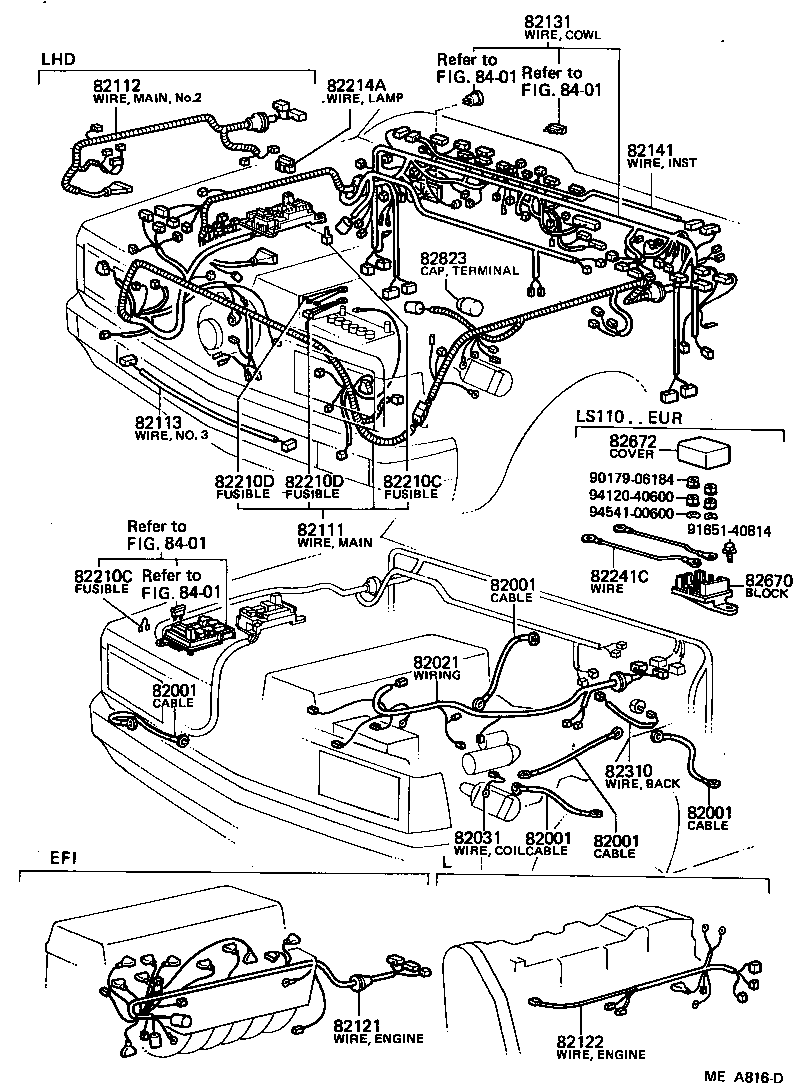

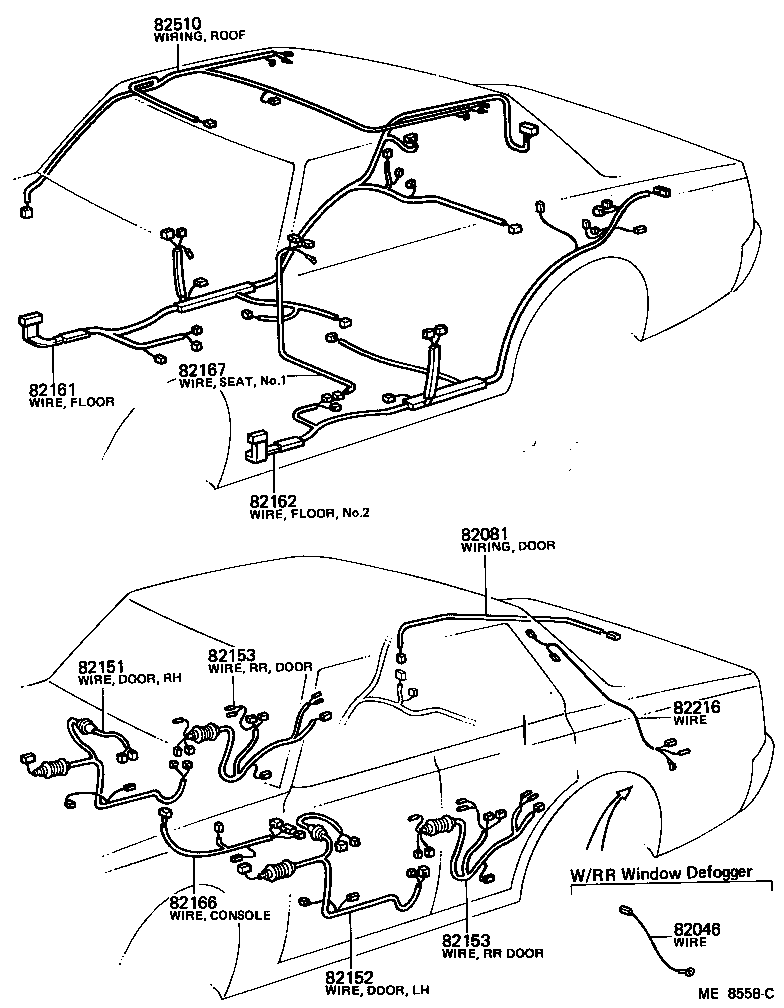

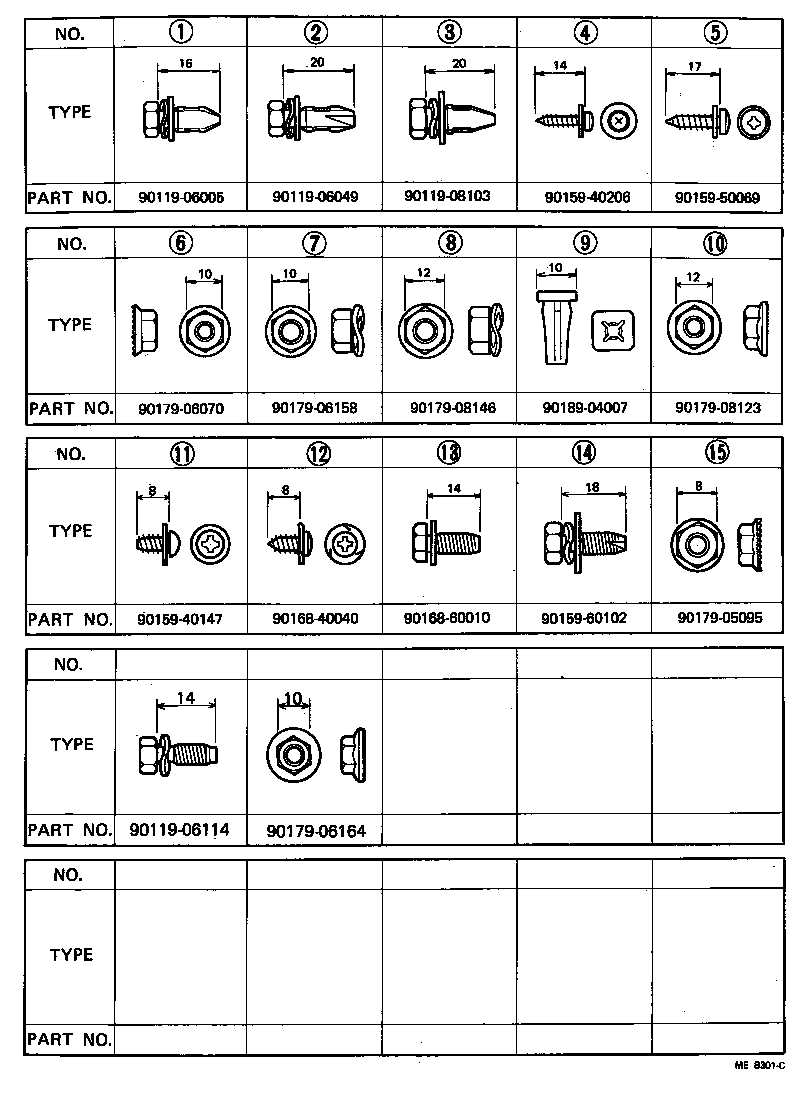

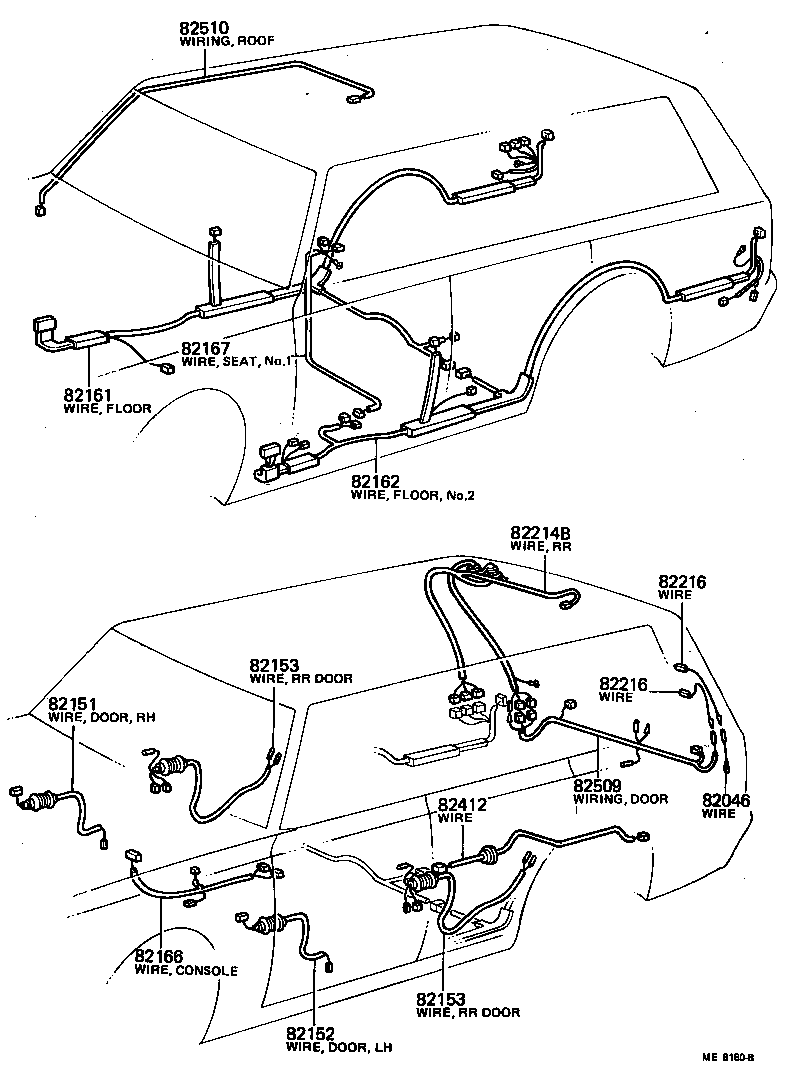

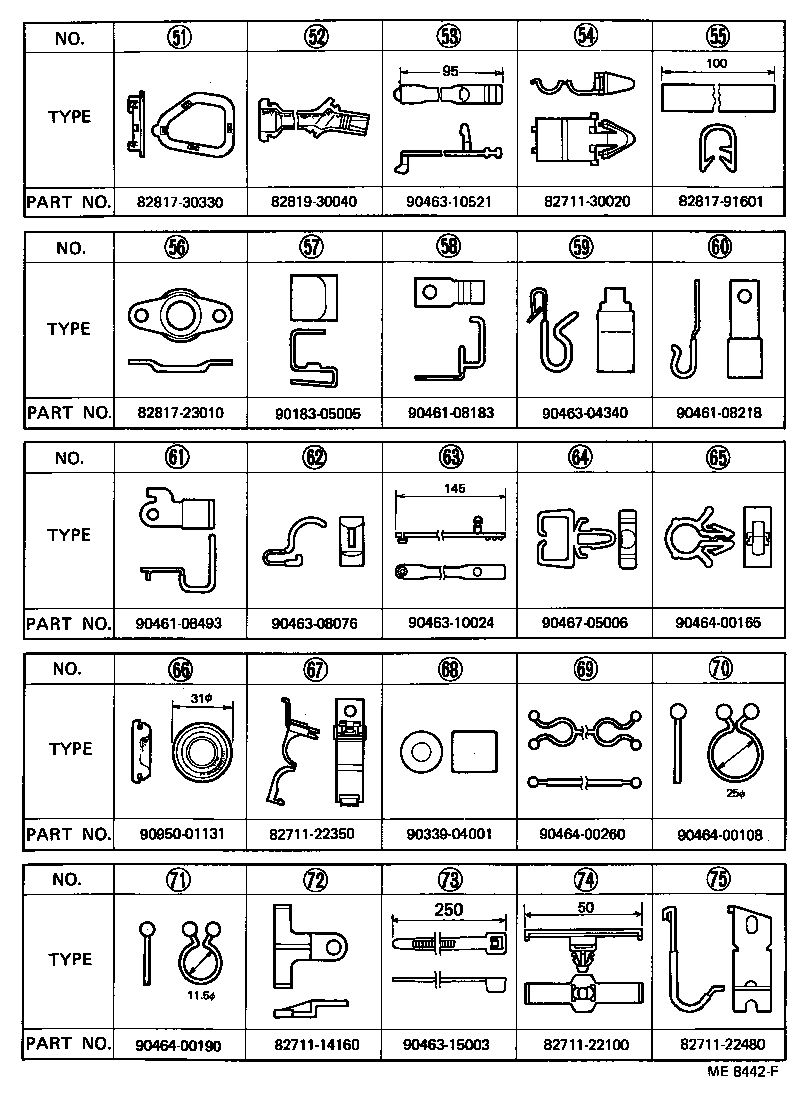

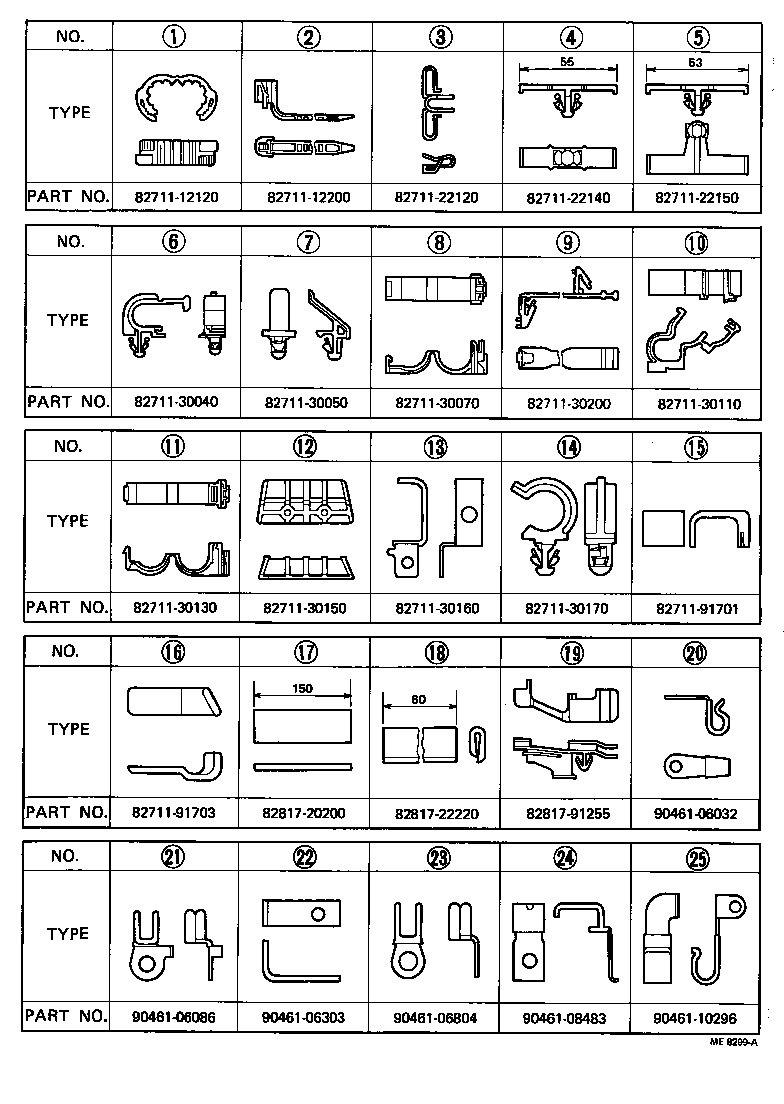

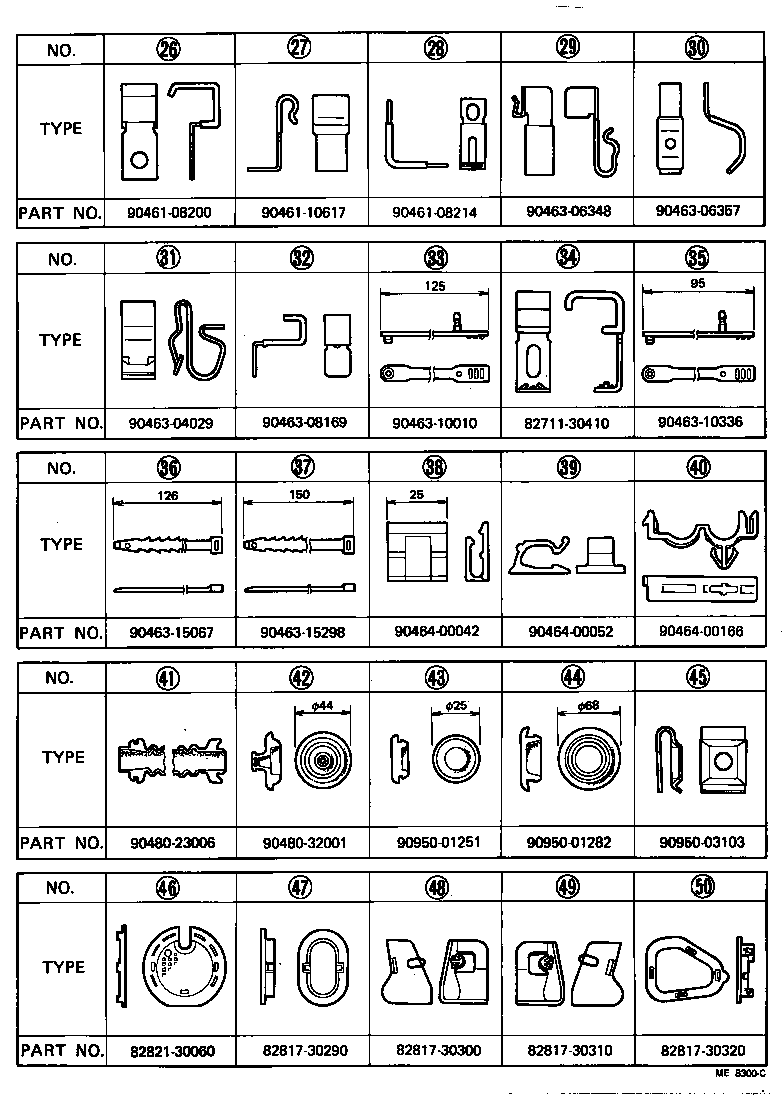

Figure ME8557F ME8557F 1979-09 → 1981-08 Figure MEA816D MEA816D 1981-08 → — Figure ME8558C ME8558C 1979-09 → — Figure ME8180B ME8180B 1979-09 → — Figure ME8298A ME8298A 1979-09 → — Figure ME8299A ME8299A 1979-09 → — Figure ME8300C ME8300C 1979-09 → — Figure ME8442F ME8442F 1979-09 → — Figure MEA793C MEA793C 1981-08 → — Figure ME8301C ME8301C 1979-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82021 Wiring Assy, Starter
82031 Wire Sub-assy, Ignition Coil
82046 Wire Sub-assy, Rear Window Defogger Earth
82050 Wire Assy, Engine
82081 Wiring Assy, Door Lock
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82162 Wire, Floor, NO.2
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82210C Fusible Link
82210D Fusible Link
82214A Wire, Lamp
82214B Wire, Lamp, Rear
82216 Wire, Rear Window Defogger
82241C Wire, Relay
82310 Wiring Assy, TO Back UP Lamp Switch
82412 Wire, Fuel Gage
82509 Wiring Sub-assy, Back Door
82510 Wiring Assy, Roof
82670 Block Assy, Junction, NO.1
82672 Cover, Junktion Block
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
