Toyota Crown

1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

19 part groups · 5 illustrations

Illustrations

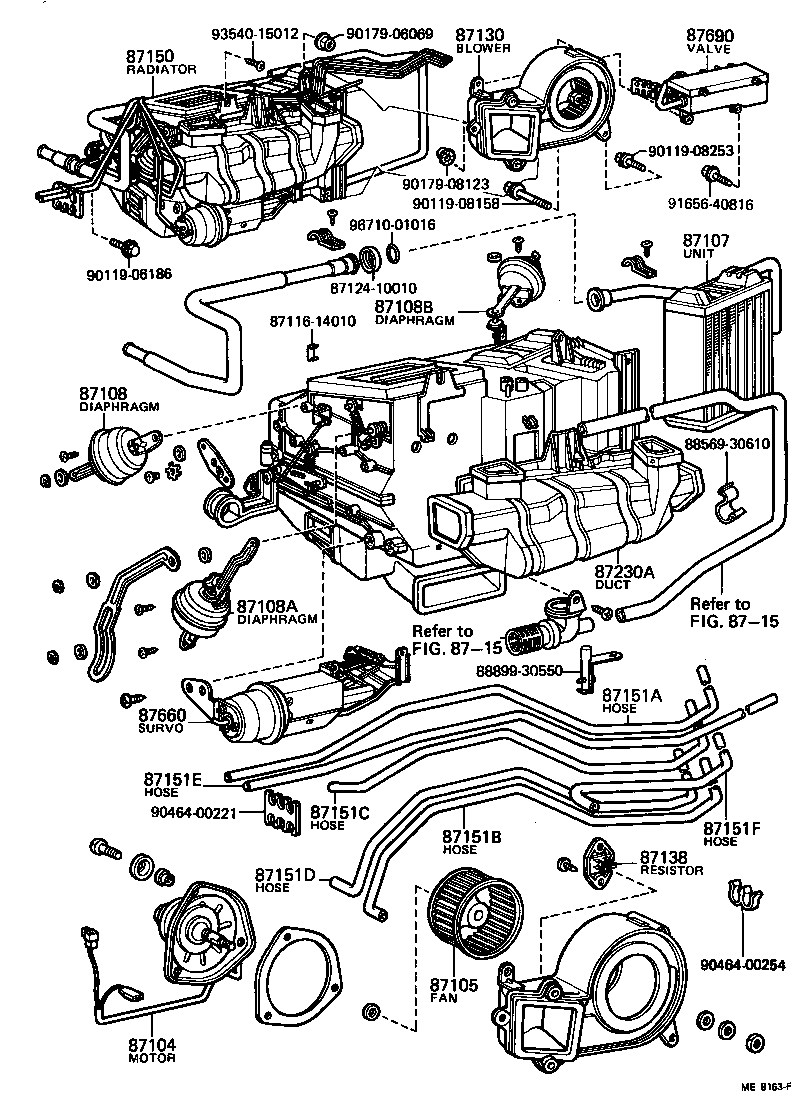

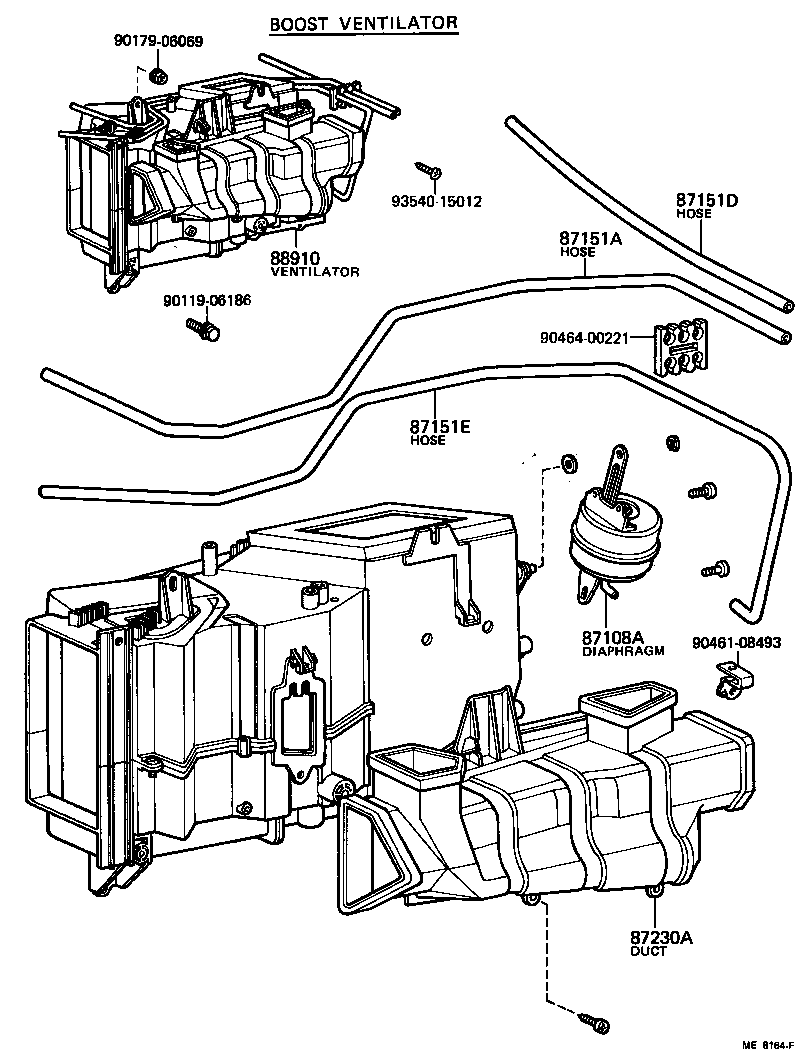

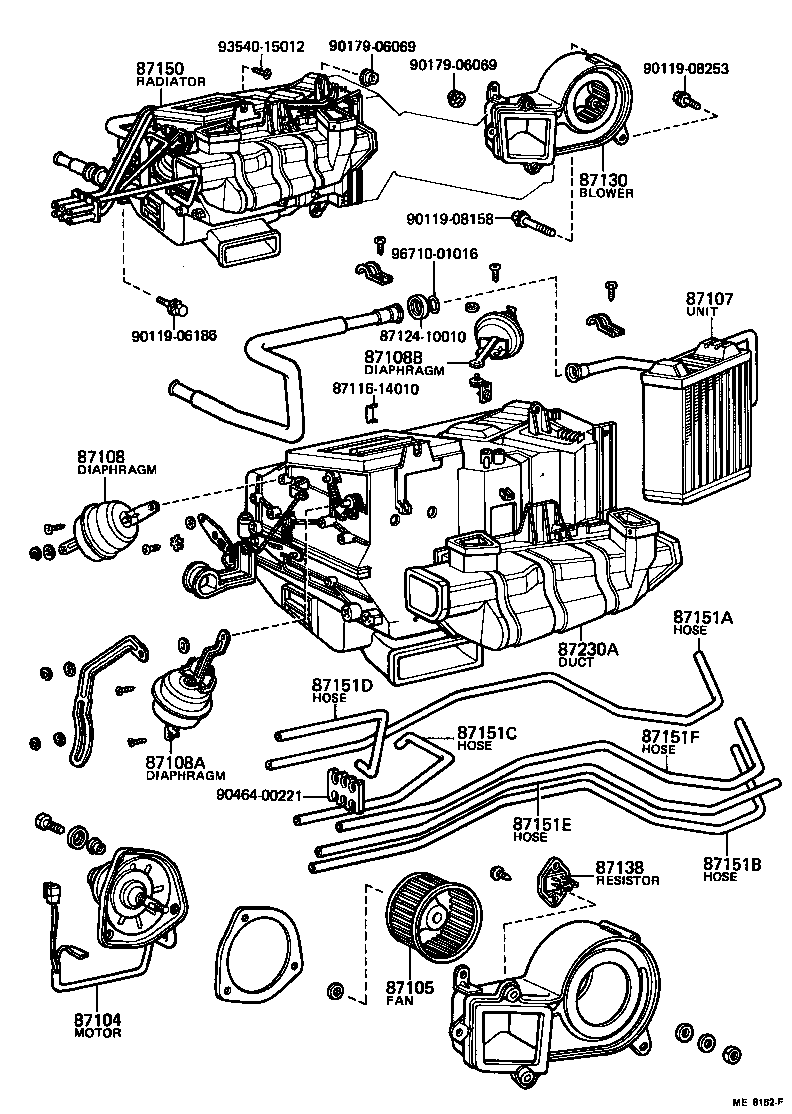

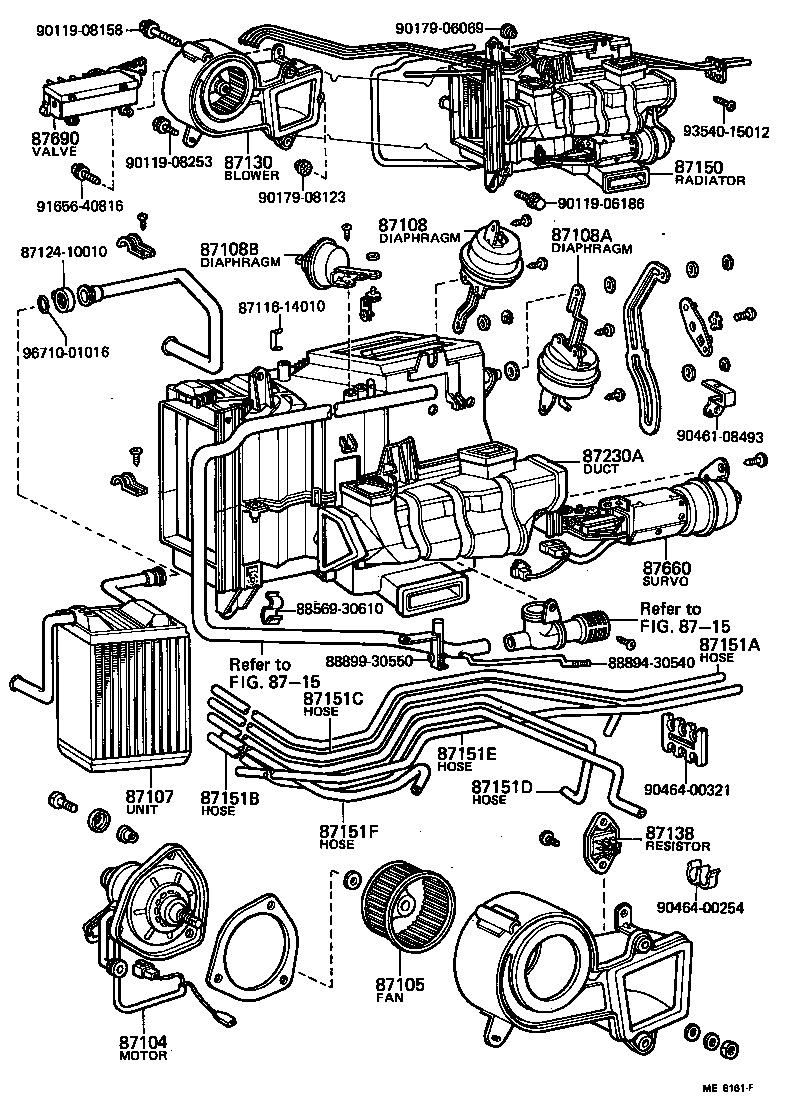

Figure ME8554C ME8554C 1979-09 → — Figure ME8161F ME8161F 1979-09 → — Figure ME8162F ME8162F 1979-09 → — Figure ME8163F ME8163F 1979-09 → — Figure ME8164F ME8164F 1979-09 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87108 Diaphragm Sub-assy, Heater Door Control
87108A Diaphragm Sub-assy, Ventilator Door Control
87108B Diaphragm Sub-assy, Bi-level Door Control
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87151A Hose, Vacuum, A
87151B Hose, Vacuum, B
87151C Hose, Vacuum, C
87151D Hose, Vacuum, D
87151E Hose, Vacuum, E
87151F Hose, Vacuum, F
87230A Duct Assy, Heater Air
87660 Servo Assy, Air Conditioner
87690 Valve Assy, Magnet
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
