Toyota Crown
1979-09 → 1983-07 · chassis RS110,MS11#,LS110 · catalogue 331240 · Europe
Discontinued model
Data version 1984-02

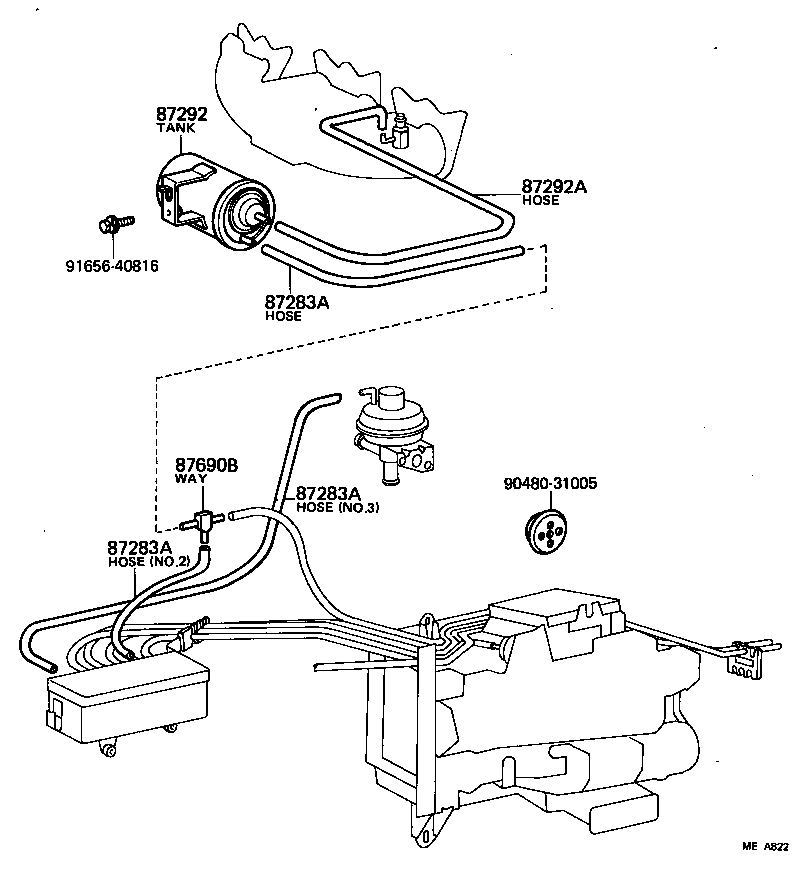

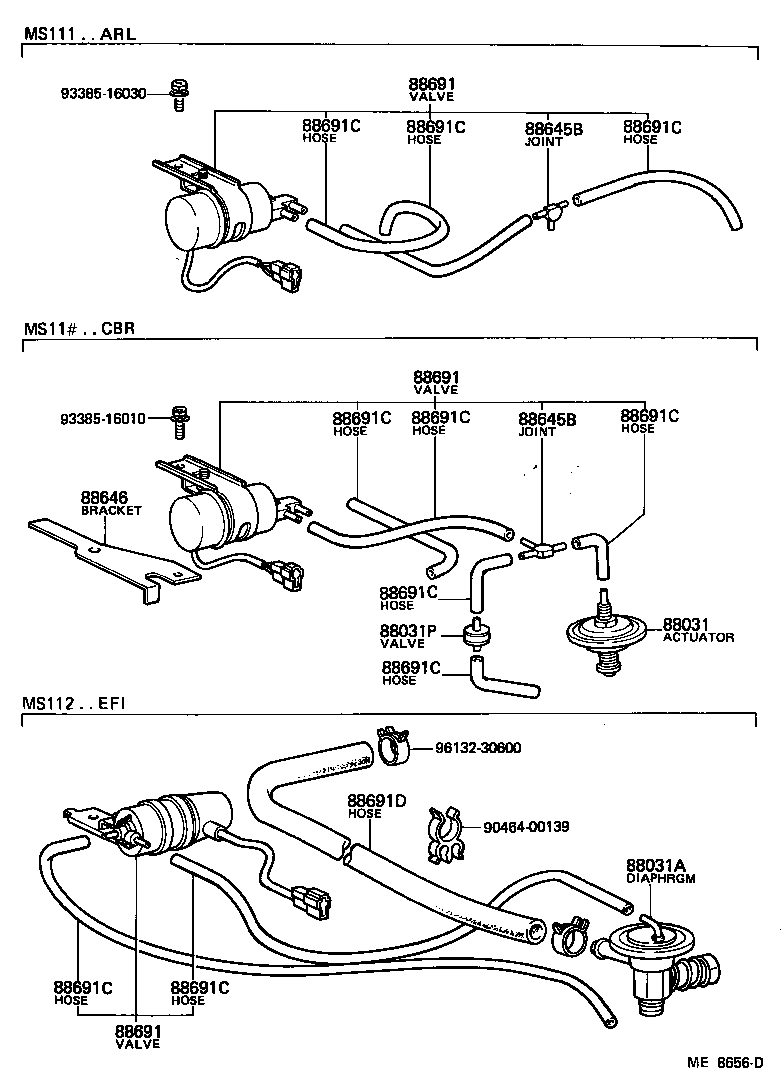

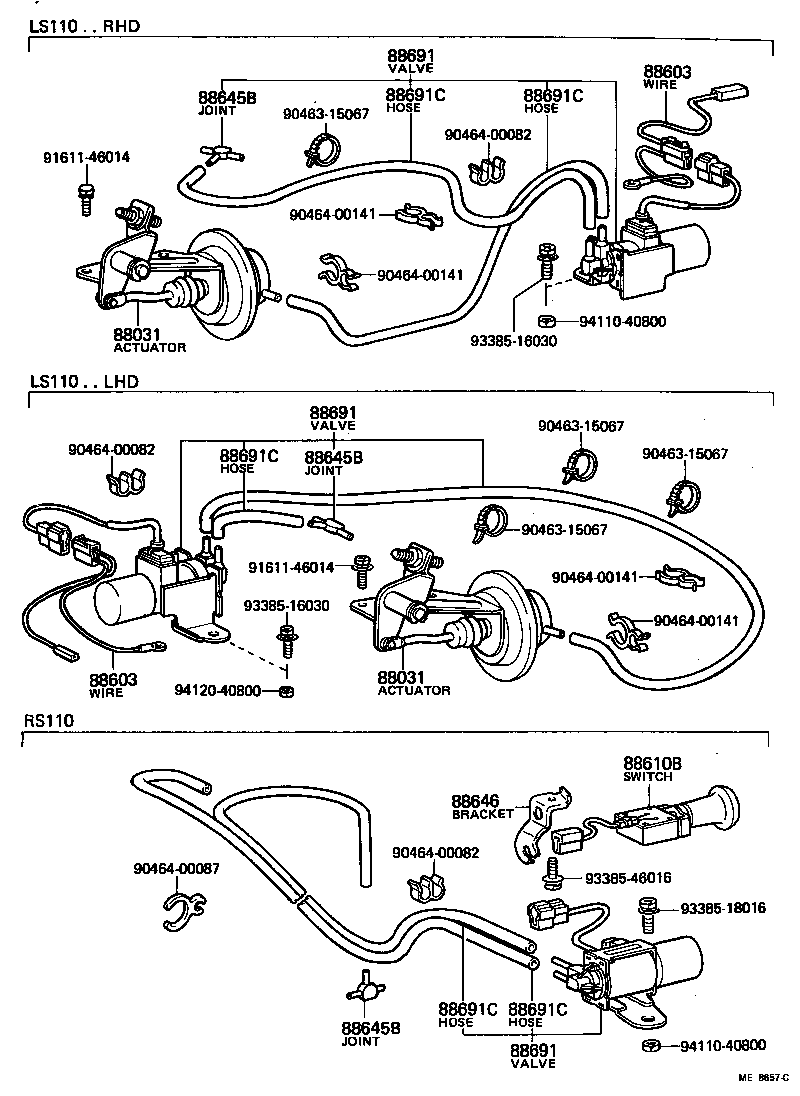

Heating & Air Conditioning - Vacuum Piping
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87283A | Hose, NO.1 |
| 87292 | Tank, Vacuum |
| 87292A | Hose, Vacuum Tank |
| 87293E | Union, Hose |
| 87690B | Way, 3 |
| 88031 | Actuator Set, Idle-up |
| 88031A | Diaphragm Sub-assy, Idle-up Actuator |
| 88031P | Valve, Vacuum Transmitting |
| 88603 | Wire, Idle UP Device |
| 88610B | Switch Assy, Idle UP Device |
| 88645B | Joint, NO.1 (FOR IDLE UP DIVICE) |
| 88646 | Bracket, Idle UP Device, NO.1 |
| 88691 | Valve, Magnet (FOR IDLE UP DEVICE) |
| 88691C | Hose, Vacuum (FOR IDLE UP DEVICE), NO.1 |
| 88691D | Hose, Vacuum (FOR IDLE UP DIVICE), NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
