Toyota Crown
1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe
Discontinued model
Data version 1988-01

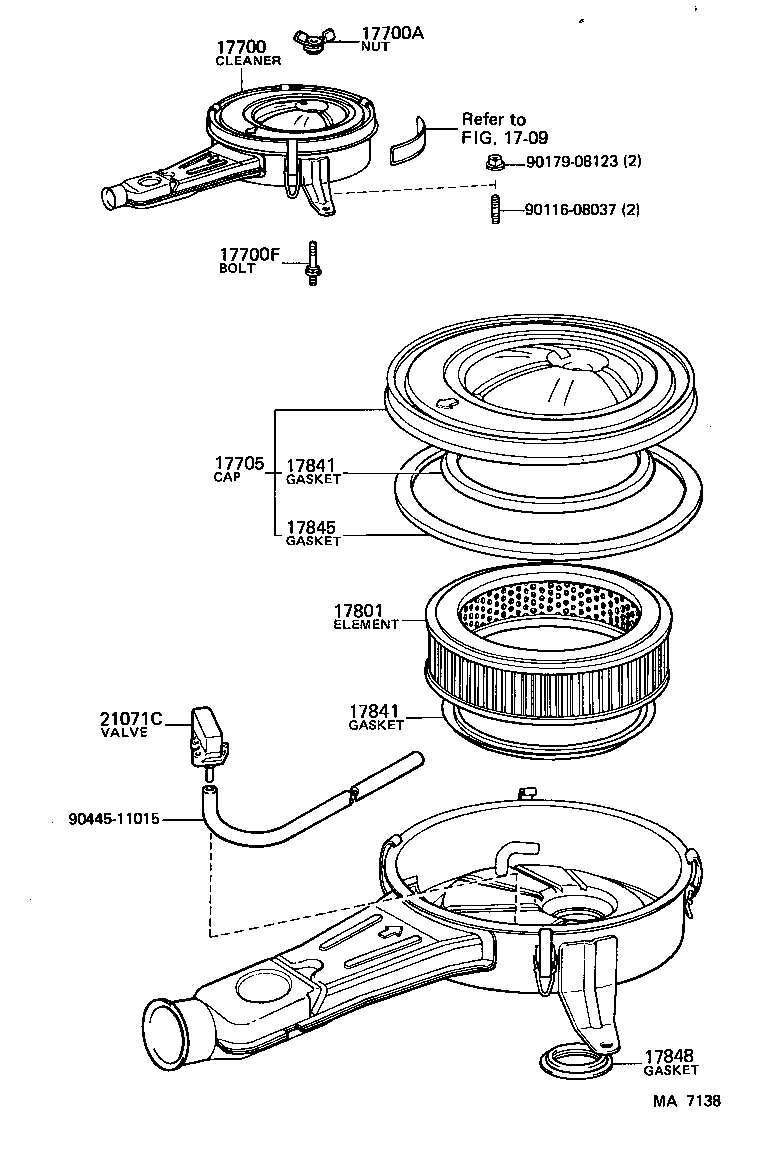

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-42190 |
Cleaner Assy, Air
1984-10 → 1987-08
ended
|
6MGE MS125 | — | |
| 17700-42190 |
Cleaner Assy, Air
1985-09 → 1987-08
ended
|
5MGE MS123 | — | |
| 17700-43070 |
Cleaner Assy, Air
1983-08 → 1987-08
ended
|
5M MS122 | — | |
| 17700-43080 note |
Cleaner Assy, Air
1985-09 → 1987-08
ended
|
5M MS122 GEN | — | |
| 17700-43080 note |
Cleaner Assy, Air
1983-08 → 1985-09
ended
|
5M MS122 | — | |
| 17700-43090 |
Cleaner Assy, Air
1983-08 → 1985-09
ended
|
5MGE MS123 | — | |
| 17700-43110 |
Cleaner Assy, Air
1983-08 → 1985-09
ended
|
5ME MS123 | — | |
| 17700-43140 |
Cleaner Assy, Air
1985-09 → 1987-08
ended
|
5ME MS122 | — | |
| 17700-54280 |
Cleaner Assy, Air
1983-08 → 1987-08
ended
|
2L LS120 | — | |
| 17700-73070 |
Cleaner Assy, Air
1983-08 → 1987-08
ended
|
3Y YS120 | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1983-08 → 1987-08
ended
|
5M MS122 | — | |
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1983-08 → 1987-08
ended
|
3Y YS120 | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06024 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1983-08 → 1987-08
ended
|
3Y YS120 | — | |
| 90116-06222 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1983-08 → 1987-08
ended
|
5M MS122 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-43050 |
Cap Sub-assy, Air Cleaner
1983-08 → 1987-08
ended
|
5MGE,6MGE MS123,125 | — | |
| 17705-43060 |
Cap Sub-assy, Air Cleaner
1985-09 → 1987-08
ended
|
5ME MS122 | — | |
| 17705-43070 |
Cap Sub-assy, Air Cleaner
1983-08 → 1985-09
ended
|
5ME MS123 | — | |
| 17705-43080 |
Cap Sub-assy, Air Cleaner
1983-08 → 1987-08
ended
|
5M MS122 | — | |
| 17705-54090 |
Cap Sub-assy, Air Cleaner
1983-08 → 1987-08
ended
|
2L LS120 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-31050 |
Element Sub-assy, Air Cleaner Filter
1983-08 → 1987-08
ended
|
3Y YS120 | — | |
| 17801-41090 |
Element Sub-assy, Air Cleaner Filter
1983-08 → 1987-08
ended
|
5M MS122 | — | |
| 17801-41110 |
Element Sub-assy, Air Cleaner Filter
1983-08 → 1987-08
ended
|
5ME,5MGE,6MGE MS12# | — | |
| 17801-54060 |
Element Sub-assy, Air Cleaner Filter
1983-08 → 1987-08
ended
|
2L LS120 | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-41050 |
Gasket, Filter Element
1983-08 → 1987-08
ended
|
5M MS122 | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-61011 note |
Gasket, Air Cleaner Cap
1983-08 → 1987-08
ended
|
5M MS122 | — | |
| 17848 — Gasket, Air Cleaner TO Carburetor | ||||
| 17848-35010 |
Gasket, Air Cleaner TO Carburetor
1983-08 → 1987-08
ended
|
3Y YS120 | — | |
| 90430-72003 |
Gasket, Air Cleaner TO Carburetor
1983-08 → 1987-08
ended
|
5M MS122 | — | |
| 21071C — Valve Sub-assy, Thermostatic(FOR AIR CLEANER) | ||||
| 17728-41030 note |
Valve Sub-assy, Thermostatic(FOR AIR CLEANER)
1983-08 → 1985-09
ended
|
5M MS122 | — | |
| 17728-41030 note |
Valve Sub-assy, Thermostatic(FOR AIR CLEANER)
1985-09 → 1987-08
ended
|
5M MS122 GEN | — | |
| 21071-45021 |
Valve Sub-assy, Thermostatic(FOR AIR CLEANER)
1983-08 → 1987-08
ended
|
5M MS122 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
