Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

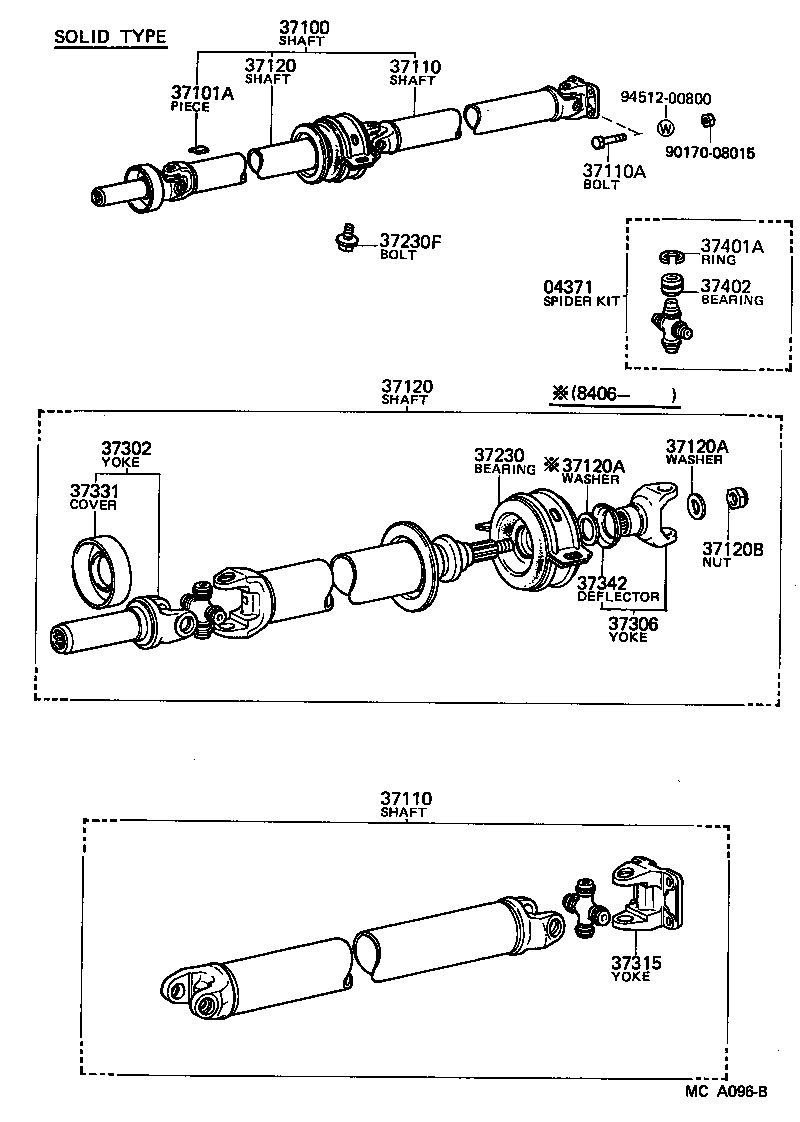

Exploded illustration MCA096B 37100 — SHAFT ASSY, PROPELLER W/CENTER BEARING (12 parts) 37120 — SHAFT ASSY, PROPELLER INTERMEDIATE (12 parts) 37110 — SHAFT ASSY, PROPELLER (6 parts) 37101A — PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) (15 parts) 9451200800 — not listed in this catalogue 9017008015 — not listed in this catalogue 37110A — BOLT (FOR PROPELLER SHAFT) (8 parts) 37230F — BOLT, NO.1 (FOR CENTER SUPPORT BEARING) (1 parts) 37401A — RING, HOLE SNAP (FOR SPIDER BEARING) (11 parts) 37402 — BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER (4 parts) 04371 — SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) (3 parts) 37120 — SHAFT ASSY, PROPELLER INTERMEDIATE (12 parts) 37120A — WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) (2 parts) 37302 — YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE (3 parts) 37230 — BEARING ASSY, CENTER SUPPORT, NO.1 (3 parts) 37120A — WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) (2 parts) 37331 — COVER, SLIDING SHAFT DUST (2 parts) 37120B — NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) (2 parts) 37342 — DEFLECTOR, PROPELLER SHAFT DUST, NO.2 (3 parts) 37306 — YOKE SUB-ASSY, UNIVERSAL JOINT, CENTER (5 parts) 37110 — SHAFT ASSY, PROPELLER (6 parts) 37315 — YOKE, UNIVERSAL JOINT FLANGE (3 parts)
MCA096B · 20 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
95 parts on this figure
Part number Description Fitment Price
04371 — Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
04371-22010 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1985-09 → 1987-08 ended
MS122 DLX —
04371-22010 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1983-08 → 1987-08 ended
YS120;LS120 STD —
04371-30020 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1984-10 → 1987-08 ended
MS125 —
37100 — Shaft Assy, Propeller W/Center Bearing
37100-30100 note Shaft Assy, Propeller W/Center Bearing
1983-08 → 1986-01 ended
LS120 —
37100-30110 Shaft Assy, Propeller W/Center Bearing
1983-08 → 1987-08 ended
MS122 ATM —
37100-30120 note Shaft Assy, Propeller W/Center Bearing
1983-08 → 1987-08 ended
MS122 MTM SAL;MS122 DLX +1 —
37100-30120 note Shaft Assy, Propeller W/Center Bearing
1986-01 → 1987-08 ended
LS120 —
37100-30130 Shaft Assy, Propeller W/Center Bearing
1983-08 → 1985-09 ended
MS123 5F —
37100-30150 Shaft Assy, Propeller W/Center Bearing
1983-08 → 1986-01 ended
YS120 4F,5F —
37100-30150 note Shaft Assy, Propeller W/Center Bearing
1983-08 → 1986-01 ended
LS120 STD —
37100-30170 note Shaft Assy, Propeller W/Center Bearing
1985-09 → 1987-08 ended
MS122 DLX —
37100-30170 note Shaft Assy, Propeller W/Center Bearing
1986-01 → 1987-08 ended
LS120 —
37100-30170 Shaft Assy, Propeller W/Center Bearing
1986-01 → 1987-08 ended
YS120 4F —
37100-30190 Shaft Assy, Propeller W/Center Bearing
1983-08 → 1987-08 ended
MS123 ATM —
37100-30200 Shaft Assy, Propeller W/Center Bearing
1984-10 → 1987-08 ended
MS125 —
37101A — Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
90937-01132 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1983-08 → 1987-08 ended
LS120,MS12#,YS120 —
90937-01136 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1983-08 → 1986-08 ended
LS120,MS12#,YS120 —
90937-01140 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1983-08 → 1986-08 ended
LS120,MS12#,YS120 —
90937-01147 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1983-08 → 1987-08 ended
LS120,MS12#,YS120 —
90937-01148 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1983-08 → 1987-08 ended
LS120,MS12#,YS120 —
90937-01149 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1983-08 → 1987-08 ended
LS120,MS12#,YS120 —
90937-01150 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1983-08 → 1987-08 ended
LS120,MS12#,YS120 —
90937-01151 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1983-08 → 1987-08 ended
LS120,MS12#,YS120 —
90937-01152 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1983-08 → 1987-08 ended
LS120,MS12#,YS120 —
90937-01153 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1983-08 → 1986-08 ended
LS120,MS12#,YS120 —
90937-01154 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1983-08 → 1986-08 ended
LS120,MS12#,YS120 —
90937-01155 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1983-08 → 1986-08 ended
LS120,MS12#,YS120 —
90937-01156 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1983-08 → 1986-08 ended
LS120,MS12#,YS120 —
90937-01157 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1983-08 → 1986-08 ended
LS120,MS12#,YS120 —
90937-01158 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1983-08 → 1986-08 ended
LS120,MS12#,YS120 —
37110 — Shaft Assy, Propeller
37110-30070 note Shaft Assy, Propeller
1983-08 → 1987-08 ended
MS122 DLX GEN;LS120,MS122,123 ROY,SAL,STD —
37110-30080 note Shaft Assy, Propeller
1983-08 → 1987-08 ended
LS120 STD —
37110-30080 note Shaft Assy, Propeller
1985-09 → 1987-08 ended
MS122 DLX —
37110-30080 Shaft Assy, Propeller
1983-08 → 1987-08 ended
YS120 4F,5F —
37110-30090 Shaft Assy, Propeller
1983-08 → 1987-08 ended
YS120 4H —
37110-30100 Shaft Assy, Propeller
1984-10 → 1987-08 ended
MS125 —
37110A — Bolt (FOR PROPELLER SHAFT)
90101-08082 note Bolt (FOR PROPELLER SHAFT)
1983-08 → 1987-08 ended
LS120,MS122,123,YS120 —
90101-08088 note Bolt (FOR PROPELLER SHAFT)
1983-08 → 1984-09 ended
MS123 SAL —
90101-08088 note Bolt (FOR PROPELLER SHAFT)
1984-09 → 1987-08 ended
MS123 ARL,EUG,SWZ —
90101-08090 note Bolt (FOR PROPELLER SHAFT)
1983-08 → 1984-09 ended
MS123 SAL —
90101-08090 note Bolt (FOR PROPELLER SHAFT)
1984-09 → 1987-08 ended
MS123 ARL,EUG,SWZ —
90101-08091 note Bolt (FOR PROPELLER SHAFT)
1983-08 → 1984-09 ended
MS123 SAL —
90101-08091 note Bolt (FOR PROPELLER SHAFT)
1984-09 → 1987-08 ended
MS123 ARL,EUG,SWZ —
90105-10085 note Bolt (FOR PROPELLER SHAFT)
1984-10 → 1987-08 ended
MS125 —
37120 — Shaft Assy, Propeller Intermediate
37120-30110 Shaft Assy, Propeller Intermediate
1983-08 → 1987-08 ended
MS122 ATM —
37120-30120 Shaft Assy, Propeller Intermediate
1983-08 → 1987-08 ended
MS122 MTM SAL;MS122 DLX +1 —
37120-30120 note Shaft Assy, Propeller Intermediate
1986-01 → 1987-08 ended
LS120 —
37120-30130 Shaft Assy, Propeller Intermediate
1983-08 → 1985-09 ended
MS123 5F —
37120-30150 Shaft Assy, Propeller Intermediate
1983-08 → 1986-01 ended
YS120 4F,5F —
37120-30150 note Shaft Assy, Propeller Intermediate
1983-08 → 1986-01 ended
LS120 STD —
37120-30170 note Shaft Assy, Propeller Intermediate
1986-01 → 1987-08 ended
LS120 —
37120-30170 Shaft Assy, Propeller Intermediate
1986-01 → 1987-08 ended
YS120 4F —
37120-30170 note Shaft Assy, Propeller Intermediate
1985-09 → 1987-08 ended
MS122 DLX —
37120-30180 note Shaft Assy, Propeller Intermediate
1983-08 → 1986-01 ended
LS120 —
37120-30190 Shaft Assy, Propeller Intermediate
1983-08 → 1987-08 ended
MS123 ATM —
37120-30200 Shaft Assy, Propeller Intermediate
1984-10 → 1987-08 ended
MS125 —
37120A — Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-18182 note Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
1983-08 → 1987-08 ended
LS120,MS12#;YS120 4F,5F —
90201-26005 note Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
1984-06 → 1987-08 ended
LS120,MS12#;YS120 4F,5F —
37120B — Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-18009 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
1984-06 → 1987-08 ended
LS120,MS12#;YS120 4F,5F —
90179-18060 Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
1983-08 → 1984-06 ended
LS120,MS12#;YS120 4F,5F —
37230 — Bearing Assy, Center Support, NO.1
37230-30040 Bearing Assy, Center Support, NO.1
1983-08 → 1987-08 ended
LS120,MS122;YS120 4F,5F —
37230-30050 Bearing Assy, Center Support, NO.1
1983-08 → 1985-09 ended
MS123 5F —
37230-30060 Bearing Assy, Center Support, NO.1
1983-08 → 1987-08 ended
MS123,125 ATM —
37230F — Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10046 Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
1983-08 → 1987-08 ended
LS120,MS12#;YS120 4F,5F —
37302 — Yoke Sub-assy, Universal Joint Sleeve
37302-20040 Yoke Sub-assy, Universal Joint Sleeve
1983-08 → 1987-08 ended
YS120;LS120 STD —
37302-20040 Yoke Sub-assy, Universal Joint Sleeve
1985-09 → 1987-08 ended
MS122 DLX —
37302-30030 Yoke Sub-assy, Universal Joint Sleeve
1984-10 → 1987-08 ended
MS125 —
37306 — Yoke Sub-assy, Universal Joint, Center
37306-20010 Yoke Sub-assy, Universal Joint, Center
1983-08 → 1984-06 ended
LS120 STD —
37306-20010 Yoke Sub-assy, Universal Joint, Center
1983-08 → 1984-06 ended
YS120 4F,5F —
37306-20011 Yoke Sub-assy, Universal Joint, Center
1984-06 → 1987-08 ended
LS120 STD —
37306-20011 Yoke Sub-assy, Universal Joint, Center
1984-06 → 1987-08 ended
YS120 4F,5F —
37306-20011 Yoke Sub-assy, Universal Joint, Center
1985-09 → 1987-08 ended
MS122 DLX —
37315 — Yoke, Universal Joint Flange
37315-20020 Yoke, Universal Joint Flange
1985-09 → 1987-08 ended
MS122 DLX —
37315-20020 Yoke, Universal Joint Flange
1983-08 → 1987-08 ended
YS120;LS120 STD —
37315-35040 Yoke, Universal Joint Flange
1984-10 → 1987-08 ended
MS125 —
37331 — Cover, Sliding Shaft Dust
37331-30010 Cover, Sliding Shaft Dust
1983-08 → 1987-08 ended
LS120,MS122,123,YS120 —
37331-40010 Cover, Sliding Shaft Dust
1984-10 → 1987-08 ended
MS125 —
37342 — Deflector, Propeller Shaft Dust, NO.2
37342-30010 Deflector, Propeller Shaft Dust, NO.2
1983-08 → 1987-08 ended
LS120 STD —
37342-30010 Deflector, Propeller Shaft Dust, NO.2
1983-08 → 1987-08 ended
YS120 4F,5F —
37342-30010 Deflector, Propeller Shaft Dust, NO.2
1985-09 → 1987-08 ended
MS122 DLX —
37401A — Ring, Hole Snap (FOR SPIDER BEARING)
90520-26233 note Ring, Hole Snap (FOR SPIDER BEARING)
1984-10 → 1987-08 ended
MS125 —
90520-26234 note Ring, Hole Snap (FOR SPIDER BEARING)
1984-10 → 1987-08 ended
MS125 —
90520-26235 note Ring, Hole Snap (FOR SPIDER BEARING)
1984-10 → 1987-08 ended
MS125 —
90521-29070 note Ring, Hole Snap (FOR SPIDER BEARING)
1983-08 → 1987-08 ended
YS120;LS120 STD —
90521-29070 note Ring, Hole Snap (FOR SPIDER BEARING)
1985-09 → 1987-08 ended
MS122 DLX —
90521-29071 note Ring, Hole Snap (FOR SPIDER BEARING)
1983-08 → 1987-08 ended
YS120;LS120 STD —
90521-29071 note Ring, Hole Snap (FOR SPIDER BEARING)
1985-09 → 1987-08 ended
MS122 DLX —
90521-29072 note Ring, Hole Snap (FOR SPIDER BEARING)
1983-08 → 1987-08 ended
YS120;LS120 STD —
90521-29072 note Ring, Hole Snap (FOR SPIDER BEARING)
1985-09 → 1987-08 ended
MS122 DLX —
90521-29073 note Ring, Hole Snap (FOR SPIDER BEARING)
1983-08 → 1987-08 ended
YS120;LS120 STD —
90521-29073 note Ring, Hole Snap (FOR SPIDER BEARING)
1985-09 → 1987-08 ended
MS122 DLX —
37402 — Bearing Sub-assy, Universal Joint Spider
37402-22020 Bearing Sub-assy, Universal Joint Spider
1983-08 → 1987-08 ended
YS120;LS120 STD —
37402-22020 Bearing Sub-assy, Universal Joint Spider
1985-09 → 1987-08 ended
MS122 DLX —
37402-30010 Bearing Sub-assy, Universal Joint Spider
1984-10 → 1987-08 ended
MS125 —
37402-30020 note Bearing Sub-assy, Universal Joint Spider
1984-10 → 1987-08 ended
MS125 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
