Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

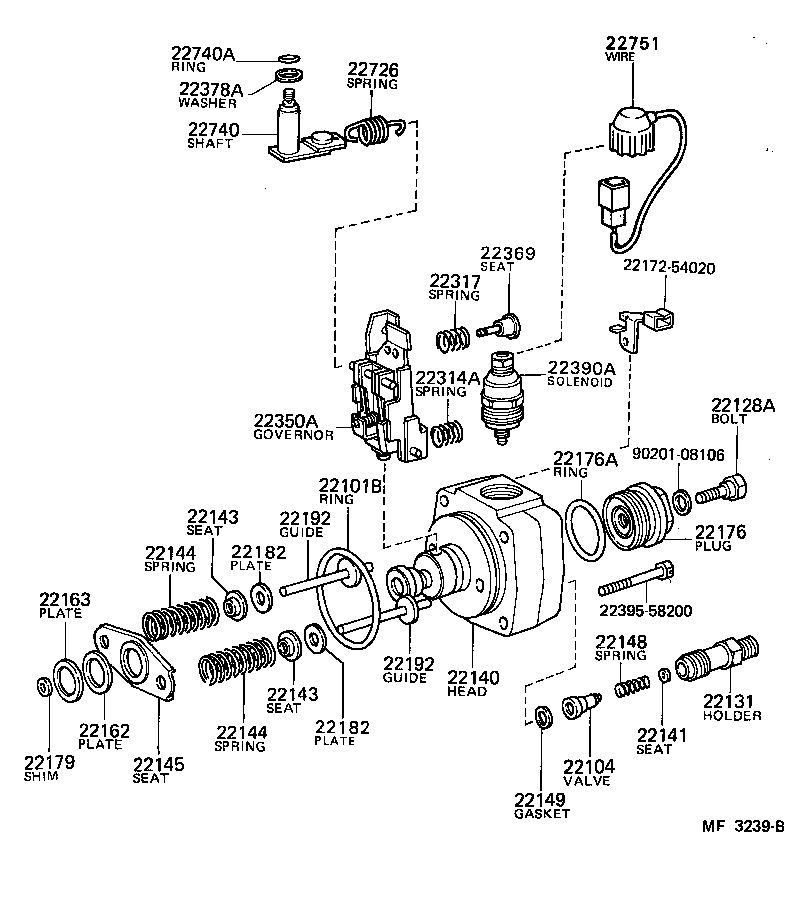

Exploded illustration MF3239B 22751 — WIRE SUB-ASSY, FUEL CUT SOLENOID (2 parts) 22740A — RING, O(FOR GOVERNOR ADJUSTING SHAFT) (1 parts) 22726 — SPRING, SPEED CONTROL (3 parts) 22378A — WASHER, GOVERNOR THRUST (1 parts) 22740 — SHAFT SUB-ASSY, GOVERNOR ADJUSTING (2 parts) 22369 — SEAT, GOVERNOR SPRING (1 parts) 2217254020 — not listed in this catalogue 22317 — SPRING, GOVERNOR DOMPER (3 parts) 22390A — SOLENOID ASSY, FUEL CUT (1 parts) 22314A — SPRING, LEVER SUPPORT (1 parts) 22128A — BOLT, DISTRIBUTIVE HEAD (1 parts) 22350A — GOVERNOR ASSY, TORQUE CONTROL (1 parts) 9020108106 — not listed in this catalogue 22176A — RING, O(FOR DISTRIBUTIVE HEAD PLUG) (1 parts) 22101B — RING, O(FOR INJECTION PUMP HOUSING) (1 parts) 22143 — SEAT, SPRING UPPER (1 parts) 22192 — GUIDE SUB-ASSY, PLUNGER SPRING (1 parts) 22176 — PLUG, DISTRIBUTIVE HEAD (1 parts) 22182 — PLATE, TAPPET ADJUSTING SHIM (7 parts) 22144 — SPRING, PUMP PLUNGER (1 parts) 22163 — PLATE, PLUNGER LOWER (1 parts) 2239558200 — not listed in this catalogue 22148 — SPRING, DELIVERY VALVE (1 parts) 22192 — GUIDE SUB-ASSY, PLUNGER SPRING (1 parts) 22140 — HEAD SUB-ASSY, DISTRIBUTIVE PUMP (1 parts) 22143 — SEAT, SPRING UPPER (1 parts) 22131 — HOLDER, DELIVERY VALVE (3 parts) 22182 — PLATE, TAPPET ADJUSTING SHIM (7 parts) 22162 — PLATE, PLUNGER UPPER (1 parts) 22144 — SPRING, PUMP PLUNGER (1 parts) 22141 — SEAT, DELIVERY VALVE SPRING (2 parts) 22179 — SHIM, PLUNGER ADJUSTING (11 parts) 22145 — SEAT, SPRING, LOWER (2 parts) 22104 — VALVE SUB-ASSY, INJECTION PUMP DELIVERY (1 parts) 22149 — GASKET, DELIVERY VALVE (1 parts)
MF3239B · 32 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
22101B — Ring, O(FOR INJECTION PUMP HOUSING)
90099-14053 Ring, O(FOR INJECTION PUMP HOUSING)
1983-08 → 1987-08 ended
2L LS120 —
22104 — Valve Sub-assy, Injection Pump Delivery
22104-54060 Valve Sub-assy, Injection Pump Delivery
1983-08 → 1987-08 ended
2L LS120 —
22128A — Bolt, Distributive Head
22128-54010 Bolt, Distributive Head
1983-08 → 1987-08 ended
2L LS120 —
22131 — Holder, Delivery Valve
22131-54110 Holder, Delivery Valve
1983-08 → 1987-08 ended
2L LS120 —
22190-54170 note Holder, Delivery Valve
1983-08 → 1986-07 ended
2L LS120 RHD —
22190-64740 note Holder, Delivery Valve
1986-07 → 1987-08 ended
2L LS120 RHD —
22140 — Head Sub-assy, Distributive Pump
22140-64400 Head Sub-assy, Distributive Pump
1983-08 → 1987-08 ended
2L LS120 —
22141 — Seat, Delivery Valve Spring
22141-54010 Seat, Delivery Valve Spring
1983-08 → 1987-08 ended
2L LS120 —
22141-54250 note Seat, Delivery Valve Spring
1983-08 → 1987-08 ended
2L LS120 RHD —
22143 — Seat, Spring Upper
22143-54010 Seat, Spring Upper
1983-08 → 1987-08 ended
2L LS120 —
22144 — Spring, Pump Plunger
22144-54190 Spring, Pump Plunger
1983-08 → 1987-08 ended
2L LS120 —
22145 — Seat, Spring, Lower
22145-54010 Seat, Spring, Lower
1983-08 → 1987-08 ended
2L LS120 —
22145-54170 note Seat, Spring, Lower
1983-08 → 1984-09 ended
2L LS120 —
22148 — Spring, Delivery Valve
22148-54010 Spring, Delivery Valve
1983-08 → 1987-08 ended
2L LS120 —
22149 — Gasket, Delivery Valve
22149-54010 Gasket, Delivery Valve
1983-08 → 1987-08 ended
2L LS120 —
22162 — Plate, Plunger Upper
22162-54010 Plate, Plunger Upper
1983-08 → 1987-08 ended
2L LS120 —
22163 — Plate, Plunger Lower
22163-54010 Plate, Plunger Lower
1983-08 → 1987-08 ended
2L LS120 —
22176 — Plug, Distributive Head
22176-54020 Plug, Distributive Head
1983-08 → 1987-08 ended
2L LS120 —
22176A — Ring, O(FOR DISTRIBUTIVE HEAD PLUG)
90099-14052 Ring, O(FOR DISTRIBUTIVE HEAD PLUG)
1983-08 → 1987-08 ended
2L LS120 —
22179 — Shim, Plunger Adjusting
22179-54010 note Shim, Plunger Adjusting
1983-08 → 1987-08 ended
2L LS120 —
22179-54011 note Shim, Plunger Adjusting
1983-08 → 1987-08 ended
2L LS120 —
22179-54012 note Shim, Plunger Adjusting
1983-08 → 1987-08 ended
2L LS120 —
22179-54013 note Shim, Plunger Adjusting
1983-08 → 1987-08 ended
2L LS120 —
22179-54014 note Shim, Plunger Adjusting
1983-08 → 1987-08 ended
2L LS120 —
22179-54015 note Shim, Plunger Adjusting
1983-08 → 1987-08 ended
2L LS120 —
22179-54016 note Shim, Plunger Adjusting
1983-08 → 1987-08 ended
2L LS120 —
22179-54017 note Shim, Plunger Adjusting
1983-08 → 1987-08 ended
2L LS120 —
22179-54018 note Shim, Plunger Adjusting
1983-08 → 1987-08 ended
2L LS120 —
22179-54019 note Shim, Plunger Adjusting
1983-08 → 1987-08 ended
2L LS120 —
22179-54020 note Shim, Plunger Adjusting
1983-08 → 1987-08 ended
2L LS120 —
22182 — Plate, Tappet Adjusting Shim
22182-54010 note Plate, Tappet Adjusting Shim
1983-08 → 1987-08 ended
2L LS120 —
22183-54010 note Plate, Tappet Adjusting Shim
1983-08 → 1987-08 ended
2L LS120 —
22184-54010 note Plate, Tappet Adjusting Shim
1983-08 → 1987-08 ended
2L LS120 —
22185-54010 note Plate, Tappet Adjusting Shim
1983-08 → 1987-08 ended
2L LS120 —
22186-54010 note Plate, Tappet Adjusting Shim
1983-08 → 1987-08 ended
2L LS120 —
22187-54010 note Plate, Tappet Adjusting Shim
1983-08 → 1987-08 ended
2L LS120 —
22188-54010 note Plate, Tappet Adjusting Shim
1983-08 → 1987-08 ended
2L LS120 —
22192 — Guide Sub-assy, Plunger Spring
22192-54010 Guide Sub-assy, Plunger Spring
1983-08 → 1987-08 ended
2L LS120 —
22314A — Spring, Lever Support
22314-54010 Spring, Lever Support
1983-08 → 1987-08 ended
2L LS120 —
22317 — Spring, Governor Domper
22317-54010 note Spring, Governor Domper
1983-08 → 1984-09 ended
2L LS120 —
22317-54010 note Spring, Governor Domper
1983-08 → 1987-08 ended
2L LS120 RHD —
22317-54020 Spring, Governor Domper
1983-08 → 1987-08 ended
2L LS120 —
22350A — Governor Assy, Torque Control
22350-54060 Governor Assy, Torque Control
1983-08 → 1987-08 ended
2L LS120 —
22369 — Seat, Governor Spring
22369-54010 Seat, Governor Spring
1983-08 → 1987-08 ended
2L LS120 —
22378A — Washer, Governor Thrust
22378-64010 Washer, Governor Thrust
1983-08 → 1987-08 ended
2L LS120 —
22390A — Solenoid Assy, Fuel Cut
22390-54110 Solenoid Assy, Fuel Cut
1983-08 → 1987-08 ended
2L LS120 —
22726 — Spring, Speed Control
22726-54260 note Spring, Speed Control
1983-08 → 1987-08 ended
2L LS120 —
22726-54310 note Spring, Speed Control
1983-08 → 1987-08 ended
2L LS120 —
22726-54311 note Spring, Speed Control
1983-08 → 1987-08 ended
2L LS120 —
22740 — Shaft Sub-assy, Governor Adjusting
22740-54310 Shaft Sub-assy, Governor Adjusting
1983-08 → 1984-06 ended
2L LS120 —
22740-54320 Shaft Sub-assy, Governor Adjusting
1984-06 → 1987-08 ended
2L LS120 —
22740A — Ring, O(FOR GOVERNOR ADJUSTING SHAFT)
90099-14048 Ring, O(FOR GOVERNOR ADJUSTING SHAFT)
1983-08 → 1987-08 ended
2L LS120 —
22751 — Wire Sub-assy, Fuel Cut Solenoid
22751-54110 Wire Sub-assy, Fuel Cut Solenoid
1983-08 → 1986-07 ended
2L LS120 —
22751-54311 Wire Sub-assy, Fuel Cut Solenoid
1986-07 → 1987-08 ended
2L LS120 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
