Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01

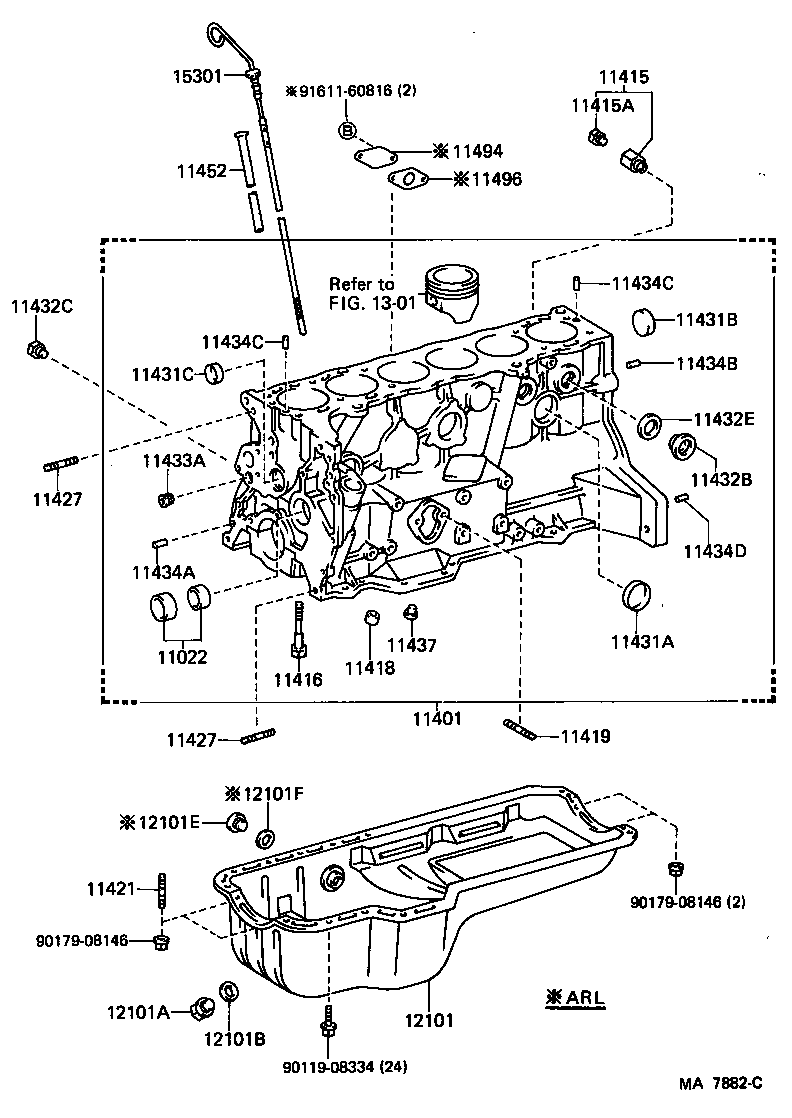

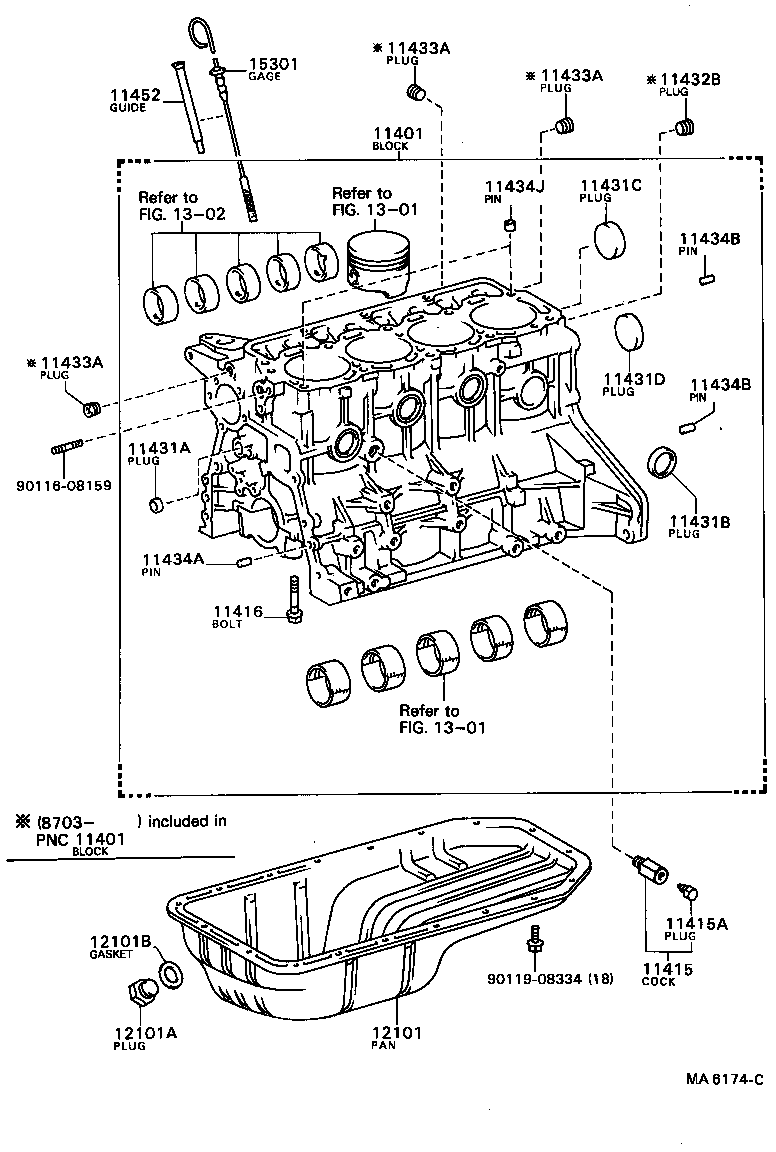

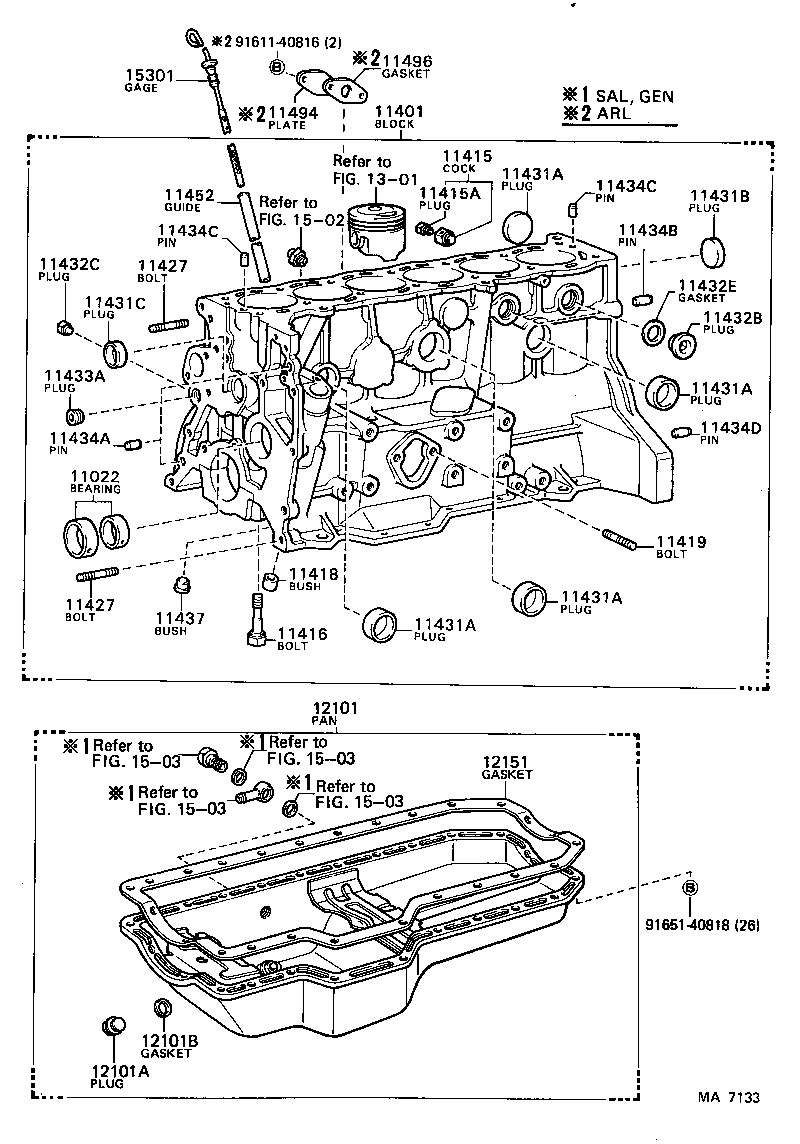

Cylinder Block

40 part groups · 4 illustrations

PNC	Description
11022	Bearing Set, Pump Drive Shaft
11401	Block Sub-assy, Cylinder
11415	Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A	Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416	Bolt(FOR CRANKSHAFT BEARING CAP SET)
11418	Bush, Solid(FOR DISTRIBUTOR)
11419	Bolt, Stud(FOR FUEL PUMP)
11421	Bolt, Stud(FOR OIL PAN)
11425	Bolt, Stud(FOR OIL FILTER)
11427	Bolt, Stud(FOR TIMING CHAIN COVER SET)
11431A	Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B	Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C	Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11431D	Plug, Tight, NO.4(FOR CYLINDER BLOCK)
11432A	Plug, W/Head Taper Screw, NO.1
11432B	Plug, W/Head Taper Screw, NO.2
11432C	Plug, W/Head Taper Screw, NO.3
11432E	Gasket, W/Head Taper Screw Plug
11433A	Plug, Straight, NO.1
11434A	Pin, Straight(FOR TIMING GEAR COVER SET)
11434B	Pin, Straight(FOR CLUTCH HOUSING SET)
11434C	Pin, Straight (FOR CYLINDER HEAD SET)
11434D	Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434G	Pin, Straight(FOR END PLATE)
11434J	Pin, Ring (FOR CYLINDER HEAD SET)
11437	Bush, Oil Pump Shaft Guide
11448	Orifice, Cylinder Block Oil
11452	Guide, Oil Level Gage
11459	Support, Oil Level Gage Guide
11494	Plate, Oil Hole Cover
11496	Gasket, Oil Hole Cover Plate
12101	Pan Sub-assy, Oil
12101A	Plug(FOR OIL PAN DRAIN)
12101B	Gasket(FOR OIL PAN DRAIN PLUG)
12101E	Plug, Oil Pan(FOR OIL COOLER)
12101F	Gasket(FOR OIL COOLER)
12151	Gasket, Oil Pan
15301	Gage Sub-assy, Oil Level
15605	Valve Sub-assy, Oil Check
15708	Nozzle Sub-assy, Oil, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
