Toyota Crown
1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe
Discontinued model
Data version 1988-01

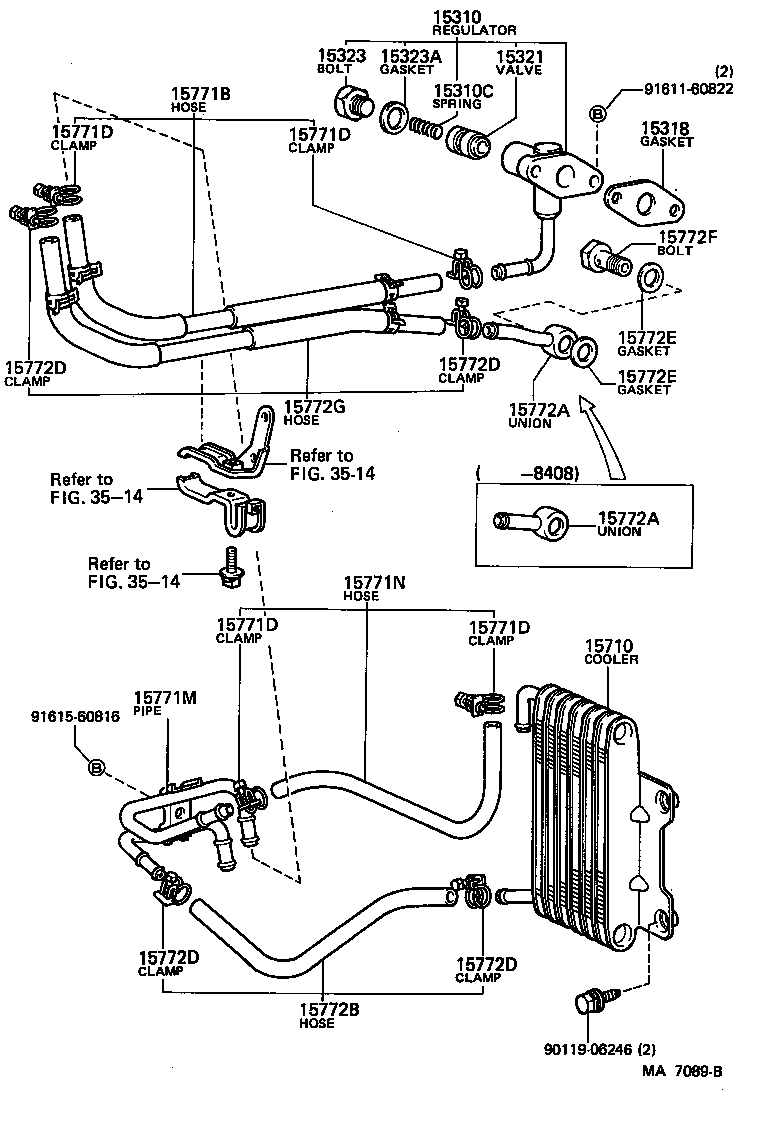

Engine Oil Cooler
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15310 | Regulator Assy, Oil Pressure |
| 15310C | Spring, Oil Pressure Regulator |
| 15318 | Gasket, Oil Pressure Regulator Body |
| 15321 | Valve, Oil Adjusting |
| 15323 | Bolt, Oil Pressure Adjusting |
| 15323A | Gasket, Oil Pressure Regulator Adjusting Bolt |
| 15710 | Cooler Assy, Oil |
| 15710C | Gasket(FOR OIL COOLER) |
| 15771B | Hose, Oil, NO.1(FOR OIL PIPE) |
| 15771D | Clamp, Oil Cooler Hose |
| 15771M | Pipe, Oil |
| 15771N | Hose, Oil, NO.2(FOR OIL PIPE) |
| 15772A | Union(FOR OIL PIPE) |
| 15772B | Hose, Oil, NO.1(FOR OIL PIPE) |
| 15772D | Clamp OR Clip, Oil Cooler Hose |
| 15772E | Gasket(FOR OIL PIPE) |
| 15772F | Bolt, Union(FOR OIL PIPE) |
| 15772G | Hose, Oil, NO.2 (FOR OIL PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
