Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

43 part groups · 7 illustrations

Illustrations

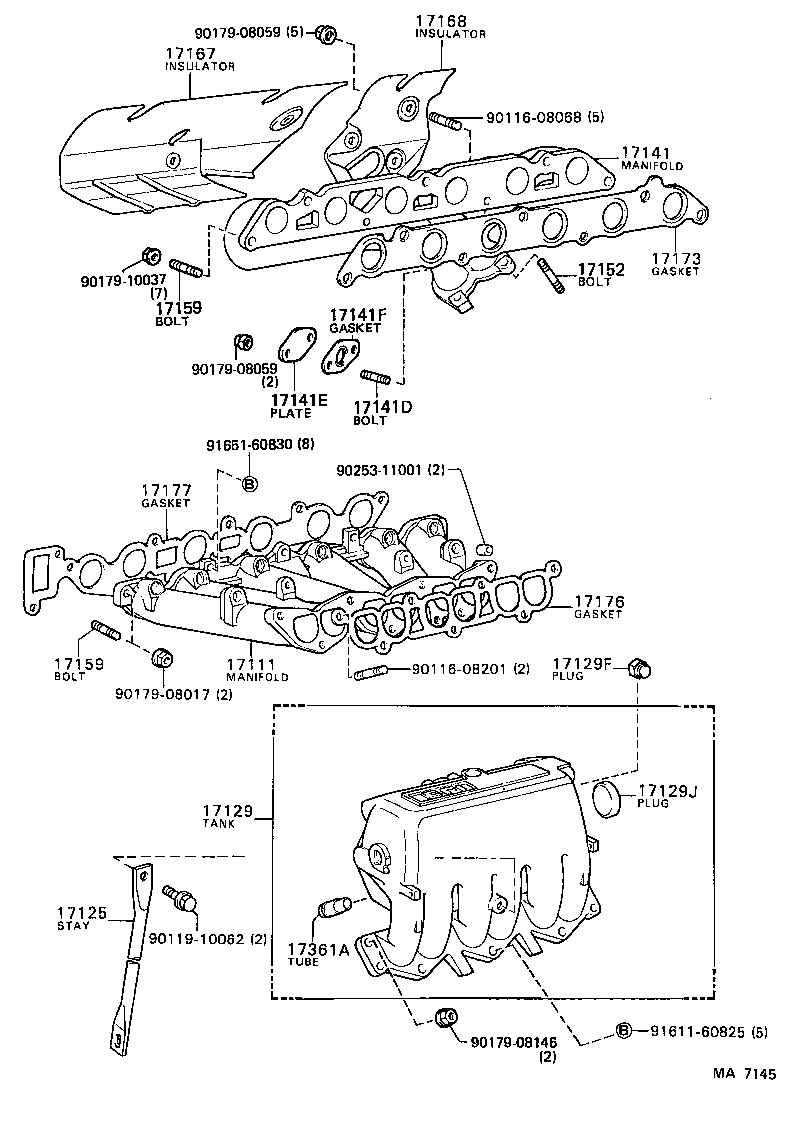

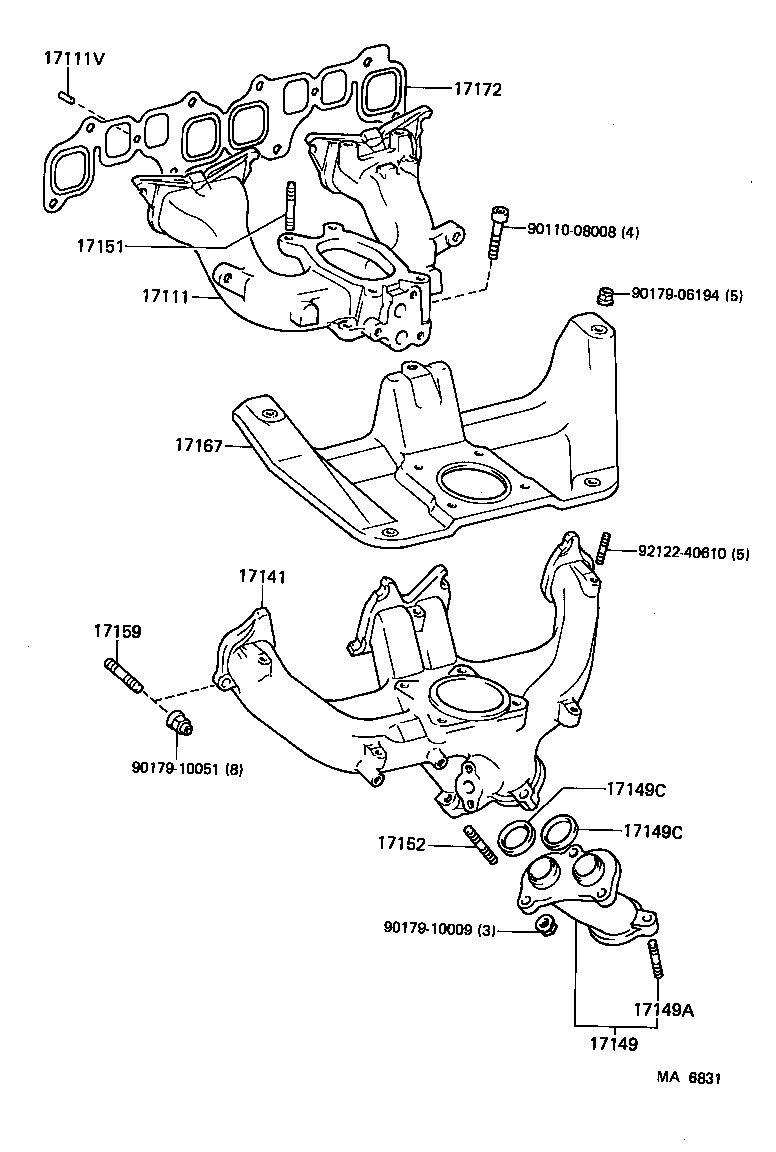

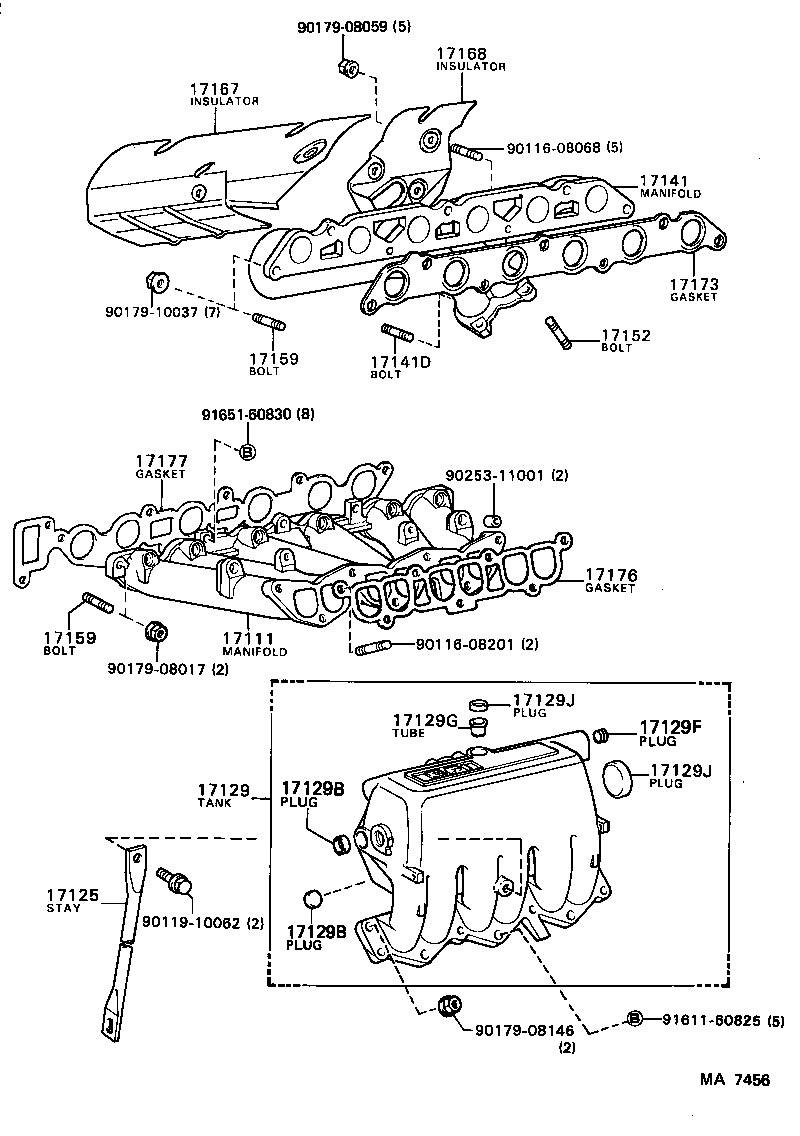

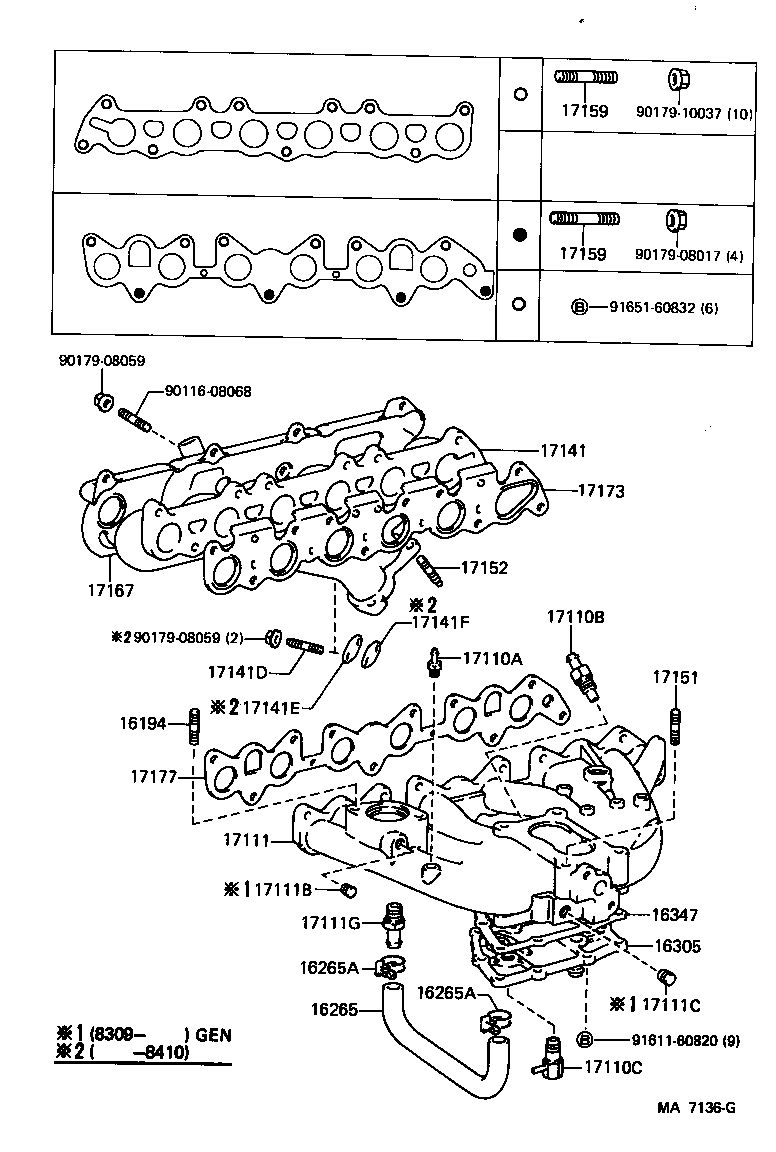

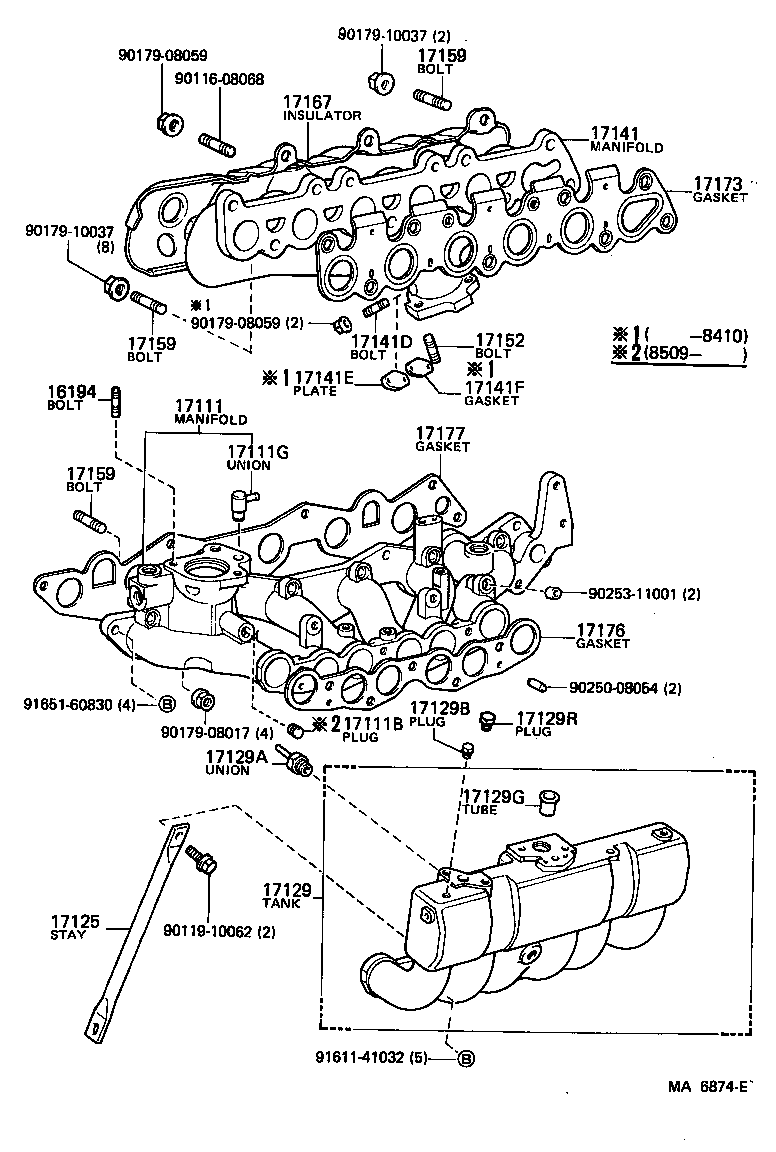

Figure MA7128 MA7128 1983-08 → — Figure MA7136G MA7136G 1983-08 → — Figure MA6874E MA6874E 1983-08 → — Figure MA7145 MA7145 1983-08 → 1985-09 Figure MA7145 MA7145 1985-09 → — Figure MA7456 MA7456 1985-09 → — Figure MA6831 MA6831 1983-08 → —

Part groups

PNCDescription
16194 Bolt, Stud(FOR WATER OUTLET SETTING)
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
16305 Outlet Sub-assy, Water By-pass
16347 Gasket, Water By-pass
17110A Union, Vacuum Hose
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17110C Union(FOR AIR CLEANER TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17111G Union(FOR INTAKE MANIFOLD WATER)
17111S Gasket(FOR MANIFOLD PLUG)
17111V Pin, Straight(FOR INTAKE MANIFOLD SETTING)
17114A Flange, Intake
17114B Gasket, Intake Flange
17125 Stay, Surge Tank, NO.1
17129 Tank, Intake Air Surge
17129A Union, NO.1
17129B Plug
17129F Plug, Intake Manifold Suction Hole
17129G Tube, Egr Inlet
17129J Plug, Tight(FOR INTAKE AIR SURGE TANK)
17129R Plug, W/Head Taper Screw(FOR INTAKE AIR SURGE TANK)
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141E Plate, Exhaust Manifold
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17149 Extension, Exhaust Manifold
17149A Bolt, Stud(FOR MANIFOLD EXTENSION)
17149C Gasket(FOR MANIFOLD EXTENSION)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17151A Bolt, Stud(FOR MANIFOLD TO VENTURI)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17361A Tube, Air(FOR EFI)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
