Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

24 part groups · 13 illustrations

Illustrations

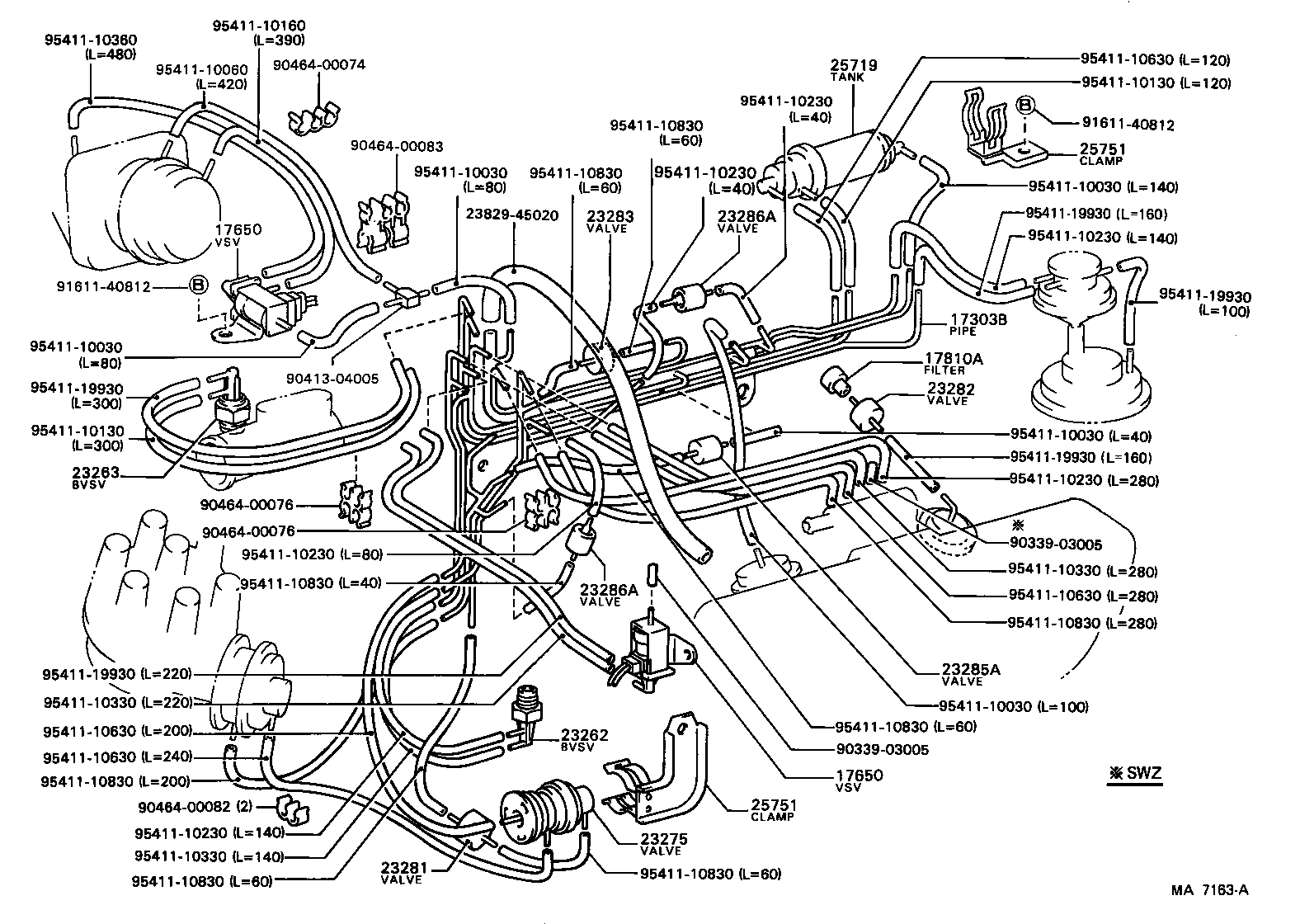

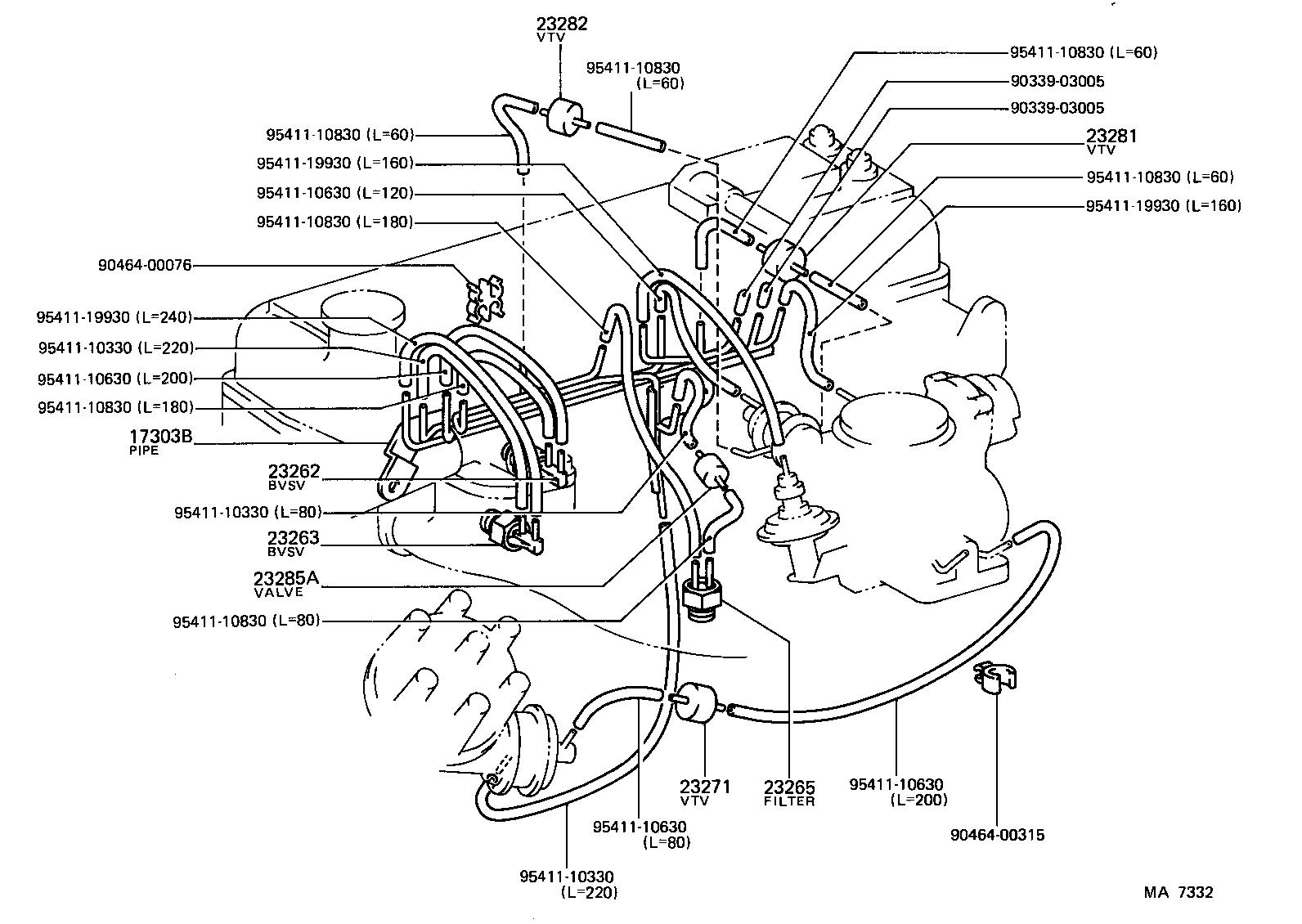

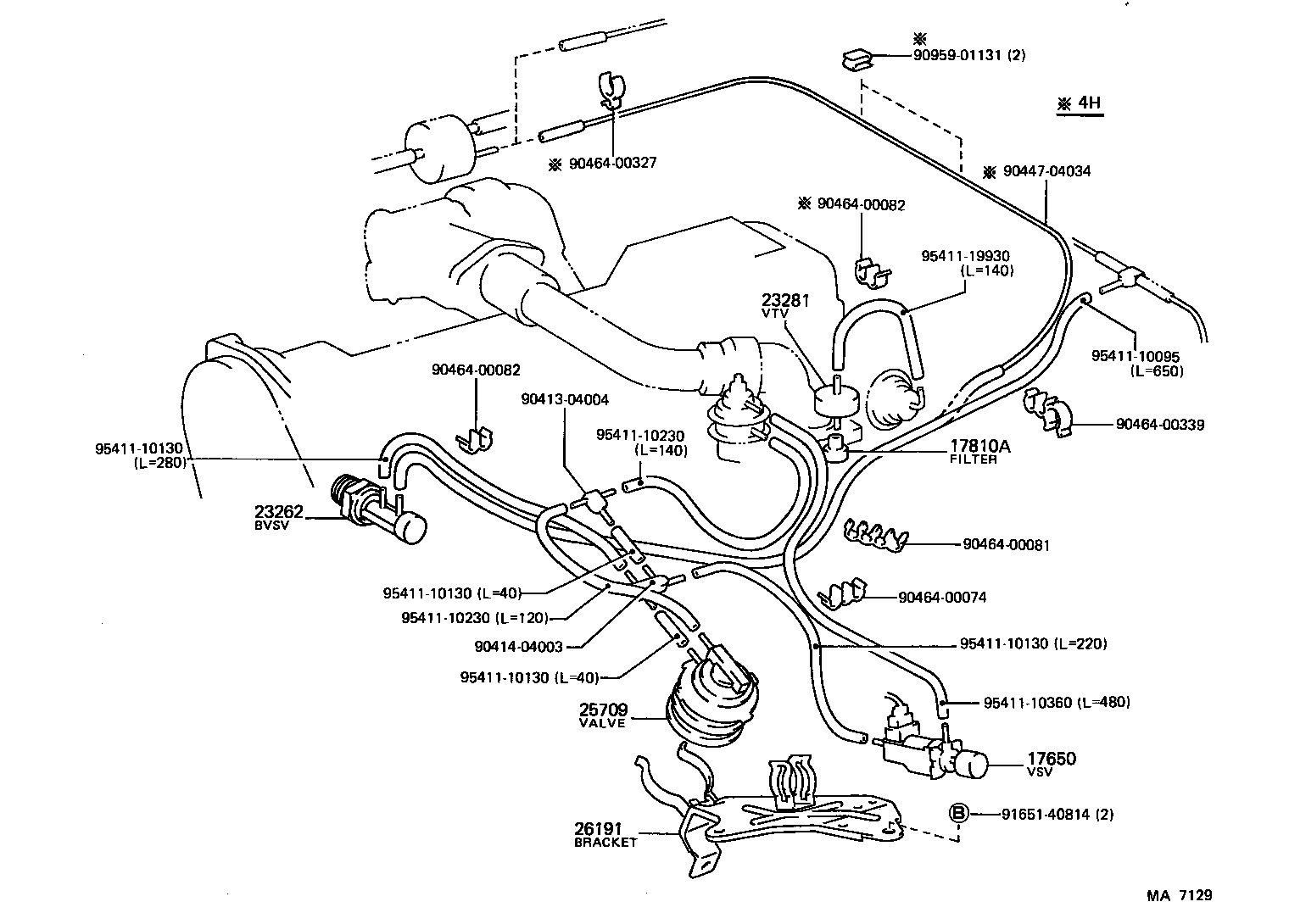

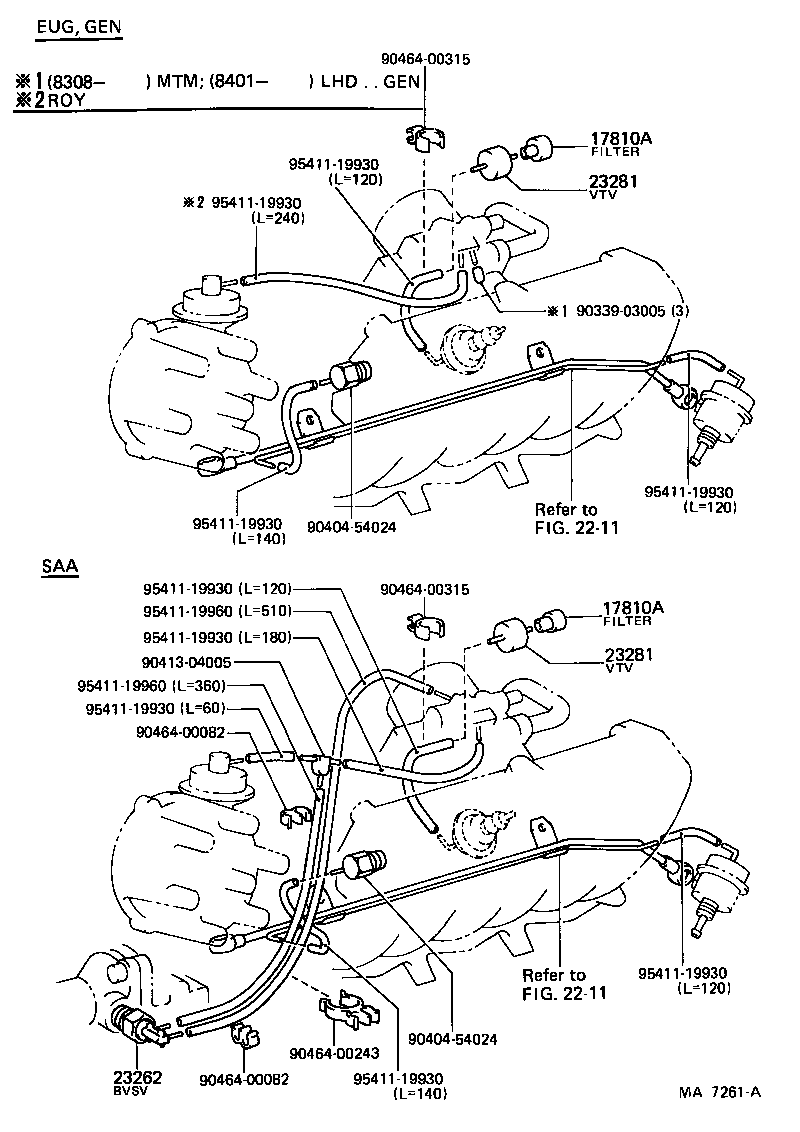

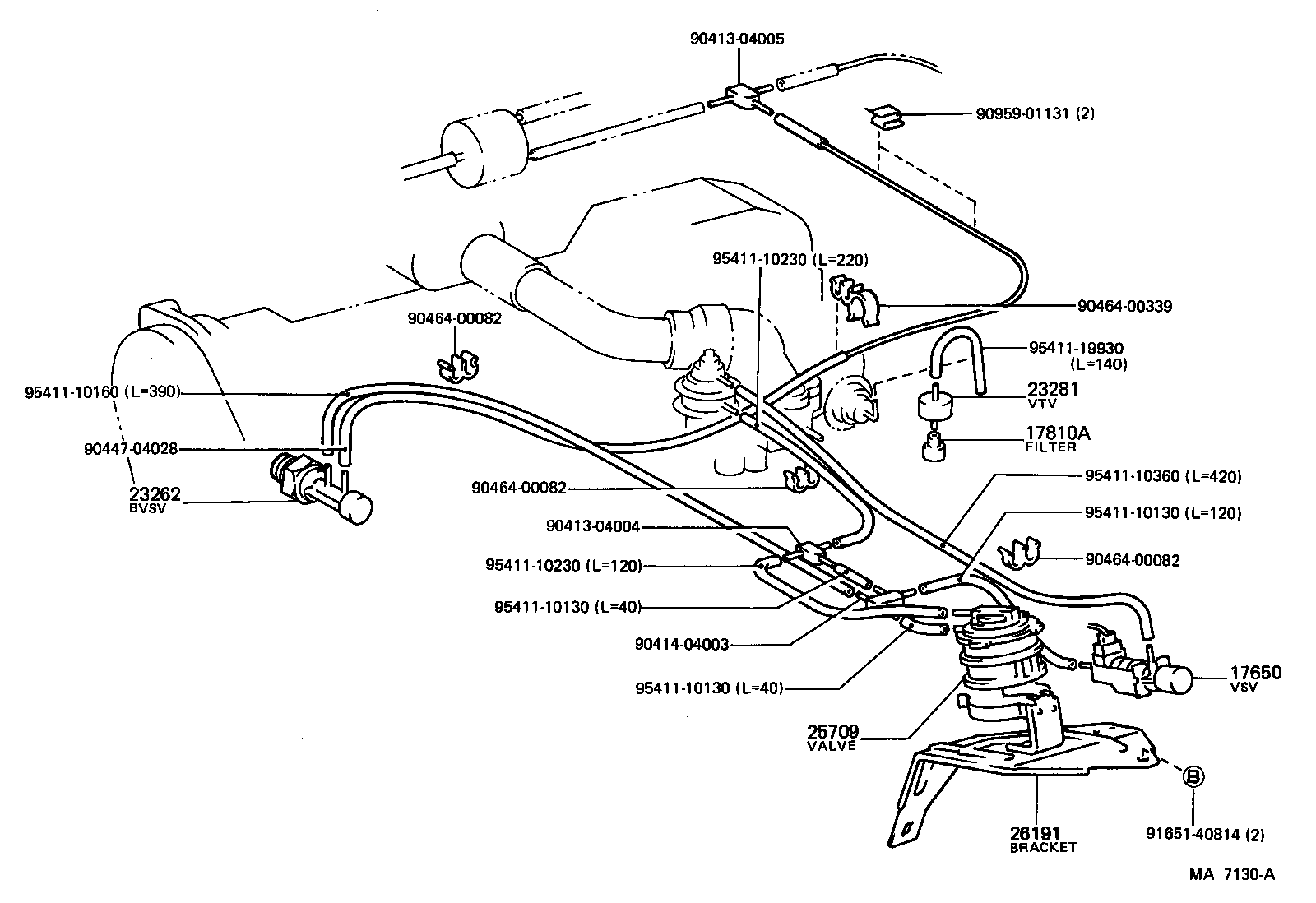

Figure MA9504A MA9504A 1983-08 → — Figure MA7129 MA7129 1983-08 → — Figure MA7130A MA7130A 1983-08 → — Figure MA9504A MA9504A 1983-08 → — Figure MA7143C MA7143C 1983-08 → — Figure MA7332 MA7332 1984-01 → — Figure MA7163A MA7163A 1983-08 → 1985-09 Figure MA8100 MA8100 1985-09 → — Figure MA7261A MA7261A 1983-08 → — Figure MA7886A MA7886A 1984-10 → — Figure MA5174B MA5174B 1983-08 → — Figure MA9504A MA9504A 1983-08 → — Figure MA6834B MA6834B 1983-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17345B Hose, NO.5(FOR IDLE-UP)
17345C Clip, NO.5(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25719 Tank, Vacuum Surge
25751 Clamp, Vacuum Control Valve, NO.1
26191 Bracket, Intake Air Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
