Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Distributor

33 part groups · 9 illustrations

Illustrations

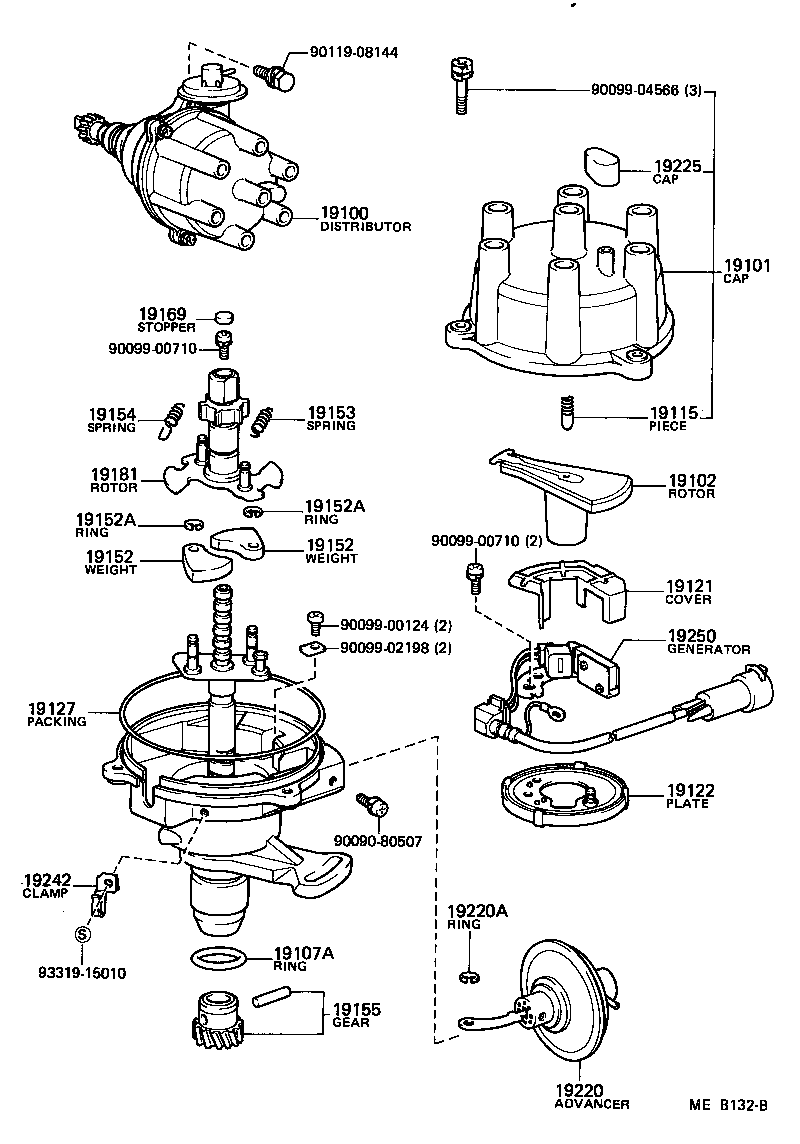

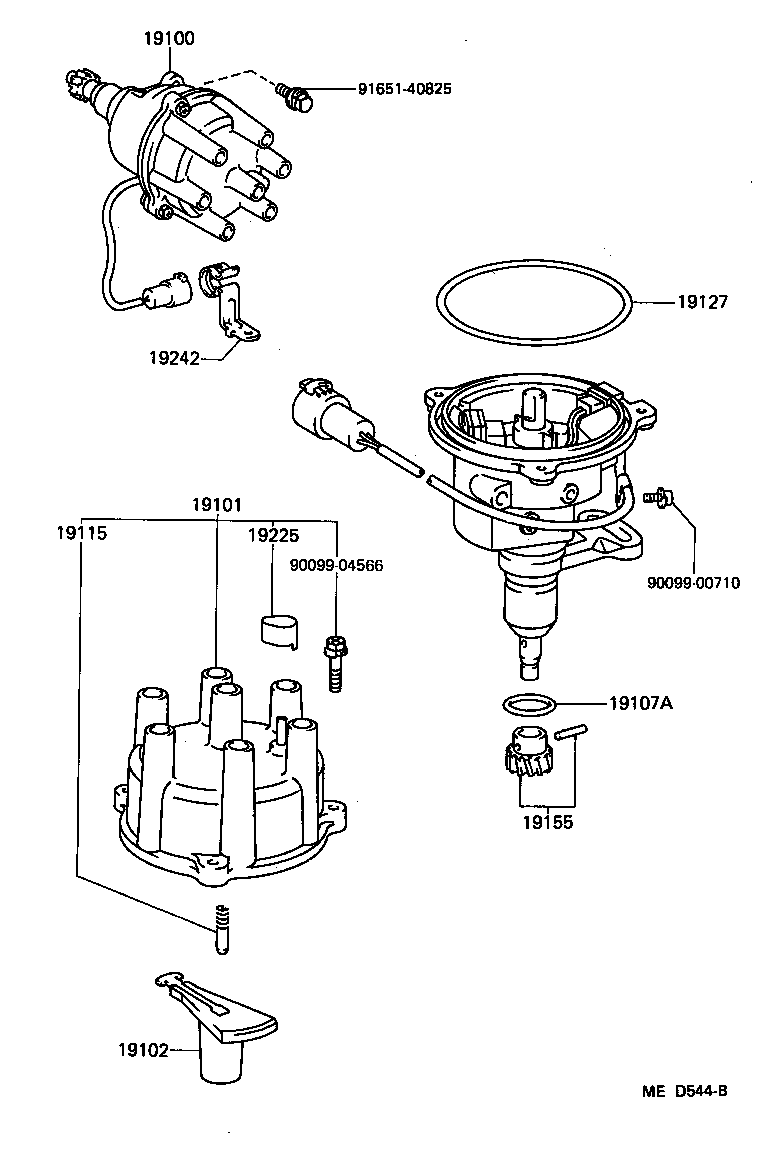

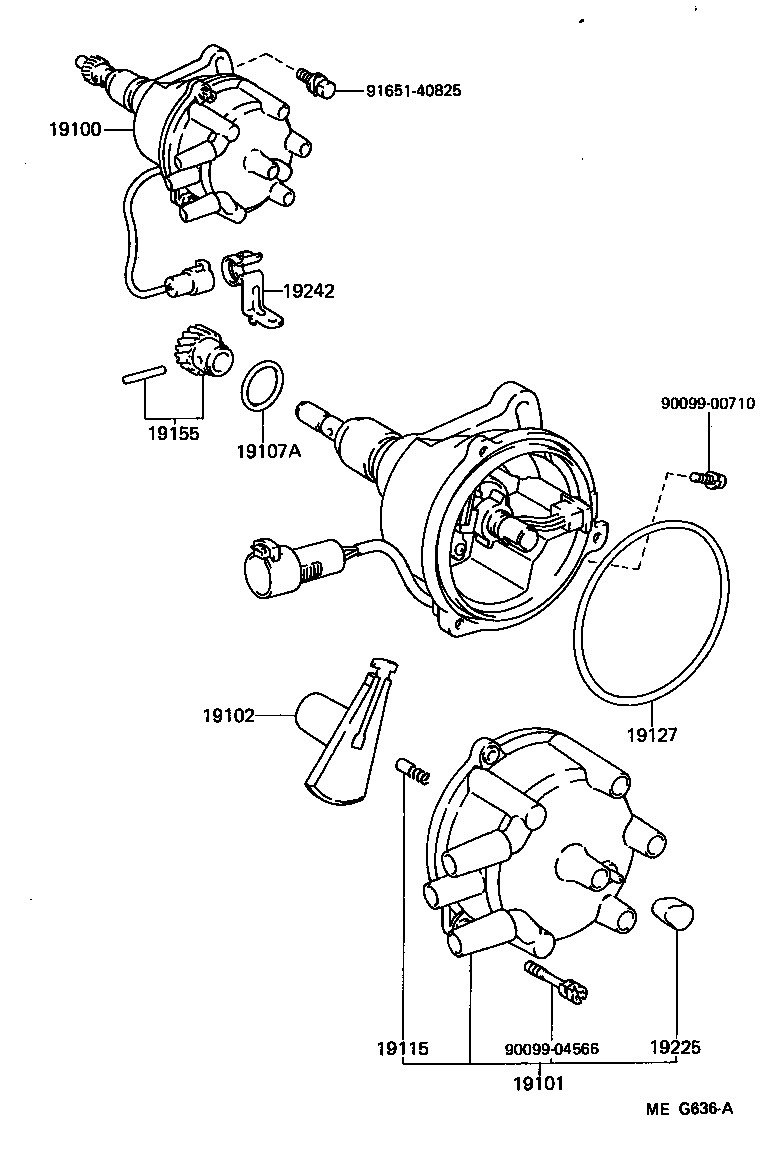

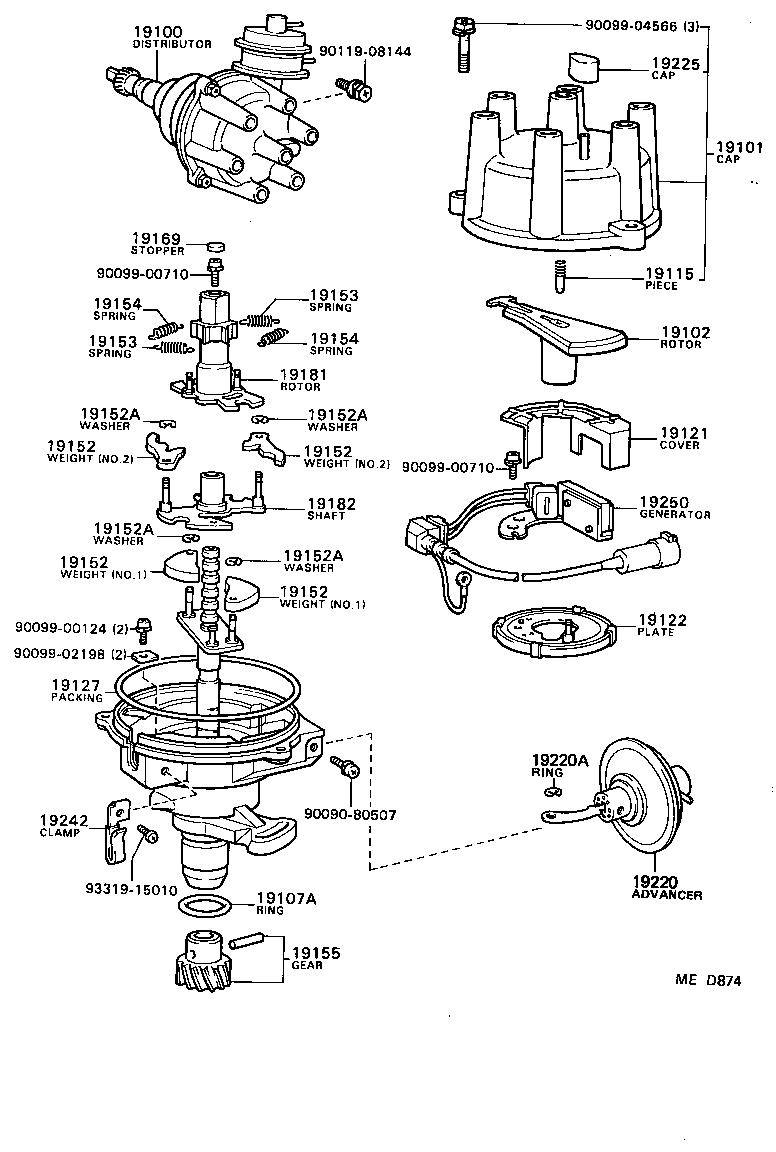

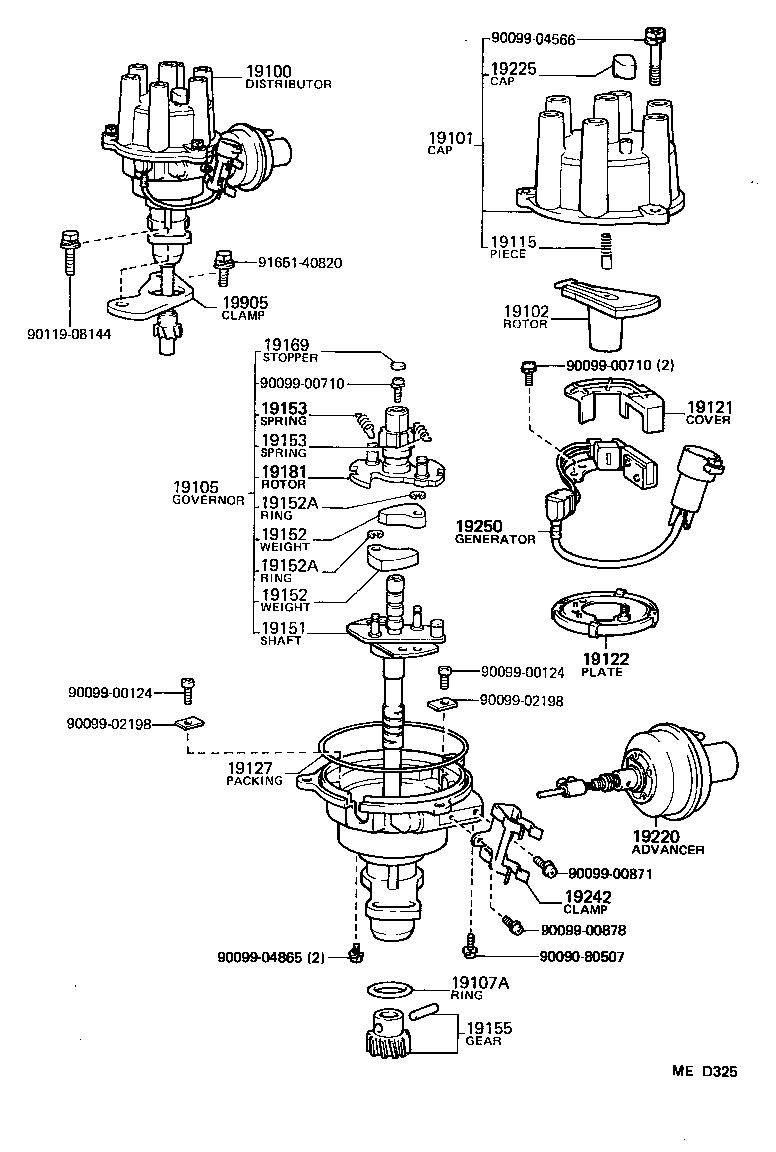

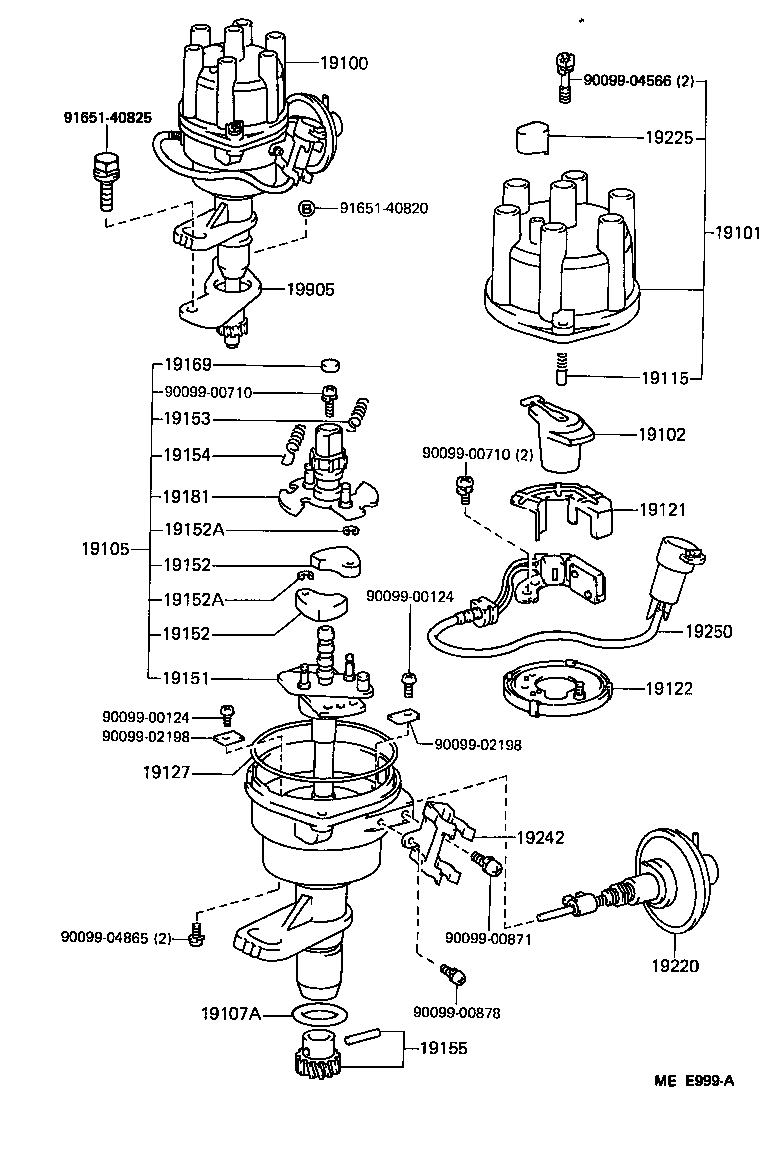

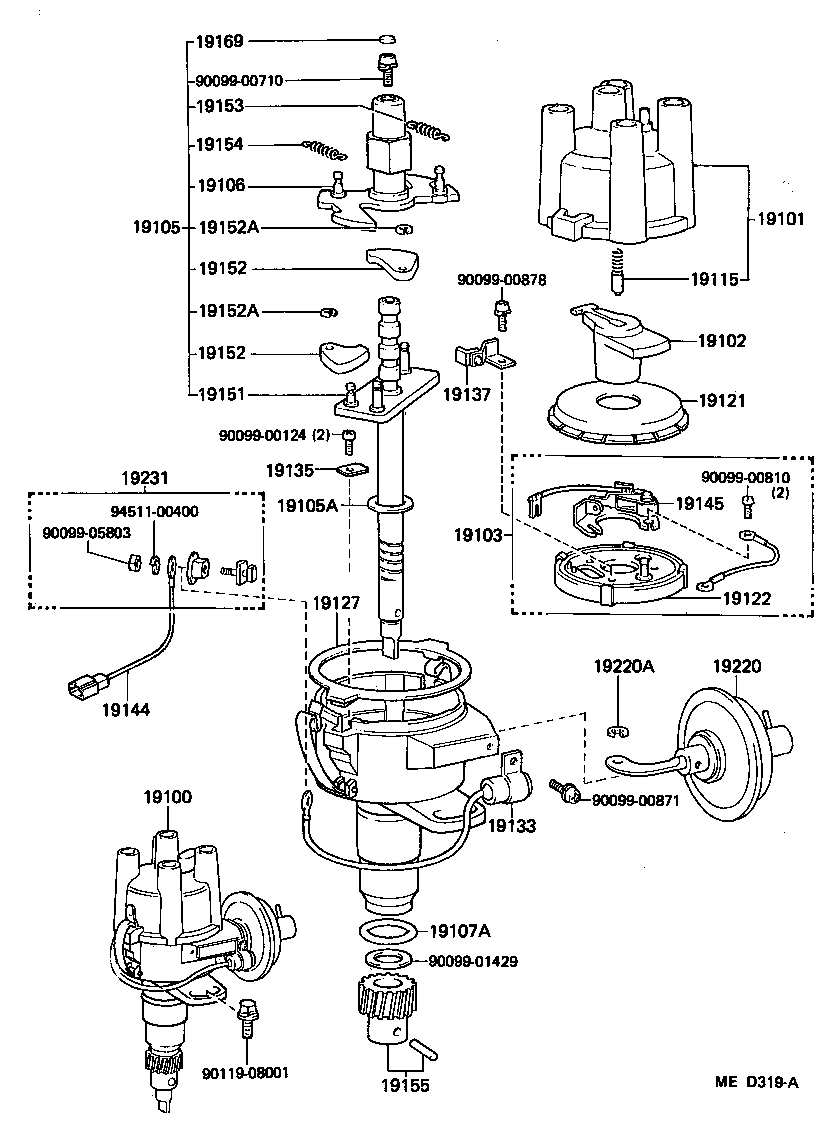

Figure MED872C MED872C 1983-08 → — Figure MED325 MED325 1983-08 → 1985-09 Figure MEE999A MEE999A 1985-09 → — Figure MED544B MED544B 1983-08 → 1985-09 Figure MED544B MED544B 1984-10 → — Figure MEG636A MEG636A 1985-09 → — Figure MED874 MED874 1983-08 → 1984-04 Figure MEB132B MEB132B 1984-04 → 1984-10 Figure MED319A MED319A 1983-08 → —

Part groups

PNCDescription
19100 Distributor Assy
19101 Cap Sub-assy, Distributor
19102 Rotor Sub-assy, Distributor
19103 Breaker Sub-assy, Distributor
19105 Governor Sub-assy
19105A Washer(FOR GOVERNOR SHAFT THRUST)
19106 Cam Sub-assy, Distributor
19107A Ring, O, Distributor Housing
19115 Piece, Distributor Cap, Center
19121 Cover, Dust Proof
19122 Plate, Stationary, Distributor
19127 Packing, Dust Proof
19133 Condenser, Distributor
19135 Plate, Holder
19137 Spring Sub-assy, Damper
19144 Lead, Distributor Breaker
19145 Point, Distributor
19151 Shaft, Governor
19152 Weight, Governor
19152A Ring, Snap(FOR GOVERNOR WEIGHT)
19153 Spring, Governor, A
19154 Spring, Governor, B
19155 Gear, Spiral, Distributor
19169 Stopper, Cam Grease
19181 Rotor, Distributor, Signal
19182 Shaft, Distributor, Driving
19220 Advancer Assy, Vacuum, Distributor
19220A Ring, Snap(FOR DISTRIBUTOR VACUUM ADVANCER)
19225 Cap, Rubber
19231 Terminal, Distributor
19242 Clamp, Cord
19250 Generator Assy, Signal
19905 Clamp Sub-assy, Distributor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
