Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

22 part groups · 3 illustrations

Illustrations

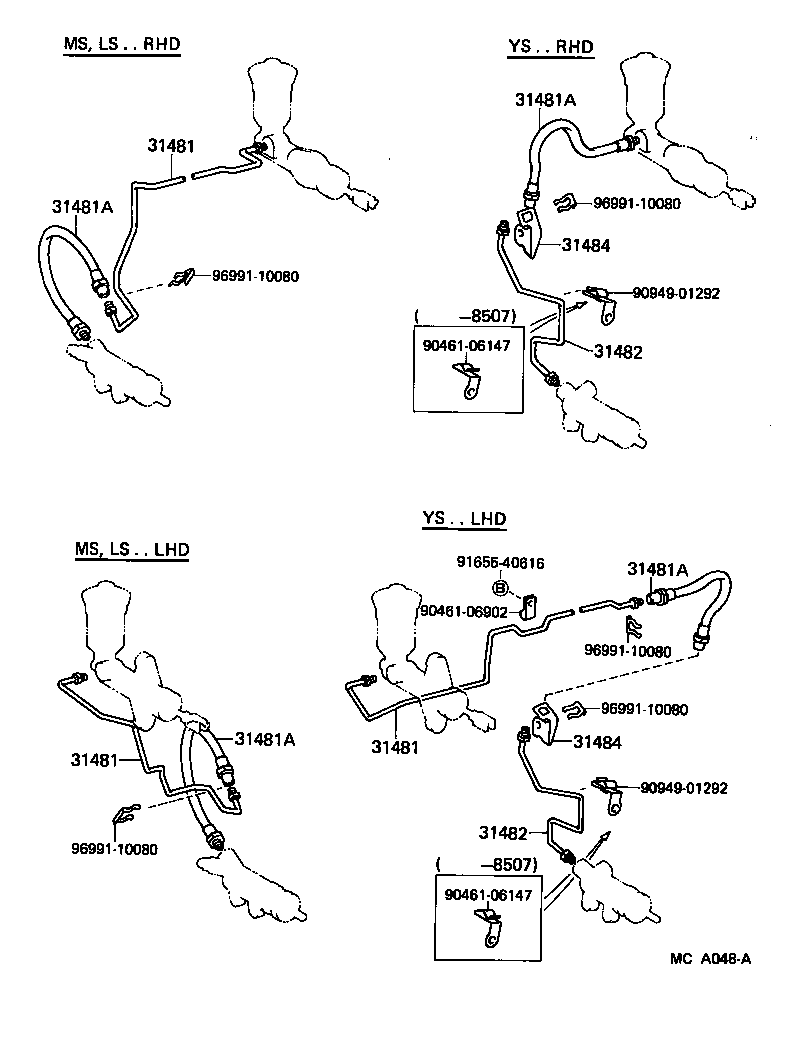

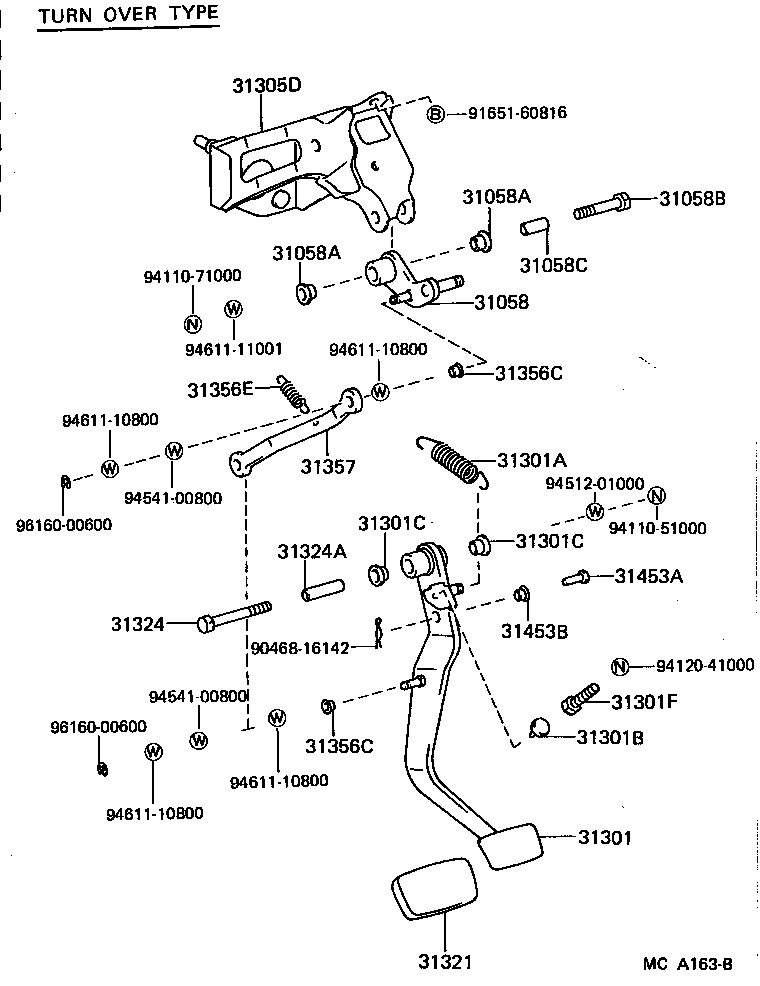

Figure MCA047B MCA047B 1983-08 → — Figure MCA163B MCA163B 1983-08 → — Figure MCA048A MCA048A 1983-08 → —

Part groups

PNCDescription
31058 Plate Sub-assy, Over Center
31058A Bush(FOR OVER CENTER PLATE)
31058B Bolt(FOR OVER CENTER PLATE)
31058C Collar(FOR OVER CENTER PLATE)
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31305D Support Sub-assy, Clutch Pedal
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31356C Bush(FOR OVER CENTER ADJUSTING ROD)
31356E Spring(FOR OVER CENTER ADJUSTING ROD)
31357 Plate, Clutch Pedal Over Center, NO.2
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481A Hose, Clutch, NO.1
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31484 Bracket, Flexible Hose(FOR CLUTCH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
