Toyota Crown
1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe
Discontinued model
Data version 1988-01
Rear Axle Shaft & Hub
34 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04421 | Bearing Kit, Rear Axle Shaft |
| 04438C | Boot Kit, Rear Drive Shaft |
| 42185 | Gasket, Rear Axle Housing End |
| 42303 | Flange Sub-assy, Rear Axle |
| 42303A | Bolt, Serration (FOR REAR AXLE FLANGE) |
| 42311 | Shaft, Rear Axle |
| 42311A | Seal, Oil(FOR REAR AXLE SHAFT) |
| 42311E | Seal, Oil(FOR REAR AXLE SHAFT OUTER) |
| 42311F | Washer, Plate(FOR REAR AXLE SHAFT) |
| 42311G | Nut(FOR REAR AXLE SHAFT) |
| 42311Q | Bearing(FOR REAR AXLE SHAFT OUTER) |
| 42311R | Bearing(FOR REAR AXLE SHAFT INNER) |
| 42329 | Spacer, Rear Axle Shaft |

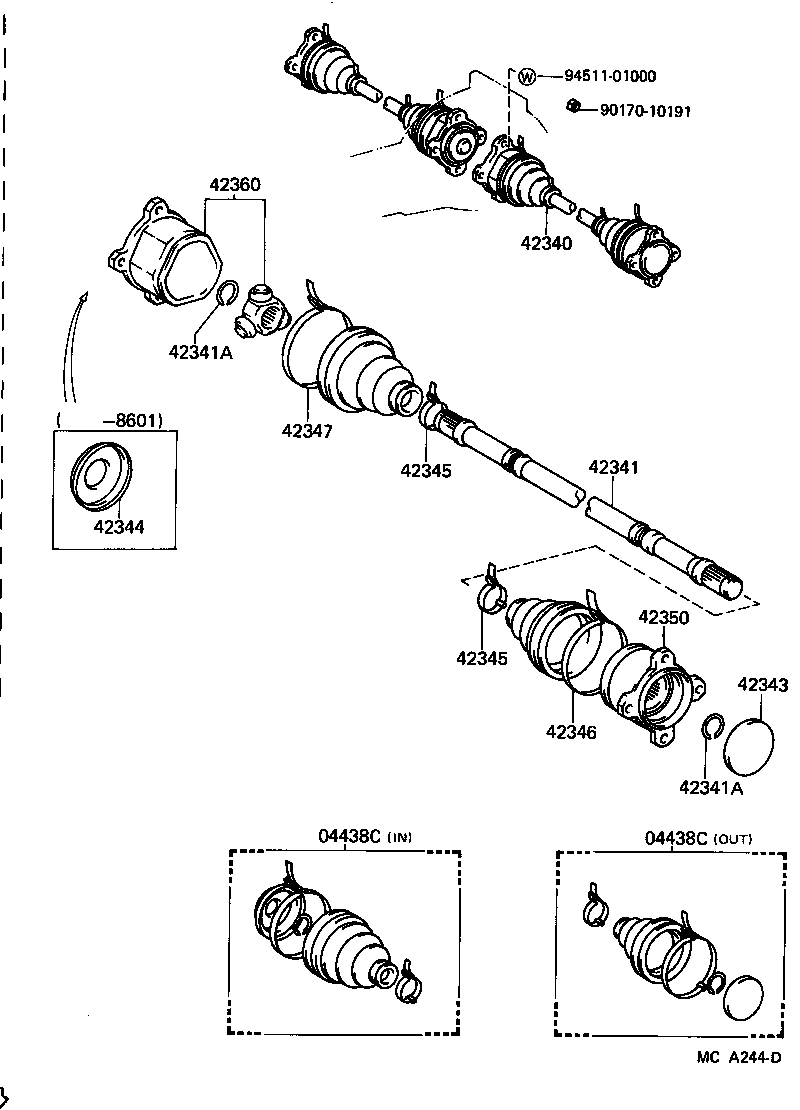

| 42340 | Shaft Assy, Rear Drive |
| 42341 | Shaft, Rear Drive |
| 42341A | Ring, Snap (FOR REAR DRIVE SHAFT) |
| 42343 | Cover, Outboard Joint End |
| 42344 | Cover, Rear Axle Inboard Joint End |
| 42345 | Clamp, Rear Drive Shaft Boot |
| 42346 | Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) |
| 42347 | Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) |
| 42350 | Joint Assy, Rear Drive Shaft Outboard |
| 42360 | Joint Assy, Rear Drive Shaft Inboard |
| 42403 | Drum Sub-assy, Rear Brake |
| 42403A | Piece, Balance (FOR REAR BRAKE DRUM) |
| 42413 | Spacer, Rear Wheel Bearing |
| 42424 | Retainer, Rear Axle Bearing, Outer, RH |
| 42425 | Gasket, Rear Axle Bearing Retainer |
| 42431 | Disc, Rear |
| 42451 | Deflector, Rear Wheel Bearing Dust, NO.1 |
| 42452 | Deflector, Rear Wheel Bearing Dust, NO.2 |
| 42454 | Retainer, Rear Axle Bearing, Outer, LH |
| 42491 | Plug, Shoe Adjusting Hole (FOR PARKING BRAKE) |
| 42611E | Bolt, Hub (FOR REAR AXLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
