Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

16 part groups · 3 illustrations

Illustrations

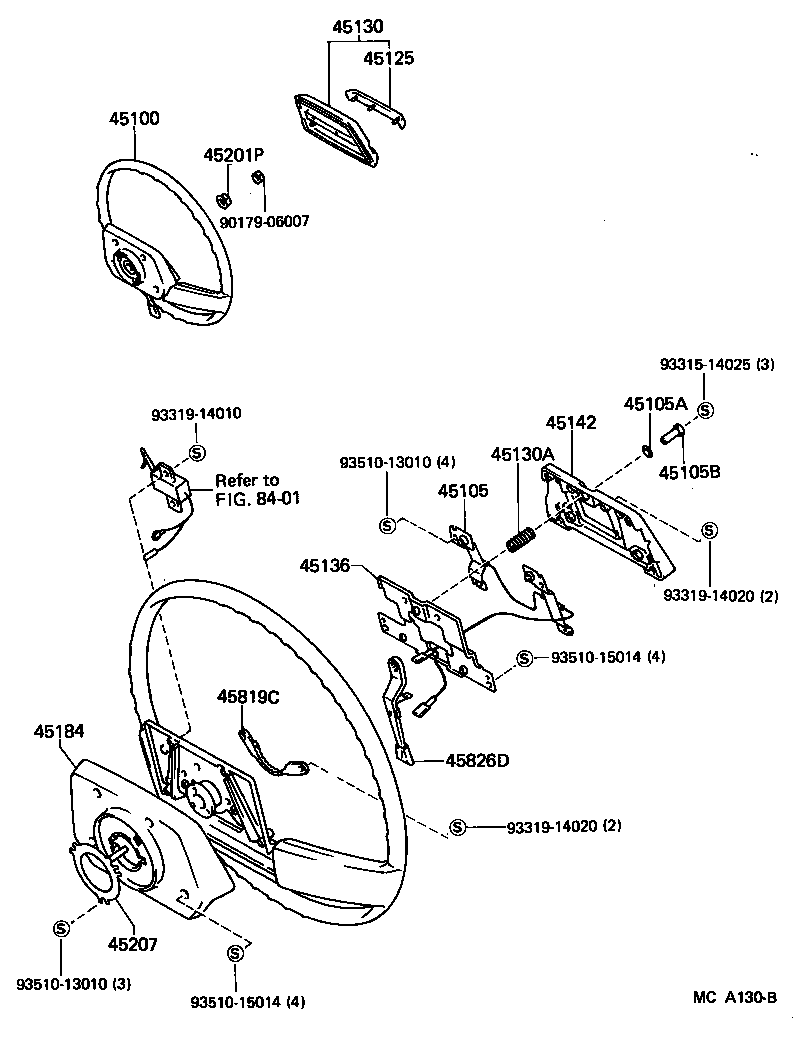

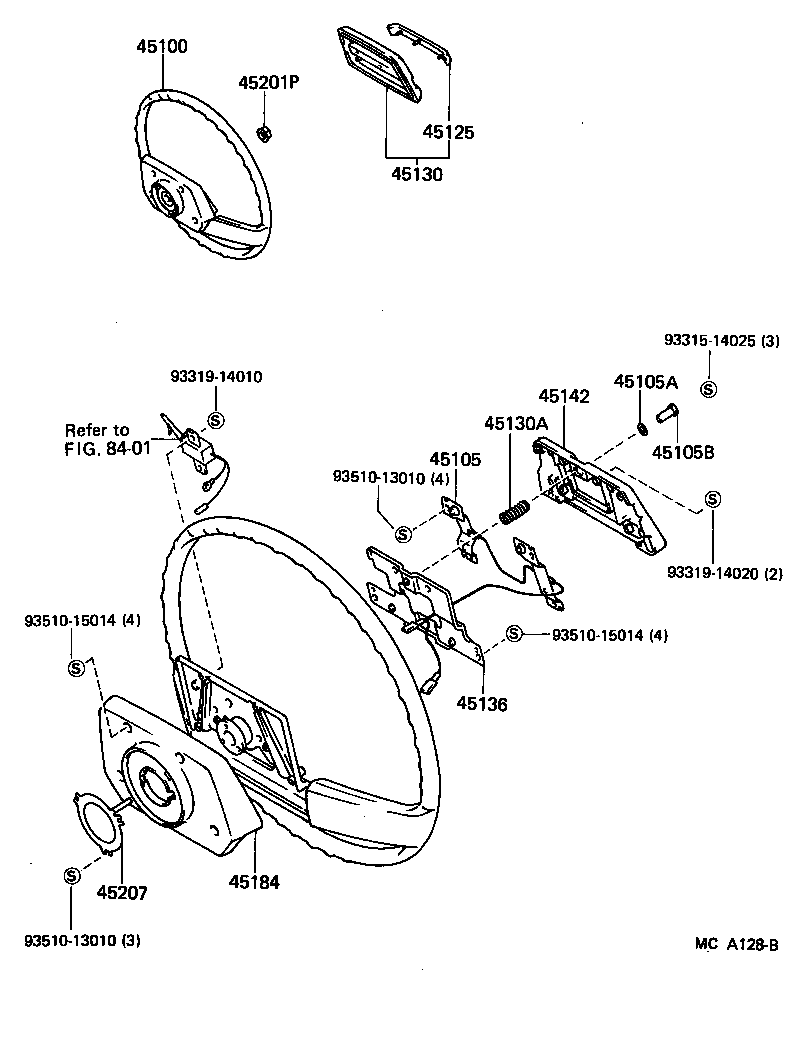

Figure MCA127A MCA127A 1983-08 → — Figure MCA128B MCA128B 1983-08 → — Figure MCA130B MCA130B 1983-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105A Cushion(FOR HORN BUTTON CONTACT PLATE)
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45142 Seat, Horn Button Contact, NO.1
45184 Cover, Steering Wheel Boss, Lower
45189 Button, Horn, NO.3
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
45819C Retainer, Telescopic Lever
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
