Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

53 part groups · 13 illustrations

Illustrations

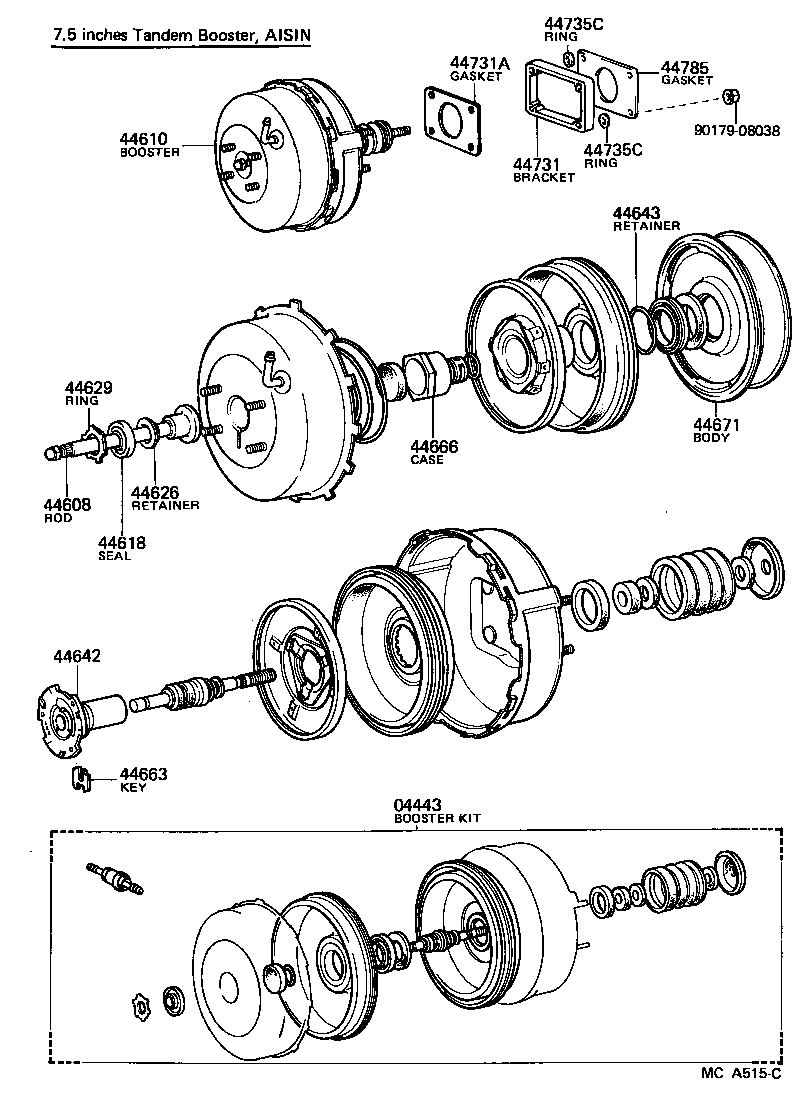

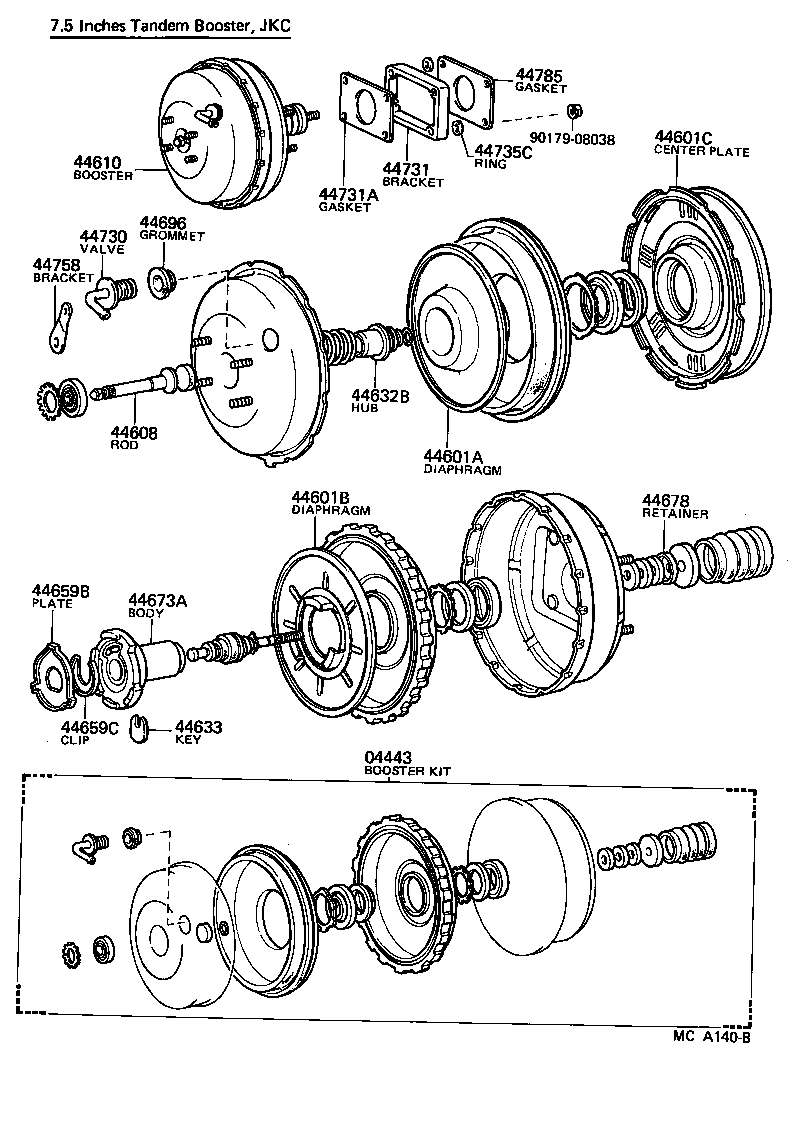

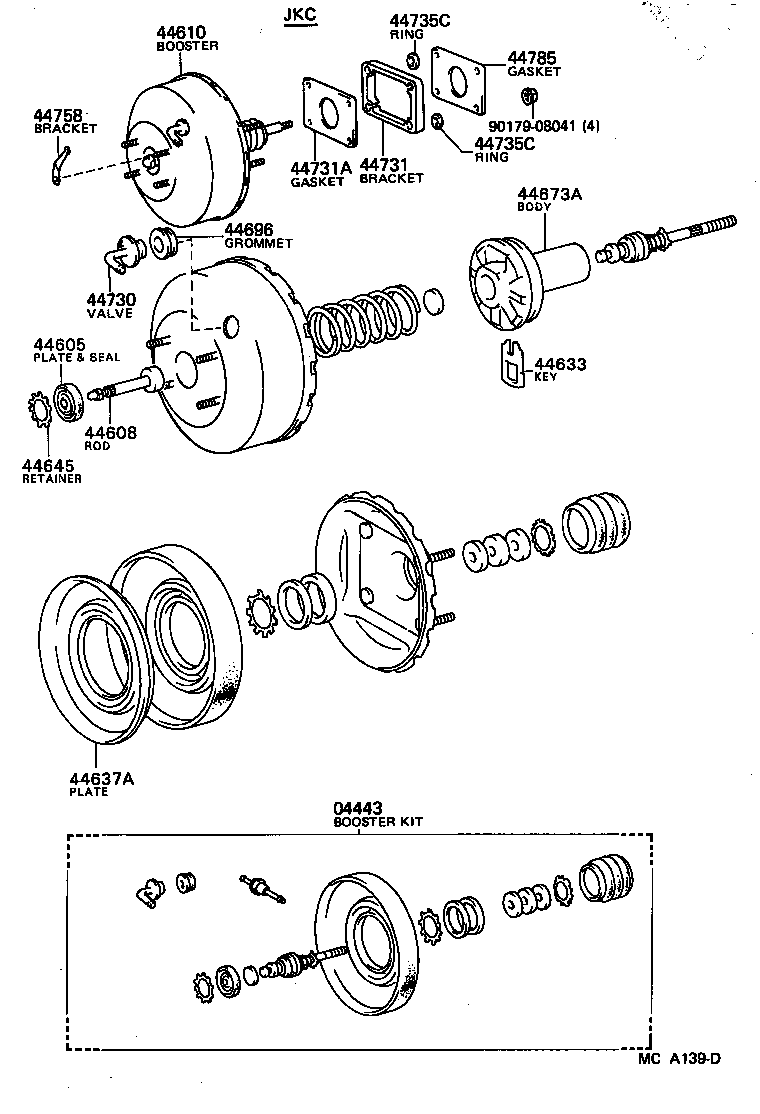

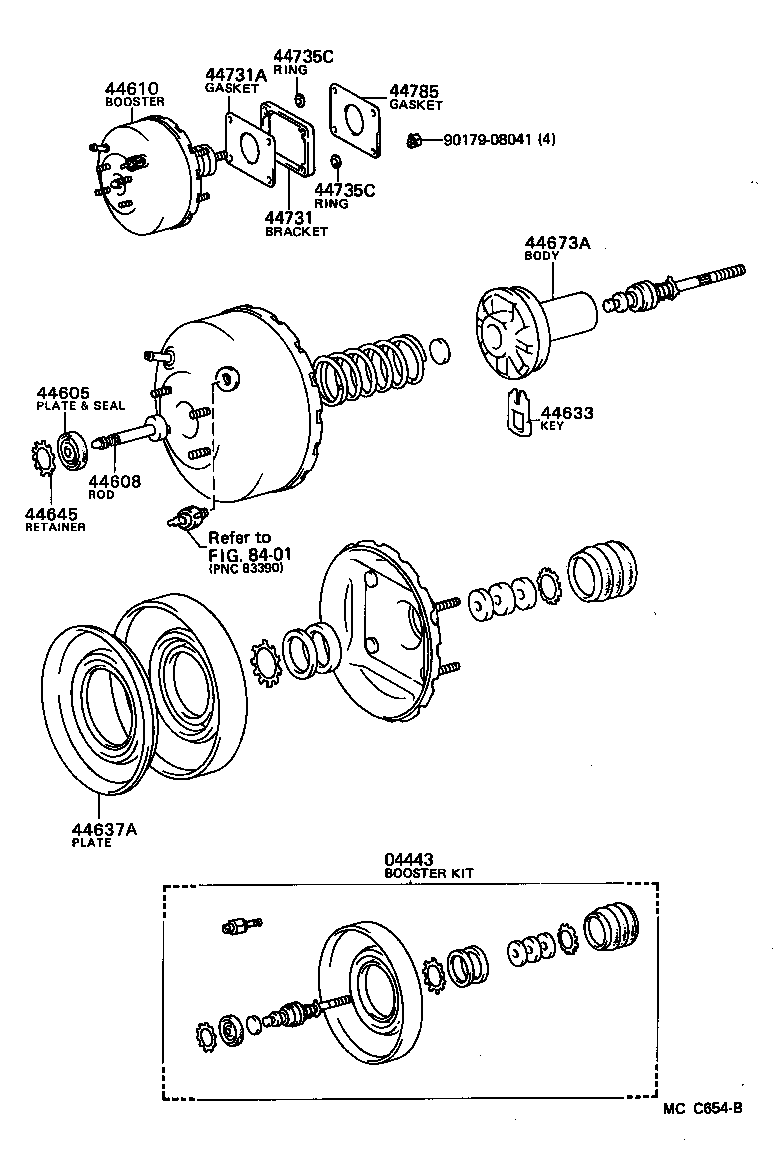

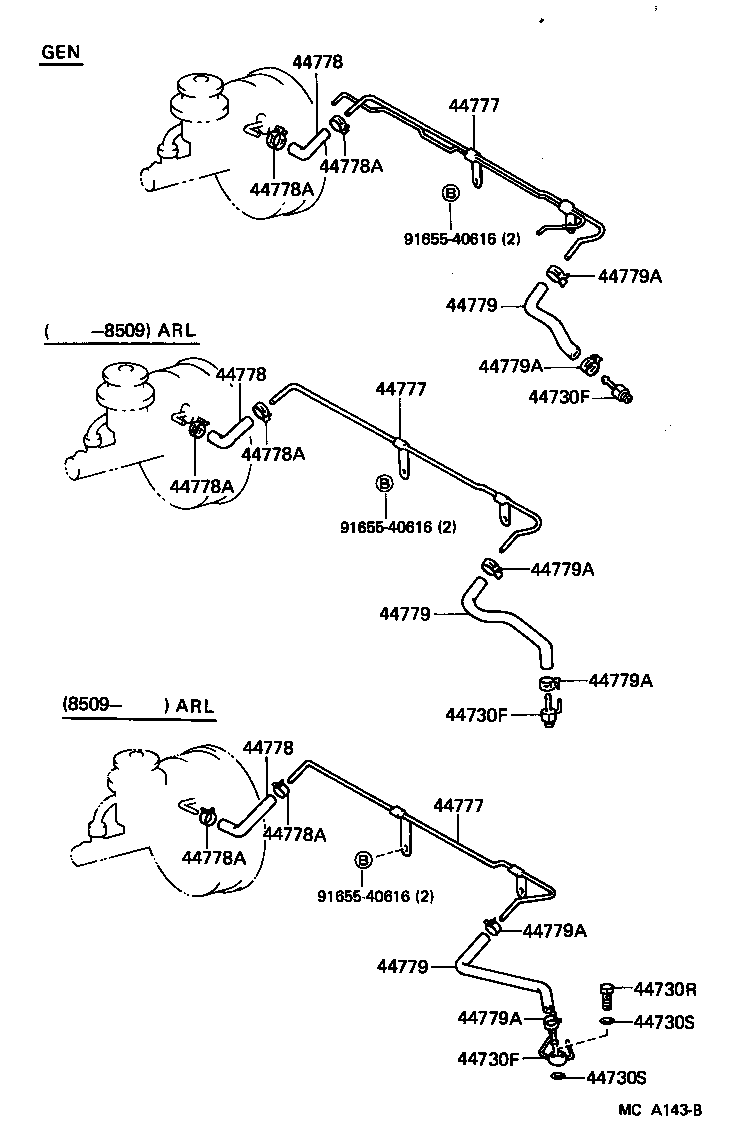

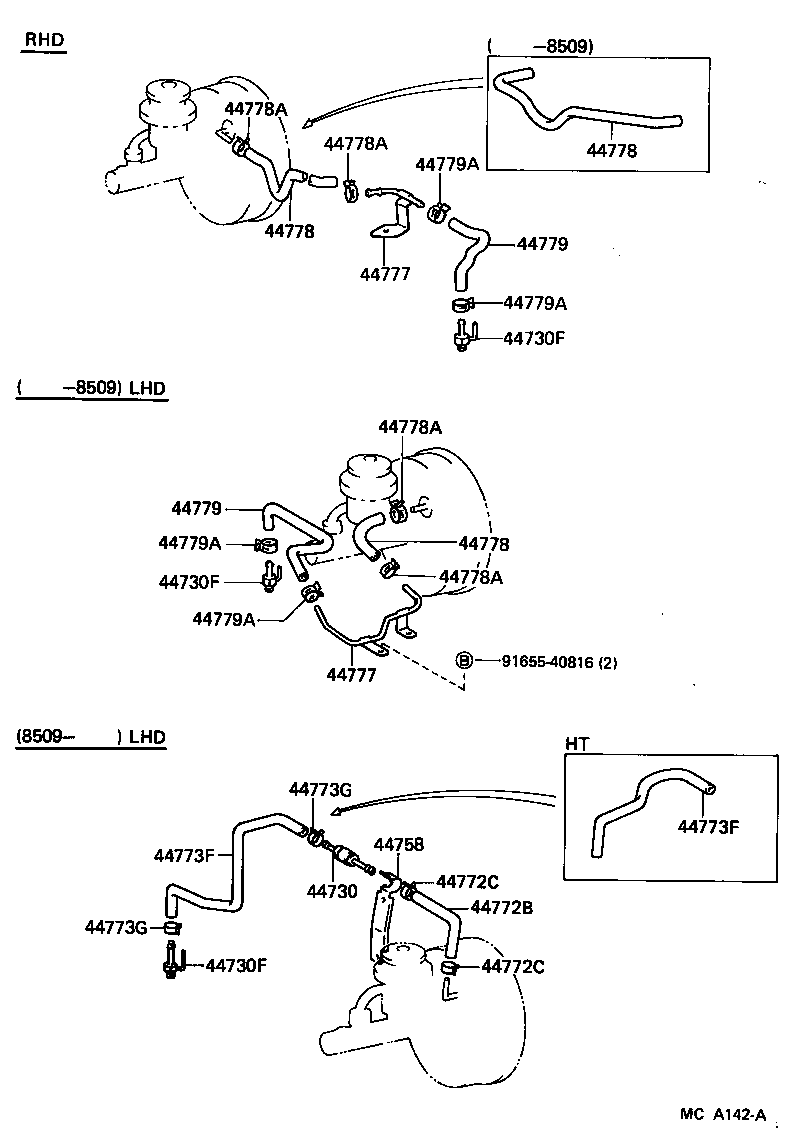

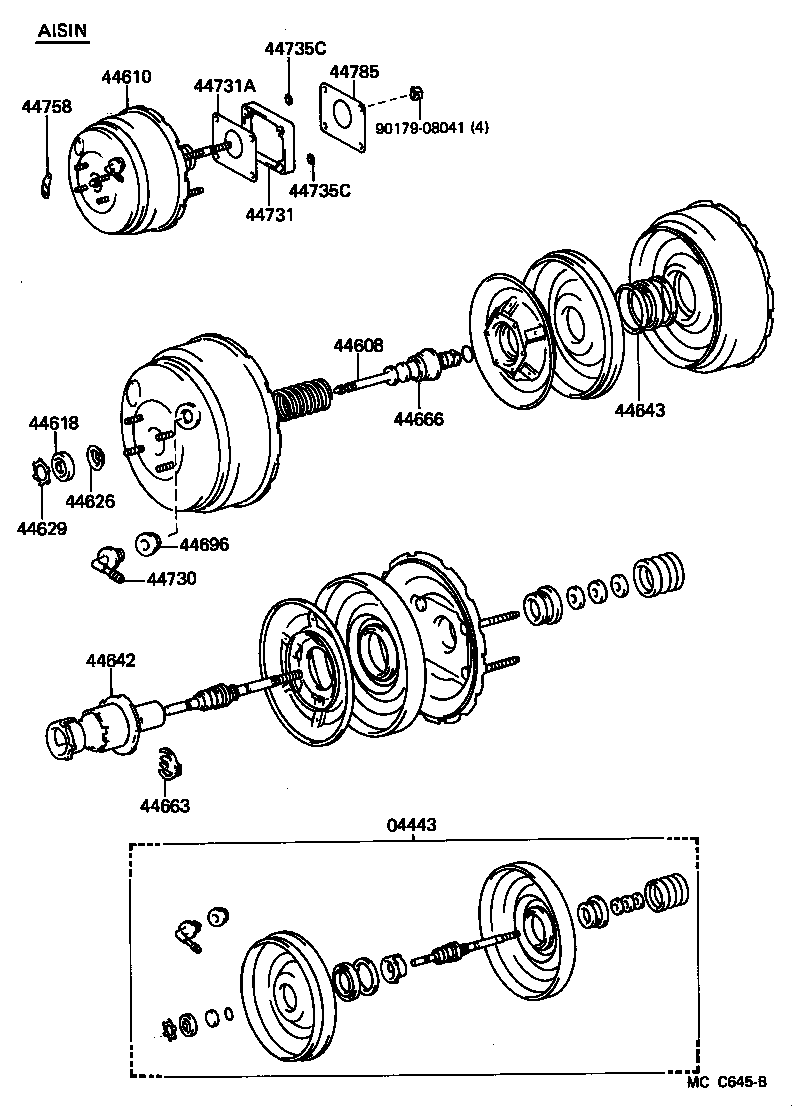

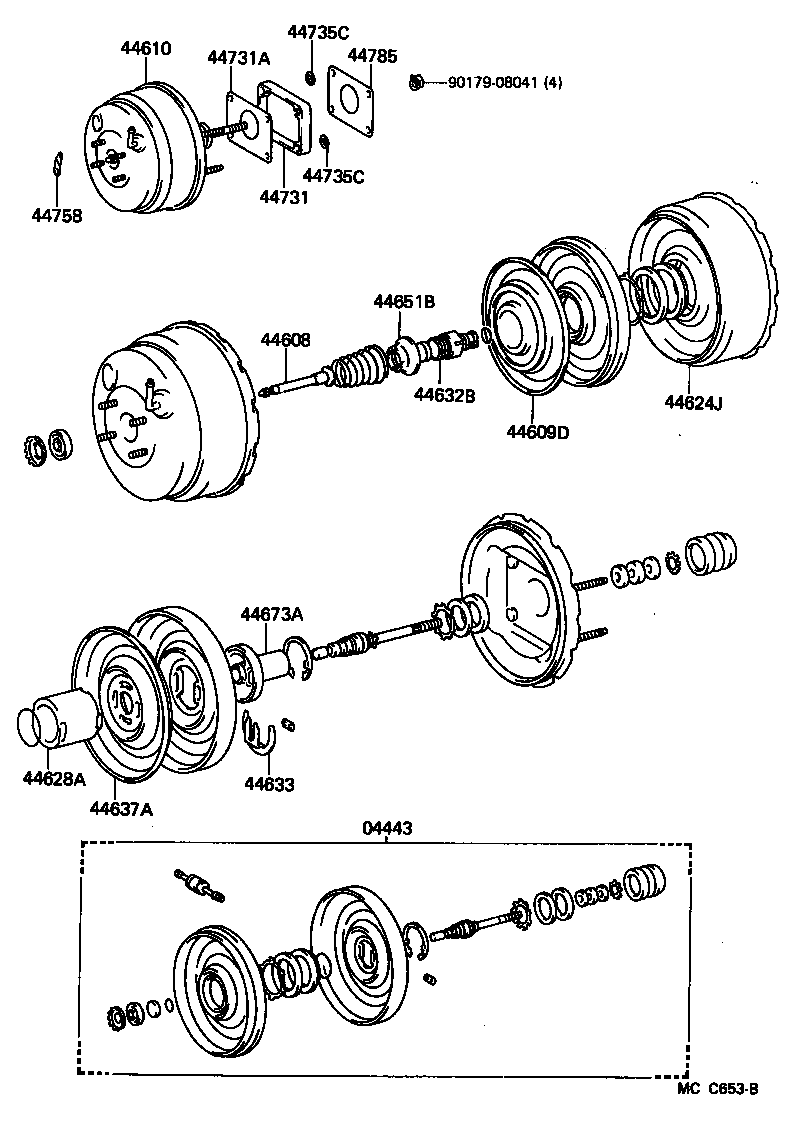

Figure MCA137D MCA137D 1983-08 → 1985-09 Figure MCA515C MCA515C 1983-08 → 1985-09 Figure MCC653B MCC653B 1985-09 → — Figure MCA139D MCA139D 1983-08 → 1985-09 Figure MCA139D MCA139D 1985-09 → — Figure MCA140B MCA140B 1983-08 → 1985-09 Figure MCC645B MCC645B 1985-09 → — Figure MCC654B MCC654B 1983-08 → — Figure MCA141 MCA141 1983-08 → — Figure MCA142A MCA142A 1983-08 → — Figure MCA143B MCA143B 1983-08 → — Figure MCA144B MCA144B 1983-08 → — Figure MCA145A MCA145A 1983-08 → —

Part groups

PNCDescription
04443 Booster Kit, Brake
44601A Diaphragm Plate Sub-assy, Booster, Front
44601B Diaphragm Plate Sub-assy, Booster, Rear
44601C Center Plate Sub-assy, Booster
44605 Plate & Seal Sub-assy, Booster
44608 Push Rod Sub-assy, Booster
44609D Plate & Retainer Sub-assy, Booster
44610 Booster Assy, Brake
44618 Seal, Booster Body
44624J Plate, Booster Center
44626 Retainer, Booster Rod Cup
44628A Body, Booster Center
44629 Ring, Circular Internal
44632B Hub, Booster Reaction Disk
44633 Key, Booster Valve Plunger
44637A Plate, Booster Diaphragm
44642 Piston, Brake Booster
44643 Retainer, Diaphragm
44645 Retainer, Booster Push Rod Seal
44651B Nut, Booster
44659B Plate, Booster Retainer
44659C Clip, Booster
44663 Key, Valve Stopper
44666 Case, Reaction Disc
44671 Body Sub-assy, NO.3
44673A Body, Booster Valve
44678 Retainer, Booster Air Cleaner
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44704H Plug(FOR VACUUM RESERVOIR)
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44730R Bolt, Union(FOR VACUUM HOSE UNION)
44730S Gasket(FOR VACUUM HOSE UNION)
44731 Bracket, Brake Booster, Front
44731A Gasket, Brake Booster Bracket
44735C Ring, Booster Bracket Stopper
44758 Bracket, Vacuum Check Valve
44763 Tube, Booster Vacuum
44771 Hose, Vacuum Tube Connector
44771A Clip(FOR VACUUM TUBE CONNECTOR HOSE)
44772B Hose, Check Valve TO Brake Booster
44772C Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44777 Connector, Vacuum Hose, NO.1
44778 Hose, Connector TO Check Valve
44778A Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
44779 Hose, Union TO Connector
44779A Clip(FOR UNION TO CONNECTOR HOSE)
44781 Bracket, Hose
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
