Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

29 part groups · 3 illustrations

Illustrations

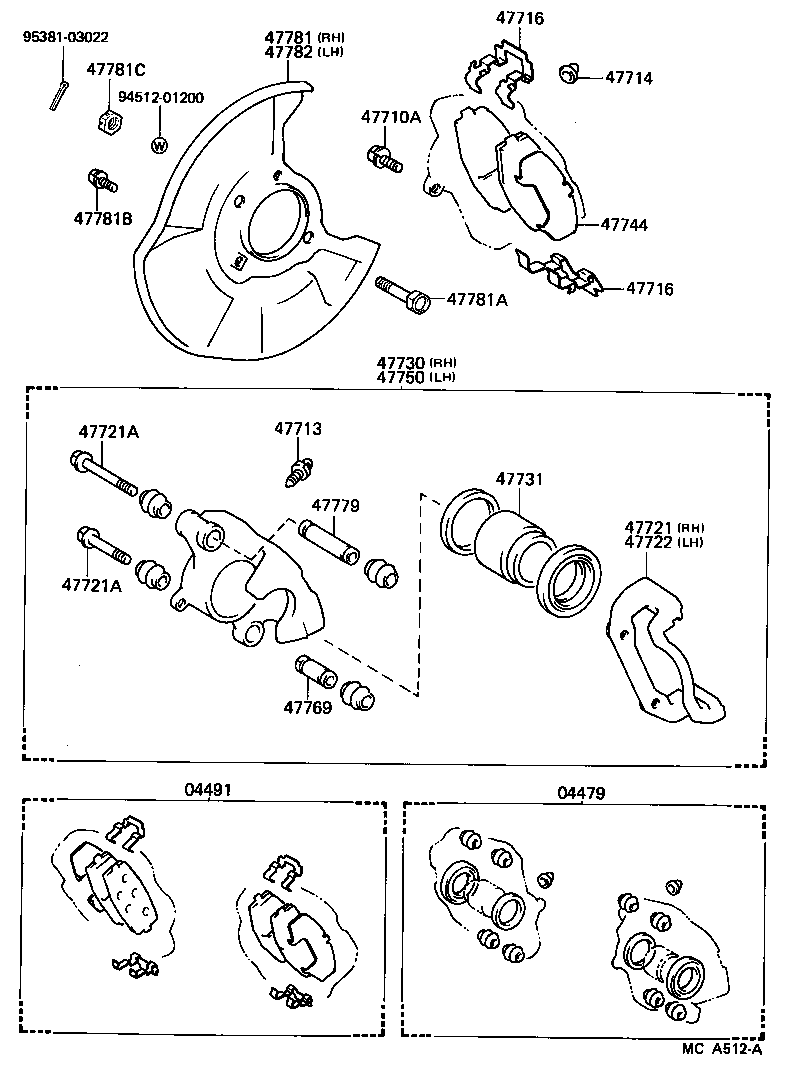

Figure MCB474C MCB474C 1983-08 → — Figure MCA512A MCA512A 1983-08 → 1985-09 Figure MCT614 MCT614 1983-08 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04479 Cylinder Kit, Disc Brake, Front
04491 Pad Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47713 Plug, Bleeder(FOR FRONT DISC BRAKE)
47714 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47715 Pin, Main(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715A Pin, Front Disc Brake Cylinder Slide
47715B Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47716 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47721 Mounting, Front Disc Brake Cylinder, RH
47721A Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47722 Mounting, Front Disc Brake Cylinder, LH
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47736D Liner, Front Disc Brake Pad
47744 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
47745 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
47750 Cylinder Assy, Disc Brake, LH
47769 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47775 Boot, Bush Dust(FOR FRONT DISC BRAKE)
47779 Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE)
47781 Cover, Disc Brake Dust, Front RH
47781A Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47781B Bolt(FOR DUST COVER SETTING)
47781C Nut(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47782 Cover, Disc Brake Dust, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
