Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Disc Brake Caliper & Dust Cover

20 part groups · 3 illustrations

Illustrations

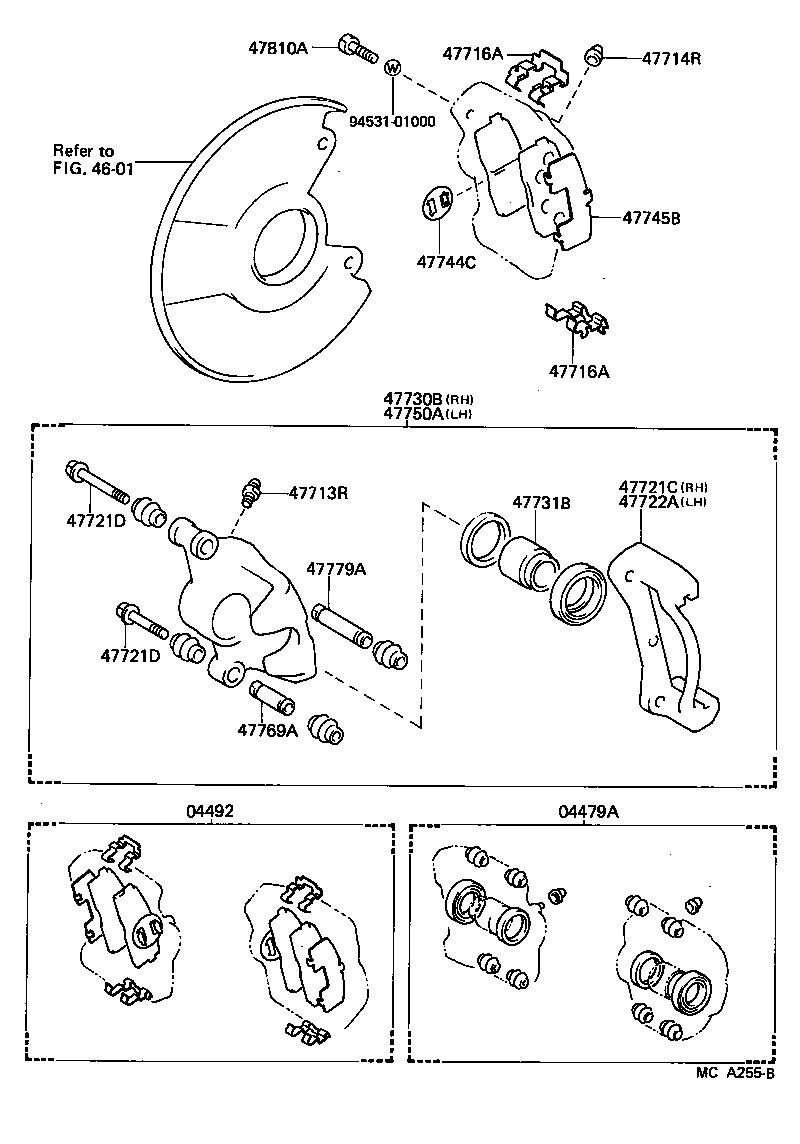

Figure MCA148A MCA148A 1983-08 → — Figure MCA255B MCA255B 1983-08 → — Figure MCT615 MCT615 1983-08 → —

Part groups

PNCDescription
04466 Pad Kit, Disc Brake, Rear
04479A Cylinder Kit, Disc Brake, Rear
04492 Pad Kit, Disc Brake, Rear
04946 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
04948 Fitting Kit, Disc Brake, Rear
47713R Plug, Bleeder(FOR REAR DISC BRAKE)
47714R Cap, Bleeder Plug(FOR REAR DISC BRAKE)
47716A Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
47721C Mounting, Rear Disc Brake Cylinder, RH
47721D Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
47722A Mounting, Rear Disc Brake Cylinder, LH
47730B Cylinder Assy, Rear Disc Brake, RH
47731B Piston, Rear Disc Brake
47744C Shim, Anti-squeal, NO.1(FOR REAR DISC BRAKE)
47745B Shim, Anti-squeal, NO.2(FOR REAR DISC BRAKE)
47745C Shim, Anti-squeal, NO.3(FOR REAR DISC BRAKE)
47750A Cylinder Assy, Disc Brake, Rear LH
47769A Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47779A Bush, Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
47810A Bolt, Hexagon(FOR REAR CALIPER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
