Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

25 part groups · 2 illustrations

Illustrations

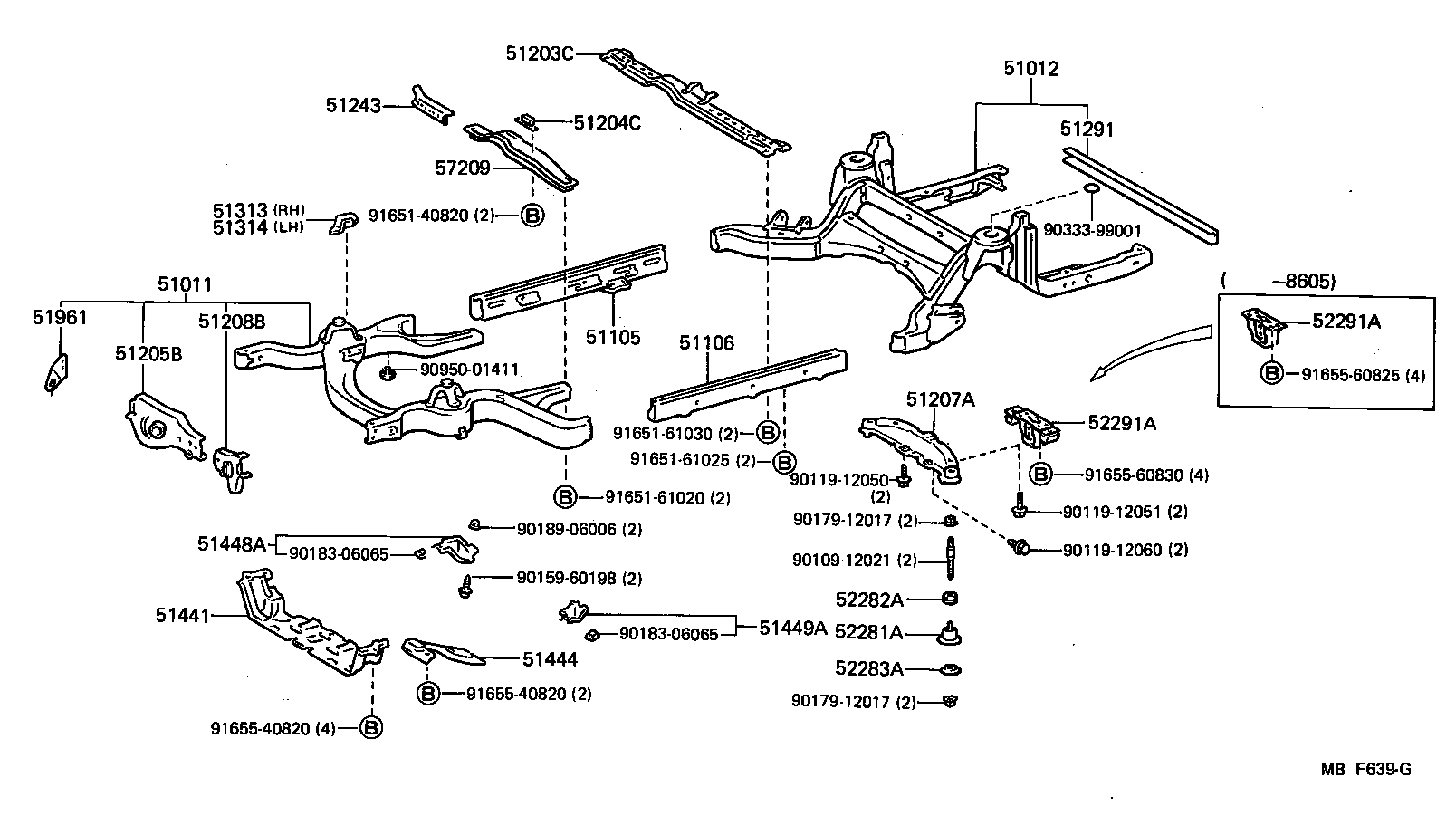

Figure MBF638E MBF638E 1983-08 → — Figure MBF639G MBF639G 1983-08 → —

Part groups

PNCDescription
51011 Rail Sub-assy, Front Frame
51012 Rail Sub-assy, Rear Frame
51105 Rail Sub-assy, Center Frame, RH
51106 Rail Sub-assy, Center Frame, LH
51203C Crossmember Sub-assy, Center Bearing Support
51204C Damper Sub-assy, Engine Rear Support Member
51205B Support Sub-assy, Strut Bar, RH
51207A Member Sub-assy, Differential Support
51208B Support Sub-assy, Strut Bar, LH
51243 Member, Anti Shake
51291 Crossmember, Frame, Rear
51313 Gusset, Front Frame, Lower RH
51314 Gusset, Front Frame, Lower LH
51441 Cover, Engine Under, NO.1
51443 Cover, Engine Under, Rear RH
51444 Cover, Engine Under, Rear LH
51448A Cover, Engine Side Under, RH
51449A Cover, Engine Side Under, LH
51450 Cover Assy, Engine Under, Rear
51961 Hook, NO.1
52281A Cushion, Differential Support Member
52282A Stopper, Differential Support Member, Upper
52283A Stopper, Differential Support Member, Lower
52291A Cushion, Differential Support Member, Rear
57209 Member Sub-assy, Engine Rear Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
