Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Mounting

18 part groups · 3 illustrations

Illustrations

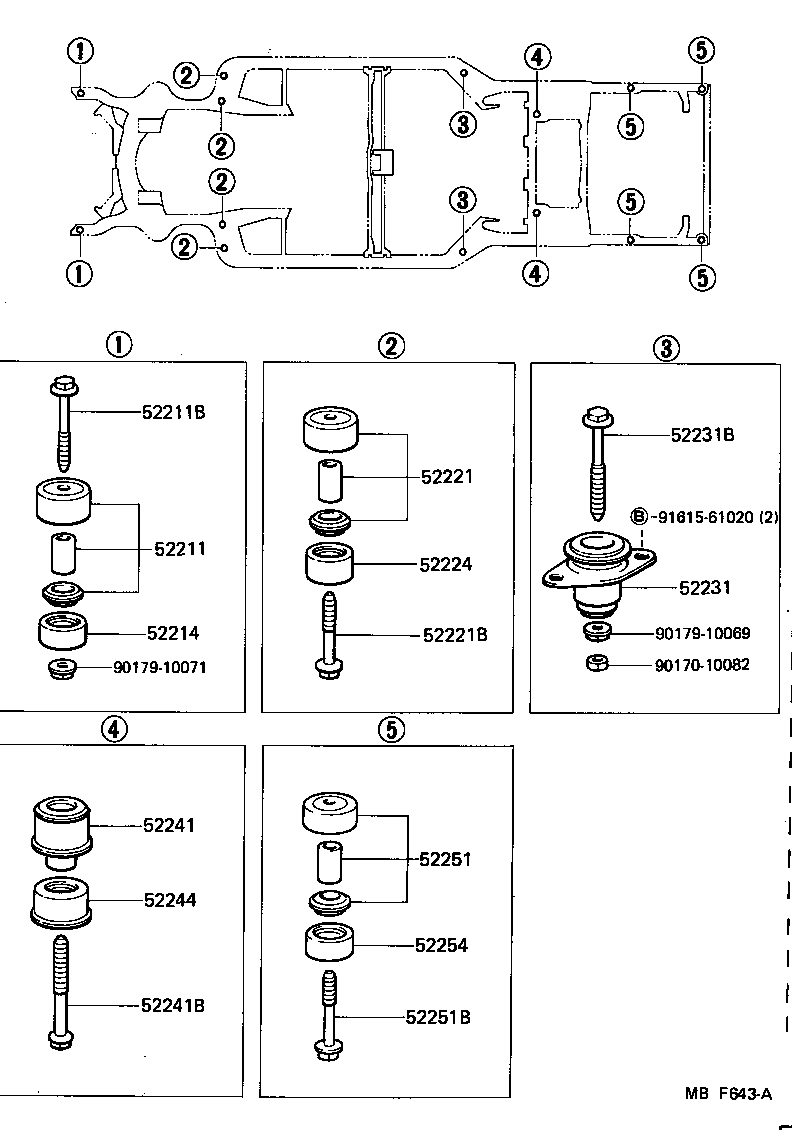

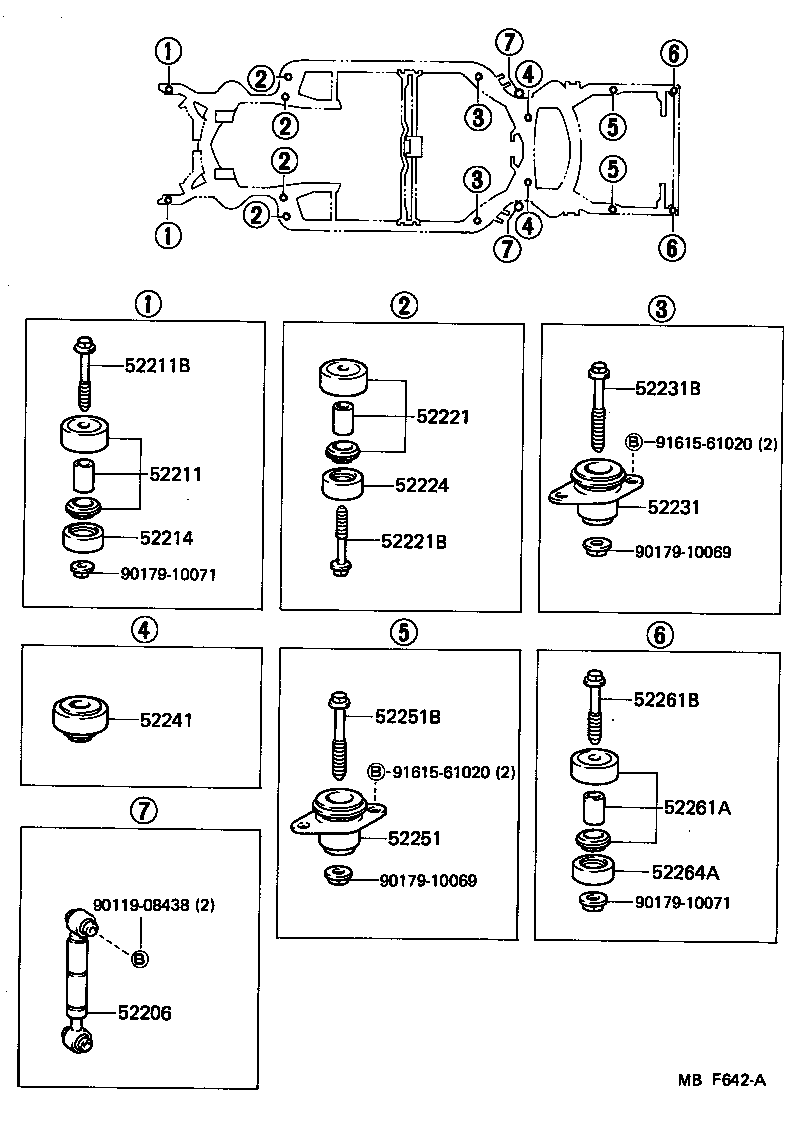

Figure MBF641C MBF641C 1983-08 → — Figure MBF642A MBF642A 1983-08 → — Figure MBF643A MBF643A 1983-08 → —

Part groups

PNCDescription
52206 Absorber Sub-assy, Body Mounting
52211 Cushion, Body Mounting, NO.1 Upper
52211B Bolt(FOR BODY MOUNTING NO.1 CUSHION)
52214 Cushion, Body Mount, NO.1 Lower
52221 Cushion, Body Mount, NO.2 Upper
52221B Bolt(FOR BODY MOUNT NO.2 CUSHION)
52224 Cushion, Body Mount, NO.2 Lower
52231 Cushion, Body Mount, NO.3 Upper
52231B Bolt(FOR BODY MOUNT NO.3 CUSHION)
52241 Cushion, Body Mount, NO.4 Upper
52241B Bolt(FOR BODY MOUNT NO.4 CUSHION)
52244 Cushion, Body Mount, NO.4 Lower
52251 Cushion, Body Mount, NO.5 Upper
52251B Bolt(FOR BODY MOUNT NO.5 CUSHION)
52254 Cushion, Body Mount, NO.5 Lower
52261A Cushion, Body Mount, NO.6 Upper
52261B Bolt(FOR BODY MOUNT NO.6 CUSHION)
52264A Cushion, Body Mount, NO.6 Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
