Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

28 part groups · 4 illustrations

Illustrations

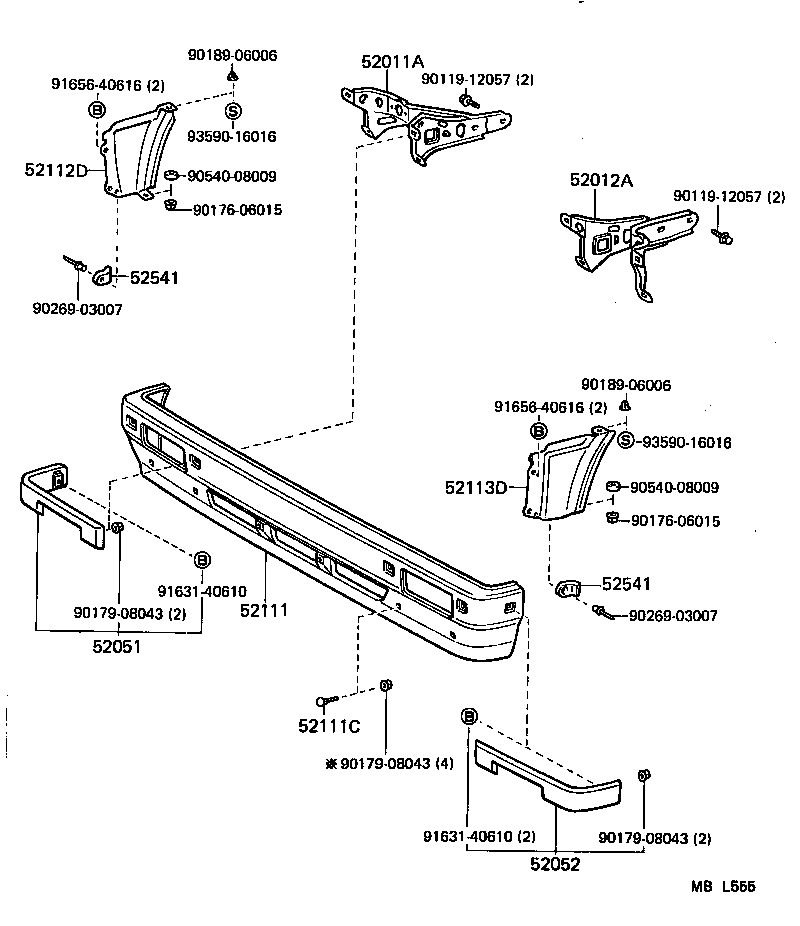

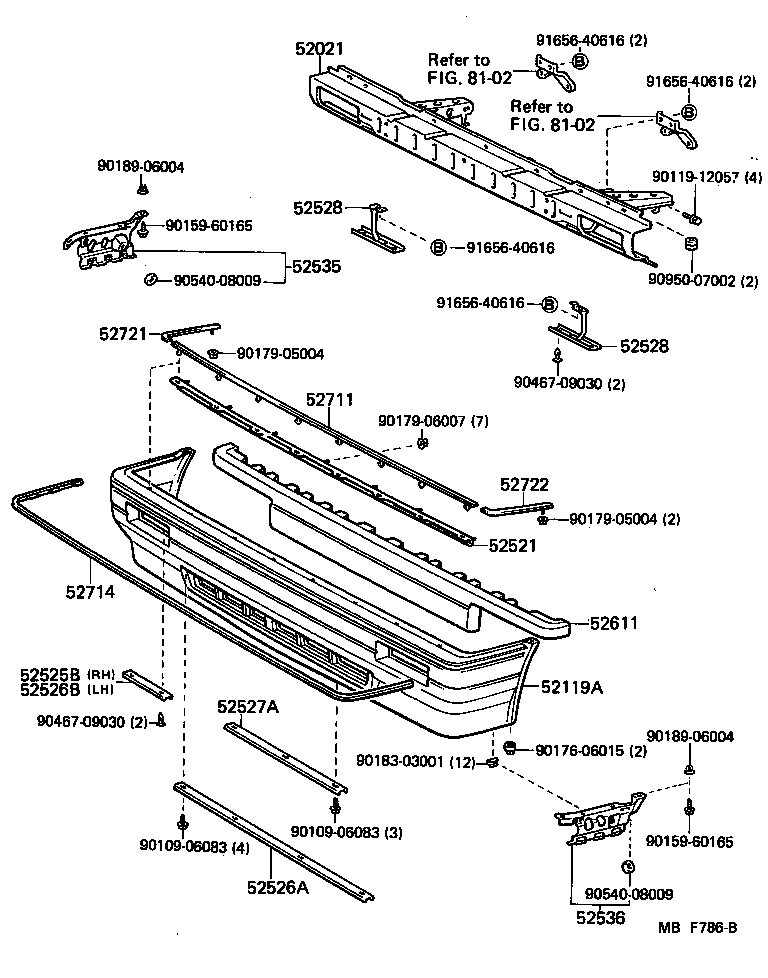

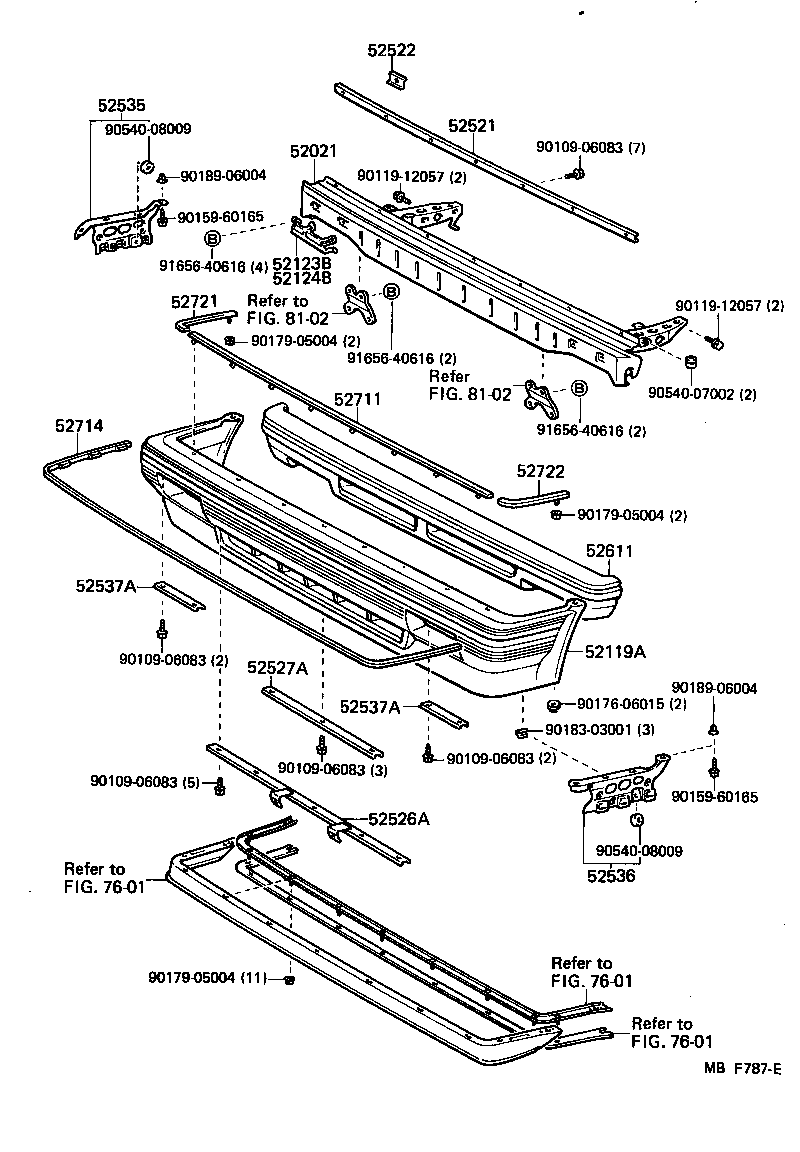

Figure MBF854A MBF854A 1983-08 → 1986-11 Figure MBL555 MBL555 1986-11 → — Figure MBF786B MBF786B 1983-08 → — Figure MBF787E MBF787E 1983-08 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52021 Reinforcement Sub-assy, Front Bumper
52051 Pad Sub-assy, Front Bumper, RH
52052 Pad Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52111C Bolt, Round Head Square Neck(FOR FRONT BUMPER)
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52119A Cover, Front Bumper
52123B Plate, Front Bumper Reinforcement, RH
52124B Plate, Front Bumper Reinforcement, LH
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52525B Retainer, Front Bumper, Lower Side RH
52526A Retainer, Front Bumper, Lower NO.1
52526B Retainer, Front Bumper, Lower Side LH
52527A Retainer, Front Bumper, Lower Center NO.2
52528 Retainer, Front Bumper, Lower Corner
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52537A Retainer, Front Bumper Side, NO.2
52541 Protector, Front Bumper
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
52714 Plug, Front Bumper Moulding, LH
52721 Moulding, Front Bumper Extension, RH
52722 Moulding, Front Bumper Extension, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
