Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

87 part groups · 4 illustrations

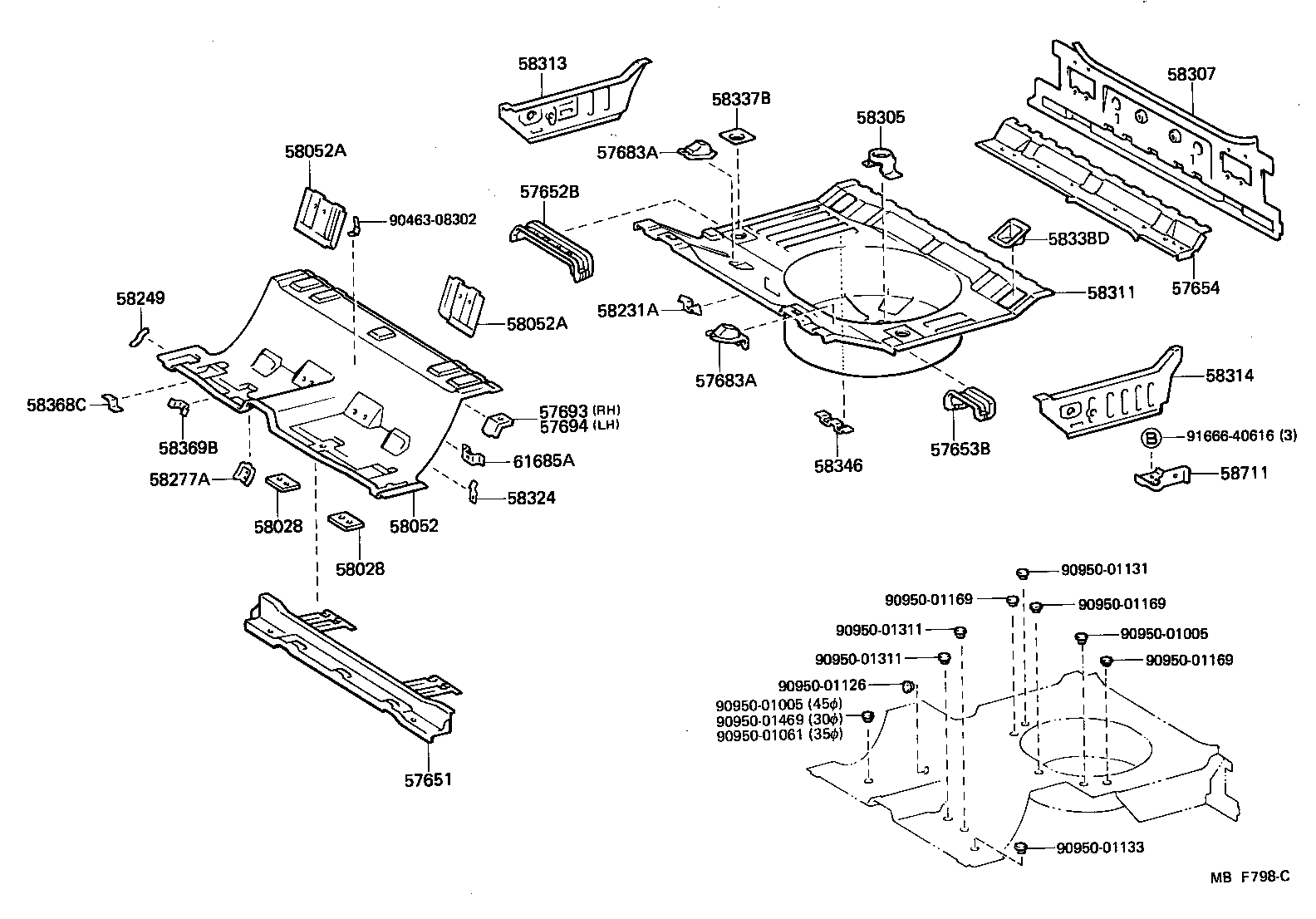

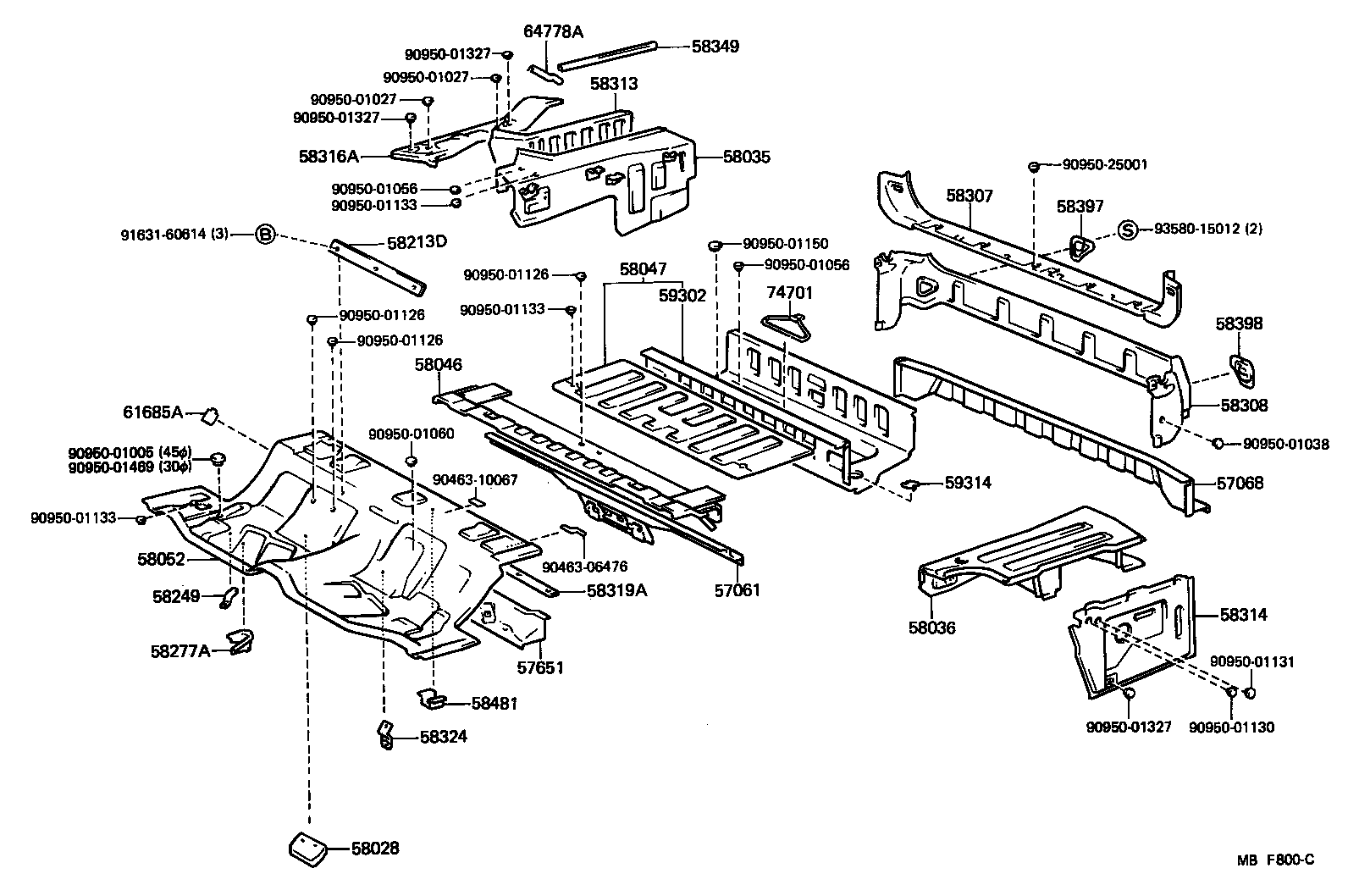

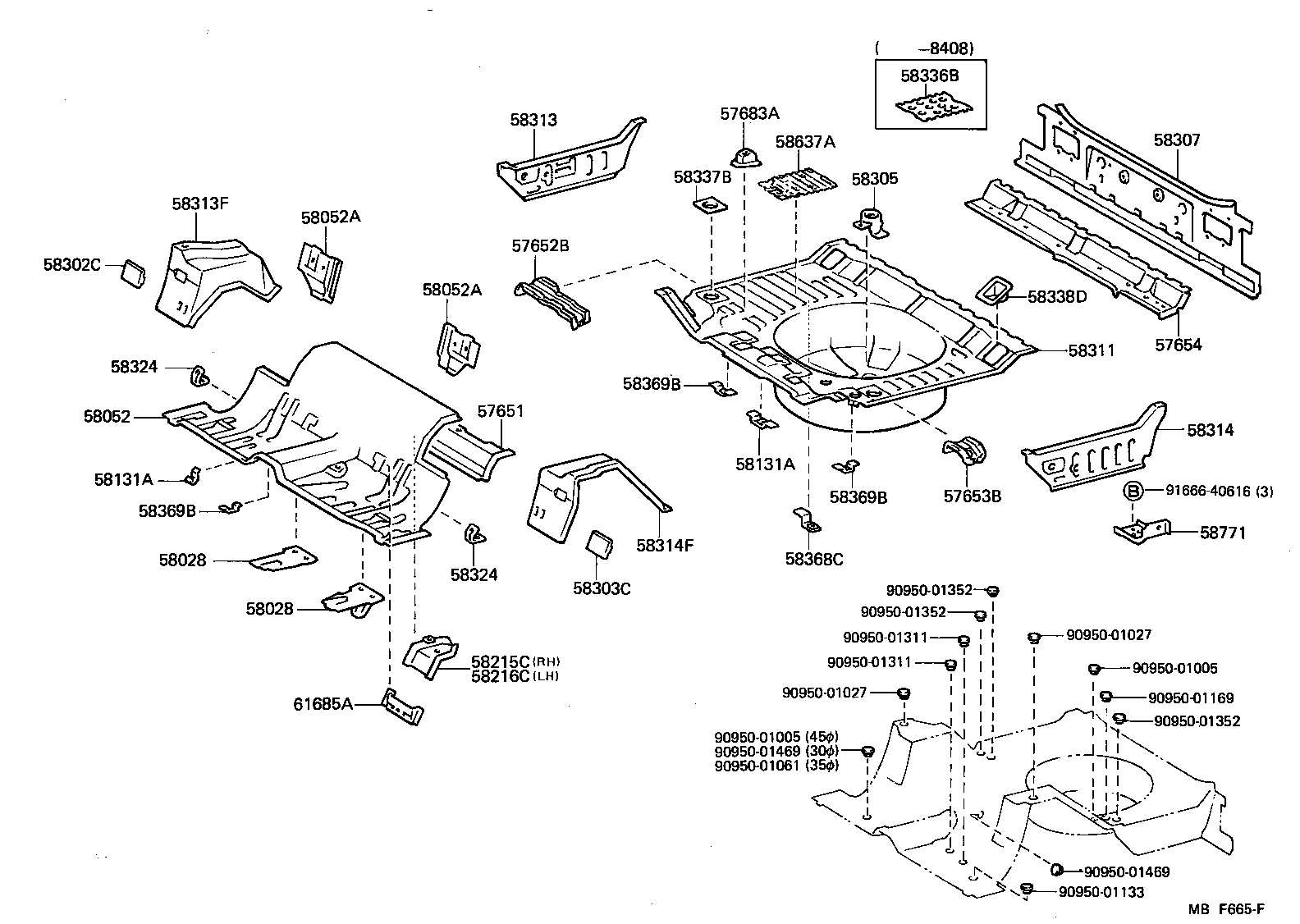

Illustrations

Part groups

PNC	Description
57061	Member Sub-assy, 3RD Seat Floor
57068	Member Sub-assy, Rear Floor Rear Cross, Inner
57163	Member, Front Floor Cross, NO.2
57411	Plate, Floor Side Rail, RH
57411A	Member, Floor Side, Inner RH
57412	Plate, Floor Side Rail, LH
57412A	Member, Floor Side, Inner LH
57423	Bracket, Front Floor Reinforcement, RH
57424	Bracket, Front Floor Reinforcement, LH
57458	Member, Front Floor Cross, NO.1
57651	Crossmember, Rear Floor, Front
57652B	Member, Rear Floor Cross, Front RH
57653B	Member, Rear Floor Cross, Front LH
57654	Member, Rear Floor Cross, NO.4
57683A	Bracket, Fuel Tank Mounting, NO.1
57693	Plate, Fuel Tank Bracket, RH
57694	Plate, Fuel Tank Bracket, LH
58028	Reinforcement Sub-assy, Seat Belt Anchor, NO.2
58029A	Bracket Sub-assy, Parking Brake Wire Clamp
58035	Panel Sub-assy, Rear Floor Side, RH
58036	Panel Sub-assy, Rear Floor Side, LH
58046	Panel Sub-assy, 3RD Seat Floor, Front
58047	Panel Sub-assy, 3RD Seat Floor, Rear
58052	Pan Sub-assy, Center Floor
58052A	Plate, Rear Seat Cushion Support
58101D	Bracket, Parking Brake Cable Guide
58111	Pan, Front Floor
58114A	Reinforcement, Front Floor Panel
58131A	Bracket, Front Floor Heat Insulator, NO.1
58171	Reinforcement, Parking Brake Base
58183	Bracket, Front Seat Mounting, Inner
58191	Footrest, Front Floor
58193	Bracket, Instrument Panel Brace Mounting
58212C	Pan, Center Floor, Front
58213D	Reinforcement, Center Floor Panel
58215C	Reinforcement, Center Floor Panel, NO.2 RH
58216C	Reinforcement, Center Floor Panel, NO.2 LH
58225	Holder, Rear Seat Cushion
58231A	Bracket, Center Floor Heat Insulator, NO.1
58247A	Reinforcement, Rear Seat Cushion Hinge, RH
58248A	Reinforcement, Rear Seat Cushion Hinge, LH
58249	Hanger, Parking Brake Return Spring
58253	Bracket, Front Seat, Outer Rear RH
58253A	Bracket, Parking Cable Clamp
58254	Bracket, Front Seat, Outer Rear LH
58269A	Bracket, Parking Brake Cable Guide, NO.3
58271	Plate, Belt Anchor, Front
58272	Reinforcement, Belt Anchor TO Floor Pan
58277A	Bracket, Parking Brake Cable Guide, NO.4
58286	Boot, Shift & Select Lever, NO.1
58288	Seal, Shift Lever Boot
58302C	Bracket Sub-assy, Rear Absorber, RH
58303C	Bracket Sub-assy, Rear Absorber, LH
58305	Bracket Sub-assy, Spare Wheel Clamp
58307	Panel Sub-assy, Body Lower Back
58308	Panel Sub-assy, Body Lower Back, Inner
58311	Pan, Rear Floor
58313	Panel, Rear Floor Side, RH
58313F	Extension, Rear Floor Pan TO Quarter Panel, RH
58314	Panel, Rear Floor Side, LH
58314F	Extension, Rear Floor Pan TO Quarter Panel, LH
58316A	Extension, Rear Floor Side Panel, Rear RH
58319A	Plate, Rear Floor Panel, Front
58324	Bracket, Flexible Hose
58334C	Reinforcement, NO.5 Body Mounting
58336B	Reinforcement, Rear Floor Pan
58337B	Reinforcement, NO.7 Body Mounting
58338D	Reinforcement, Tail End Body Mounting
58346	Bracket, Rear Floor Heat Insulator
58349	Cushion, Rear Floor Side
58368B	Bracket, Fuel Tube, NO.2
58368C	Bracket, Fuel Tube, NO.3
58369B	Bracket, Fuel Tube, NO.3
58397	Cover, Lower Back, Outer RH
58398	Cover, Lower Back, Outer LH
58481	Plate, Bleether Tube Catch
58616C	Panel, Front Floor Silencer, NO.1
58617A	Panel, Front Floor Silencer, NO.2
58618A	Panel, Front Floor Silencer, NO.3
58619A	Panel, Front Floor Silencer, NO.4
58637A	Panel, Rear Floor Silencer
58771	Clamp, Jack, NO.1
59302	Panel Sub-assy, 3RD Seat Floor, Rear NO.2
59314	Cover, 3RD Seat Floor Hole
61685A	Bracket, Rear Seatback Mounting
64778A	Protector, Spare Wheel
74701	Clamp Sub-assy, Tool Bag

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
