Toyota Crown

1983-08 → 1987-08 · chassis YS120,MS12#,LS120 · catalogue 331250 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

12 part groups · 2 illustrations

Illustrations

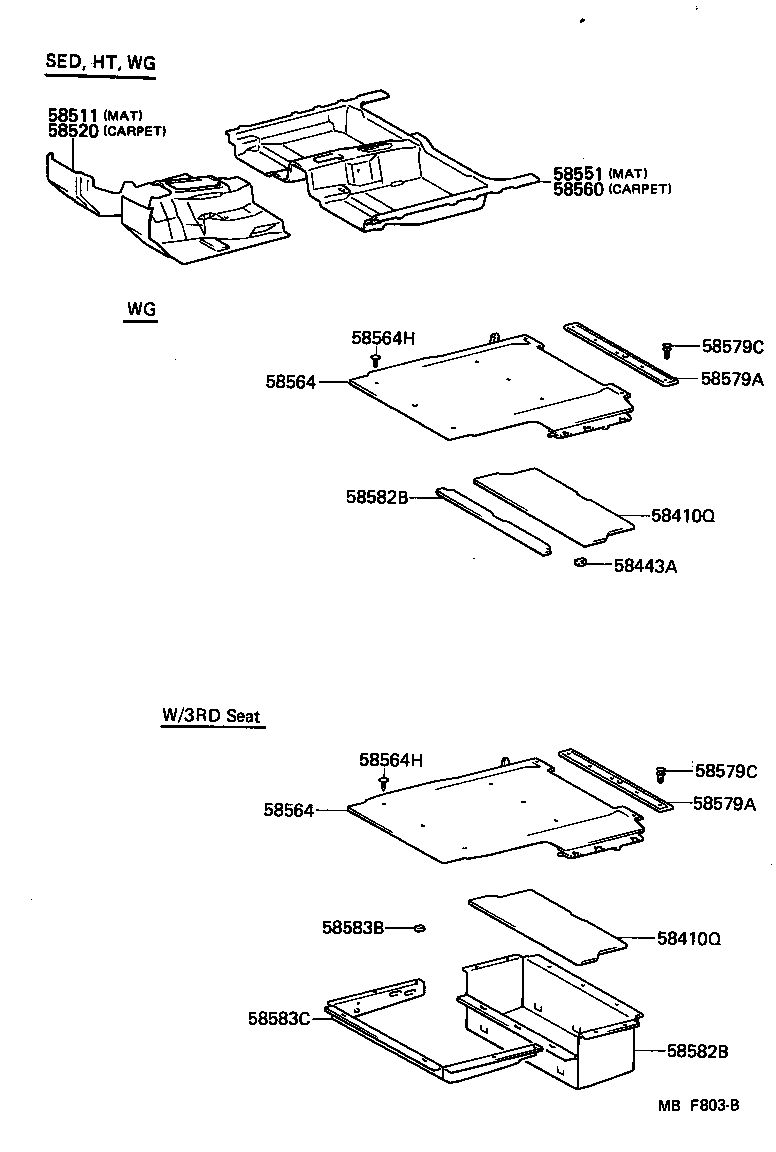

Figure MBF802 MBF802 1983-08 → — Figure MBF803B MBF803B 1983-08 → —

Part groups

PNCDescription
58410Q Board Assy, 3RD Seat Floor
58511 Mat, Floor, Front
58520 Carpet Assy, Front Floor
58551 Mat, Floor, Rear
58560 Carpet Assy, Floor, Rear
58564 Carpet, Rear Floor
58564H Clip(FOR REAR FLOOR CARPET)
58579A Set Plate, Rear Floor Carpet, NO.2
58579C Clip, Rear Floor Carpet Set
58582B Carpet, 3RD Seat Floor, NO.1
58583B Stopper, 3RD Seat Cushion(FOR FLOOR)
58583C Carpet, 3RD Seat Floor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
